Function and Operation of Peristaltic Pumps

Aug. 26, 2023

Share:

Chonry is the leading peristaltic pump manufacturer in China with 13 years of experience. The peristaltic pump can handle chemical fluids, viscous fluids, and liquid-containing suspended particles.

Peristaltic pumps can be divided into basic models and intelligent models.

 View Chonry Peristaltic Pump products  available to order online

Basic Peristaltic Pump

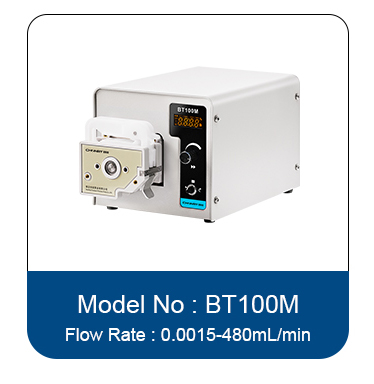

For basic peristaltic pumps with transmission functions, such as the M series, the required flow or speed and other parameters are generally set through the knob, and the 4-digit LED displays the current speed or flow.

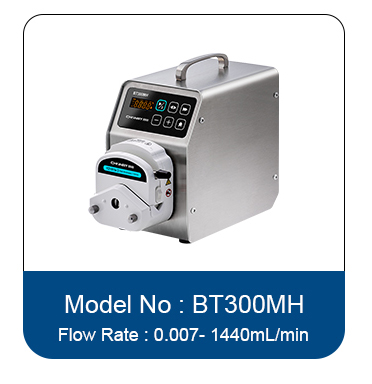

For the peristalsis of the MH series, the required flow or speed and other parameters are generally set by pressing the buttons, and the 4-digit LED displays the current speed or flow.



Function and Operation of Peristaltic PumpsFunction and Operation of Peristaltic PumpsFunction and Operation of Peristaltic Pumps

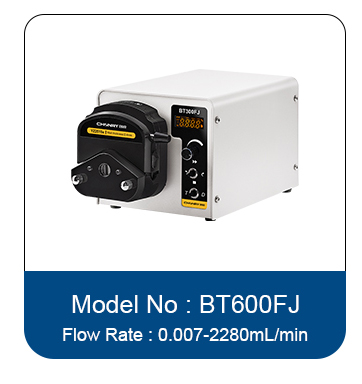

Peristaltic pumps with basic dispensing functions, such as the FJ series, not only have the transmission function, but also have the filling function, which can set the filling volume, filling time, filling times, interval time, and also set the parameters through the knob, 4 digits LED displays the current speed or flow. For FJ series peristaltic pumps, the filling time needs to be calculated according to the customer's flow requirements.

Basic peristaltic pumps have a calibration function. When setting the parameters of the pump head and tube of the basic peristaltic pump, it needs to be adjusted to the flow mode before operation.


Intelligent Peristaltic Pump

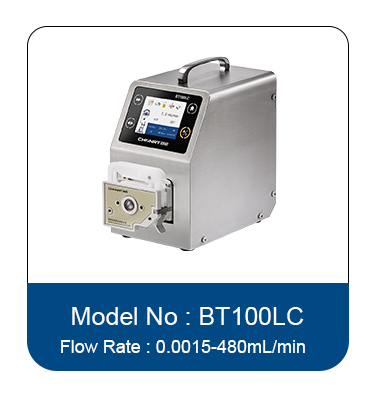

Intelligent peristaltic pumps with transfer function, such as the LC series, are equipped with a 3.5-inch color LCD screen, and parameters can be set through touch screen and membrane keys. It has the functions of transmission, timing, quantitative, timing quantitative, etc. It is a peristaltic pump with the most functional modes. It can follow up on the needs of customers to set the corresponding working mode.

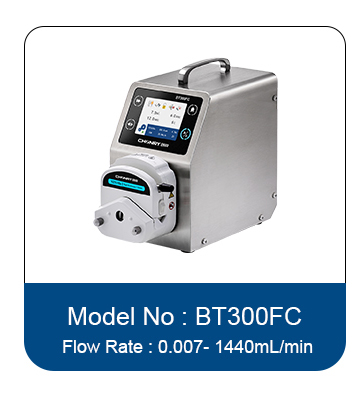

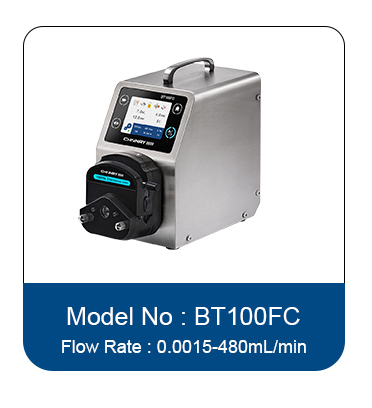

Peristaltic pumps with intelligent dispensing functions, such as the FC series, are also equipped with a 3.5-inch color LCD screen, and the parameters are also set through the touch screen and membrane buttons. They have two working modes of transmission and filling, which are convenient and quick to operate and can satisfy customers' different needs.

Intelligent peristaltic pump with the function of storing data. Customers can set several sets of commonly used filling parameters according to their own needs, up to 8 sets of data can be set. When you need to change the data parameters according to different needs, you can directly open the storage data interface on the touch screen, and check the required data parameters without resetting.

All peristaltic pumps support external control, and a foot switch will be provided when shipping. There are two modes for selection (pulse mode and level mode), which can be started and stopped by external control. In addition, it also supports analog control (4-20mA, 0-5V, 0-10V, three optional, but only one can be selected at a time) and RS485 communication protocol, which customers can choose according to their actual application to match the selection.



Function and Operation of Peristaltic PumpsFunction and Operation of Peristaltic PumpsFunction and Operation of Peristaltic Pumps

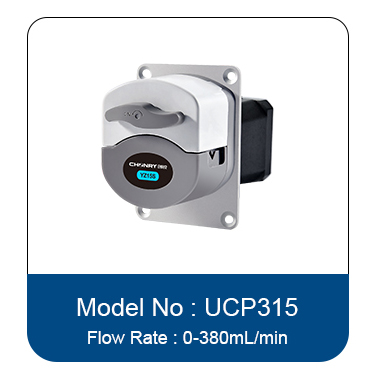

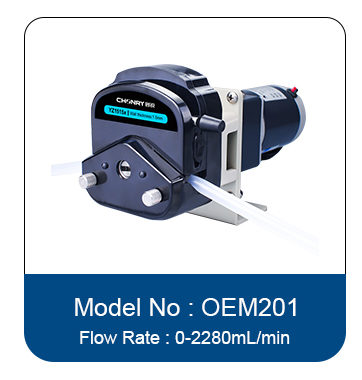

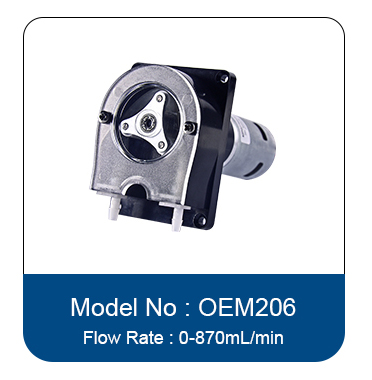

In addition to the whole pump, OEM peristaltic pumps can also be customized according to customer needs

The pump head, motor, driver, and control board can be matched and selected. Among them, the motor can also be divided into DC motor (DC12V and DC24V optional), AC motor (AC110V and AC220V optional), stepper motor (divided into short stepper motor and long stepper motor), servo motor, explosion-proof motor, turbo geared motor and synchronous motor, etc., can be selected according to the customer's application scenario. In addition, there are many types of pump heads and pump tubes. Different models can be selected according to the customer's liquid viscosity and corrosiveness, as well as flow requirements, and finally, customized products that can meet customer needs are matched. Moreover, customized peristaltic pumps can also be installed on the customer's existing equipment as part of the equipment to complete the work together.

Because OEM peristaltic pumps are affordable, full-featured, and can also be installed with embedded equipment, they are favored by many customers.



Function and Operation of Peristaltic PumpsFunction and Operation of Peristaltic PumpsFunction and Operation of Peristaltic Pumps
