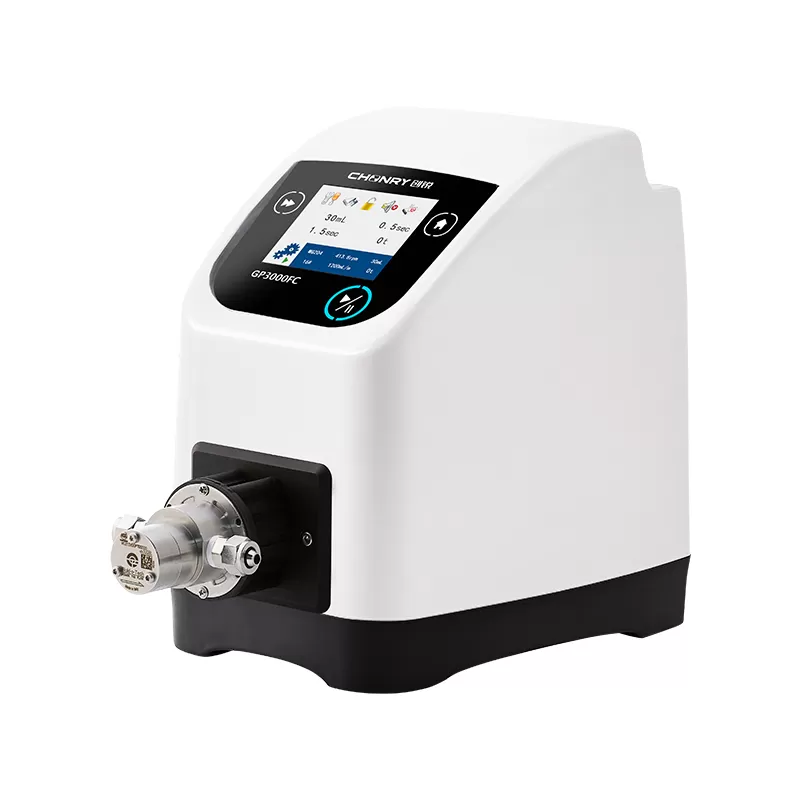

GP3000FC Smart Micro Gear Peristaltic Pump

ModelGP3000FC
Max Flow2700mL/min
Max Speed3000rpm
Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

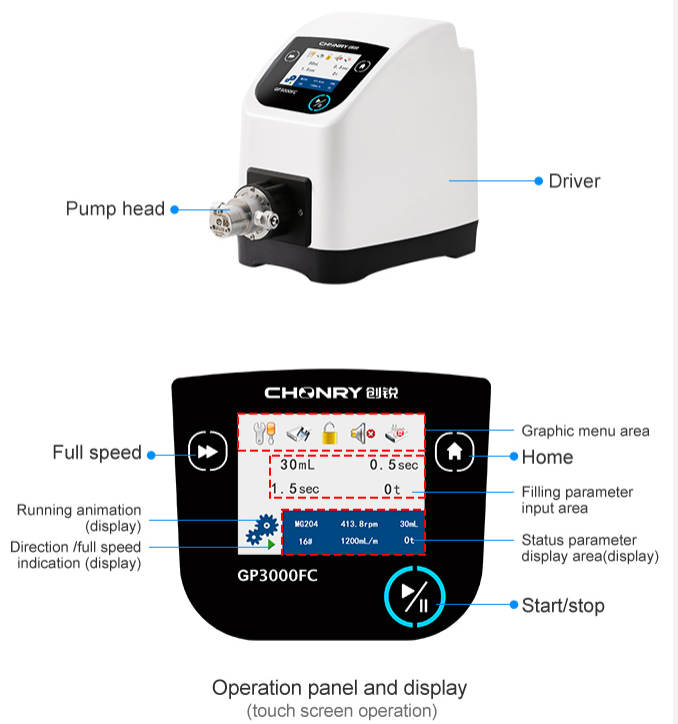

GP3000FC is a micro gear pump. The flow rate range is from 90 to 2700mL/min. It is mainly used for Laboratory research for precise fluid transfer.   GP3000FC adopts a 3.5-inch color LCD touchscreen display and a unique magnetic coupling design, which can accurately handle fluids without leakage/pollution/pulsation. It has two working modes of transmission and distribution. This micro gear pump achieves constant transferring fluid without pulsation and low noise.


Features and Benefits:

3.5-inch LCD display in Chinese and English, smart operation

9 sets of filling data can be stored for users

Full-speed function at the touch of a button for fast cleaning, filling and emptying of pipes

Support RS482/Modbus communication protocol, analog control, foot switch control

The flow calibration function reduces flow rate errors and ensures flow accuracy

Multiple modes, transferring and dispensing working models for option




Application:

Liquid transfer or circulation in the laboratory or industrial applications

- Pharmaceutical

- Cell culture

- PH control

- Nutrient transfer

Drive modelGP300FC
Max speed3000rpm
Running directionClockwise rotation
Max flow2700mL/min
Transfer Liquid Particle RestrictionParticle diameter≤10μm (pre-filter recommended)
Transfer liquid viscosity≤200cst
Transfer liquid temperaturePEEK gear: -45~120℃ PTFE gear: -45~50℃
Speed resolution1rpm
Speed modeTouch screen adjustment
Display methodColor LCD display (Chinese and English optional)
Power supplyAC220V±10% (Standard)or AC110V±10%(Optional)
Power<100W

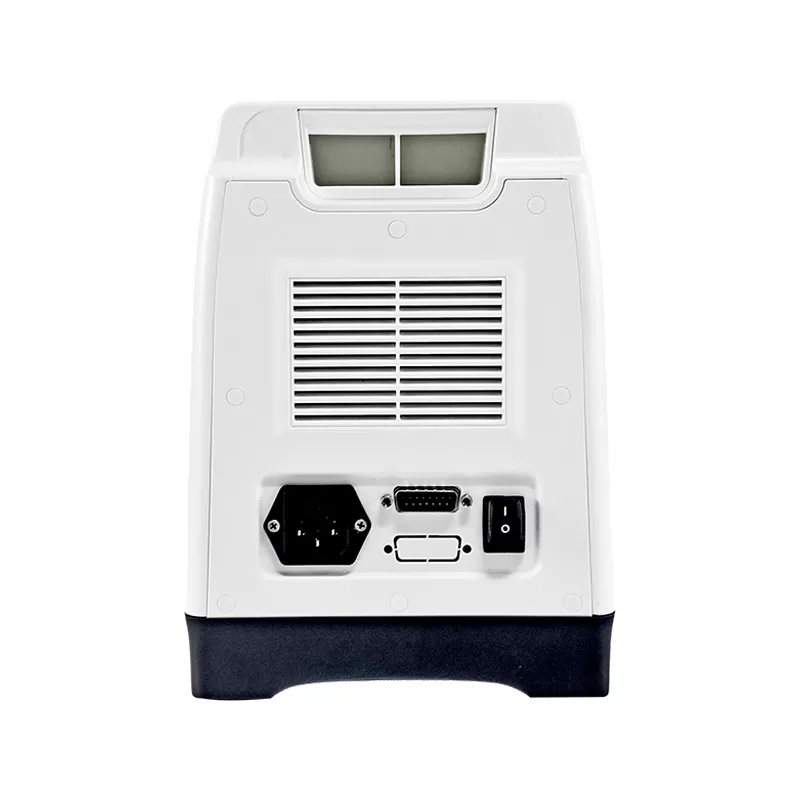

External control interfaceDB-15
External control methodStart control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication
Ambient temperature0-40℃
Drive weight4.2KG
Size330x186X251(mm)
Protection gradeIP31 (indoor use, avoid prolonged exposure to UV rays)

Pump Head Flow Parameter Table

Flow unit: (mL/min) Tube: ID*wall thickness(mm)

Pump HeadGear MaterialMax Speed(rpm)Max Flow(mL/min)Liquid Temperature(℃)Transmission Pressure(Mpa)
MG204XD0PT00000PEEK3000900-45~120≤0.8
PTFE3000900-45~50≤0.8
MG209XD0PT00000PEEK30001800-45~120≤0.8
PTFE30001800-45~50≤0.8
MG213XD0PT00000PEEK30002700-45~120≤0.3
PTFE30002700-45~50≤0.3
MS204XD0PT00000PEEK3000900-45~120≤1.4
PTFE3000900-45~50≤0.8
MS209XD0PT00000PEEK30001800-45~120≤0.9
PTFE30001800-45~50≤0.8
MS213XD0PT00000PEEK30002700-45~120≤0.8
PTFE30002700-45~50≤0.8


Pump Head\Tube19#(2.4*1.6)19#(3.1*1.6)19#(4.8*1.6)19#(6.4*1.6)19#(7.9*1.6)
MG204900mL/min900mL/min900mL/min900mL/min900mL/min
MG209900mL/min1800mL/min1800mL/min1800mL/min1800mL/min
MG213900mL/min1800mL/min2700mL/min2700mL/min2700mL/min
MS204900mL/min900mL/min900mL/min900mL/min900mL/min
MS209900mL/min1800mL/min1800mL/min1800mL/min1800mL/min
MS213900mL/min1800mL/min2700mL/min2700mL/min2700mL/min
