Chonry O (≤6000mL/min)
Home / Products / Peristaltic Pump / Chonry O (≤6000mL/min) / BT300MH Peristaltic Pump Sampling Ph Dosing Pump

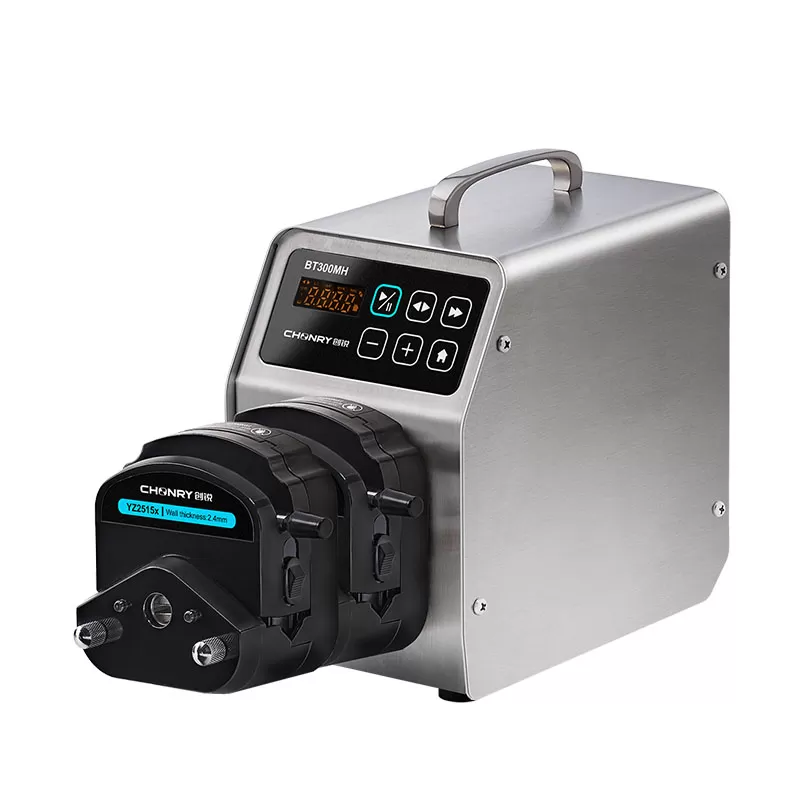

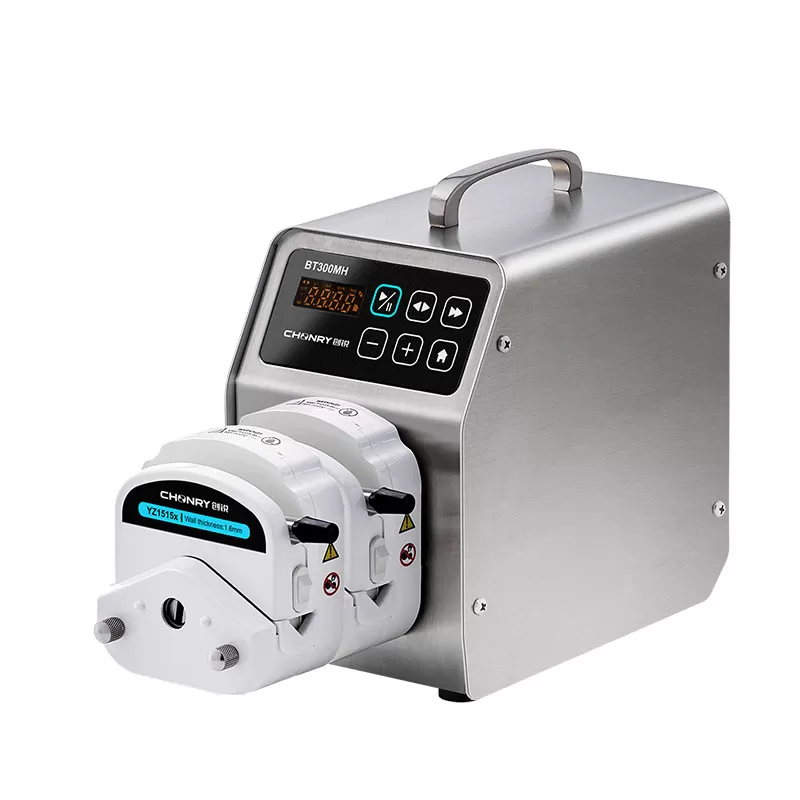

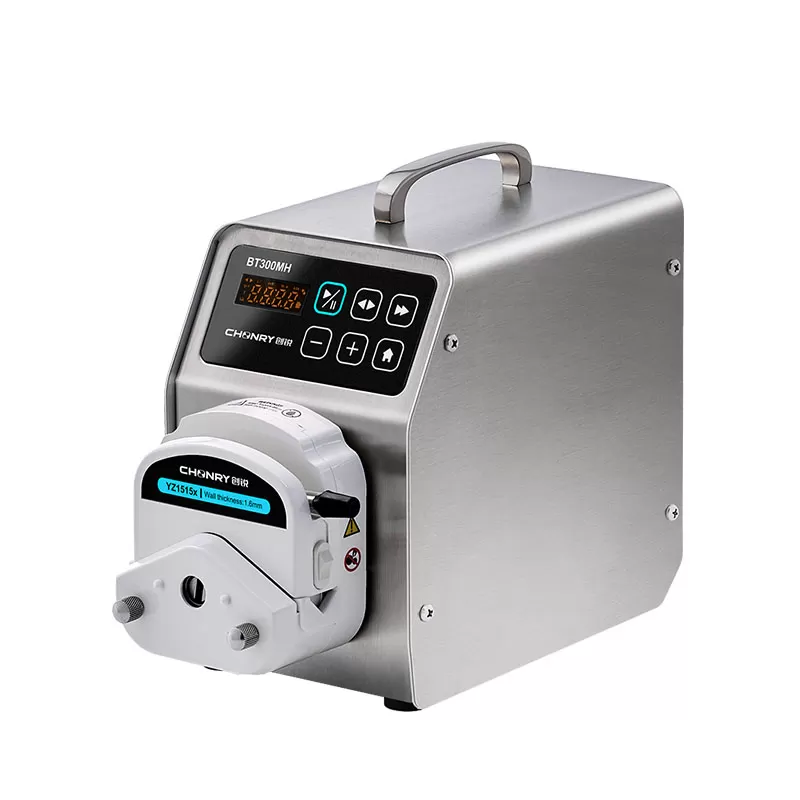

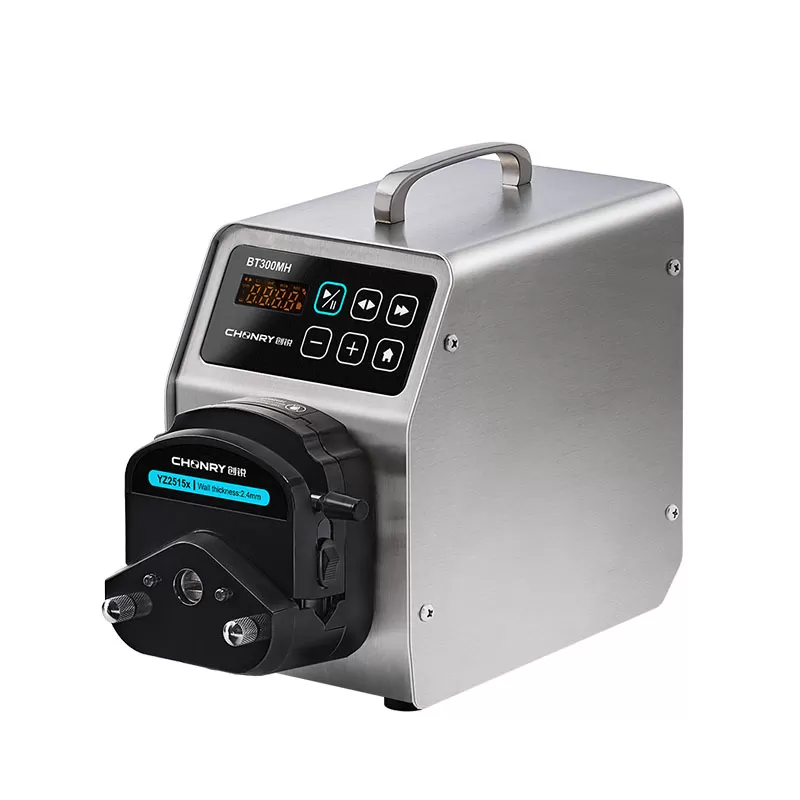

BT300MH Peristaltic Pump Sampling Ph Dosing Pump

Flow Rate: 0.007 to 1440mL/min

  •  Peristaltic Pump Sampling water treatment plant, Ph Dosing Pump.

  • Key operates, easy to operate. It has a unique flow calibration function to ensure precision flow.

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

BT300MH is a type of medium-flow peristaltic pump. The flow rate range is from 0.007 to 1440mL/min. It can be used for water treatment, chemical adding, and the medical industry. With a unique flow calibration function and power-off save function. Key operation peristaltic dosing pump. Easy to operate. Stainless shells, durable and corrosion resistant. Unique back suction anti-drip function, which can effectively prevent liquid from dripping. The BT300MH pump can be installed with YZ1515x, YZ2515x, TX315, and TX325.


Advantages:

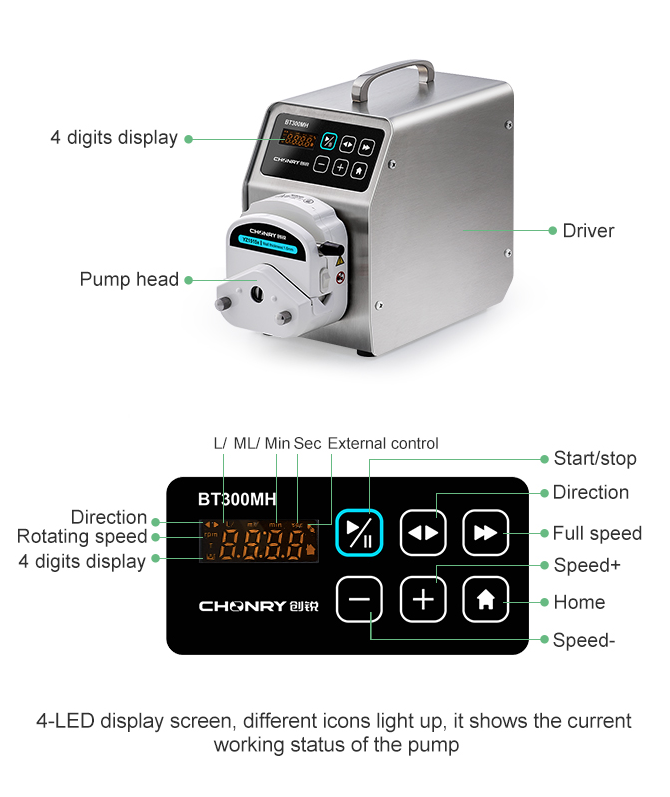

Easy to use: a simple appearance, key operation, intuitive interface

Power off save function: automatically save the control parameters when the last power failure

Clear interface: 4-digit led display flow or speed

One key full speed: features a convenient full-speed button for quickly filling or emptying the tube

External control function: support rs485/Modbus communication protocol, analog control, foot switch control

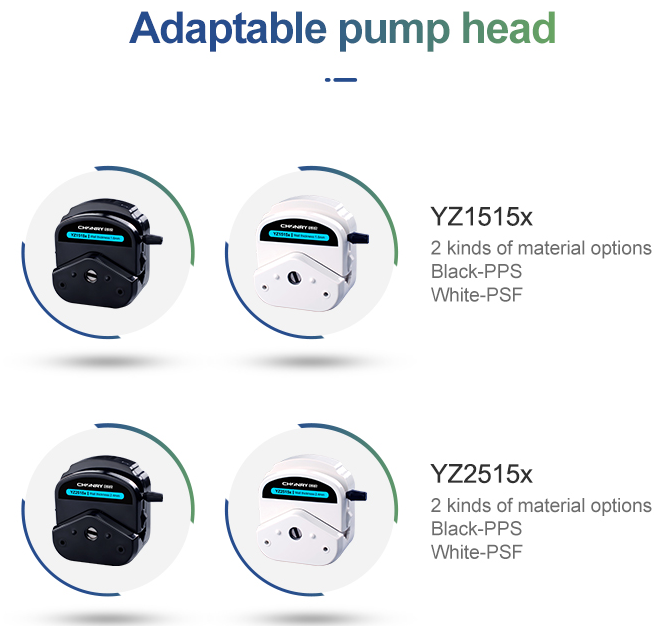

Adapt to multiple pump heads: The BT300MH pump can be installed with YZ1515x, YZ2515x, TX315, and TX325.


Application

It is used in universities and laboratories, water treatment sampling, chromatography liquid supply matching, industrial raw material addition, etc.

BT300MH Medium Flow Peristaltic Pump

Drive model: BT300MH

Max Speed: 300rpm(reversible)

Max Flow: 1440mL/min

Power: <35w

Speed mode: Membrane key speed regulation

Display method: 4-digit LED displays the current speed/flow

Suction angle: 10°-720°

Suction speed: 10-300rpm

Power supply: AC220V±10% (standard) or AC110V±10% (optional)

External control method: Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication

Drive weight: 3.98kg


Pump headModelMax Speed                                    Peristaltic Pump  Tube (ID*Wall thickness)mm
13#
(0.8*1.6)
14#
(1.6*1.6)
19#
(2.4*1.6)
16#
(3.1*1.6)
25#
(4.8*1.6)
17#
(6.4*1.6)
18#
(7.9*1.6)
YZ1515XBT300MH30021811532465108701140
YZ15m30021811532465108701140
YZ151ma30021811532465108701140

15#(4.8*2.4)24#(6.4*2.4)
YZ2515XBT300MH300510870

14#(1.6*1.6)16#(3.1*1.6)25#(4.8*1.6)
ZN15BT300MH300
81
246
510

24#(6.4*2.4)
ZN25
BT300MH300870


Flow unit: (mL/min) hose model: (mm)

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chuangrui Company.

BT300MH Medium Flow Peristaltic Pump
