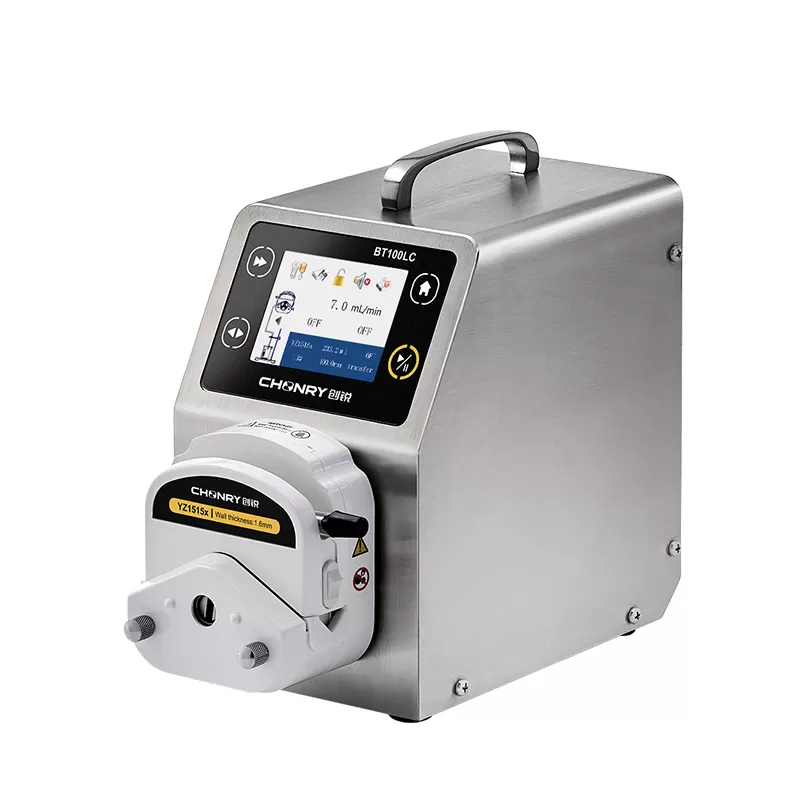

BT100LC Intelligent Peristaltic Pump for Sale

Flow Rate: 0.0015-480mL/min

- Intelligent  peristaltic pump.

- Multi-working model: transmission mode, timing mode, Quantitative mode, timed quantitative mode.

- It is widely used in the medical industry,  chemical liquid transferring, and battery-reducing fluid. If you want a peristaltic pump, contact us for the best price.

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

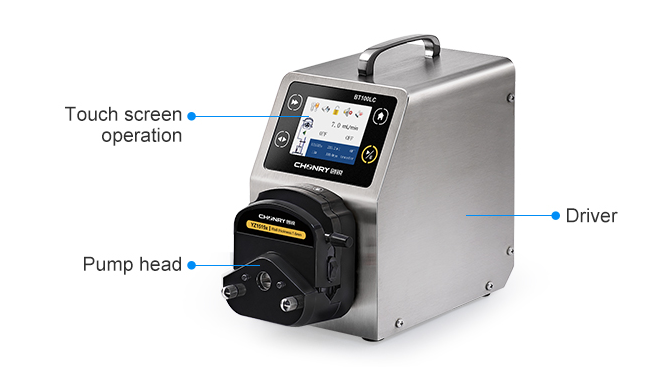

BT100LC is a type of intelligent peristaltic pump. The flow rate range is from 0.0015 to 480mL/min. It is widely used in the medical industry and chemical liquid transferring. Powerful functions micro fluid filling and transmission. The stainless steel all-inclusive design is sturdy and durable. It adopts 3.5-inch color LCD screen and easy touch operation. The intuitive screen displays the transmission status, flow data, setting parameters, and transmission direction with animation on the same screen. If you want a peristaltic pump, contact us for the best price.


Features:

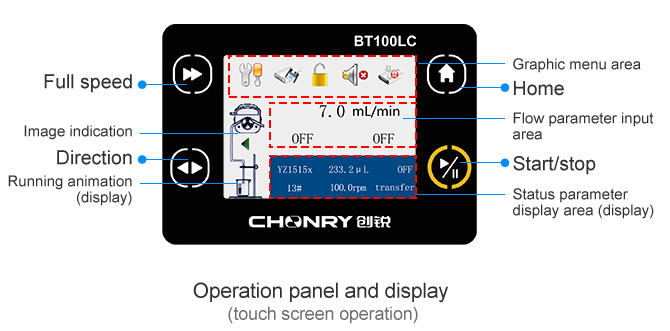

LCD touch: 3.5-inch color LCD, touch screen control, simple to operate.

Flow calibration: With the flow calibration function, it is suitable for transferring liquids with higher precision

Data storage: 8 sets of data can be stored for users

Multiple working modes: Transmission mode, timing mode, Quantitative mode, timed quantitative mode

Adapt to multiple pump heads: YZ, DG, and TX series pump heads can be installed, and pump heads can be cascaded.

Support external control: Support RS485/MODBUS communication protocol, analog control, foot switch control

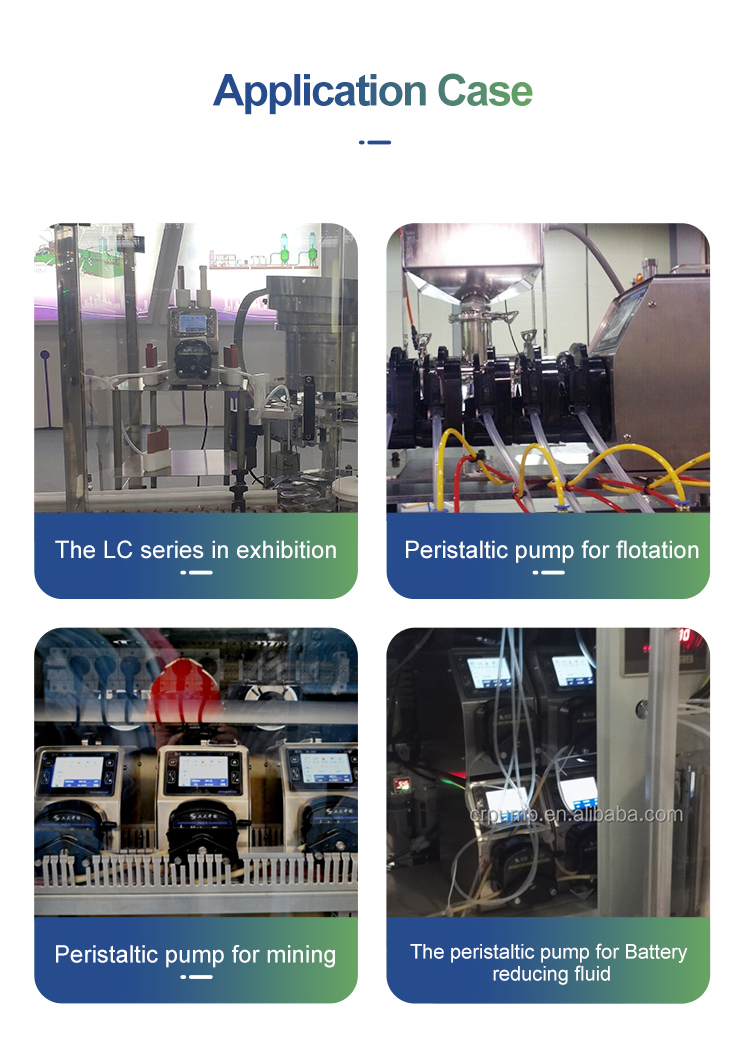

Application

They are used in laboratories, biopharmaceuticals, printing, mineral processing and other fields.

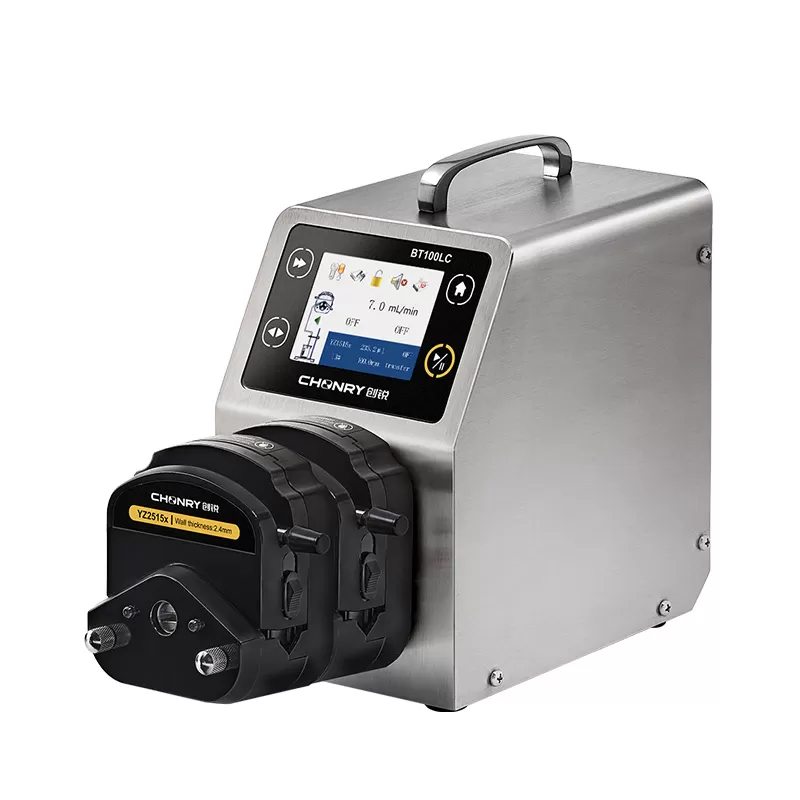

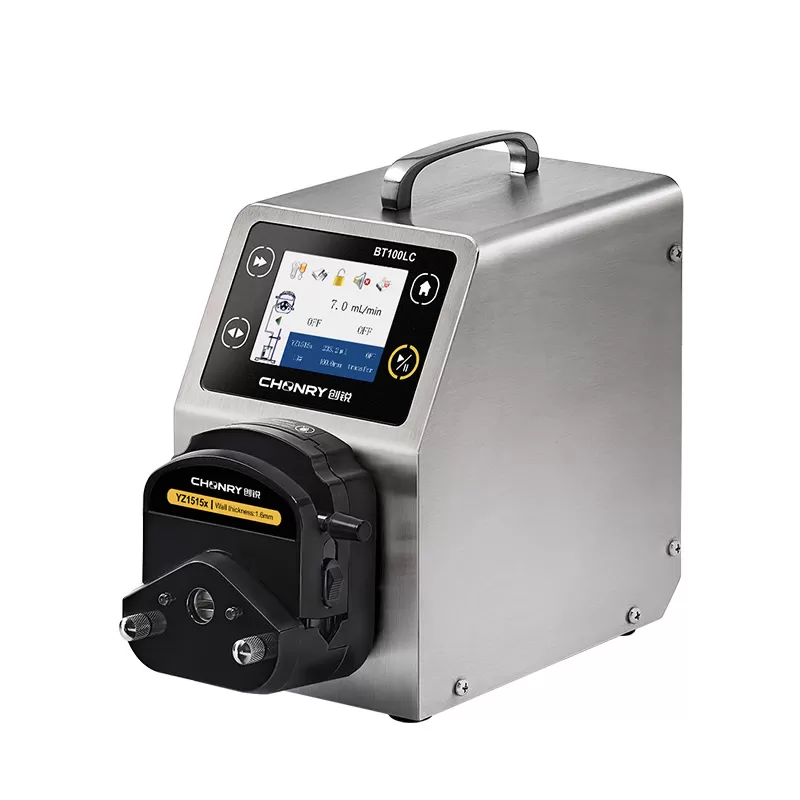

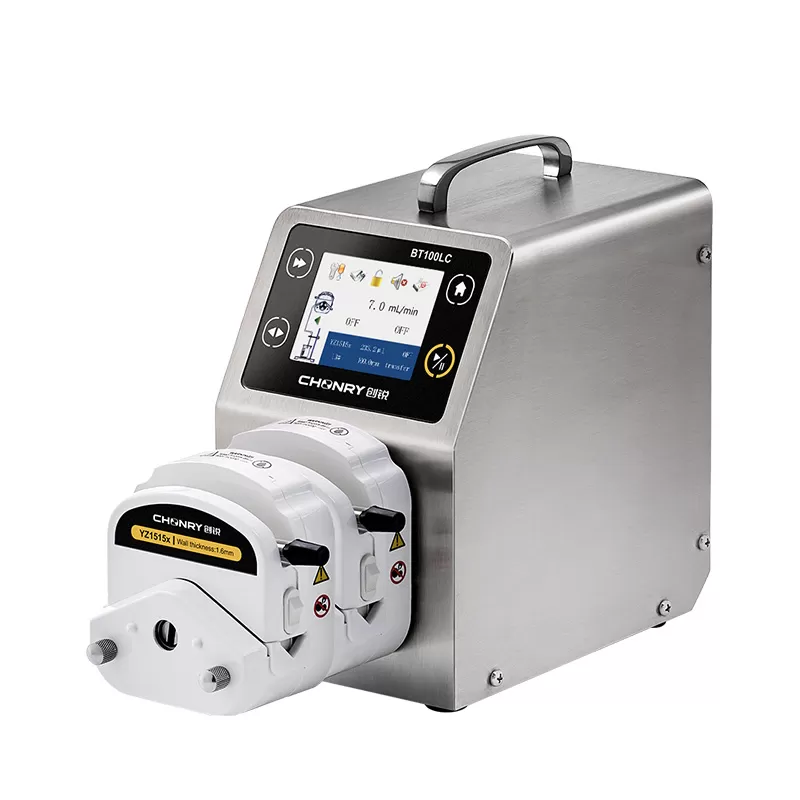

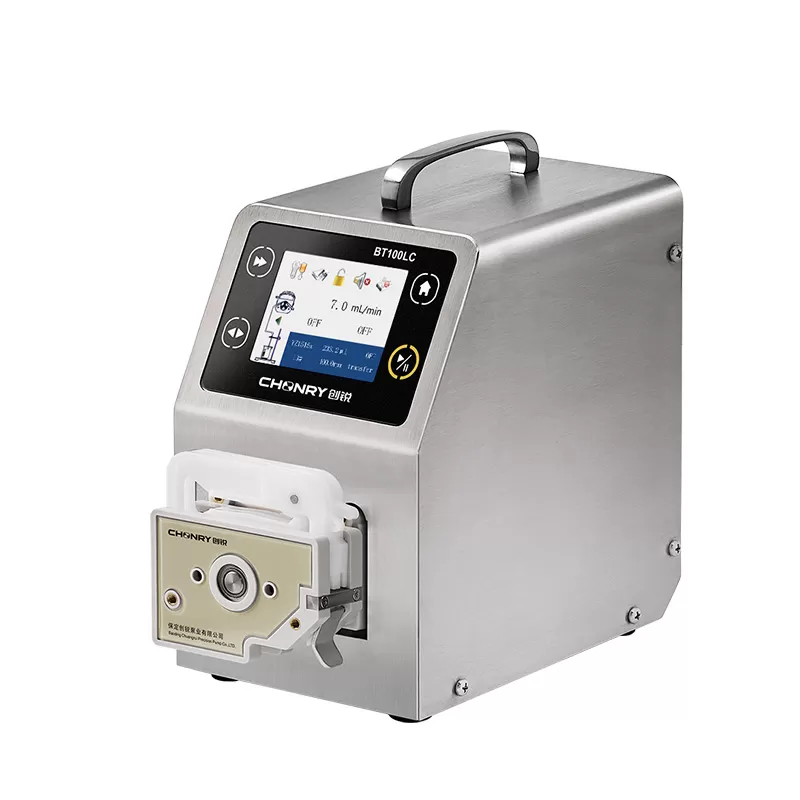

BT100LC Small Peristaltic Pump

BT100LC Small Peristaltic Pump



Drive modelBT100LC
Max Speed100rpm(reversible)
Max flow480mL/min
Speed resolution0.1rpm
Display methodColor LCD (EN and CN optional)
Speed modeTouch screen adjustment
Timing range0.1s-9999min
Quantitative range 0.001mL-9999L
Buck suction angle10°-720° (0° means no back suction)
Buck suction speed10-100rpm

Power

<22W
Drive size215*136.4*236.7mm
Drive Weight4.64kg
Power supplyAC220±10% (standard) or AC110V±10% (optional)
External control methodStart control/direction control/speed control (0-5V, 0-10V, 4-20mA optional)


Pump headModelMax Speed(rpm)         Peristaltic Pump Tubing (ID*Wall thickness)mm
13#
(0.8*1.6)
14#
(1.6*1.6)
19#
(2.4*1.6)
16#
(3.1*1.6)
25#
(4.8*1.6)
17#
(6.4*1.6)
18#
(7.9*1.6)
YZ1515XBT100LC

1007275182170290380
YZ15m1007275182170290380
YZ15ma1007275182170290380

15#(4.8*2.4)24#(6.4*2.4)
YZ2515XBT100LC100170290

0.5*0.81*12*12.4*0.83*1
DGBT100LC100(10)1.54131727
DG100(6)26192436

14#(1.6*1.6)16#(3.1*1.6)25#(4.8*1.6)
ZN15BT100LC1002782170

24#(6.4*2.4)
ZN25BT100LC100290


Flow unit: (mL/min) hose model: (mm)

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chuangrui Company.
