UCP Peristaltic Pump
Home / Products / OEM Peristaltic Pump / UCP Peristaltic Pump / UCP315/YZ15S Stepper Motor Peristaltic Pump

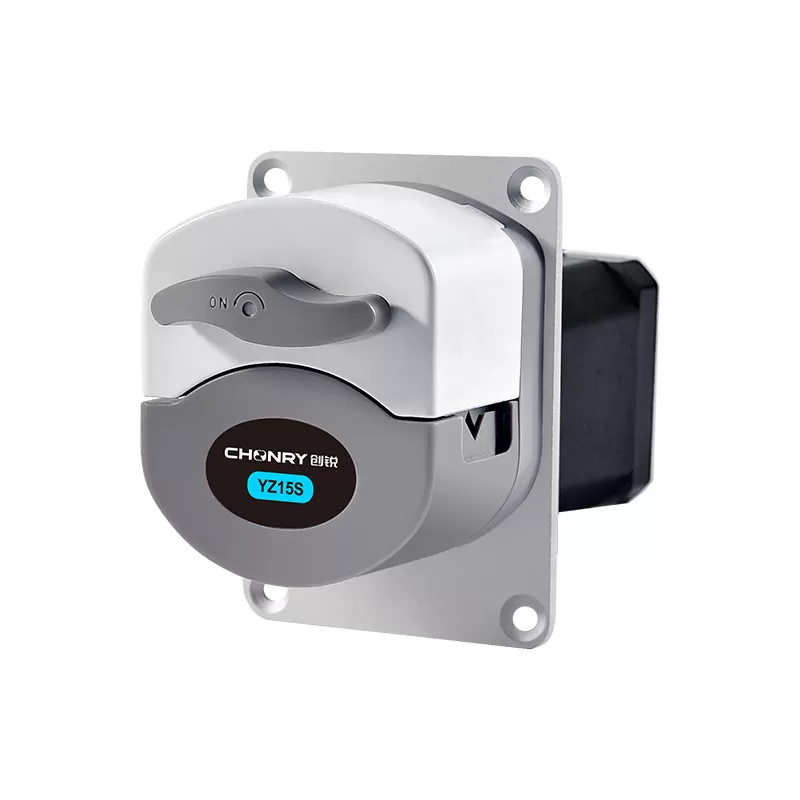

UCP315/YZ15S Stepper Motor Peristaltic Pump


ModelUCP315
Max FlowYZ15S-1: 380mL/min

YZ15S-2: 185mL/min/channels
Max Speed300rpm



Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

UCP315 peristaltic pumps adopt YZ15S pump heads and stepper motors. And they are designed for liquid transfer with high precision. It is small in size and beautiful in appearance. And the shell is made of special engineering plastics, which improves the service life of the peristaltic pump head. YZ15S series peristaltic head adopts special tubing kits that ensure a stable flow rate and reduce the flow pulsation. Besides, it can be matched with various types of motors and support OEM customization.


Features and Benefits:

Stable and accurate flow, specialize in small flow

Small size and lightweight, compact structure design

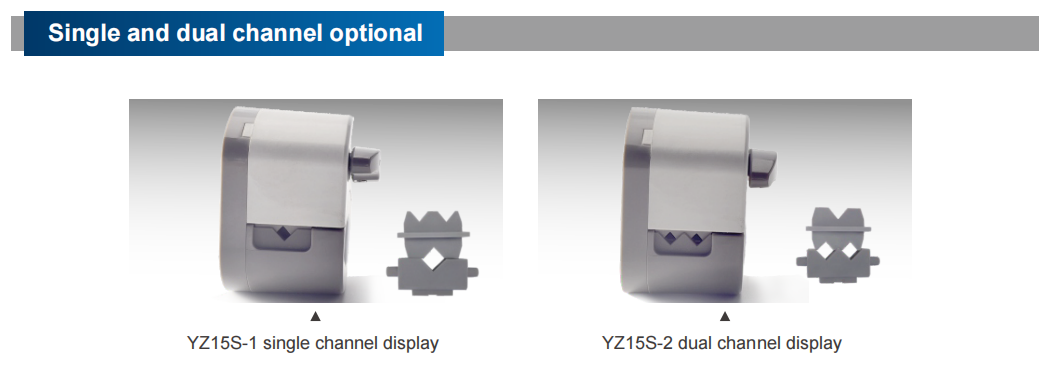

Multi channels for options, single or dual channels are available

Easy hose loading and unloading

Knob switch design, easy to operate

Supporting various types of hoses and motors


Applications:

Used in dental implanters, fermenters, supporting analytical instruments, packaging of diagnostic reagents, etc.




UCP315/YZ15S Peristaltic Pump


Pump HeadChannelsRollersMax Speed (rmp)Hose Specifications(Id*Wall Thickness)mmMax Flow(mL/min)
  YZ15S-1  1  3  30013#/0.8X1.6  380
14#/1.6X1.6
19#/2.4X1.6
16#/3.2X1.6
25#/4.8X1.6
  YZ15S-2  2  3  30013#/0.8X1.6  185/channels
14#/1.6X1.6
19#/2.4X1.6
16#/3.2X1.6




UCP315/YZ15S Peristaltic Pump

Pump HeadModelMotorMax SpeedMax Flow(mL/min)
13#14#19#16#25#
  YZ15S-1 UCP315-A2Stepper30014.454116185380
UCP315-A1Stepper30014.454116185380
   YZ15S-2 UCP315-A2Stepper30014.454116185
UCP315-A1Stepper30014.454116185

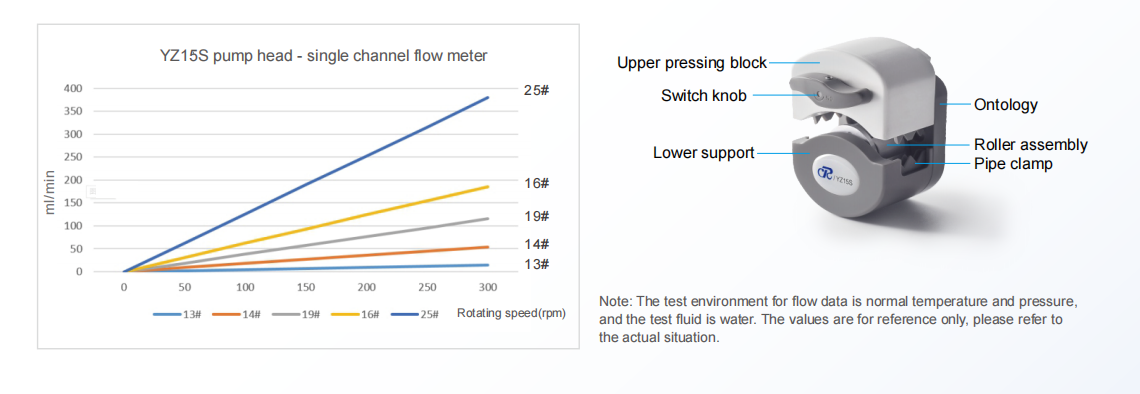

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.
