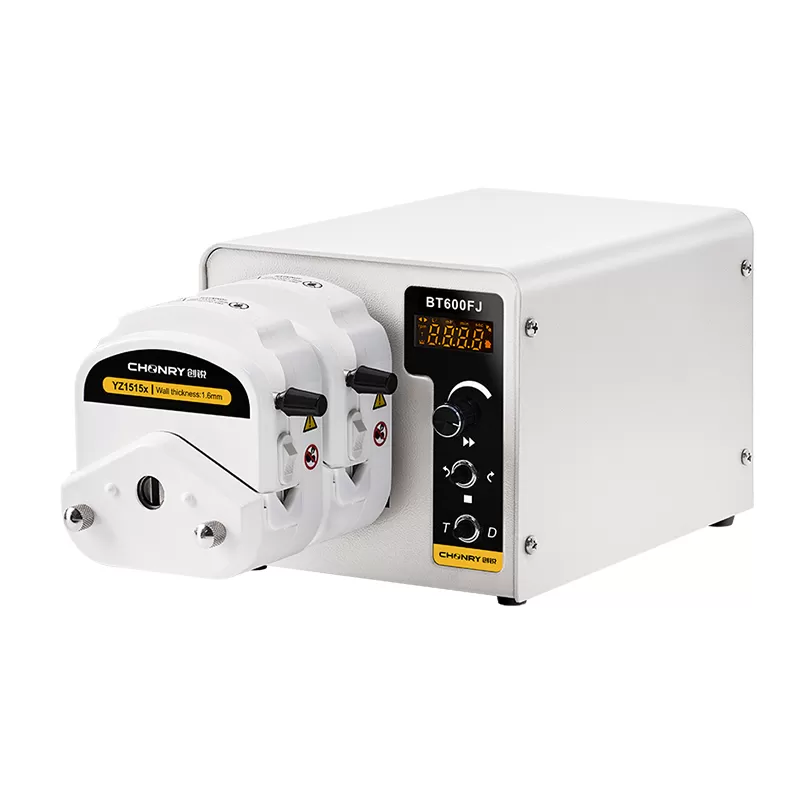

BT600FJ Adjustable Peristaltic Pump Large Flow

Flow Rate: 0.007-2280mL/min


- BT600FJ adjustable peristaltic pump with a large flow rate. 2280mL/min.

- This large peristaltic pump has two working models of dispensing and transferring. Easy knob operation

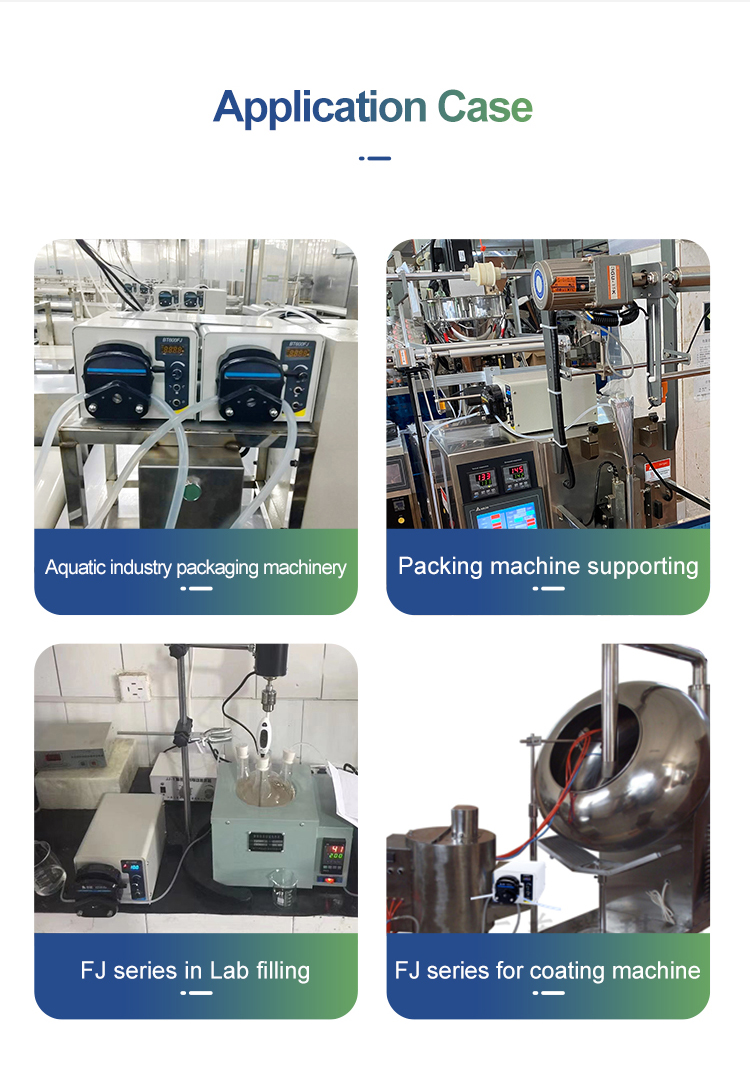

- Applied for aquatic industry packaging machinery, packing machine supporting, Laboratory liquid filling and coating machine.

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

BT600FJ is a high-flow peristaltic dosing pump. The flow rate is from 0.007 to 2280mL/min. This large peristaltic pump has two working models of dispensing and transferring. The smart flow rate calibration function ensures accuracy and high precision. The BT600FJ has a back suction function to prevent the liquid from dripping. It can be used for the food industry, the mining industry transferring abrasive slurry, and the chemical industry transferring of corrosive and abrasive chemicals.

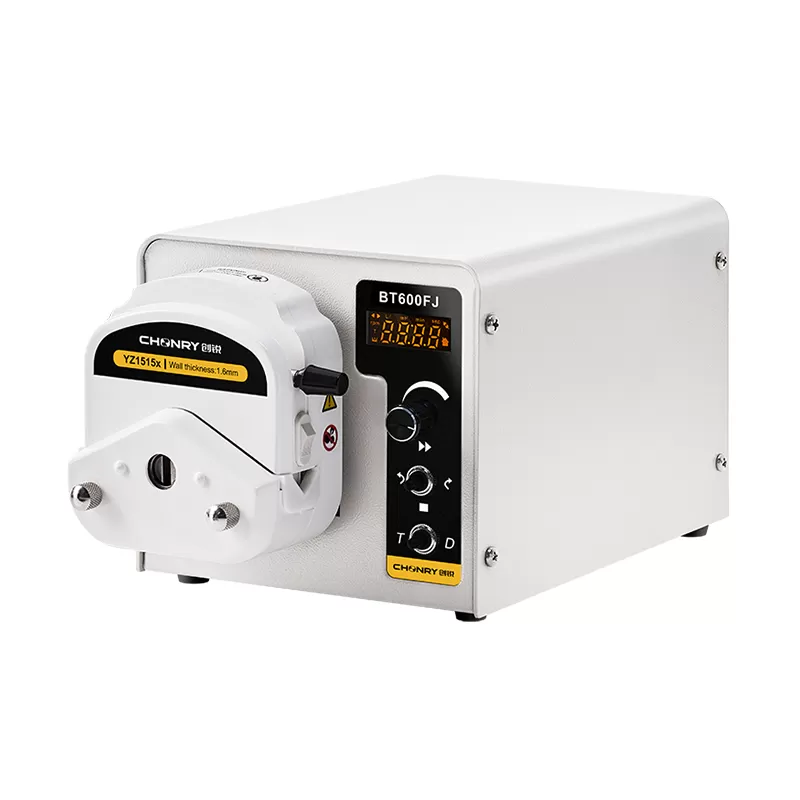

BT600FJ High Flow Peristaltic PumpBT600FJ High Flow Peristaltic Pump

Specification

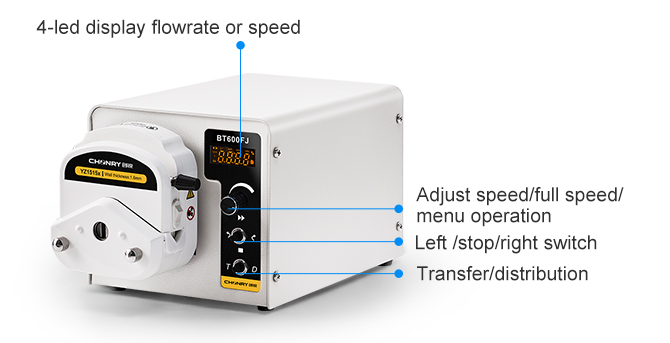

Multiple modes: Provides distribution and transfer modes for ease of use

Power off save: This can automatically save the control parameters when the last power failure

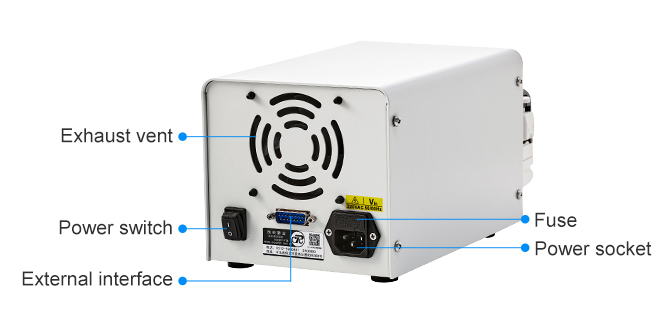

External control function: Support RS485/MODBUS communication protocol, analog control, foot switch control

Suction function: In dispensing mode, the pump can be customized to reverse after shutdown to prevent liquid dripping

Full speed function: Full speed at the push of a knob for quick emptying or filling of pump tubing

Adapt to multiple pump heads:  YZ series, TX series, DG series and other pump heads can be installed to meet different flow requirements


Application

 It can be used for the food industry, the mining industry transferring abrasive slurry, and the chemical industry transferring of corrosive and abrasive chemicals.


BT600FJ Adjustable Peristaltic Pump Large Flow


BT600FJ Adjustable Peristaltic Pump Large Flow


Drive modelBT600FJ
Max speed600rpm(reversible)
Max flow2280mL/min
Speed resolution0.1rpm
Speed modeDigital knob adjusts the speed
Display method4-digit LED displays current speed/flow
Timing range0.1s-9999min
Quantitative range0.001ml-9999L
Filling times0-9999t
Suction angle10°-720°(0° means no bacj suction)
Suction speed10-300rpm
Power<50W
Drive sizes263x184x147.7mm
Drive weight4.8kg
Power supplyAC220±10% (standard) or AC110V±10% (optional)
External control methodStart control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication



Pump headModelMax SpeedTube Mode(ID* Wall thickness)mm
13#
(0.8*1.6)
14#
(1.6*1.6)
19#
(2.4*1.6)
16#
(3.1*1.6)
25#
(4.8*1.6)
17#
(6.4*1.6)
18#
(7.9*1.6)
YZ1515XBT600FC

60042162306492102017402280
YZ15m60042162306492102017402280
YZ15ma60042162306492102017402280

15#(4.8*2.4)24#(6.4*2.4)
YZ2515XBT600FC60010201740

14#(1.6*1.6)16#(3.1*1.6)25#(4.8*1.6)
ZN15BT600FC6001624921020

24#(6.4*2.4)
ZN25BT600FC6001740




Flow unit: (mL/min) hose model: (mm)


Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chuangrui Company.
