Microfluid Filling Machine Peristaltic Pump Manual Operation Liquid Dispensing

Apr. 19, 2024


Customer Demand

1. Quantitative filling and dispensing of fluids in the food industry.

2. One-time loading is 10ml, 20ml, 50ml, 100ml, and 500ml, the required output is 9600 bottles a day, and the production time is 8 hours a day.

3. The liquid has a certain consistency, similar to milk.

4. It is required to install a quick-operating twist, one bottle at a time.

5. The pump tubing must have the corresponding food-grade certification such as FDA.


1. Microliquid filling requires a quantitative and timed function. So we recommend Chonry distribution type products, with automatic timing and quantitative function - FC series peristaltic pump.

2. The user's liquid filling volume range is wide, from 10ml to 500ml. So we suggest the customer high precision liquid filling pump BT600FC and large flow batch liquid filling peristaltic pump SG600FC. The flow rate of BT600FC is 2280ml/min while the SG600FC is 12l/min. Meeting the different flow rate requirements.  High-precision liquid dispensing and easy manual operation.

3. The pump outlet can be connected with matching filling needles and other products to reduce liquid dripping and improve product transmission accuracy effectively.

Generate Value:

1. Effectively improve the liquid transferring accuracy, the peristaltic pump distributes the liquid volume, the repeatability accuracy is ≤ 2%, and the laboratory syringe pump stroke control error is ≤ 0.5%.

2. Avoid cross-contamination of fluid during transmission. When the peristaltic pump transmits fluid, the fluid only contacts the peristaltic pump tubing. By replacing the tube, the same pump can transport different kinds of fluids, and there is no cross between the fluids. The peristaltic pump tube is medical and certified by the FDA.

3. It can be operated online with external control devices such as a foot switch. The peristaltic pump has various control modes, which can control the running state of the pump through RS485 communication control or analog signal control mode, so it can integrate automatic control system with other equipment in the laboratory.

4. Chonry large flow rate liquid dispensing pump SG600FC adopts a simple servo motor, the ratio is 0.1 rpm, the number of revolutions can be adjusted from 0.1-600 rpm, and the subdivision number is ten times that of the same period in the industry.

5. Chonry peristaltic pump can be distributed free of charge with computer operation test software, which can directly control the start and stop and speed of the peristaltic pump through the computer.

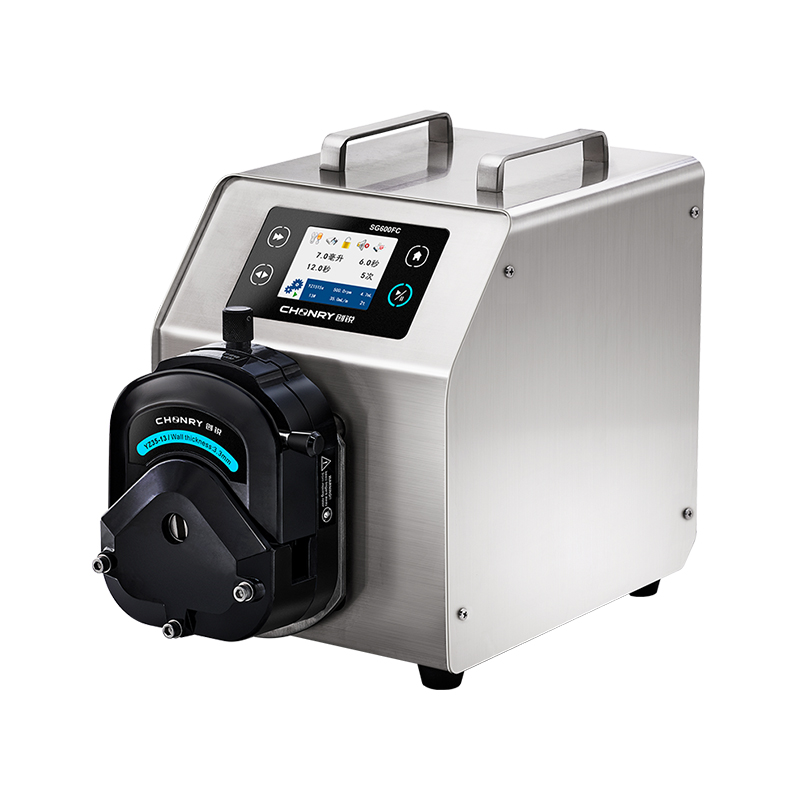

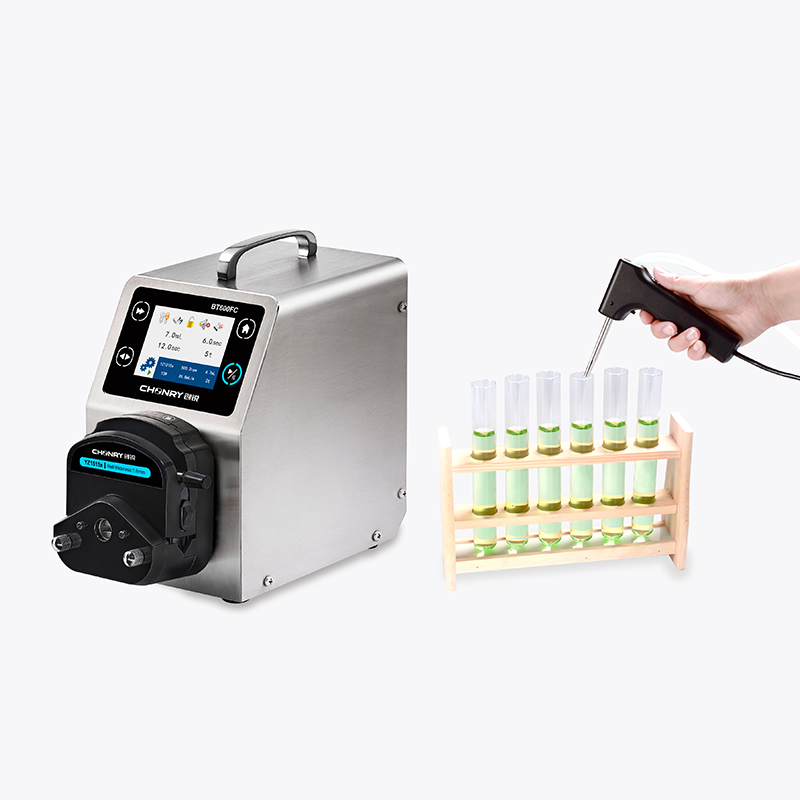

High Precision Liquid Filling Pump BT600FCLarge Flow Batch Liquid Filling Peristaltic Pump SG600FC
