Good sealing performance, reverse flow of fluid, low maintenance cost, and can be used with other equipment.
Support user customization, mature processing technology, high production capacity, and can be mass-produced.
Color touchscreen operation can realize batch filling, and the number of control units can be expanded.
The R&D team can carry out customized development according to different design schemes.
LCD touch screen, which can realize high-precision, smooth and pulsation-free liquid transmission.
Targeted production of products according to market demand, including adding pumps, gear pumps, etc.
Provide peristaltic pump hose options, such as platinum vulcanized silicone hose, the hose for cell research, etc.
The peristaltic tube is an important part of liquid infusion. Chonry is a top peristaltic pump manufacturer in China and also supplies various types of peristaltic pump tubing.

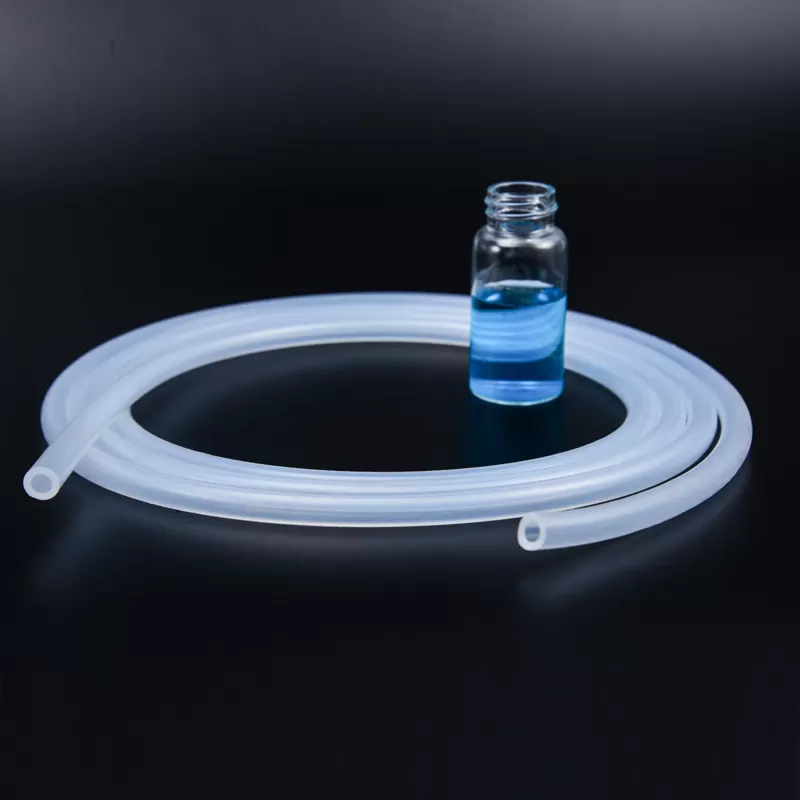

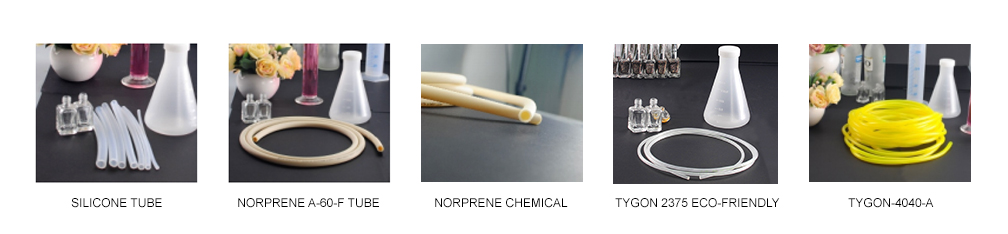

Silicone Tube
- High temperature resistant, corrosion resistant, low adsorption
- With good elasticity, the hose can quickly recover its shape after being compressed
- Ultra-smooth inner wall, reducing the adsorption of particles
- Good air tightness, no leakage, no expansion

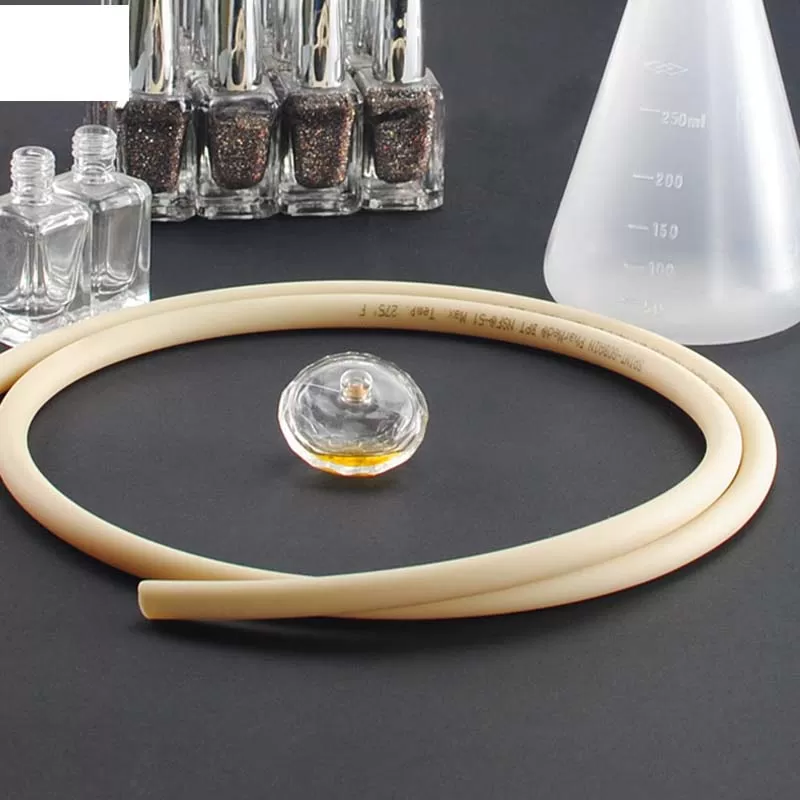

Norprene A-60-F tube, Food Grade
- Rubber hose, food grade. High temperature resistance, -51℃-135℃
- Non-toxic, tasteless, approved with the US FDA, 3-A and NSF standards
- Long life service up to 2000 hours
- Resistant to most general-purpose cleaning agents and disinfectants, less brittle
- Excellent wear resistance.
Norprene Chemical Tube, Corrosion Resistant
- Made of Teflon material, smooth surface, resists liquid absorption
- Long life service and wear-resistant, ideal transfer strong corrosive fluids such as acids, alkalis and alcohols.
Tygon 2375 Eco-friendly
- Excellent chemical resistance, handle methyl ethyl ketone and strong corrosive chemicals
- No plasticizer, no precipitated particles
- Low adsorption, ensure the complete passage of fluid
- Comply with USP class VI, FDA and NSF standards.
Tygon F-4040 - A
- Can withstand most petrochemical products, not brittle, not swollen;
- Anti-ozone and UV rays
- Suitable for transporting gasoline, diesel oil, heating oil, cutting compound oil and ethylene glycol refrigerant
Specification | ID(mm) | Wall thickness (mm) | OD (mm) | Pump Head |
13# | 0.8 | 1.6 | 4 | YZ1515X |
TH15 | ||||
WP300 | ||||
14# | 1.6 | 1.6 | 4.8 | YZ1515X |
TH15 | ||||
WP300 | ||||
19# | 2.4 | 1.6 | 5.6 | YZ1515X |
TH15 | ||||
WP300 | ||||
16# | 3.1 | 1.6 | 6.3 | YZ1515X |
TH15 | ||||
WP300 | ||||
25# | 4.8 | 1.6 | 8 | YZ1515X |
TH15 | ||||
WP300 | ||||
17# | 6.4 | 1.6 | 9.6 | YZ1515X |
WP300 | ||||
18# | 7.9 | 1.6 | 11.1 | YZ1515X |
73# | 9.6 | 3.3 | 16.2 | YZ35-13 |
YZ35 | ||||
82# | 13 | 3.3 | 19.6 | YZ35-13 |
YZ35 | ||||
0.5*0.8 | 0.5 | 0.8 | 2.4 | DG Series |
1*1 | 1 | 1 | 3 | DG Series |
WP110 | ||||
WP110 | ||||
2*1 | 2 | 1 | 4 | DG Series |
WP110 | ||||
WP110 | ||||
2.4*0.8 | 2.4 | 0.8 | 4 | DG Series |
3*1 | 3 | 1 | 5 | DG Series |
15# | 4.8 | 2.4 | 9.6 | YZ2515X |
KZ25 | ||||
LP25-6 | ||||
24# | 6.4 | 2.4 | 11.2 | YZ2515X |
KZ25 | ||||
LP25-6 | ||||
35# | 7.9 | 2.4 | 12.7 | KZ25 |
LP25-6 | ||||
36# | 9.6 | 2.4 | 14.4 | KZ25 |
LP25-6 | ||||
92# | 25.4 | 4.8 | 35 | KZ50 |
Specification | ID(mm) | Wall thickness (mm) | OD (mm) | Pump Head |
13# | 0.8 | 1.6 | 4 | YZ1515X |
TH15 | ||||
WP300 | ||||
14# | 1.6 | 1.6 | 4.8 | YZ1515X |
TH15 | ||||
WP300 | ||||
19# | 2.4 | 1.6 | 5.6 | YZ1515X |
TH15 | ||||
WP300 | ||||
16# | 3.1 | 1.6 | 6.3 | YZ1515X |
TH15 | ||||
WP300 | ||||
25# | 4.8 | 1.6 | 8 | YZ1515X |
TH15 | ||||
WP300 | ||||
17# | 6.4 | 1.6 | 9.6 | YZ1515X |
WP300 | ||||
18# | 7.9 | 1.6 | 11.1 | YZ1515X |
73# | 9.6 | 3.3 | 16.2 | YZ35-13 |
YZ35 | ||||
82# | 13 | 3.3 | 19.6 | YZ35-13 |
YZ35 | ||||
0.5*0.8 | 0.5 | 0.8 | 2.4 | DG Series |
1*1 | 1 | 1 | 3 | DG Series |
WP110 | ||||
WP110 | ||||
2*1 | 2 | 1 | 4 | DG Series |
WP110 | ||||
WP110 | ||||
2.4*0.8 | 2.4 | 0.8 | 4 | DG Series |
3*1 | 3 | 1 | 5 | DG Series |
15# | 4.8 | 2.4 | 9.6 | YZ2515X |
KZ25 | ||||
LP25-6 | ||||
24# | 6.4 | 2.4 | 11.2 | YZ2515X |
KZ25 | ||||
LP25-6 | ||||
35# | 7.9 | 2.4 | 12.7 | KZ25 |
LP25-6 | ||||
36# | 9.6 | 2.4 | 14.4 | KZ25 |
LP25-6 | ||||
92# | 25.4 | 4.8 | 35 | KZ50 |
