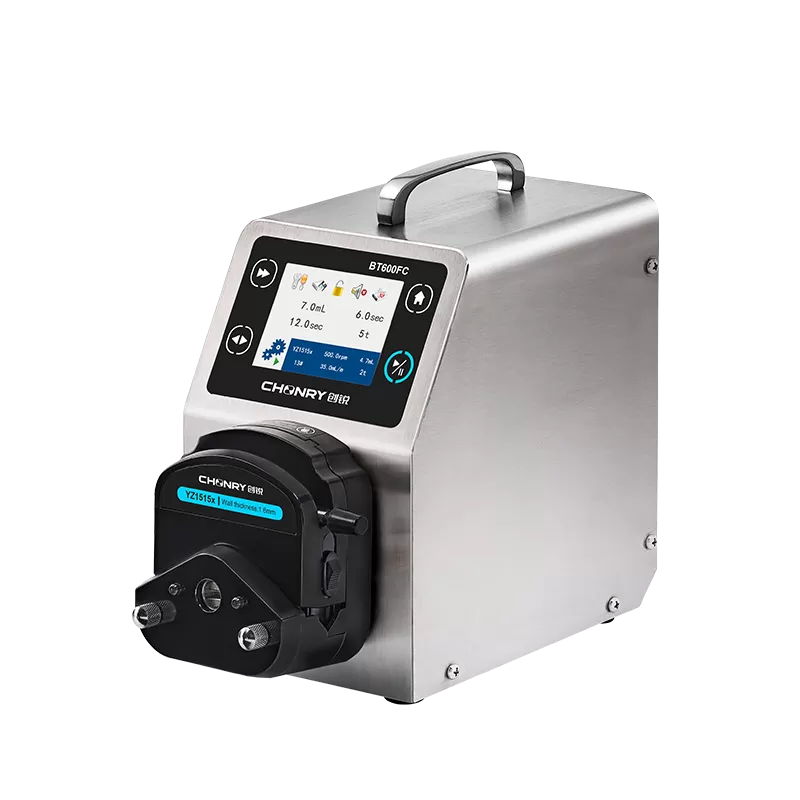

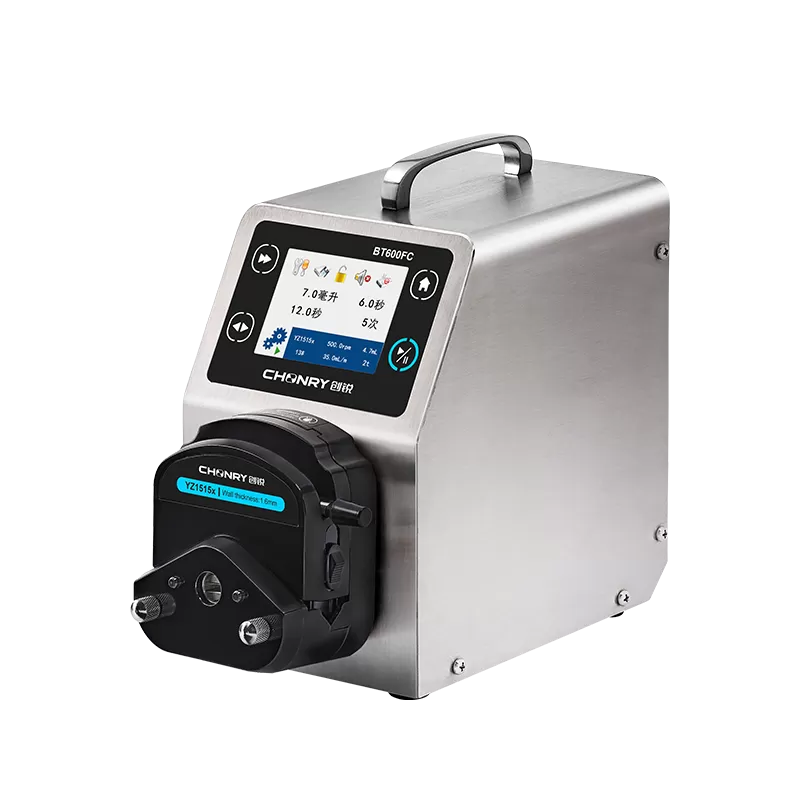

BT600FC Dispensing Peristaltic Pump

Flow Rate: 0.007-2280mL/min

- BT600FC Liquid dispensing Peristaltic Pump. Liquid bottle filling work: drinks/wines/perfumes/essential oils/cosmetics.etc.

- Digital LCD screen to display speed. Touchscreen programmable peristaltic pump.

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

BT600FC dispensing peristaltic pump adopts a 3.5-inch LCD to display the flow rate and speed parameters.  BT600FC peristaltic tube pumps are used for precision micro liquid dispensing, and filling. Liquid bottle filling work: drinks/wines/perfumes/essential oils/cosmetics.etc.The flow rate is up to 2280ml/min. Accurate flow rate control.  Long time life and low maintenance.

The membrane keypad is easy to operate. The stainless steel all-inclusive design is strong and durable. It can store 8 sets of filling data, realizing fast filling.  The BT600FC peristaltic dosing pumping provides manual, remote analog or RS485/MODBUS communication protocol control.


Specification


LCD touch:3.5-inch color LCD, Chinese, and English Display, touch screen control.

Flow calibration: With the flow calibration function, it is suitable for transferring liquids with higher precision

Data storage: 8 sets of data can be stored for users

Multi-working modes:   transmission and distribution, can perform repeated timing and quantitative filling.

Acceptable pump heads: YZ, DG, and TX series pump heads can be installed, and Pump heads can be cascaded.

Support external control: Support RS485/MODBUS communication protocol, analog control, foot switch control


Application

-Food industry

-Laboratory research institute

-Filling and dispensing

-Medical equipment

BT600FC Laboratory Peristaltic PumpBT600FC Laboratory Peristaltic Pump

BT600FC Laboratory Peristaltic Pump

BT600FC Laboratory Peristaltic Pump


Drive modelBT600FC dispensing peristaltic pump
Max Speed600rpm(reversible)
Speed resolution0.1rpm
Max flow2280mL/min
Display methodColor LCD display(Chinese and English optional)
Speed modeTouch screen adjustment
Timing range0.1s-9999min
Quantitative range0.001mL-9999L
Filling times0-9999t
Back suction angle10°-720° (0° means no back suction)
Back suction Speed10-300rpm
Power<50W
Drive size215*136.4*236.7mm
Drive weight
4.94kg
Power supplyAC220V±10% (standard) or AC110V±10% (optional)
External control methodStart control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication




Pump headModelMax SpeedTube Mode(ID* Wall thickness)mm
13#
(0.8*1.6)
14#
(1.6*1.6)
19#
(2.4*1.6)
16#
(3.1*1.6)
25#
(4.8*1.6)
17#
(6.4*1.6)
18#
(7.9*1.6)
YZ1515XBT600FC

60042162306492102017402280
YZ15m60042162306492102017402280
YZ15ma60042162306492102017402280

15#(4.8*2.4)24#(6.4*2.4)
YZ2515XBT600FC60010201740

14#(1.6*1.6)16#(3.1*1.6)25#(4.8*1.6)
ZN15BT600FC6001624921020

24#(6.4*2.4)
ZN25BT600FC6001740

Flow unit: (mL/min) hose model: (mm)


Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chuangrui Company.
