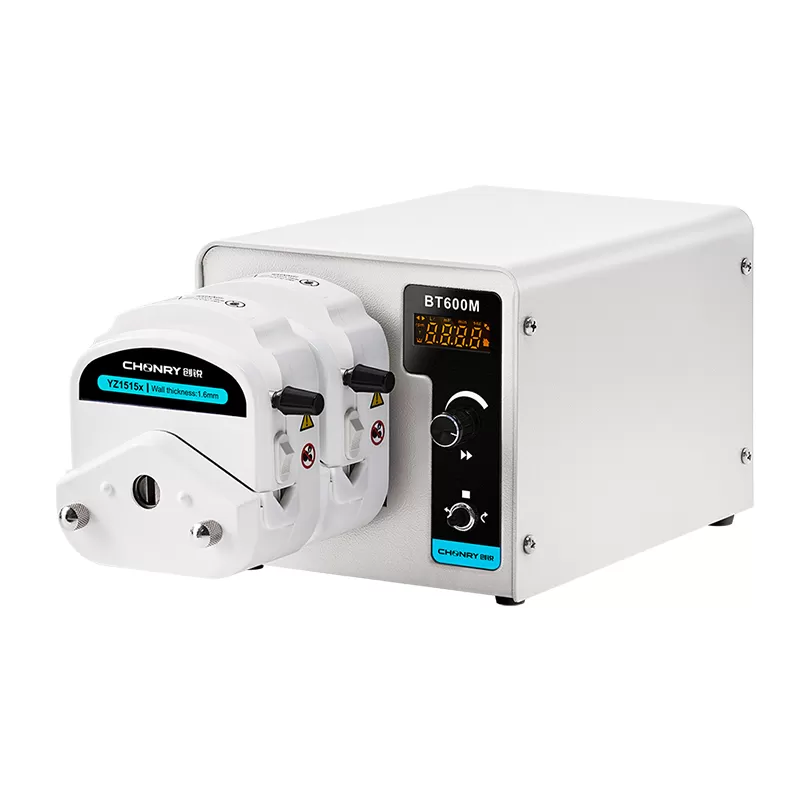

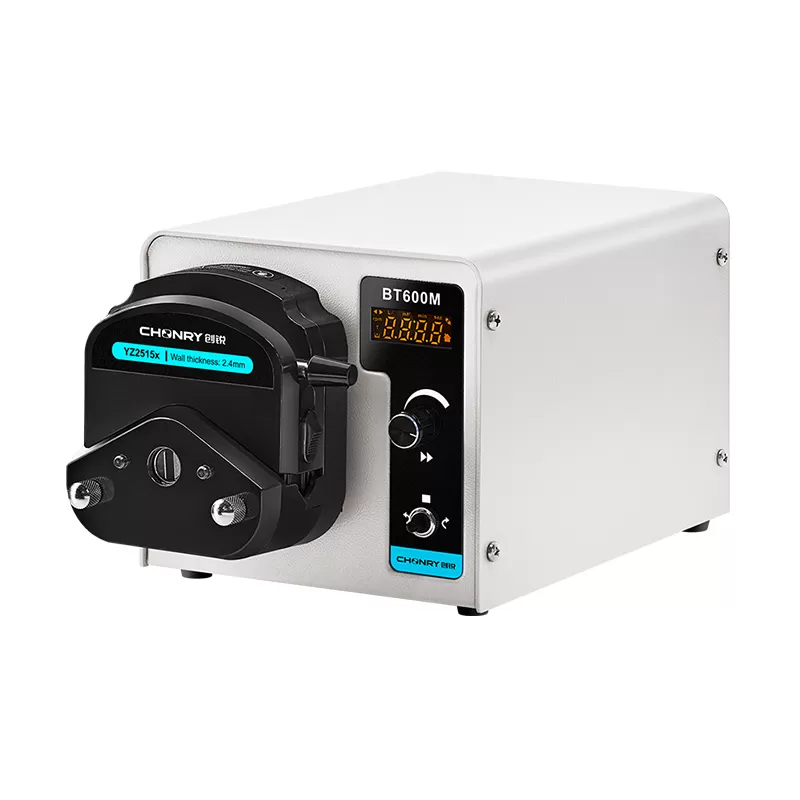

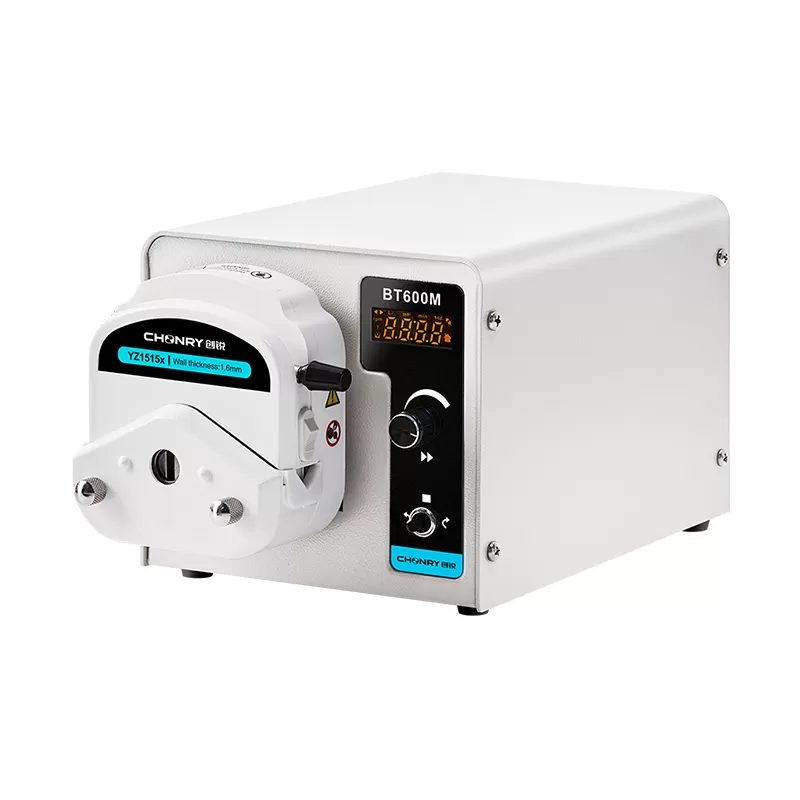

BT600M Precision Peristaltic Pump

Flow Rate: 0.007-2280mL/min

LED Display, compact size and variable flow peristaltic metering pump

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

BT600M is a type of  precision peristaltic pump. The flow rate range is from 0.007-2280mL/min. Self-primming and compact size.  Easy to used drives offer precise speed control and a digital display of rpm. BT600M adopts easy knob operation.  Smart flow calibration function offers precise flow delivers. Fewer tubing changes. It can be loaded with YZ1515X, YZ2515X and DG series pump heads. Support RS485/MODBUS communication protocol, simple operation, and convenience.


Features:


Minimalist operation: Low power consumption motor, the digital knob is easy to operate, long life

External control operation: With RS485/MODBUS communication protocol, analog control

Flow calibration: Multiple calibrations can be performed to reduce flow rate errors and ensure flow accuracy

Adapt to multiple pump heads: Various pump heads such as YZ series, DG series and TX series can be installed

Power-off memory: Can automatically save the control parameters when the last power failure

Full-speed function: Features a convenient full-speed button for quickly filling or emptying the hose

BT600M Precision Peristaltic PumpBT600M Precision Peristaltic Pump


Application

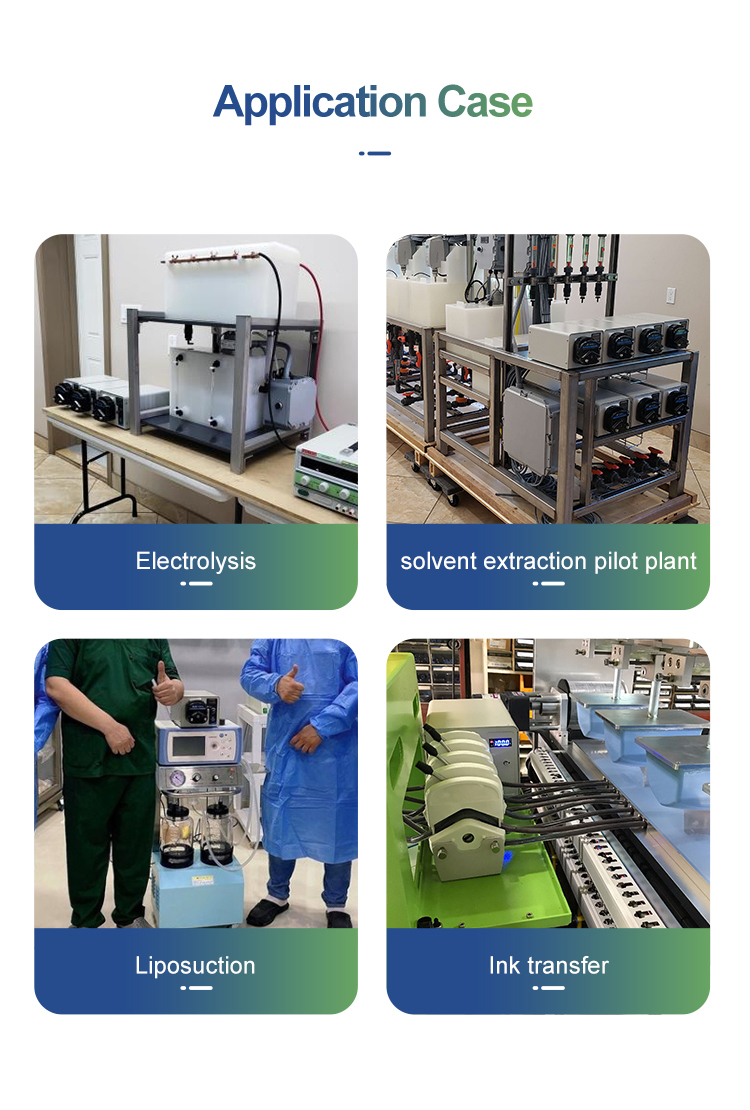

It can be used in chemical metering, and photovoltaic, in conjunction with filling machines, dispensing machines, and other equipment

BT600M Precision Peristaltic Pump

BT600M Precision Peristaltic Pump

Drive model: BT600M

Max Speed: 600rpm(reversible)

Max Flow: 2280mL/min

Drive size: 254*184*150mm

Drive weight: 4.8kg

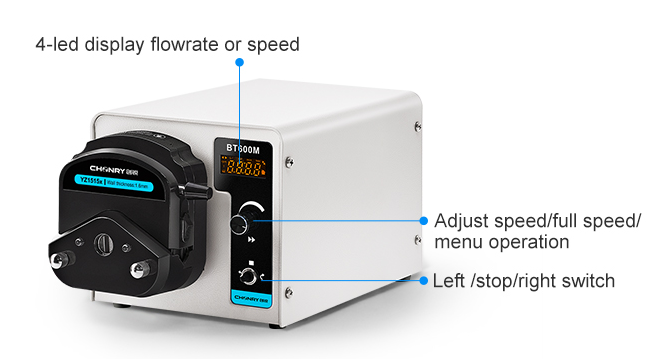

Display method: 4-digit LED displays the current speed/flow

Speed mode: Digital knob to adjust the speed

Power supply: AC220V±10% (standard) or AC110V±10% (optional)

External control method: Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication

Pump headModelMax Speed13#
(0.8*1.6)
14#
(1.6*1.6)
19#
(2.4*1.6)
16#
(3.1*1.6)
25#
(4.8*1.6)
17#
(6.4*1.6)
18#
(7.9*1.6)
YZ1515XBT100M1007275181170290380
YZ1515XBT300M30021811532465108701140
YZ1515XBT600M60042162306492102017402280
Pump headModelMax Speed15#(4.8*2.4)24#(6.4*2.4)
YZ2515XBT100M100170290
YZ2515XBT300M300510870
YZ2515XBT600M60010201740
Pump headModelMax Speed0.5*0.81*12*12.4*0.83*1
DGBT100M100(10)1.54131727
DGBT100M100(6)26192436


Flow unit: (mL/min) hose model:(mm)

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chonry.
