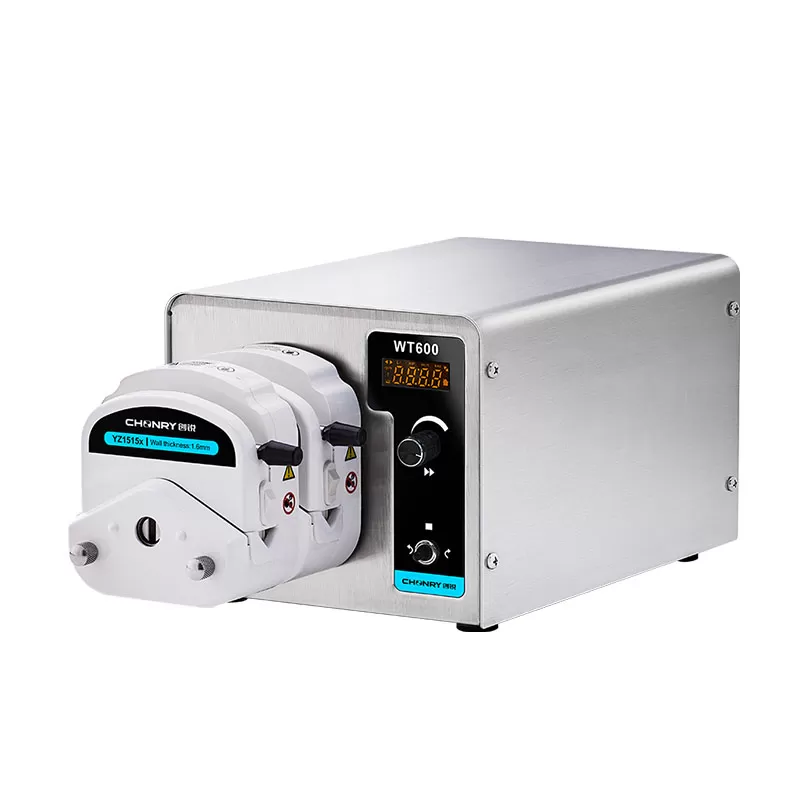

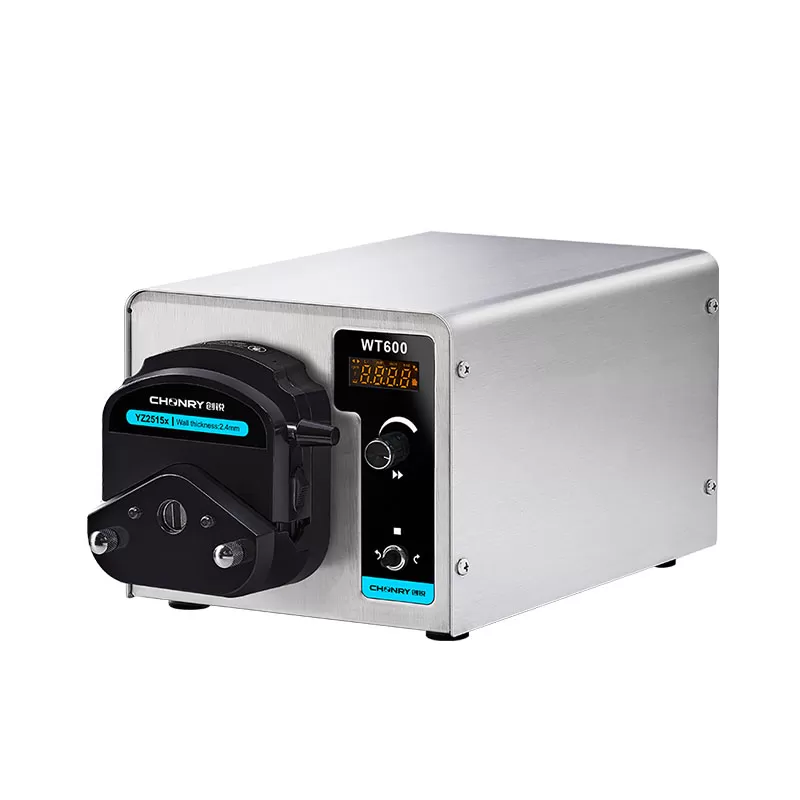

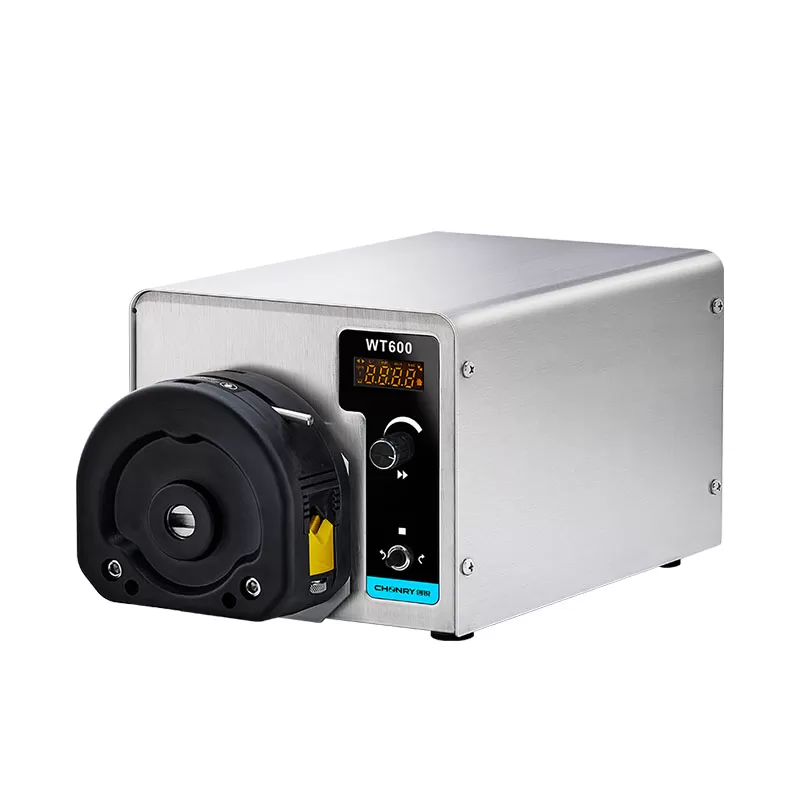

WT600 DC Brushless Peristaltic Pump

WT600 is a type of DC brushless motor peristaltic pump. The flow rate range from 2.1 to 6000ml/min. It is widely used for industry fluids transferring such as mechanical grinding and polishing liquid, electronic plating additive, chemical liquid, glue, and anti-static liquid. WT600 is a DC brushless peristaltic pump independently developed by Chonry. With a DC brushless motor, WT600 has strong bidirectional torque.

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

WT600 is a DC brushless peristaltic pump independently developed by Chonry. It is driven by a DC brushless motor and has strong bidirectional torque. It can be installed with YZ series, TX series, KZ series pump heads and is suitable for a variety of hoses. Support RS485/MODBUS communication protocol to meet different work needs of customers. WT600 is one classical industrial peristaltic pump used for mechanical grinding and polishing liquid, electronic plating additive, chemical liquid, glue, and anti-static liquid.

WT600 DC Brushless Peristaltic PumpWT600 DC Brushless Peristaltic Pump

Features:


Power off save : This can automatically save the control parameters when the last power failure

One key full speed:  Features a convenient full-speed button for quick Fill or empty pipes

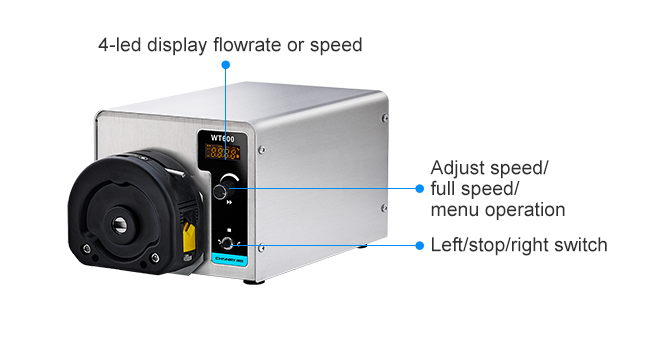

Easy to operate: Digital knob, 4-digit LED digital display, easy to operate, clear and intuitive

External control function: Support RS485/MODBUS communication protocol, the protocol can also be customized according to customer needs

Strong motor: Bidirectional large twist cabinet, brushless DC motor, can cascade multiple pump heads

Adapt to multiple pump heads: Various pump heads such as YZ series, TX series and KZ series can be installed

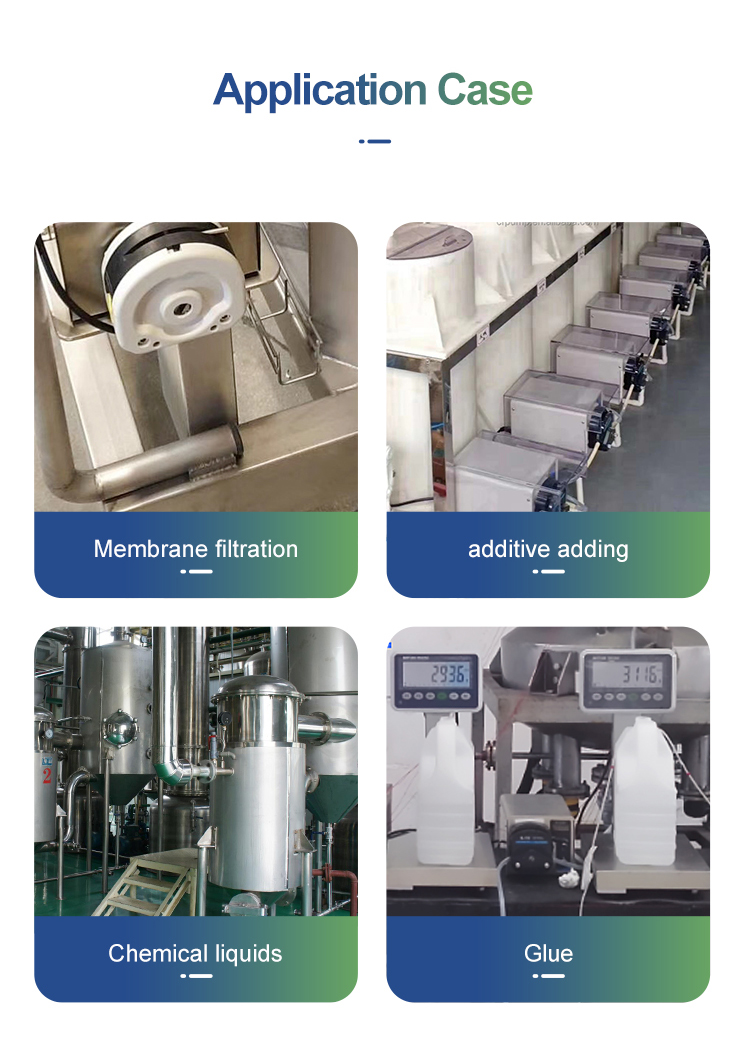

Application

WT600 is one classical industrial peristaltic pump used for mechanical grinding and polishing liquid, electronic plating additive, chemical liquid, glue, and anti-static liquid.

Drive model: WT600

Max speed: 600rpm(reversible)

Speed resolution: 1rpm

Max flow: 6000mL/min

Speed mode: Digital knob to adjust the speed

Display method: 4-digit LED displays current speed or flow

Back Suction angle: 10°-720° (0° means no back suction)

Back Suction speed: 30-300rpm

Power supply: AC220±10% (standard) or AC110V±10% (optional)

Power: <100W

External control interface: Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication

Drive size: 267x177x152.3(mm)

Drive weight: 4.8kg

Pump HeadTubeID(mm)Wall Thickness(mm)Max Flow(ml/min)Max Speed(rpm)

YZ15mt

YZ15mat

13#0.81.642600
14#1.61.6162
19#2.41.6306
16#3.11.6492
25#4.81.61020

YZ25m

YZ25ma

15#4.82.41020600
24#6.42.41740
35#7.92.42280
36#9.62.43000
LP15-613#0.81.684600
14#1.61.6324
19#2.41.6612
16#3.11.6984
25#4.81.62040
17#6.41.63480
18#7.91.64560
LP25-62.4*2.42.42.4420350
3.2*2.43.22.4720
15#4.82.41680
24#6.42.42560
35#7.92.43300
36#9.62.44000
LP25-6-H2.4*2.42.42.4455350
3.2*2.43.22.4700
15#4.82.41505
24#6.42.42345
35#7.92.43255
36#9.62.44500
YZ25L15#4.82.41800600
24#6.42.43000
35#7.92.44200
36#9.62.46000
KZ2515#4.82.41800600
24#6.42.43000
35#7.92.44200
36#9.62.46000
KZ25L15#4.82.41800600
24#6.42.43000
35#7.92.44200
36#9.62.46000


(unit: mm)

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.
