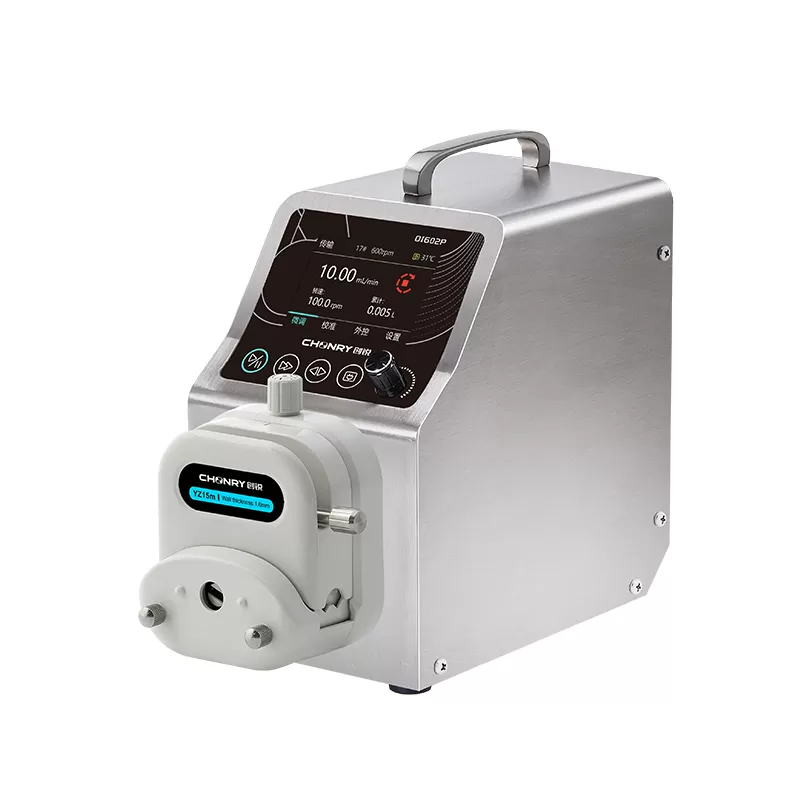

OI602P Large Flow Peristaltic Tubing Pump

Flow Rate: 0.007~4560mL/min

  • Adopts stepper motor, supports multi-channel.

  • Multi-function peristaltic pump, realizing the liquid transferring and dispensing.

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

OI602P is a multi-functional industrial large-flow peristaltic pump. The flow rate is 0.007~4560mL/min. OI602P peristaltic pumps have three working models- liquid transfer, dispensing filling, and timed filling. Color screen intuitive display. Easy knob operation. Convenience. Long lifespan. It supports the precision micro fluid transfer and automatically records the current data for subsequent automatic dispensing filling. Various pump heads are loaded, such as the YZ series and DG series. Support the RS485MODBUS communication protocol, analog control, and foot pedal control.


Features:

Stainless steel shell, high strength, corrosion resistance, easy to clean.IP31 protection.

Support multi-working models, liquid transfer, dispensing filling, and timed filling.

Multi-pump heads to choose from, meeting different flow rate requirements. It loads with YZ, TX, and DG pump heads.

Stepper motor, stable flow, support multi-channel

Support RS485/MODBUS communication protocol, analog control, foot switch control.


Applications:



OI602P Peristaltic pump can use in chemical feed, mineral processing, photovoltaic, laboratory, etc. industries, filling of various liquids.


OI602P Large Flow Peristaltic Tubing Pump




Drive ModelOI602P
Max Speed600rpm(reversible)
Max Flow4560mL/min
Speed resolution0.1rpm
Adjust speedDigital knob + button to adjust the speed
Display methodColour display showing current working status
Suction angle0° - 3600° (0° for no reabsorption)
Suction speed0-300rpm
Power supplyAC 100-240V
Power frequency50Hz/60Hz
Power<60W
External control methodInputs: Start/stop control/direction control/speed control (0-5V, 0-10V, 0-10Khz, 4-20mA optional)  RS485 serial communication
Output: Start/stop/direction/analogue (0-5V, 0-10V, 4-20mA, 0-10Khz)
Drive size218.5×142×235.2(mm)
Protection gradeIP31(Indoor use, avoid long-term exposure to UV rays)




ModelPump HeadMax Speed(rpm)Max Flow(mL/min)
13#(0.8*1.6)14#(1.6*1.6)19#(2.4*1.6)16#(3.1*1.6)25#(4.8*1.6)17#(6.4*1.6)18#(7.9*1.6)

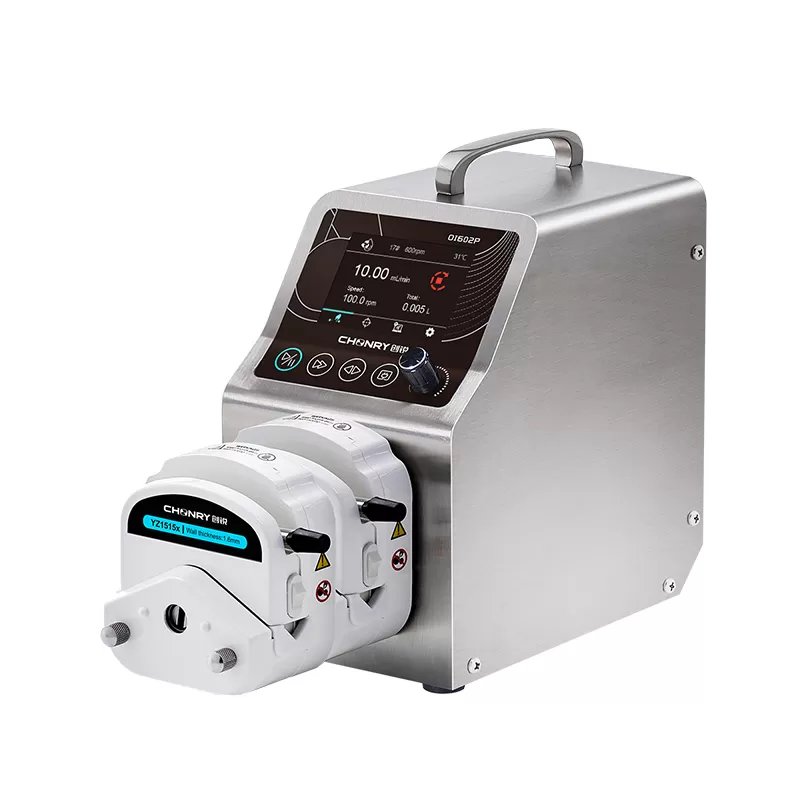

            OI602PYZ1515X 60042162306492102017402280

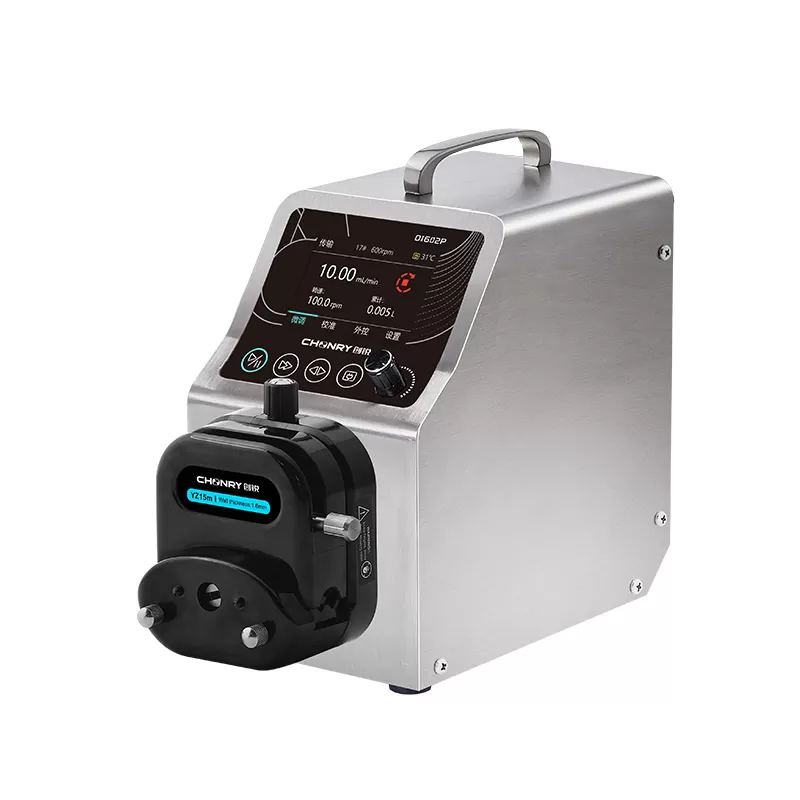

YZ15m60042162306492102017402280
TX315400289620838483213601920

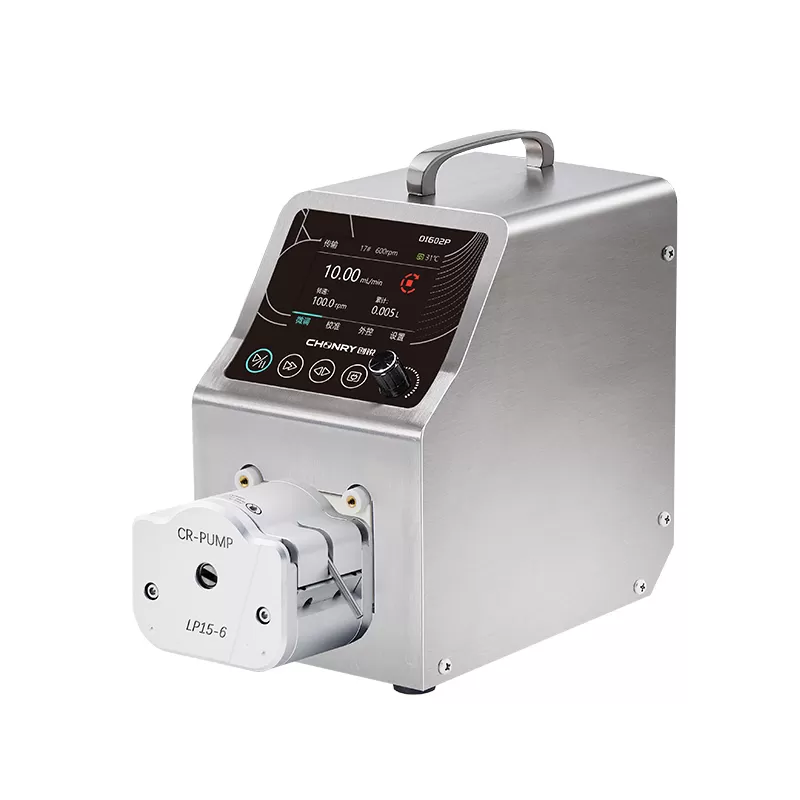

LP15-660084324612984204034804560

15#(4.8*2.4)24#(6.4*2.4)
YZ2515X60010201740

15#(4.8*2.4)24#(6.4*2.4)35#(7.9*2.4)36#(9.6*2.4)
YZ25m 6001020174022803000

14#(4.8*2.4)16#(6.4*2.4)25#(7.9*2.4)
ZN156001624921020

24#(6.4*2.4)
ZN256001740











None

None
