The M series is a digital speed type peristaltic pump. It displays the current flow or speed through a 4-digit LED, and can perform liquid volume calibration.
The M series is a digital speed type peristaltic pump. It displays the current flow or speed through a 4-digit LED, and can perform liquid volume calibration. It supports RS485/MODBUS communication protocol, and is suitable for YZ, TX, DG series and other pump heads. Various liquid transfer requirements, the knob adjusts the parameters, and the operation is simple and convenient.
Low power consumption motor, digital knob is easy to operate, long life
External control operation
With RS485/MODBUS communication protocol, analog control
Multiple calibrations can be performed to reduce flow rate errors and ensure flow accuracy
Adapt to multiple pump heads
Various pump heads such as YZ series, DG series and TX series can be installed
Can automatically save the control parameters when the last power failure
Full speed function
Features a convenient full speed button for quickly filling or emptying the hose
Used in chemical, photovoltaic and other industries, and used in conjunction with filling machines, dispensing machines and other equipment

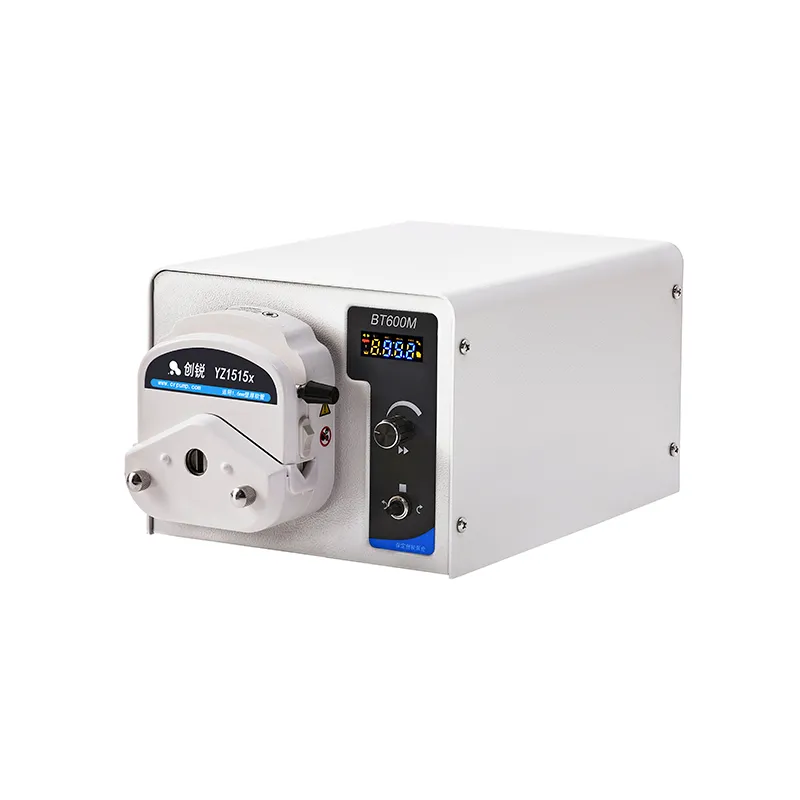

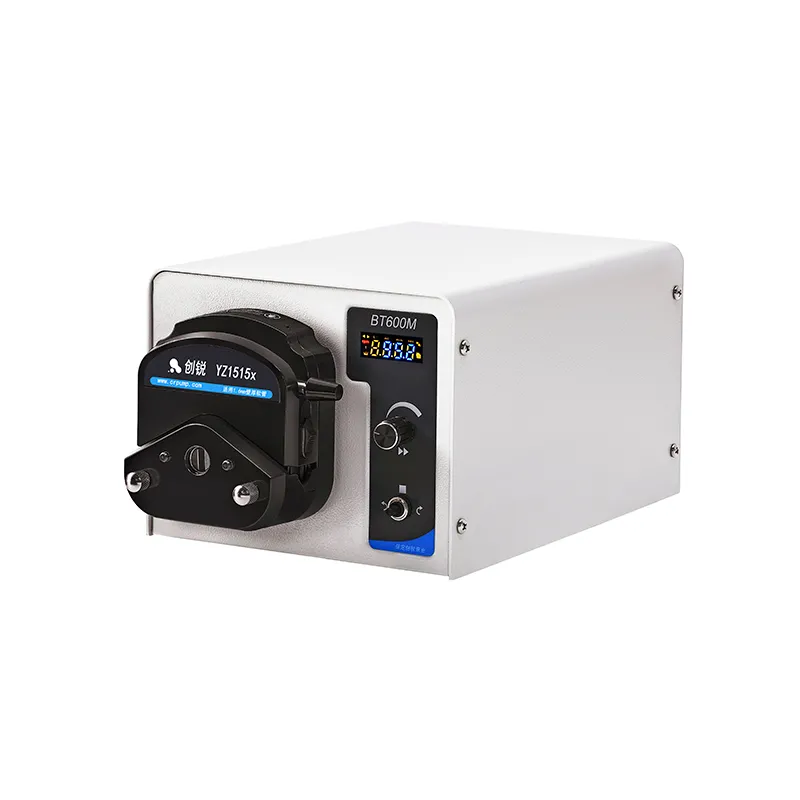

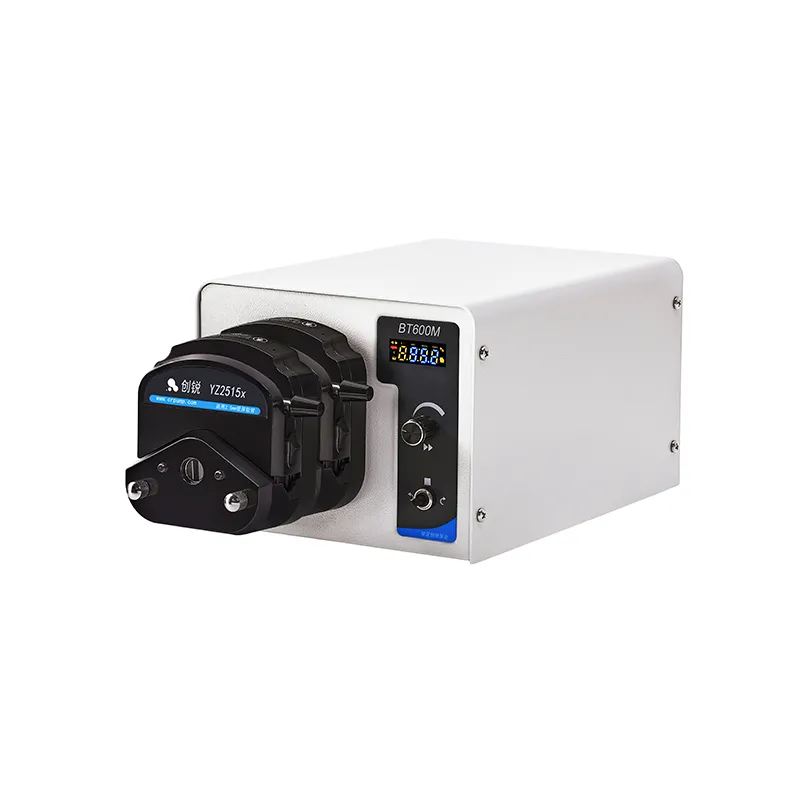

Drive model: BT600M
Max Speed: 600rpm(reversible)
Max Flow: 2280mL/min
Drive size: 254*184*150mm
Drive weight: 4.8kg
Display method: 4-digit LED displays the current speed/flow
Speed mode: Digital knob to adjust the speed

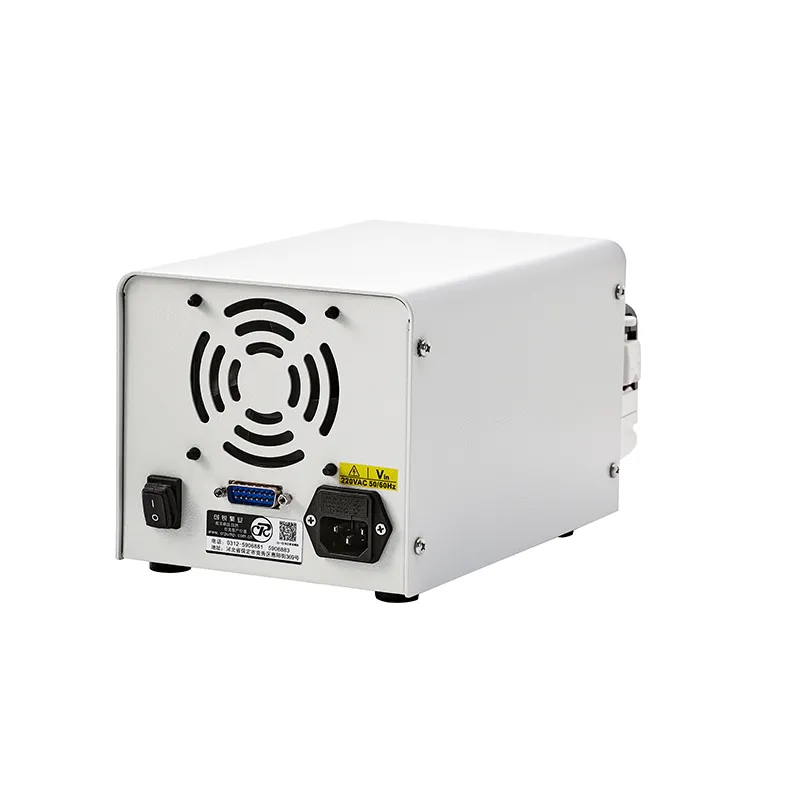

Power supply: AC220V±10% (standard) or AC110V±10% (optional)
External control method: Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication
|Pump head||Model||Max Speed||13#|
|Pump head||Model||Max Speed||15#(4.8*2.4)||24#(6.4*2.4)|
|Pump head||Model||Max Speed||0.5*0.8||1*1||2*1||2.4*0.8||3*1|
Flow unit: (mL/min) hose model:(mm)
Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.
For specific needs, please consult Chuangrui Company.
