Flow Rate: 0.007-2280mL/min

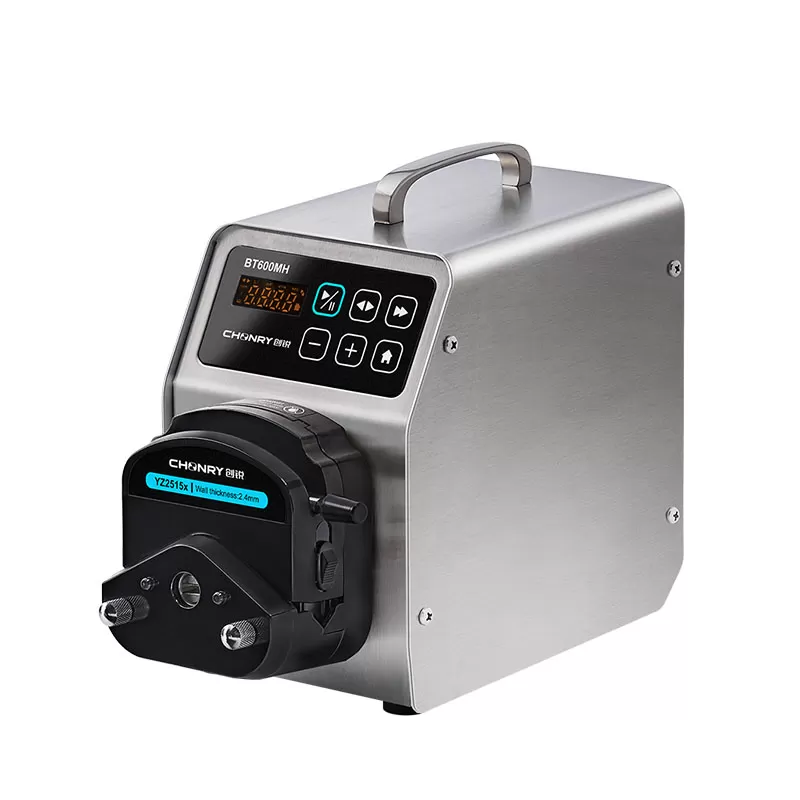

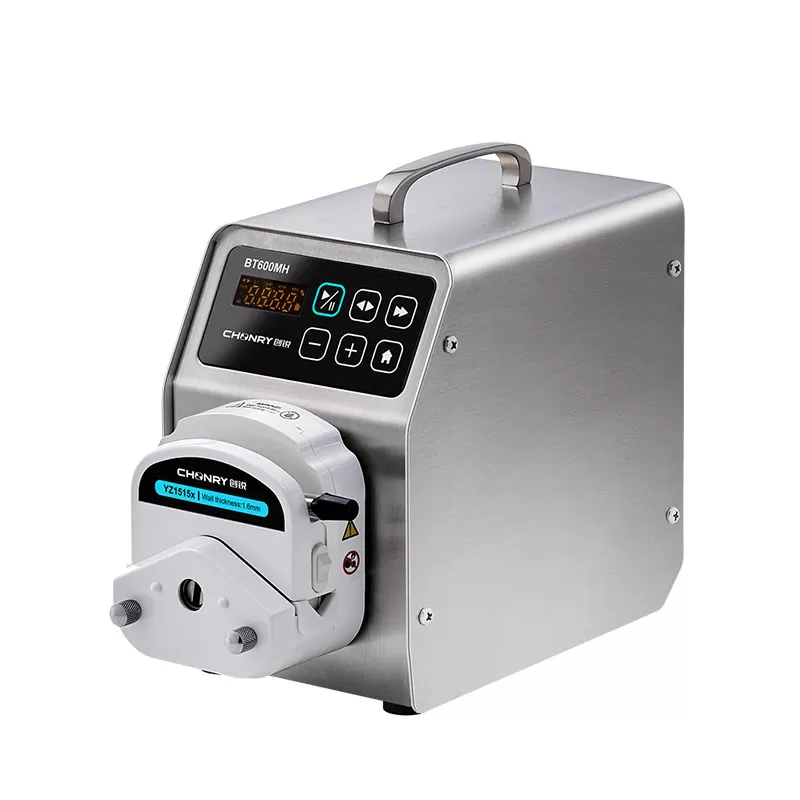

BT600MH is a type of basic peristaltic pump. This is a button peristaltic dosing pump. Easy to operate. Adopts the 403 stainless shells, durable and corrosion. Unique back suction anti-drip function, which can effectively prevent liquid from dripping.
BT600MH is a type of digit peristaltic pump. With a unique flow calibration function and power-off save function. Key operation peristaltic dosing pump. Easy to operate. Adopts the 403 stainless shells, durable and corrosion. Unique back suction anti-drip function, which can effectively prevent liquid from dripping. The BT600MH pump can be installed YZ series, DG series, and TX series pump heads. Support RS485/MODBUS communication protocol, analog control, and foot control.
Features:

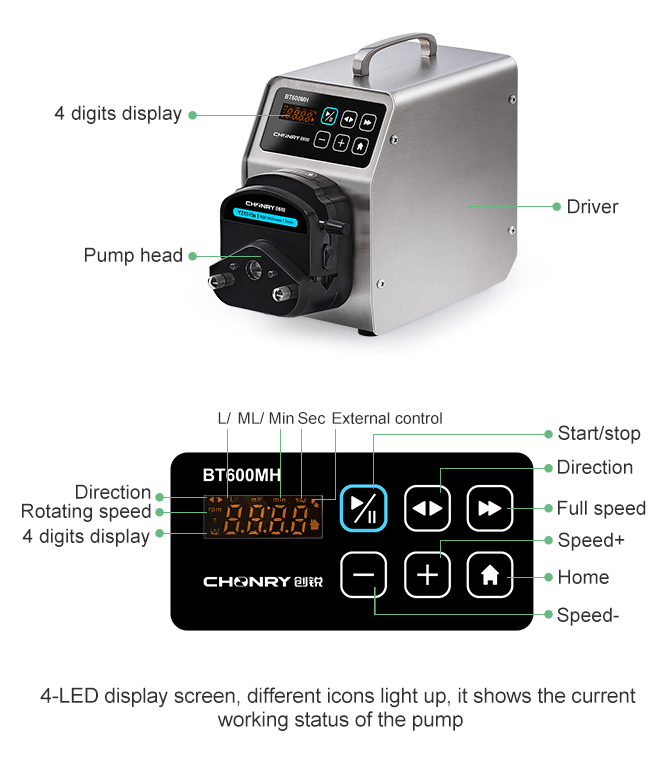

Easy to use: Simple appearance, key operation, intuitive interface
Power off save: Can automatically save the control parameters when the last power failure
Clear interface: 4-digit LED display flow or speed
One key full speed: Features a convenient full-speed button for quickly filling or emptying the tube
External control function: Support RS485/MODBUS communication protocol, analog control, foot switch control

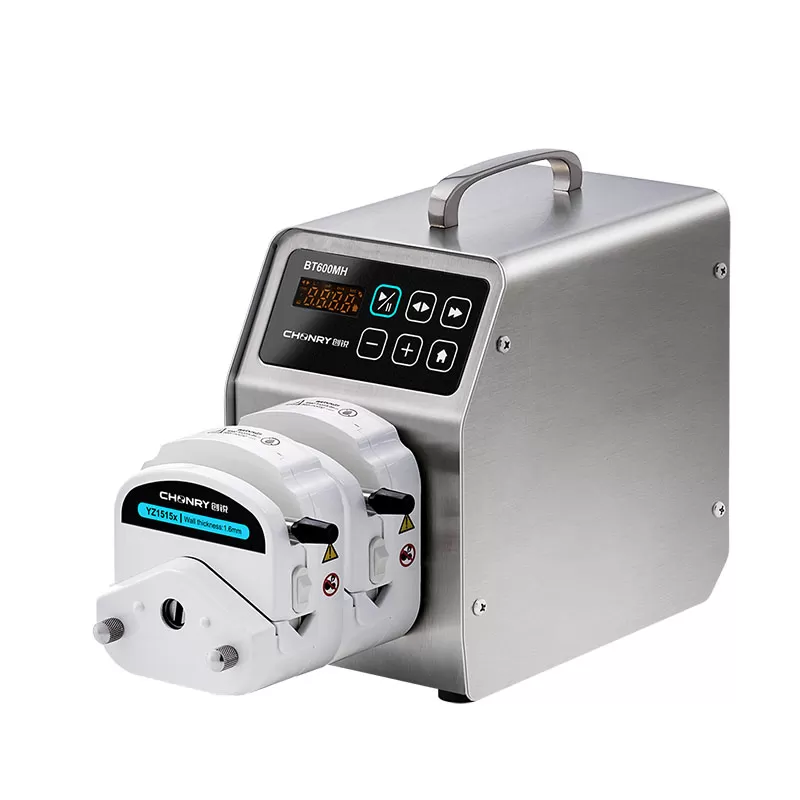

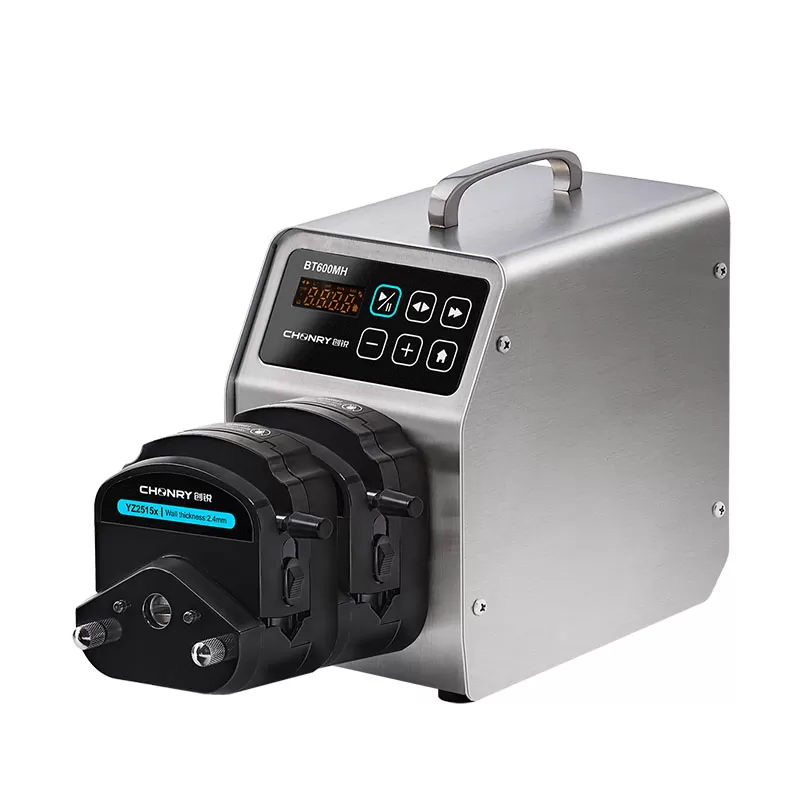

Adapt to multiple pump heads: Various pump heads such as YZ series, DG series and TX series can be installed
Application
It is used in universities and laboratories, water treatment sampling, chromatography liquid supply matching, industrial raw material addition, etc.
Drive model: BT600MH
Max Speed: 600rpm(reversible)
Max Flow: 2280mL/min
Power: <50w
Speed mode: Membrane key speed regulation
Display method: 4-digit LED displays the current speed/flow
Suction angle: 10°-720°
Suction speed: 10-300rpm
Power supply: AC220V±10% (standard) or AC110V±10% (optional)
External control method: Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication
Drive weight: 3.98kg
Pump head | Model | Max Speed | 13#(0.8*1.6) | 14# (1.6*1.6) | 19# (2.4*1.6) | 16# (3.1*1.6) | 25# (4.8*1.6) | 17# (6.4*1.6) | 18# (7.9*1.6) |
YZ1515X | BT100MH | 100 | 7 | 27 | 51 | 82 | 170 | 290 | 380 |
YZ1515X | BT300MH | 300 | 21 | 81 | 153 | 246 | 510 | 870 | 1140 |
YZ1515X | BT600MH | 600 | 42 | 162 | 306 | 492 | 1020 | 1740 | 2280 |
Pump head | Model | Max Speed | 15#(4.8*2.4) | 24#(6.4*2.4) | |||||
YZ2515X | BT100MH | 100 | 170 | 290 | |||||
YZ2515X | BT300MH | 300 | 510 | 870 | |||||
YZ2515X | BT600MH | 600 | 1020 | 1740 | |||||
Pump head | Model | Max Speed | 0.5*0.8 | 1*1 | 2*1 | 2.4*0.8 | 3*1 | ||
DG | BT100MH | 100(10) | 1.5 | 4 | 13 | 17 | 27 | ||
DG | BT100MH | 100(6) | 2 | 6 | 19 | 24 | 36 |
Flow unit: (mL/min) hose model: (mm)
Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.
For specific needs, please consult Chuangrui Company.
