Peristaltic Pump Head
Home / Products / Peristaltic Pump / Peristaltic Pump Head / ZN Series Peristaltic Pump Head

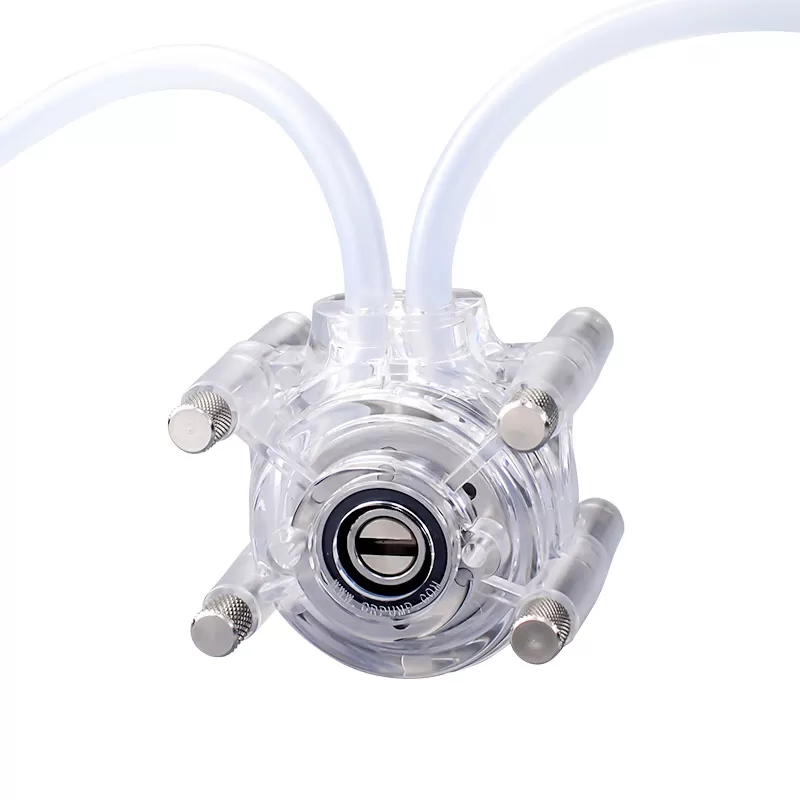

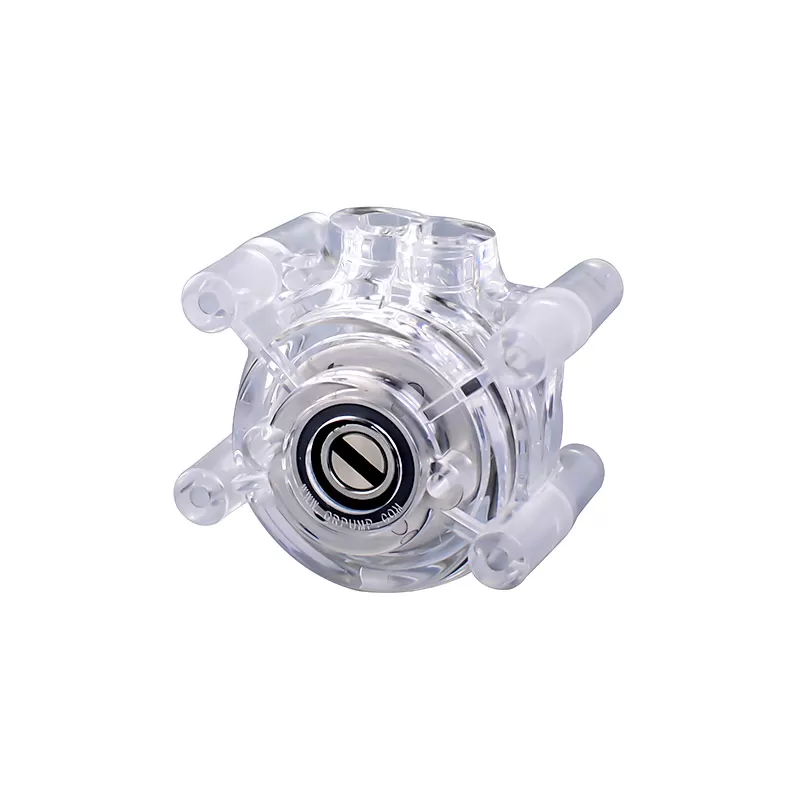

ZN Series Peristaltic Pump Head

ZN Series Peristaltic Pump Head

ModelZN15-14, ZN15-16, ZN25-24, ZN15-25
Max Flow1740mL/min
Max Speed600rpm
Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

ZN series pump headshell is crystal clear, the transparent shell is easy to observe the operation of the pump, stainless steel rollers, corrosion resistance, long life, single pump tube structure design runs smoothly, can be used in series, supports OEM, and ODM customization. The pump heads has a compact structure, versatile.


Features and Benefits:

Small size, compact structure, saving the space

Special design for industrial transmission,accuracy and precision

Easy to use,stable flow

Stainless steel rollers, corrosion resistance

Lightweight, simple to operate

Support OEM and ODM customized


Application:

Liquid transfer or circulation in the laboratory or industrial applications

- Permentation

- Nutrient transfer

- Beverage supply equipment (e.g. juice production)

- Food manufacturing (e.g. pizza sauce dispensing)

- Chemical handling

- Water & wastewater

- Engineering & manufacturing

ModelChannelsRollersRoller MaterialShaft EndShell Material -ColorSize & Weight
ZN15-14Single Channel3Stainless SteelFlat shaftPOM-White63.5x63.8x76.5 mm0.21kg
ZN15-16
ZN25-24
ZN15-25
ModelTubeID*wall thickness(mm)Max Speed(rpm)Max Flow(mL/min)
ZN15-1414#1.6*1.6600162
ZN15-1616#3.2*1.6600492
ZN15-2424#4.8*2.46001020
ZN15-2525#6.4*2.46001740


Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

Quick Action Guide ZN Series
Quick Action Guide ZN Series The product warranty period is one year. If there is a failure during the warranty period, you can enjoy free maintenance and replacement of parts;

None

None

Related Products

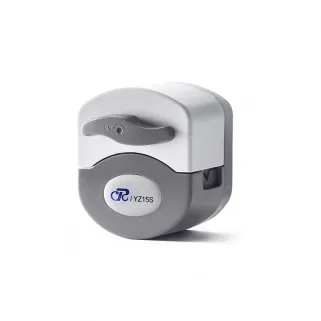

YZ15S Series Peristaltic Pump Head YZ15S Series Peristaltic Pump Head YZ15S series peristaltic heads are designed for liquid dispensing with high precision and small.
