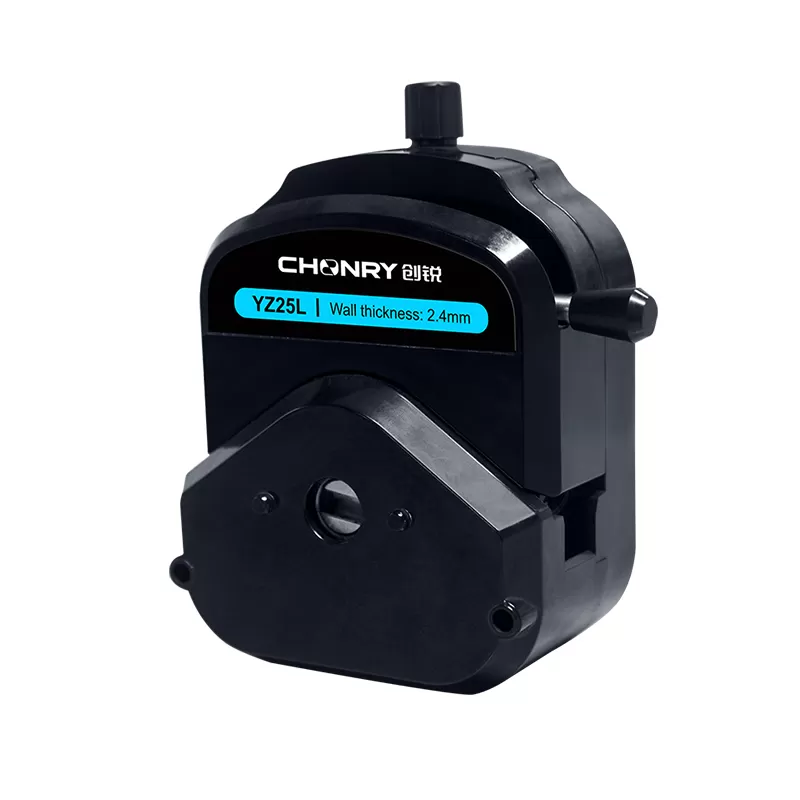

YZ25L Pump Head 6000ml/min Various Speed

- YZ25L peristaltic pumps are designed for high flow. Various speed. Precision flow rate control.

- Up to 6000ml/min. Support multi-channel. This pump head can match the stepper motor, DC motor, and AC motor. Customized OEM peristaltic pump.

- Suitable for tubing: 15#,24#,35#,36#

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

The YZ25L peristaltic pump head has a high flow rate of 6000ml/min. Easy to install pump head with simple operation, easy loading and unloading of the tube. Adjustment of the pressure function using an adjustment knob. The rollers are made of stainless steel, resistant to wear, and corrosion, and have a long life. 3 rollers design reduces pulsation effectively. YZ25L pump head offers high flow liquid conveying function to meet different working requirements. Suitable for tubing: 15#,24#,35#,36#. YZ25L pump head can match the stepper motor, AC motor, and DC motor.

Features:

Adjustment knob: Fine adjustment of the pressure tube gap by turning the knob.

Durable Shell: Housing made of PPS, and stainless steel rollers, robust and durable.

Support multichannel pump head: Support multi-channel and OEM with different types of motors. Compatible with a wide range of equipment.

Easy to operate: Easy to change peristaltic pump tubing by opening and closing the upper-pressure block with the trigger.

Tube material: Silicone, PharMed, Viton, Norprene Chemical, Tygon2375, etc.

Suitable peristaltic pump tubing: 15#,24#,35#,36#

Pump Head	Channels	Rollers	Rollers Material	Housing Material/Color	Suitable Tube	Max Speed(rpm)	Max Flow (min/min)
YZ25L	support multi channel	3	Stainless steel	PPS (black)	15#/ 24#/35#/36#	600	6000

Peristaltic Pump Flow Rate Table:

Pump Head	Tube	ID*Wall thickness(mm)	Max Speed (rpm)	Max Flow (ml/min)
YZ25L	15#	4.8*2.4	600	1800
	24#	6.4*2.4		3000
	35#	7.9*2.4		4200
	36#	9.6*2.4		6000
