Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

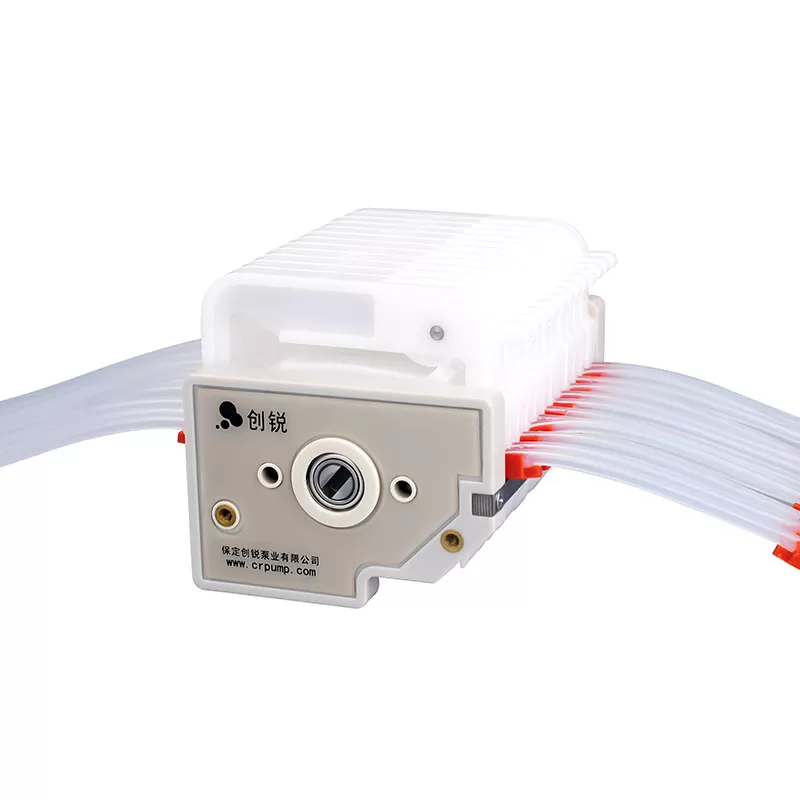

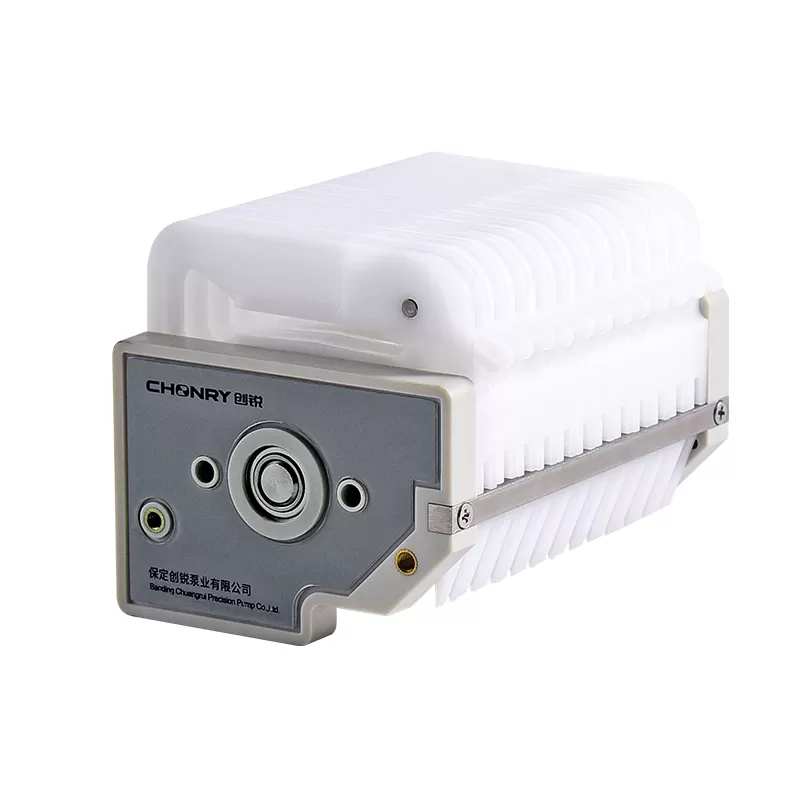

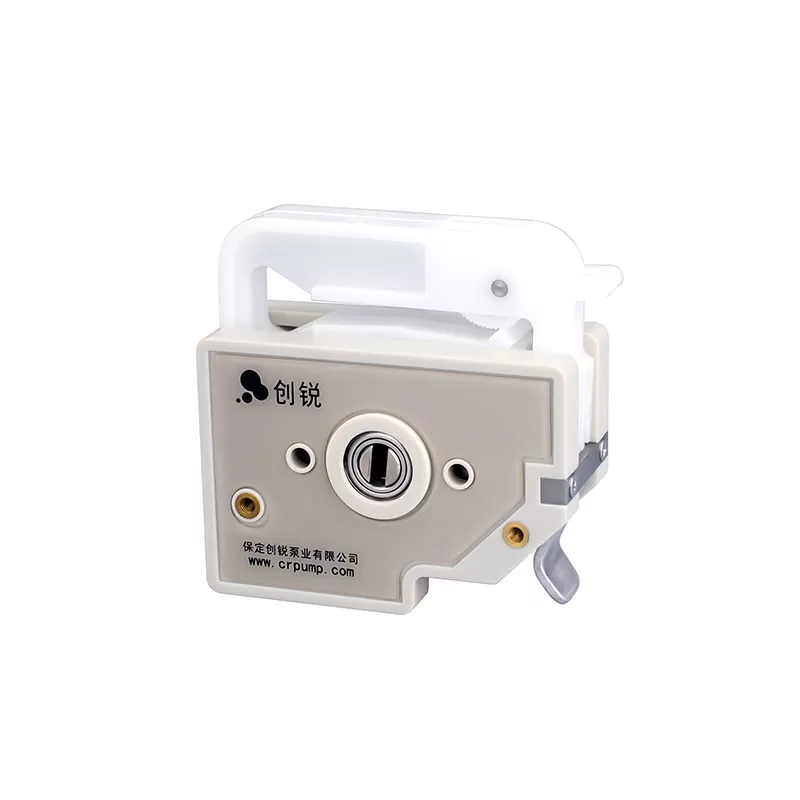

DG series peristaltic pump series are two types for options, DG(6) with 6 rollers and DG(10) with 10 rollers. The pump heads has a compact structure, versatile and provide multi-channel options. They are suitable for small flow transmission environments.And these heads are mainly designed for liquid dispensing with higher precision and small in size.They are installed with clip-type pump tubes. The clearance of the ratchet pump head can be fine-tuned through the ratchet to adapt to different wall thicknesses. Tubes, springs are adaptive.

Features and Benefits:

Small size, compact structure, saving the space

Special design for small flow transmission,accuracy and precision

Easy to use

Low pulse, stable flow

Lightweight, simple to operate

Application:

Liquid transfer or circulation in the laboratory or industrial applications

- Permentation

- Cell culture

- PH control

- Nutrient transfer

Model	Channels	Rollers	Roller Material	Shaft End	Card Material -Color
DG	1/2/4/6/8/12	6	Stainless Steel	Round Shaft/ Flat shaft	POM-White
		10

Model	Tube	ID*wall thickness(mm)	Max Speed(rpm)	Max Flow(mL/min)
DG(6)	0.5*0.8	0.5*0.8	100	2
	1*1	1*1	100	6
	2*1	2*1	100	19
	2.4*0.8	2.4*0.8	100	24
	3*1	3*1	100	36
DG(10)	0.5*0.8	0.5*0.8	100	1.5
	1*1	1*1	100	4
	2*1	2*1	100	13
	2.4*0.8	2.4*0.8	100	17
	3*1	3*1	100	27

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

DG Peristaltic Pump Head Brochure - Chonry The product warranty period is one year. If there is a failure during the warranty period, you can enjoy free maintenance and replacement of parts;

None

Baoding Chuangrui Precision Pump Co., Ltd. is located in Hebei of China. Started production of the peristaltic pump in 2010, as the top pump manufacturer in China, we now have 30 series production including peristaltic pump, pump head, gear pump, and micro peristaltic pump.

Navigation

Home Products Application Service Support News About Us

Phone

+86 15633705132
Email
[email protected]
Add.

2 Floors, East Unit, Building 12, ZOL Innovation Base, Huiyang street, Baoding, Hebei, China.

Model	DG(6),DG(10)
Max Flow	36mL/min
Max Speed	100rpm
