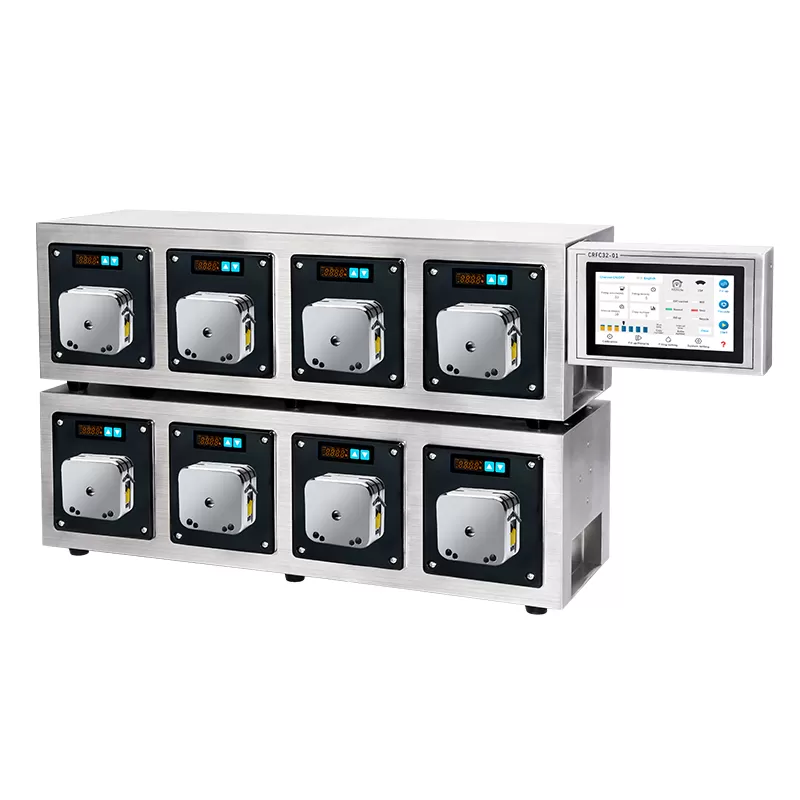

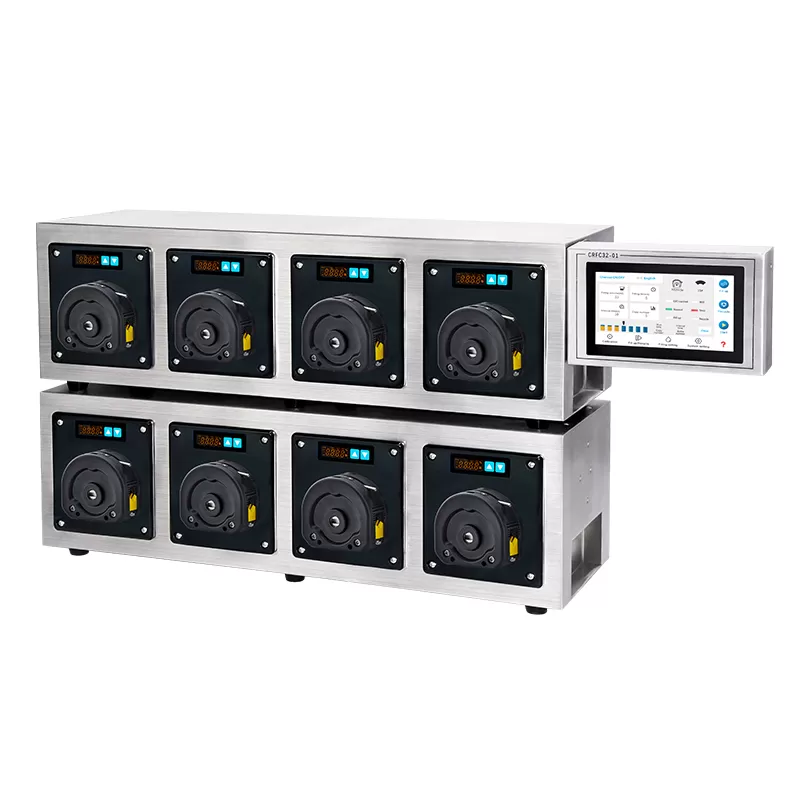

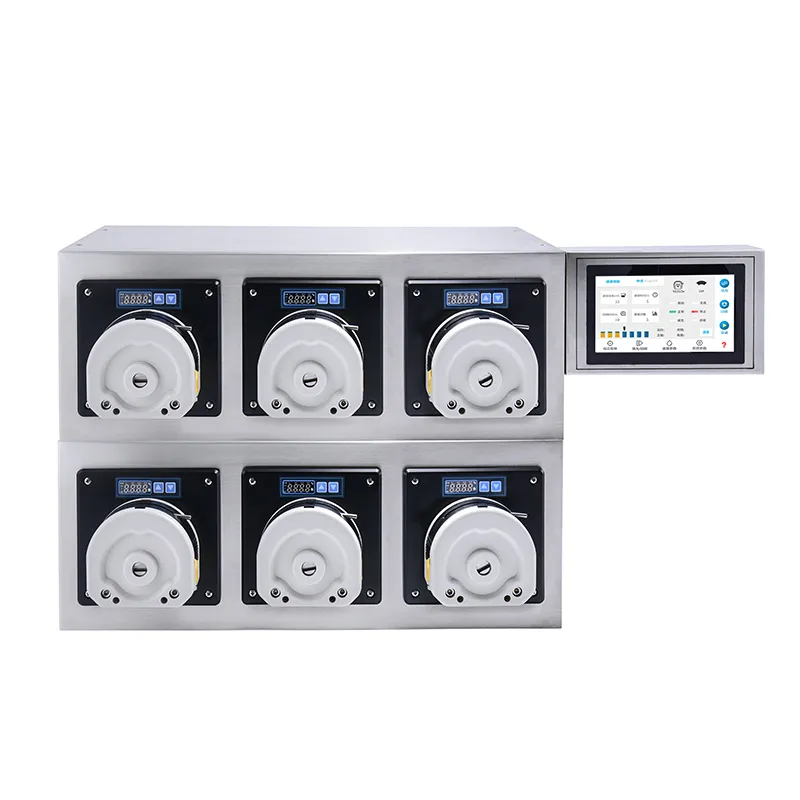

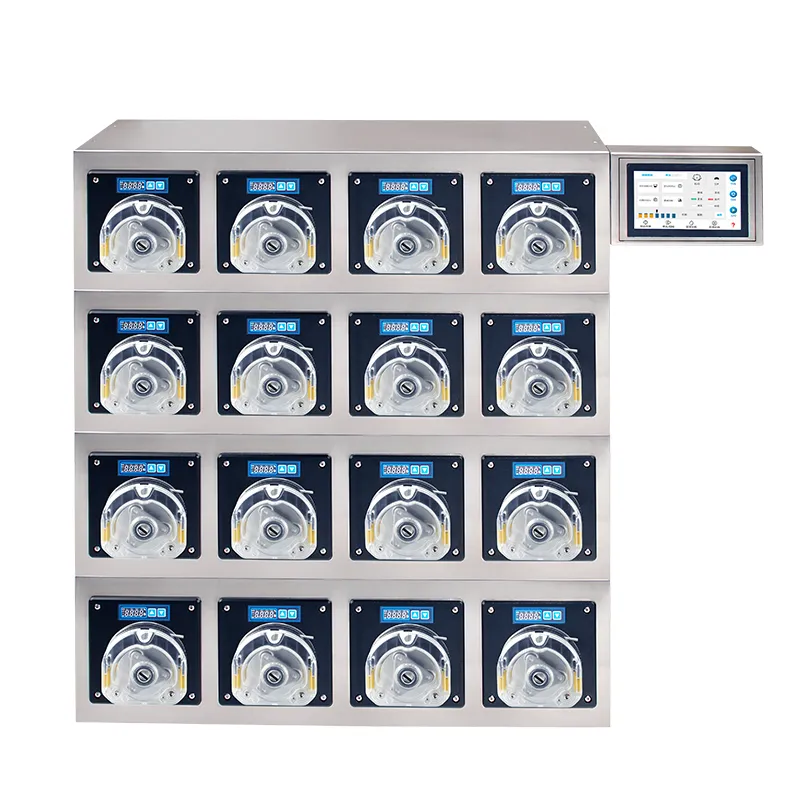

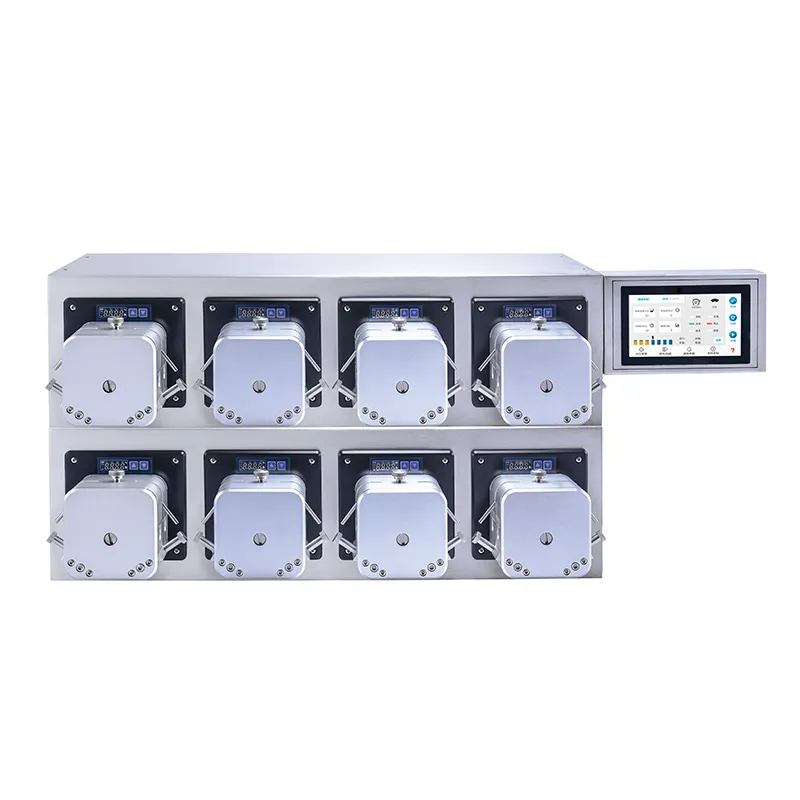

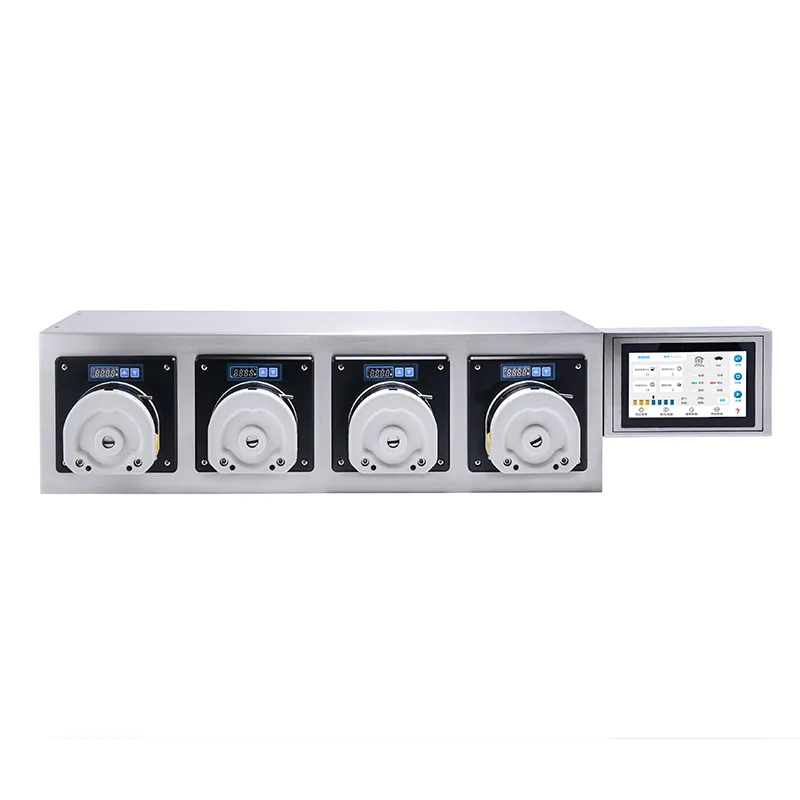

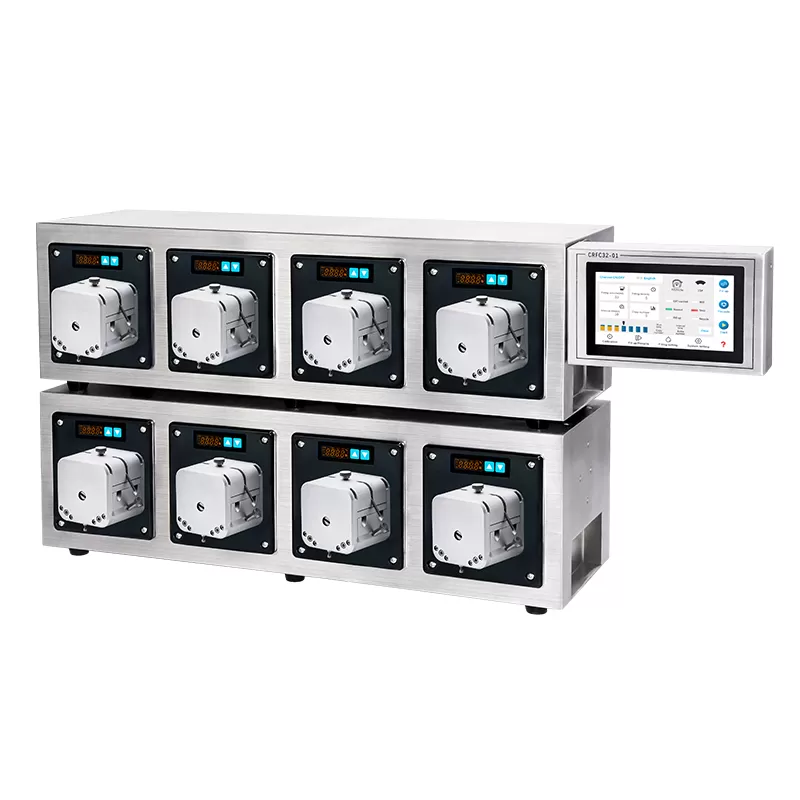

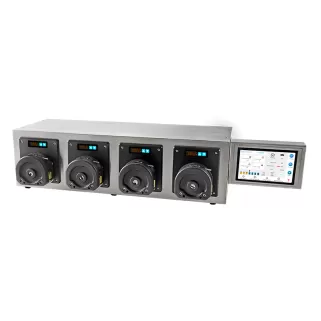

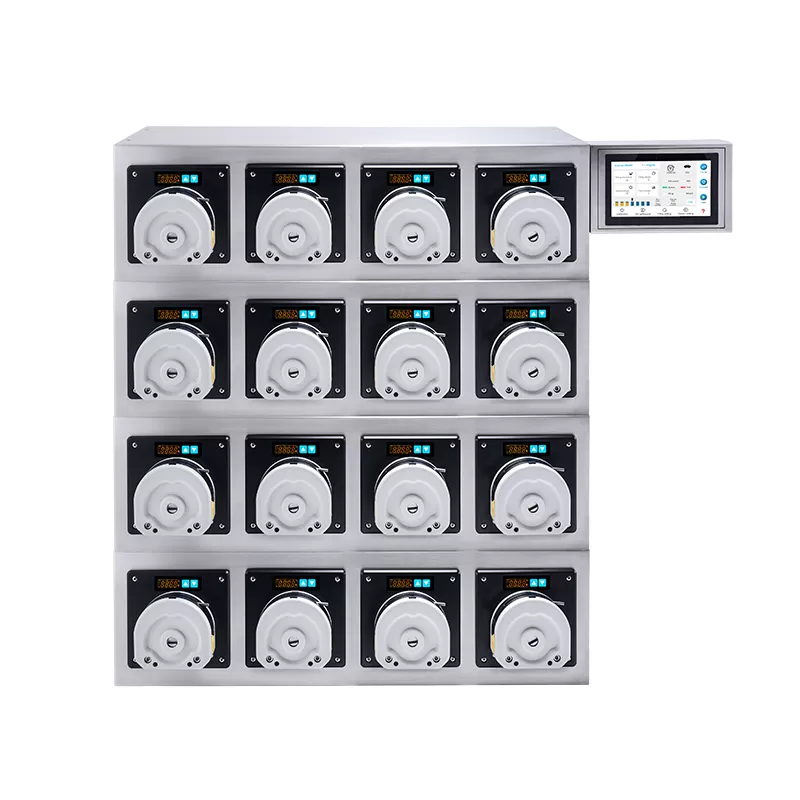

UTF02 is an intelligent filling peristaltic pump independently developed by Chuangrui Pump Industry. The standard drive unit of the system is 4 channels (2 3 4 5 6) optional and can be expanded to 32 channels at most. Various pump heads such as KZ series and LP series can be installed, and are suitable for various specifications of hoses, providing customers with a variety of choices to meet a variety of applications. The main controller adopts a 7-inch or 10-inch industrial touch screen, the operation is simple, clear, and easy to use, and the functions are rich and easy to use.

Features and Benefits

Adopt a 7-inches or 10-inches industrial touch screen, easy to operate

Support RS485/Modbus communication protocol, which can be used according to customized upon request

One key full speed, realize quickly filling or emptying the tube

Stainless steel housing, adopts 304 stainless steel shell, high strength and corrosion resistant

The transfer direction is controllable, meets more requirements

Various pump heads such as KZ series, LP25-6 can be installed

Applications

The UTF02 peristaltic pump filling system can handle the transfer and production filling of a variety of liquids:

- Food (e.g. pizza sauce dispensing)

- Beverage supply equipment(e.g. juice,milk production)

- Pharmaceutical production

- Chemical

- Cosmetic dispensing

UTF02 Filling Pump Head Parameter Table

Model	Display Method	Control	Filling Accuracy	Control Mode	Fine-tumingRange	Max Speed	Max Flow	Pump Head	Weight
UTF02	7 inches/10 inchesIndustrial touch screen+4-digit LED digital display	Sub-control /Central control	<±2%	Offline Mode/Online mode	80%-120%	600rpm	6000mL/min	KZ15 KZ25 LP25-6	Master-1.35Single groupsystem - 25.1

Filling Application and Performance Index

Filling volume	0.1mL-9999.99mL/time	Display adjustment resolution: 0.01mL
Filling time	0.1-9999.9s/time	Display adjustment resolution: 0.1s
Intervals	0.2-9999.9s/time	Display adjustment resolution: 0.1s
Filling times	0-9999 times	"0" means infinite loop
Suction angle	0-7200°	Display adjustment resolution: 1°
Suction speed	0-300rpm	Display adjustment resolution: 1rpm
Suction back delay	0s-60s	Display adjustment resolution: 0.1s
Channels	4 channels/unit (standard)2 3 4 5 6 channels/unit (optional)	Expandable up to 32 channels

Pump Head	Hose Specifications	ID(mm)	Wall thickness (mm)	Max flow (mL/min)	Max speed(rpm)
DG-N(6)	0.5*0.8	0.5	0.8	2	100
	1*1	1	1	6
	2*1	2	1	19
	2.4*0.8	2.4	0.8	24
	3*1	3	1	36
DG-N(10)	0.5*0.8	0.5	0.8	1.5
	1*1	1	1	4
	2*1	2	1	13
	2.4*0.8	2.4	0.8	17
	3*1	3	1	27
TX315	13#	0.8	1.6	28	400
	14#	1.6	1.6	106
	19#	2.4	1.6	227
	16#	3.1	1.6	399
	25#	4.8	1.6	830
	17#	6.4	1.6	1400
	18#	7.9	1.6	1930
TX325	15#	4.8	2.4	760
TX325	24#	6.4	2.4	1230
YZ1515x	13#	0.8	1.6	42	600
	14#	1.6	1.6	162
	19#	2.4	1.6	306
	16#	3.1	1.6	492
	25#	4.8	1.6	1020
	17#	6.4	1.6	1740
	18#	7.9	1.6	2280
YZ2515x	15#	4.8	2.4	1020
YZ2515x	24#	6.4	2.4	1740
LP15-6	13#	0.8	1.6	84
	14#	1.6	1.6	324
	19#	2.4	1.6	612
	16#	3.1	1.6	984
	25#	4.8	1.6	2040
	17#	6.4	1.6	3480
	18#	7.9	1.6	4560
LP25-6	2.4*2.4	2.4	2.4	0.13-455	0.1-350
	3.2*2.4	3.2	2.4	0.2-700
	15#	4.8	2.4	0.43-1505
	24#	6.4	2.4	0.67-2345
	35#	7.9	2.4	0.9-3255
KZ25	36#	9.6	2.4	1.35-4500	0.1-600
	15#	4.8	2.4	0.3-1800
	24#	6.4	2.4	0.5-3000
	35#	7.9	2.4	0.7-4200
	36#	9.6	2.4	1-6000

UTF02 Filling System Pump Head Selection

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.
