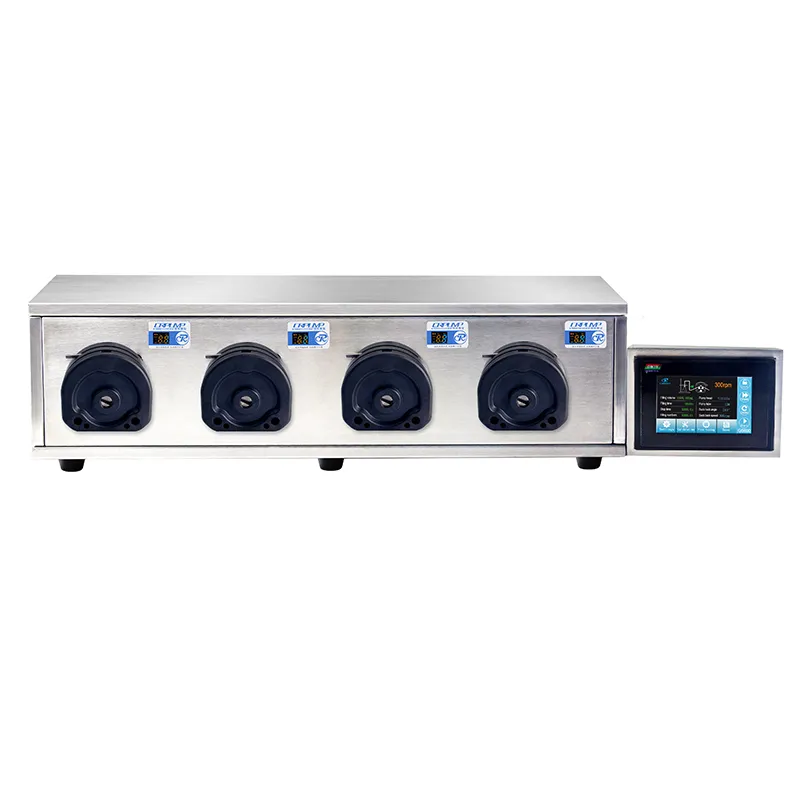

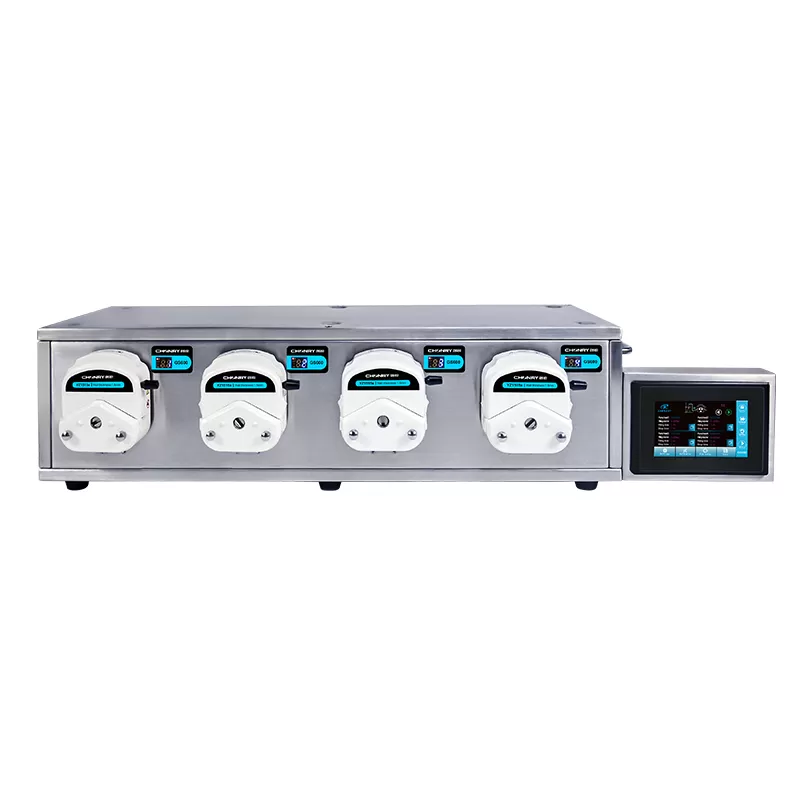

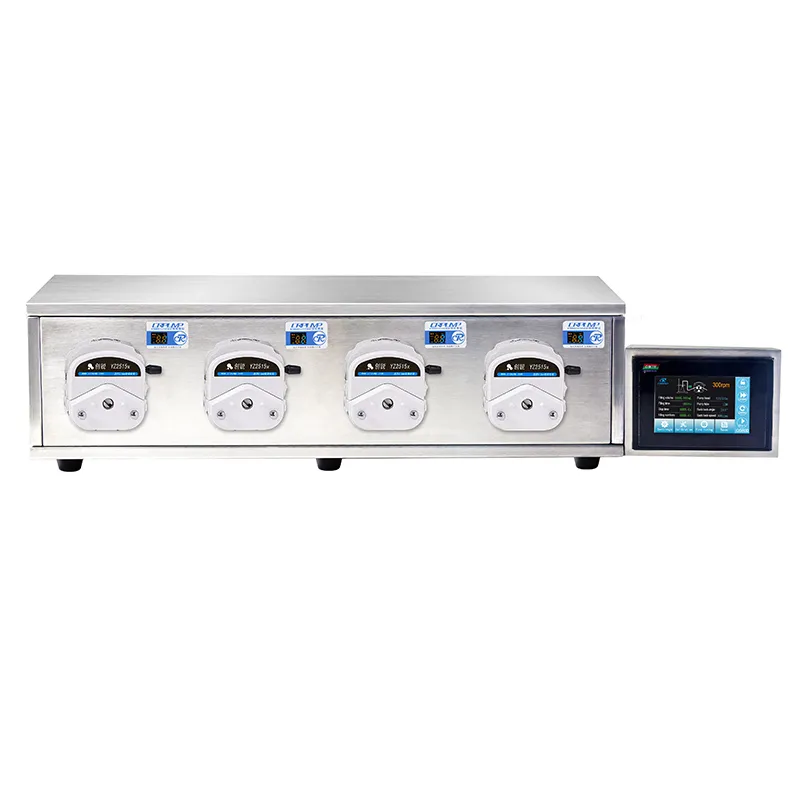

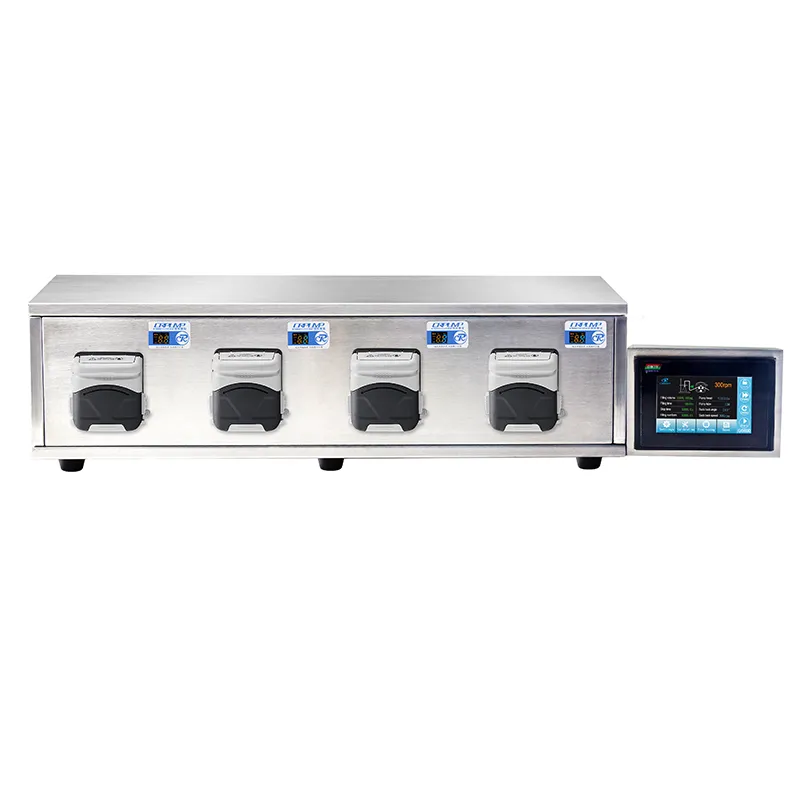

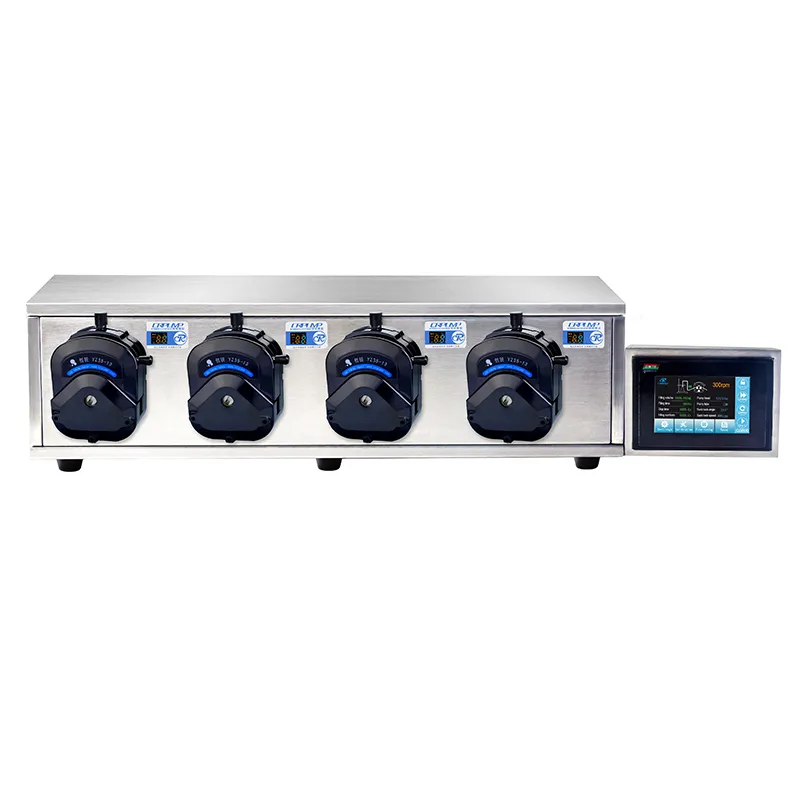

GS600 Peristaltic Pump Filling System

ModelGS600
Max Flow4560mL/min
Max Speed600rpm
Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

GS600 is an intelligent dispensing and filling system configured with a peristaltic pump. It is controlled by a 5-inch industrial-grade LCD screen. The LCD screen displays running parameters including the status and flow rates. GS600 peristaltic pump filling system has standard 4 channels and can be expanded to 16 channels at most due to modular design. Besides, it has intelligent calibration and online fine-tuning functions. It can be installed by the YZ series, DG series, TX315, LP15-6, and other pump heads that provide MODBUS/RS485 communication protocol, support external control, and realize remote control.


Features and Benefits:

5-inch touch LCD screen, real-time display of working status

Support customization, standard drive with 4 channels, expanded to 16 channels

Power off save function, the filling parameters before power-off can be memorized

Data storage, It can store 12 common filling sets, realize fast filling

Support RS485/Modbus communication protocol, foot switch control

Calibration and online fine-tuning functions


Application:

The GS600 peristaltic pump filling system can handle the transfer and production filling of a variety of liquids:

- Food (e.g. pizza sauce dispensing)

- Beverage supply equipment(e.g. juice,milk production)

- Pharmaceutical production

- Chemical

- Cosmetic dispensing

GS600 Filling Pump Parameter Table


Max flow4560mL/min
Max speed600rpm
Control methodTouch screen main controller + external control
Control modelInternal control mode, external control mode
Calibration methodScale adjustment, volume calibration
Flow fine-tuning range80%-120%
Pump headDG series、YZ1515x、YZ2515x、TX315、LP15-6
Customer data storage12 sets
Outlet pressure0.1-0.12Mpa
Communication interfaceRS485 bus
Communication protocolModbusRTU Standard protocol
Power supplyController-AC90-260V/50/60Hz Single group system-AC180-260V/50/60Hz
Power interfaceAC220V±10% (Standard)or AC110V±10%(Optional)
MotorStepper motor
Motor voltageDC 48V
Power400W(Single group filling unit - 4 heads)


Filling Application and Performance Index


Filling volume0.001mL-9999.99mL/timeDisplay adjustment resolution: 0.01mL
Filling time0.3-9999.9s/timeDisplay adjustment resolution: 0.1s
Intervals0.3-9999.9s/timeDisplay adjustment resolution: 0.1s
Filling times0-9999 times"0" means infinite loop
Suction angle0-720°Display adjustment resolution: 1°
Suction speed0-300rpmDisplay adjustment resolution: 1rpm
Suction back delay0s-60sDisplay adjustment resolution: 0.1s
Channels4 channels/unit (standard)2 3 4 5 6 channels/unit (optional)Expandable up to 32 channels
Pump HeadHose SpecificationsID(mm)Wall thickness (mm)Max flow (mL/min)Max speed(rpm)
DG-N(6)0.5*0.80.50.82100
1*1116
2*12119
2.4*0.82.40.824
3*13136
DG-N(10)0.5*0.80.50.81.5
1*1114
2*12113
2.4*0.82.40.817
3*13127
TX31513#0.81.628400
14#1.61.6106
19#2.41.6227
16#3.11.6399
25#4.81.6830
17#6.41.61400
18#7.91.61930
TX32515#4.82.4760
24#6.42.41230
YZ1515x13#0.81.642600
14#1.61.6162
19#2.41.6306
16#3.11.6492
25#4.81.61020
17#6.41.61740
18#7.91.62280
YZ2515x15#4.82.41020
24#6.42.41740
LP15-613#0.81.684
14#1.61.6324
19#2.41.6612
16#3.11.6984
25#4.81.62040
17#6.41.63480
18#7.91.64560


Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.
