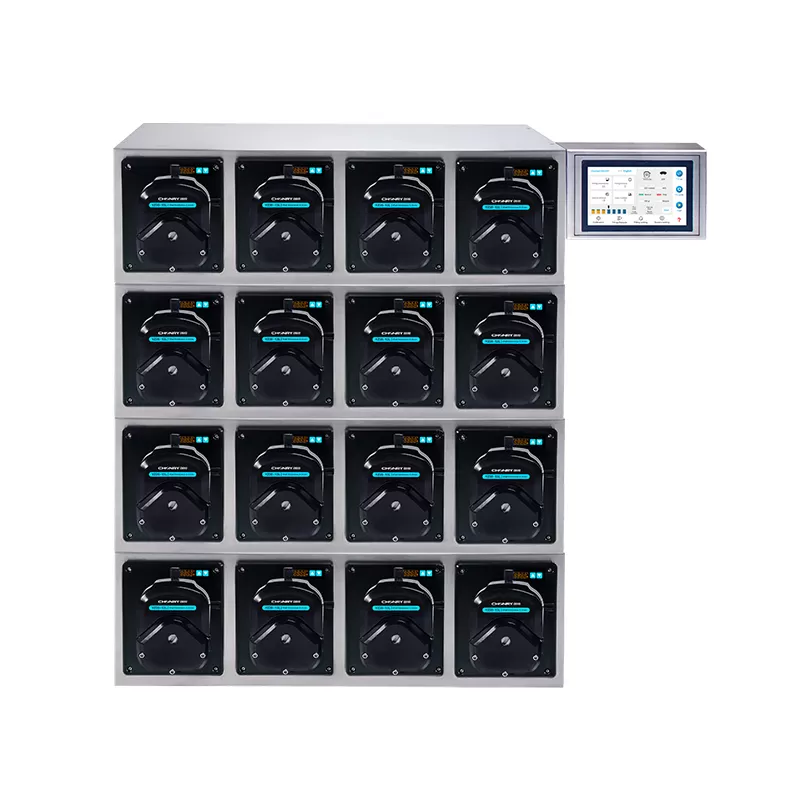

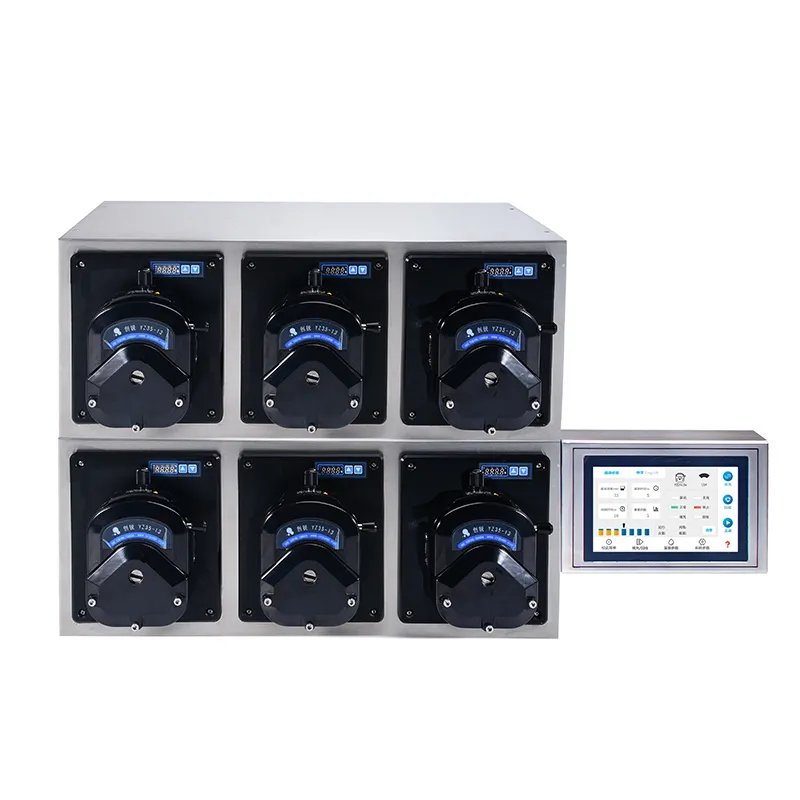

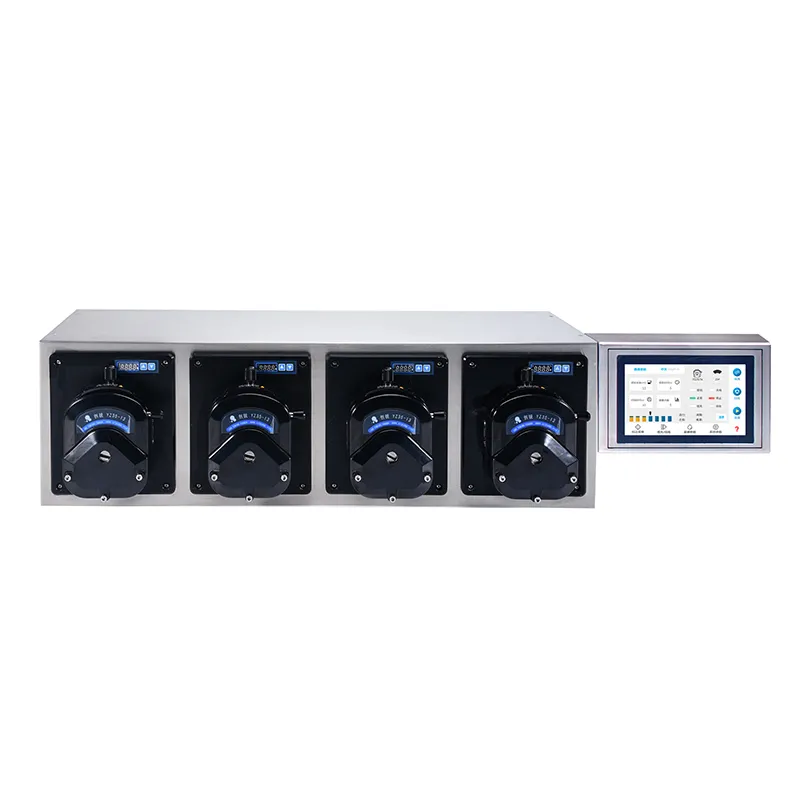

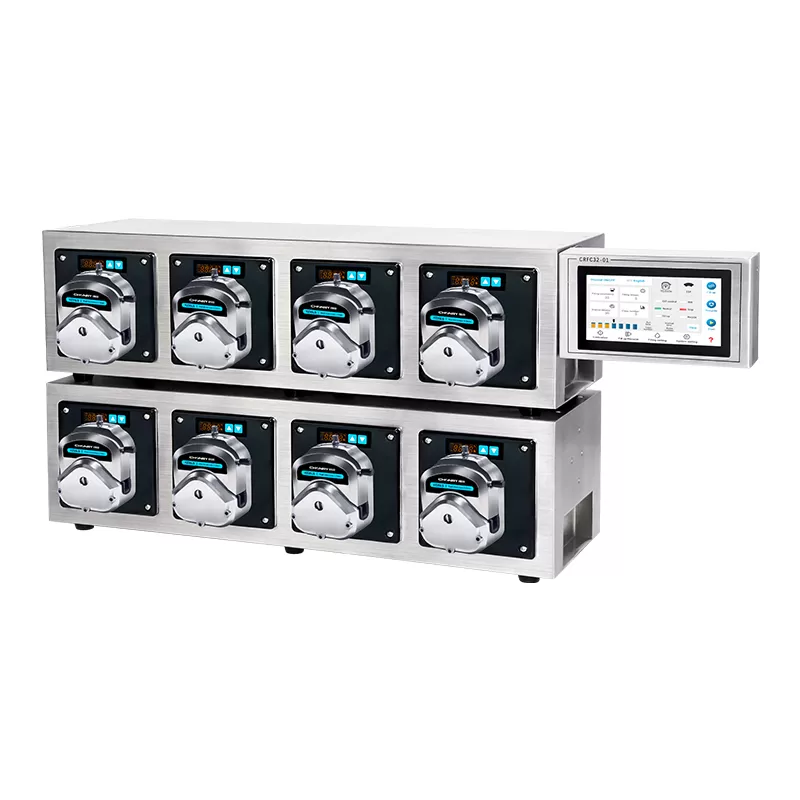

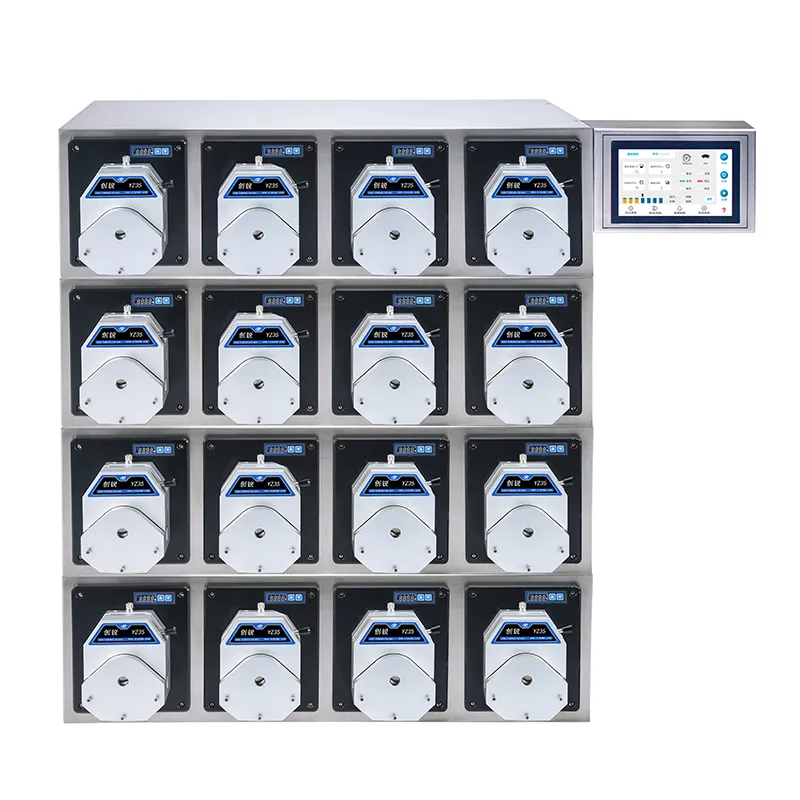

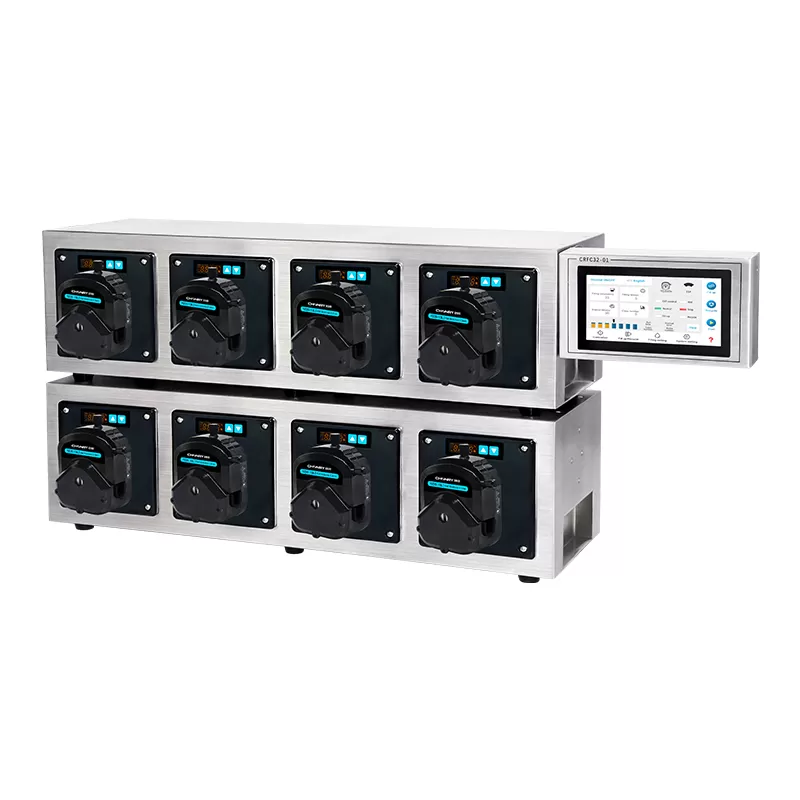

UTF03 is an intelligent filling peristaltic pump independently developed by Chuangrui Pump Industry. The standard drive unit of the system is 4 channels (2 3 4 5 6) optional and can be expanded to 32 channels at most. It can install various pump heads such as YZ35, YZ35-13, etc., and adapt to various specifications of hoses, providing customers with a variety of choices to meet a variety of applications. The main controller adopts a 7-inch or 10-inch industrial touch screen, the operation is simple, clear, and easy to use, and the functions are rich and easy to use.
Features and Benefits
Adopt a 7-inches or 10-inches industrial touch screen, easy to operate
Support RS485/Modbus communication protocol, which can be used according to customized upon request
One key full speed, realize quickly filling or emptying the tube
Stainless steel housing, adopts 304 stainless steel shell, high strength and corrosion resistant
The transfer direction is controllable, meets more requirements
Various pump heads such as YZ35 and YZ35-13 can be installed
The UTF03 peristaltic pump filling system can handle the transfer and production filling of a variety of liquids:
- Food (e.g. pizza sauce dispensing)
- Beverage supply equipment(e.g. juice,milk production)
- Pharmaceutical production
- Cosmetic dispensing
UTF03 Filling Pump Head Parameter Table
|Model||Display Method||Control||Filling Accuracy||Control Mode||Fine-tumingRange||Max Speed||Max Flow||Pump Head||Weight|
|UTF03||7 inches/10 inchesIndustrial touch screen+4-digit LED digital display||Sub-control /Central control||<±2%||Offline Mode/Online mode||80%-120%||600rpm||12000mL/min||YZ35|
|Master-1.35Single groupsystem - 38|
Filling Application and Performance Index
|Filling volume||0.1mL-9999.99mL/time||Display adjustment resolution: 0.01mL|
|Filling time||0.1-9999.9s/time||Display adjustment resolution: 0.1s|
|Intervals||0.2-9999.9s/time||Display adjustment resolution: 0.1s|
|Filling times||0-9999 times||"0" means infinite loop|
|Suction angle||0-7200°||Display adjustment resolution: 1°|
|Suction speed||0-300rpm||Display adjustment resolution: 1rpm|
|Suction back delay||0s-60s||Display adjustment resolution: 0.1s|
|Channels||4 channels/unit (standard)2 3 4 5 6 channels/unit (optional)||Expandable up to 32 channels|
|Pump Head||Hose Specifications||ID(mm)||Wall thickness (mm)||Max flow (mL/min)||Max speed(rpm)|
Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.
