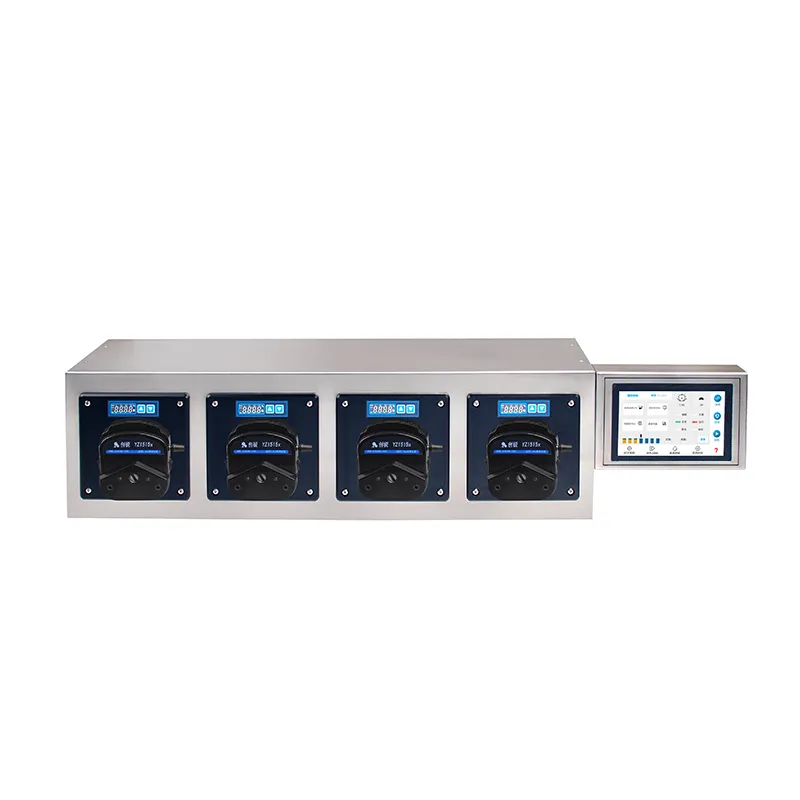

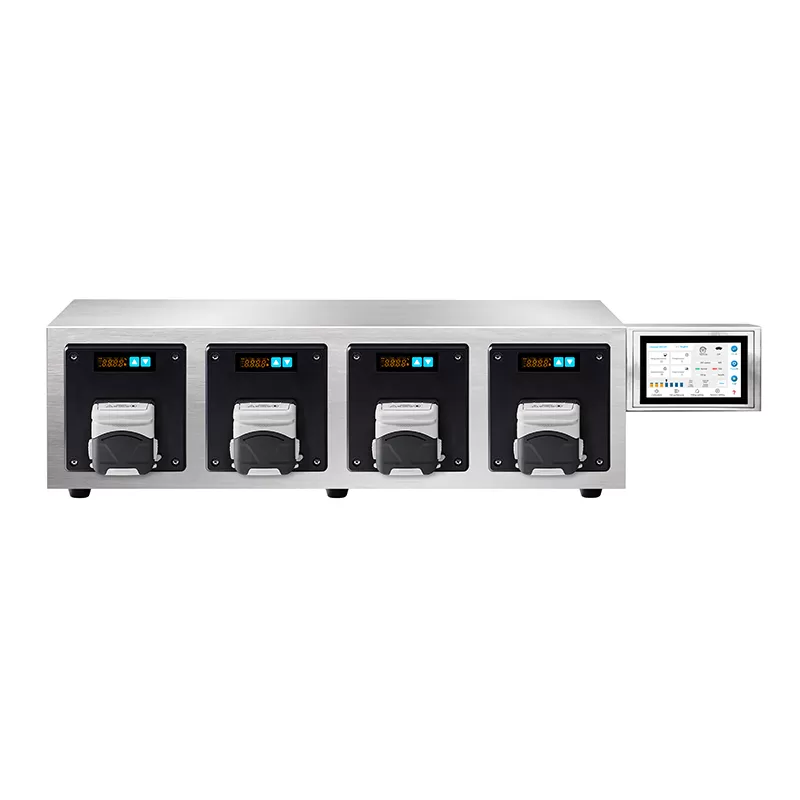

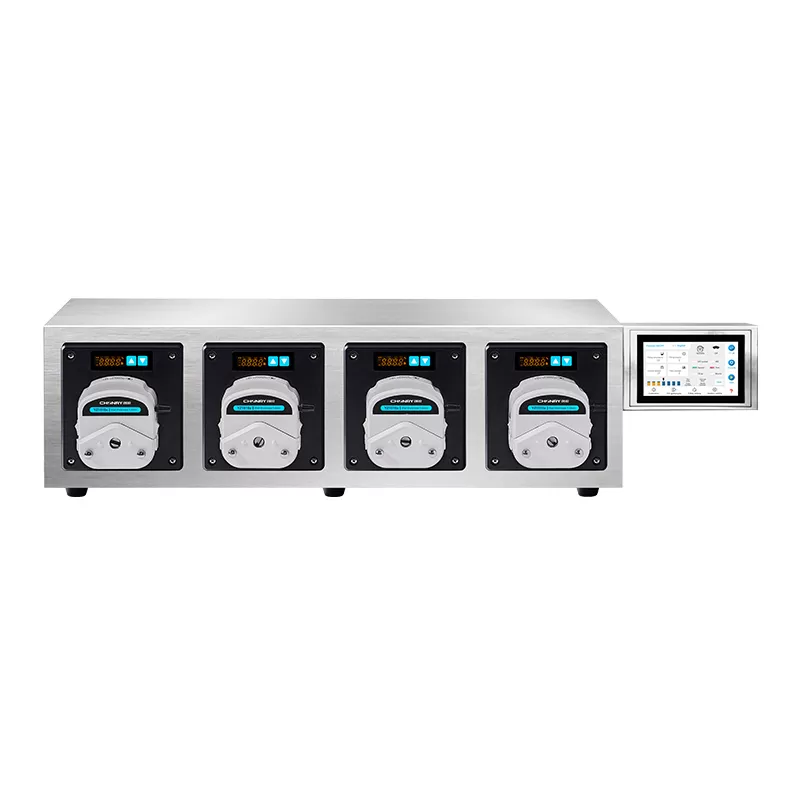

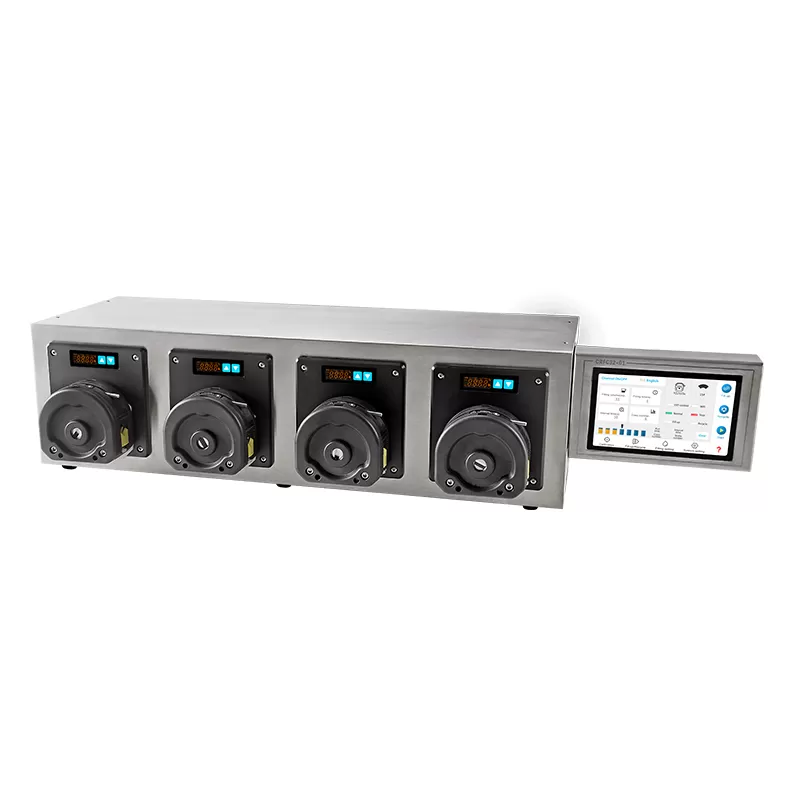

UTF01 Peristaltic Pump Filling System

UTF01 Peristaltic Pump Filling System

ModelUTF01
Max Flow4560mL/min
Max Speed600rpm
Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

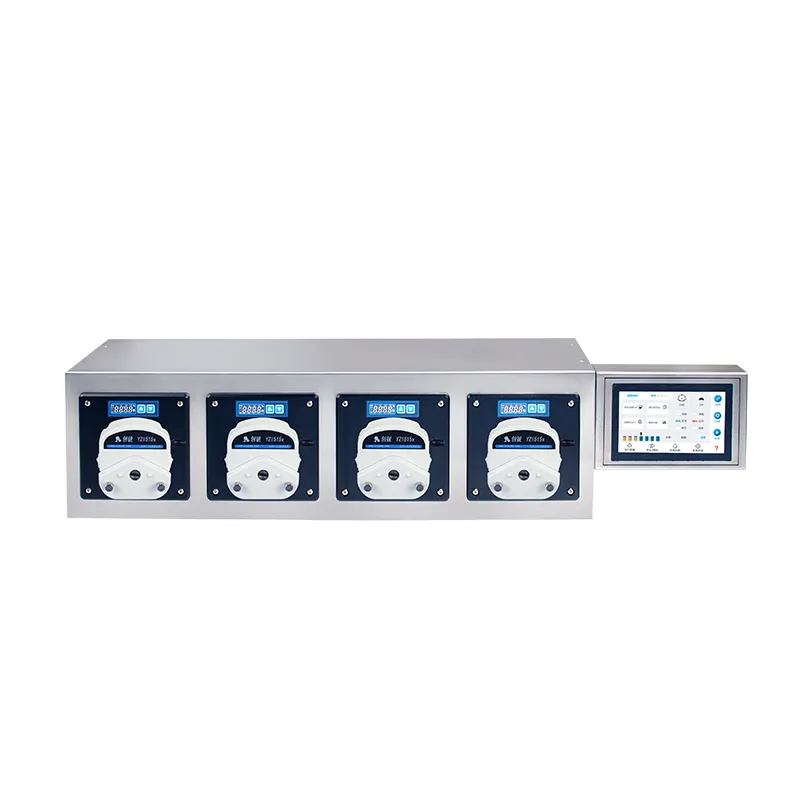

UTF01 is an intelligent filling peristaltic pump and controller independently developed by Chonry Pump Industry. The standard drive unit of the system is 4 channels (2 3 4 5 6) optional and can be expanded to 32 channels at most. It can be installed with YZ series, DG series, TX315, LP15-6, and other pump heads, suitable for various specifications of hoses, providing customers with a variety of options to meet a variety of applications. The main controller adopts a 7-inch or 10-inch industrial touch screen, the operation is simple, clear, and easy to use, and the functions are rich and easy to use.


Features and Benefits:

Adopts 7-inch or 10-inch industrial screen, easy to operate

The main body adopts a 304 stainless steel shell, high strength, corrosion resistant and easy to clean

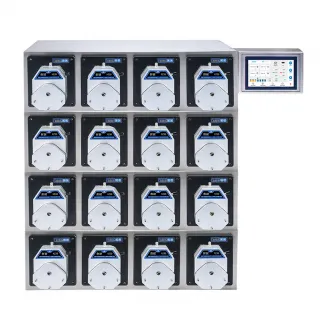

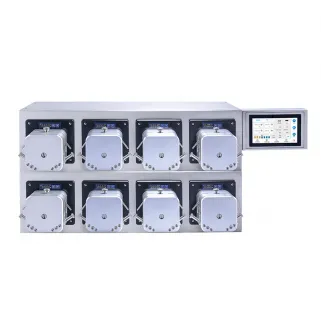

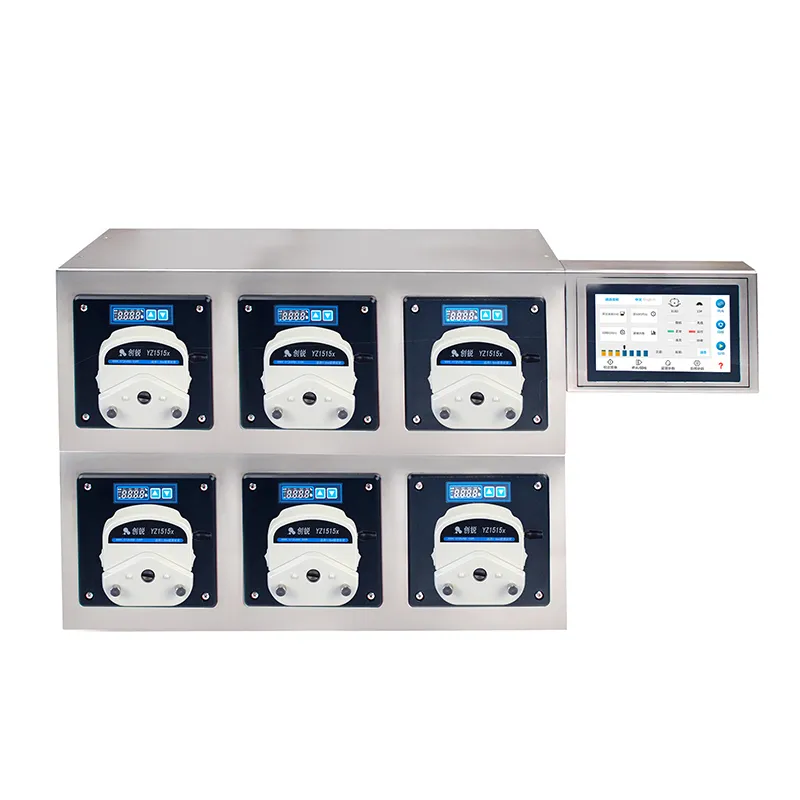

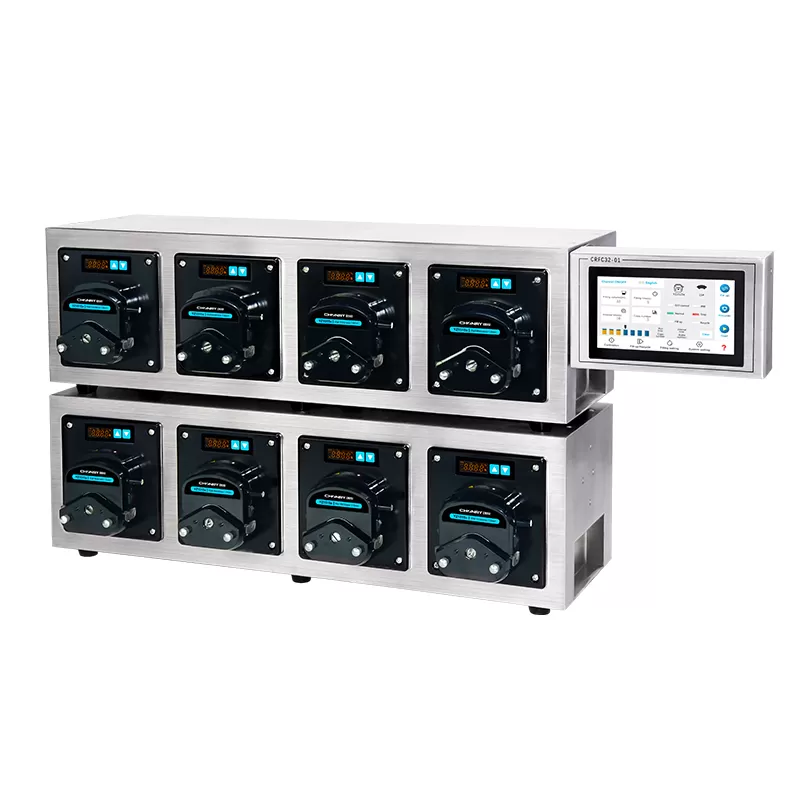

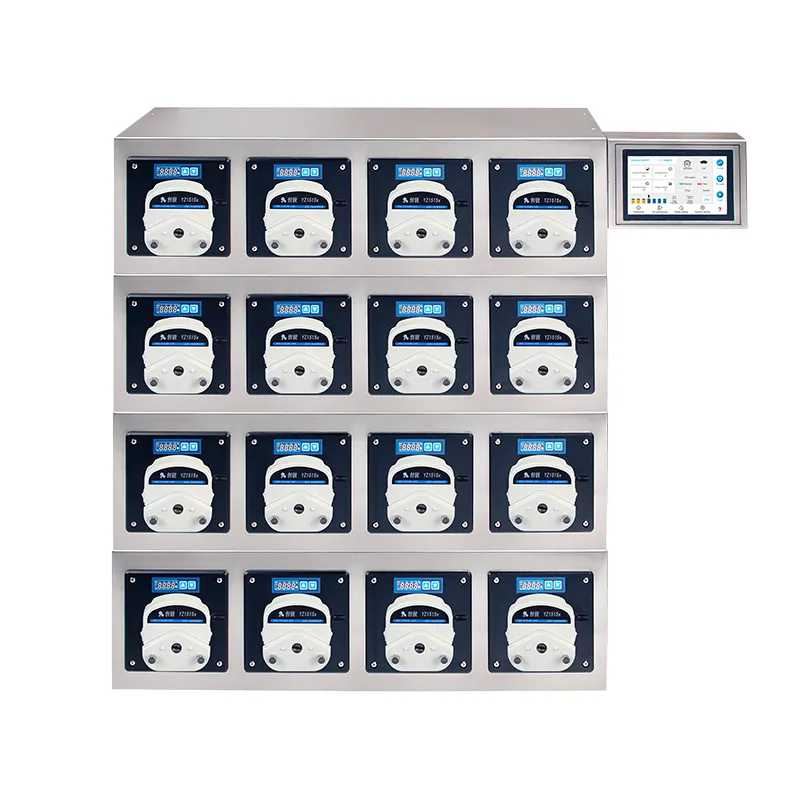

Standard 4 channels, can be expanded up to 32 channels by stacking installation

Improved system security

Three operation modes: internal control, external control and communication control

No bottle and stop filling


Application:

The UTF01 peristaltic pump filling system can handle the transfer and production filling of a variety of liquids:

- Food (e.g. pizza sauce dispensing)

- Beverage supply equipment(e.g. juice,milk production)

- Pharmaceutical production

- Chemical

- Cosmetic dispensing

UTF01 Filling Pump Head Parameter Table


ModelDisplay MethodControlFilling AccuracyControl ModeFine-tumingRangeMax SpeedMax FlowPump HeadWeight
UTF017 inches/10 inchesIndustrial touch screen+4-digit LED digital displaySub-control /Central control<±2%Offline Mode/Online mode80%-120%600rpm4560mL/minDG Series
YZ1515x
YZ2515x
TX315
TX325
LP15-6		Master-1.35Single groupsystem - 16.85


Filling Application and Performance Index


Filling volume0.1mL-9999.99mL/timeDisplay adjustment resolution: 0.01mL
Filling time0.1-9999.9s/timeDisplay adjustment resolution: 0.1s
Intervals0.2-9999.9s/timeDisplay adjustment resolution: 0.1s
Filling times0-9999 times"0" means infinite loop
Suction angle0-7200°Display adjustment resolution: 1°
Suction speed0-300rpmDisplay adjustment resolution: 1rpm
Suction back delay0s-60sDisplay adjustment resolution: 0.1s
Channels4 channels/unit (standard)2 3 4 5 6 channels/unit (optional)Expandable up to 32 channels

UTF01 Filling System Pump Head Selection

Pump HeadHose SpecificationsID(mm)Wall thickness (mm)Max flow (mL/min)Max speed(rpm)
DG-N(6)0.5*0.80.50.82100
1*1116
2*12119
2.4*0.82.40.824
3*13136
DG-N(10)0.5*0.80.50.81.5
1*1114
2*12113
2.4*0.82.40.817
3*13127
TX31513#0.81.628400
14#1.61.6106
19#2.41.6227
16#3.11.6399
25#4.81.6830
17#6.41.61400
18#7.91.61930
TX32515#4.82.4760
24#6.42.41230
YZ1515x13#0.81.642600
14#1.61.6162
19#2.41.6306
16#3.11.6492
25#4.81.61020
17#6.41.61740
18#7.91.62280
YZ2515x15#4.82.41020
24#6.42.41740
LP15-613#0.81.684
14#1.61.6324
19#2.41.6612
16#3.11.6984
25#4.81.62040
17#6.41.63480
18#7.91.64560


Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

UTF01 Filling System Brochure - Chonry
UTF01 Filling System Brochure - Chonry UTF01 is an intelligent filling peristaltic pump and controller independently developed by Chuangrui Pump Industry.
UTF01 Product Selection
UTF01 Product Selection The main controller adopts 7-inch or 10-inch, industrial touch screen, easy to operate
