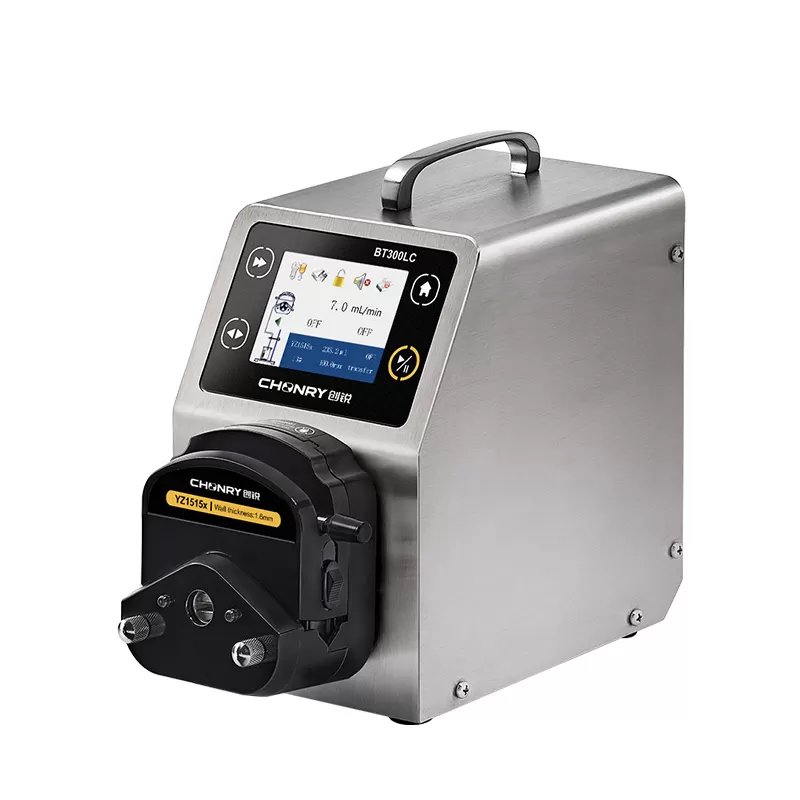

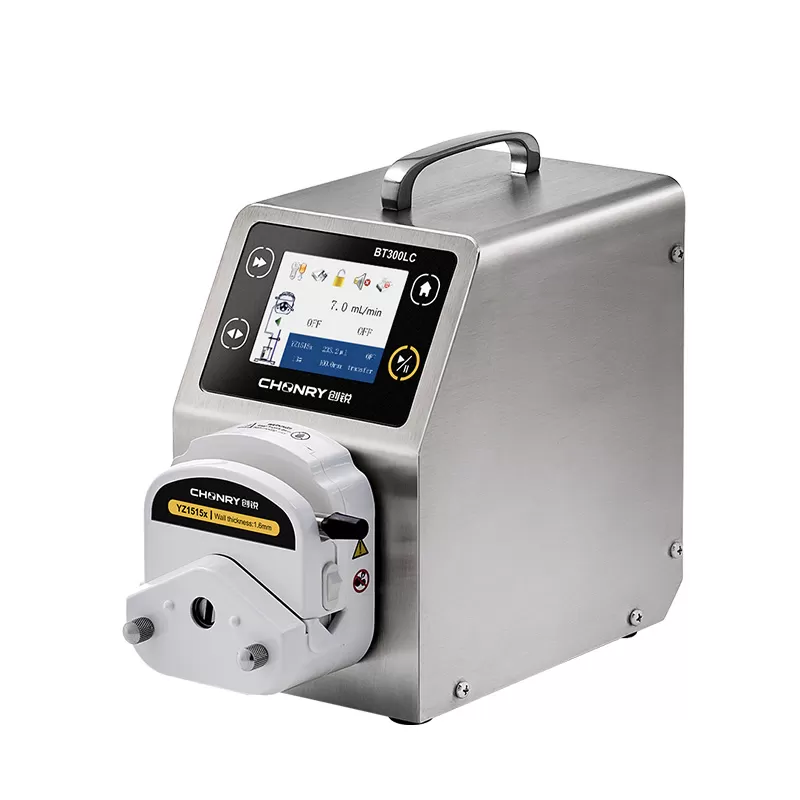

BT300LC Peristaltic Dosing Pump Stepper Motor

Flow Rate:  0.007-1440mL/min

- Chemical transfer peristaltic pump. Peristaltic dosing pump.

- It is used for transferring chemical material, alkaline and acidic liquid. Strong corrosion resistance.

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

The BT300LC peristaltic metering pumps are used for transferring chemical material, such as alkaline and acidic liquid. It is a type of chemical transfer pump that has strong corrosion resistance. The flow rate is from 0.007 to 1440mL/min. This BT300LC pump adopts stainless shells, durable. It has a power-off save function and a flow rate calibration function to ensure high accuracy and precision.



Specification

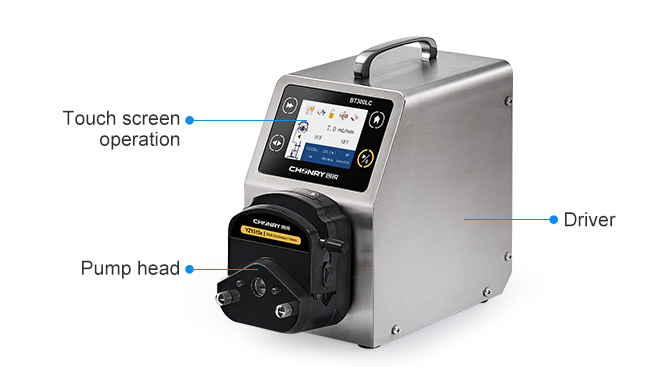

LCD touch: 3.5-inch color LCD, touch screen control, simple to operate.

Flow calibration: With the flow calibration function, it is suitable for transferring liquids with higher precision

Data storage: 8 sets of data can be stored for users

Multiple working modes: Transmission mode, timing mode, Quantitative mode, timed quantitative mode

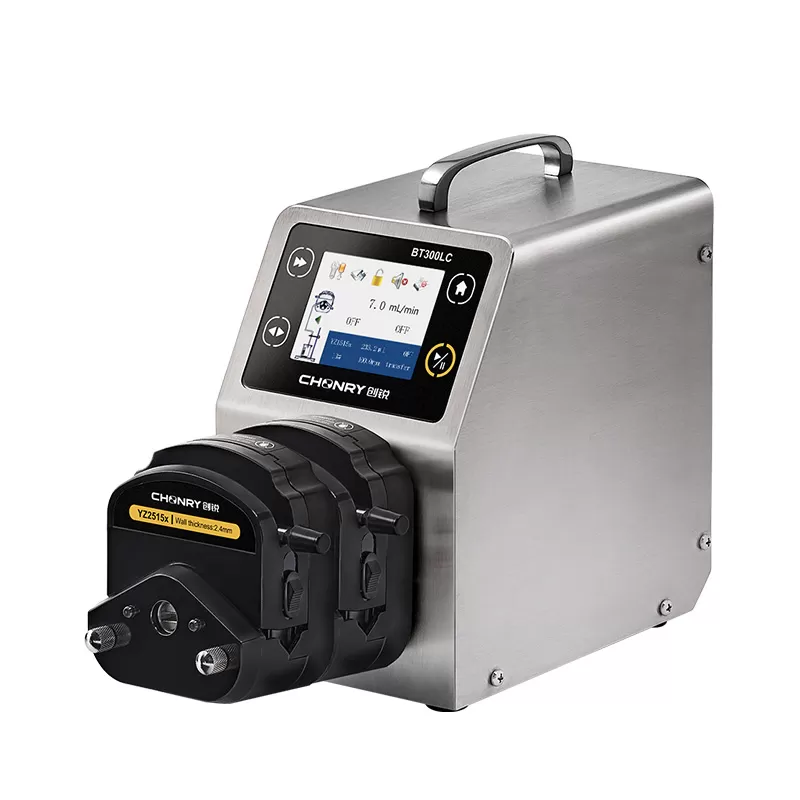

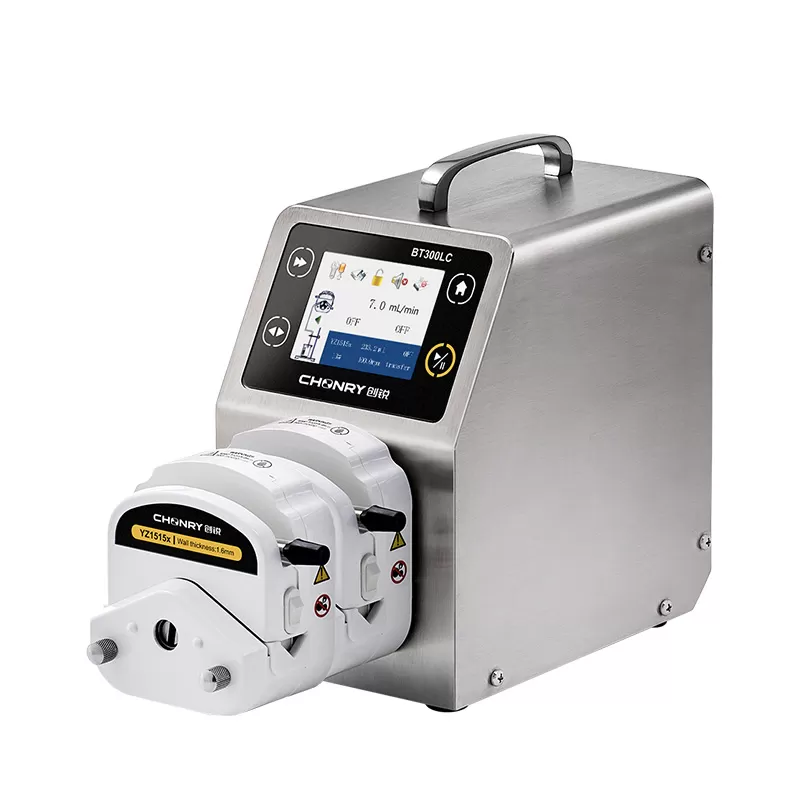

Adapt to multiple pump heads: YZ and DG pump heads can be installed, and pump heads can be cascaded.

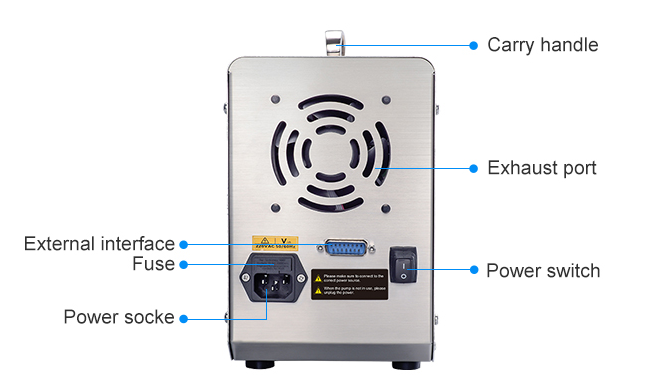

Support external control: Support RS485/MODBUS communication protocol, analog control, foot switch control


Application

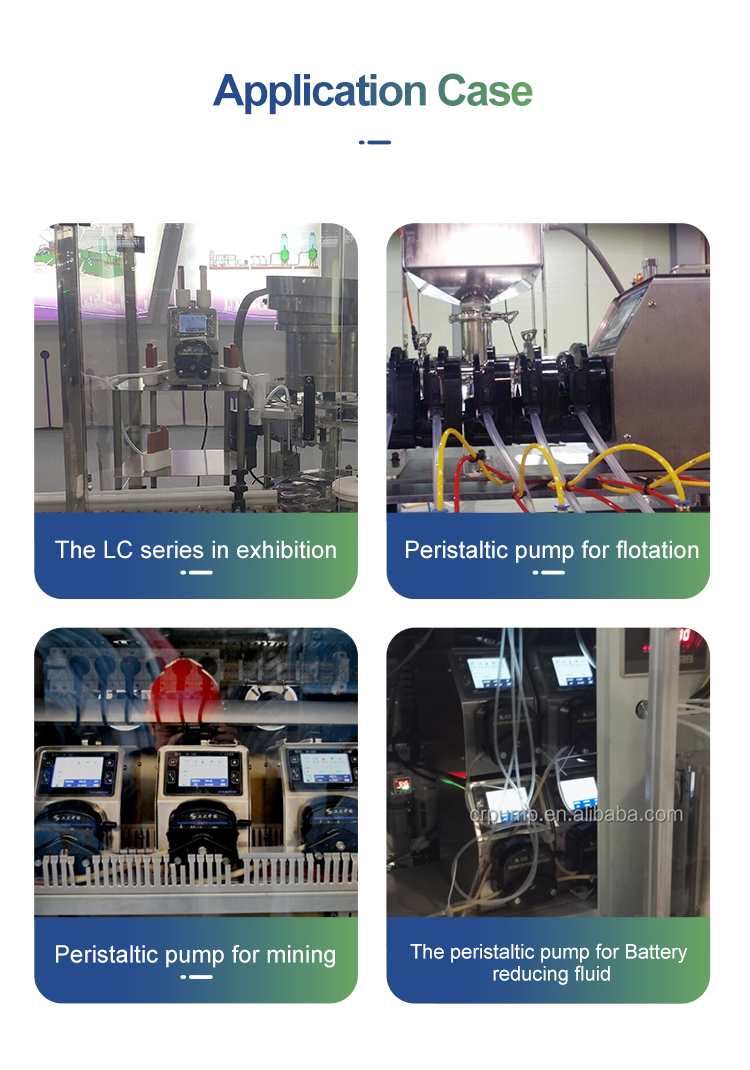

Used in laboratories, biopharmaceuticals, printing, mineral processing and other fields.


BT300LC  Peristaltic Dosing Pump

BT300LC  Peristaltic Dosing Pump



Drive modelBT300LC
Max Speed300rpm(reversible)
Max flow1440mL/min
Speed resolution0.1rpm
Display methodColor LCD (EN and CN optional)
Speed modeTouch screen adjustment
Timing range0.1s-9999min
Quantitative range 0.001mL-9999L
Buck suction angle10°-720° (0° means no back suction)
Buck suction speed10-300rpm

Power

<35W
Drive size215*136.4*236.7mm
Drive Weight4.64kg
Power supplyAC220±10% (standard) or AC110V±10% (optional)
External control methodStart control/direction control/speed control (0-5V, 0-10V, 4-20mA optional)




Pump headModelMax Speed                                    Peristaltic Pump  Tube (ID*Wall thickness)mm
13#
(0.8*1.6)
14#
(1.6*1.6)
19#
(2.4*1.6)
16#
(3.1*1.6)
25#
(4.8*1.6)
17#
(6.4*1.6)
18#
(7.9*1.6)
YZ1515XBT300LC

30021811532465108701140
YZ15m30021811532465108701140
YZ151ma30021811532465108701140

15#(4.8*2.4)24#(6.4*2.4)
YZ2515XBT300LC300510870

14#(1.6*1.6)16#(3.1*1.6)25#(4.8*1.6)
ZN15BT300LC300
81
246
510

24#(6.4*2.4)
ZN25
BT300LC300870


Flow unit: (mL/min) hose model: (mm)

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chuangrui Company.
