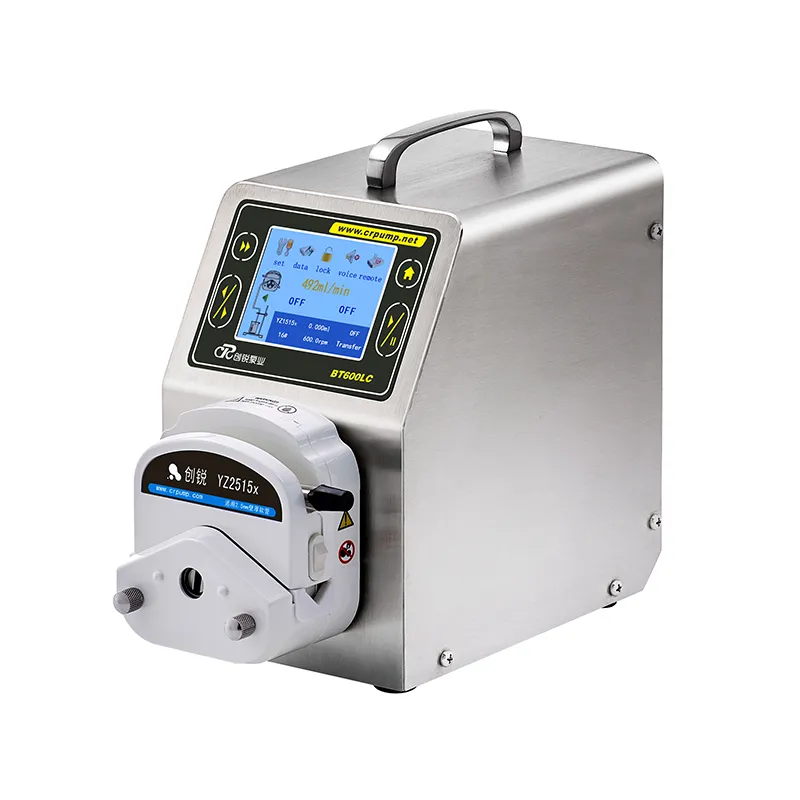

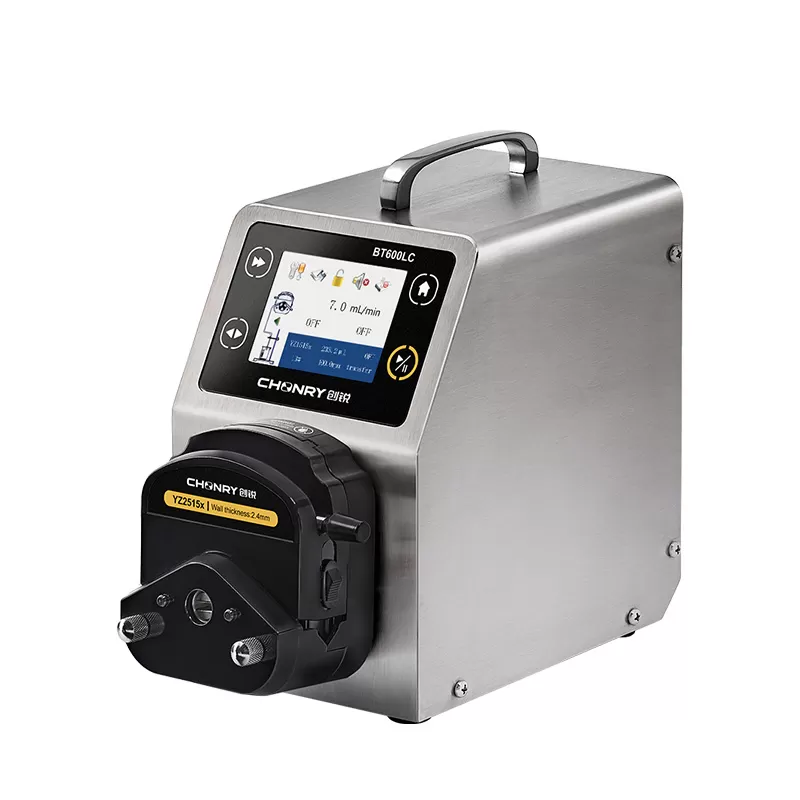

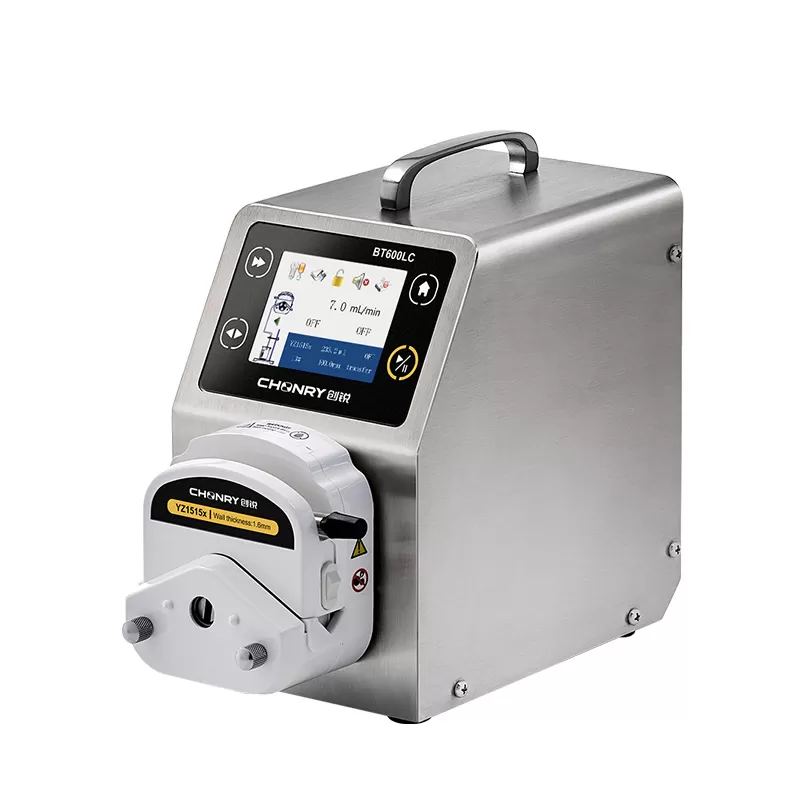

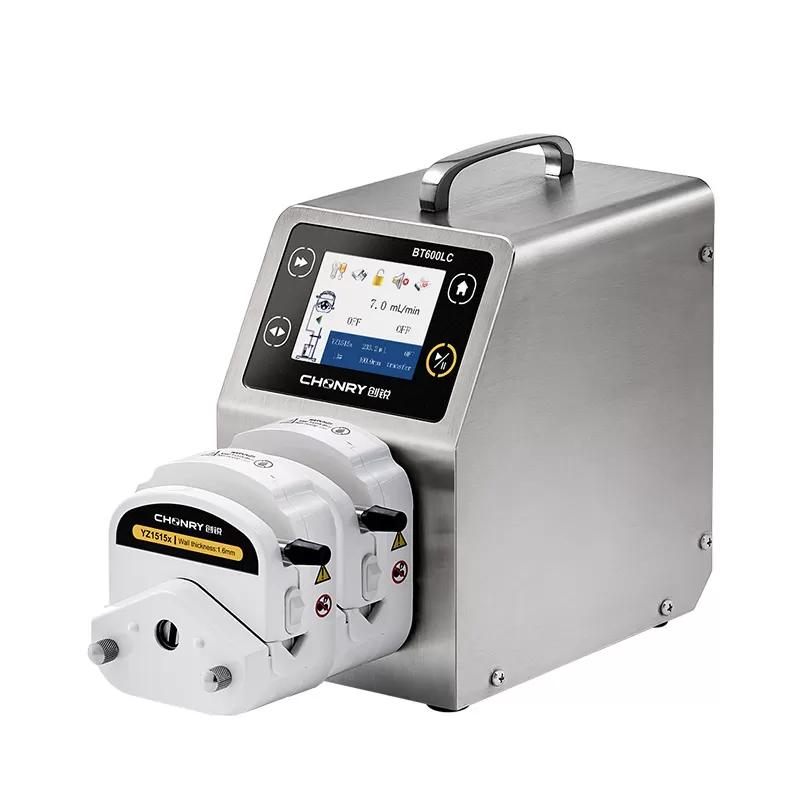

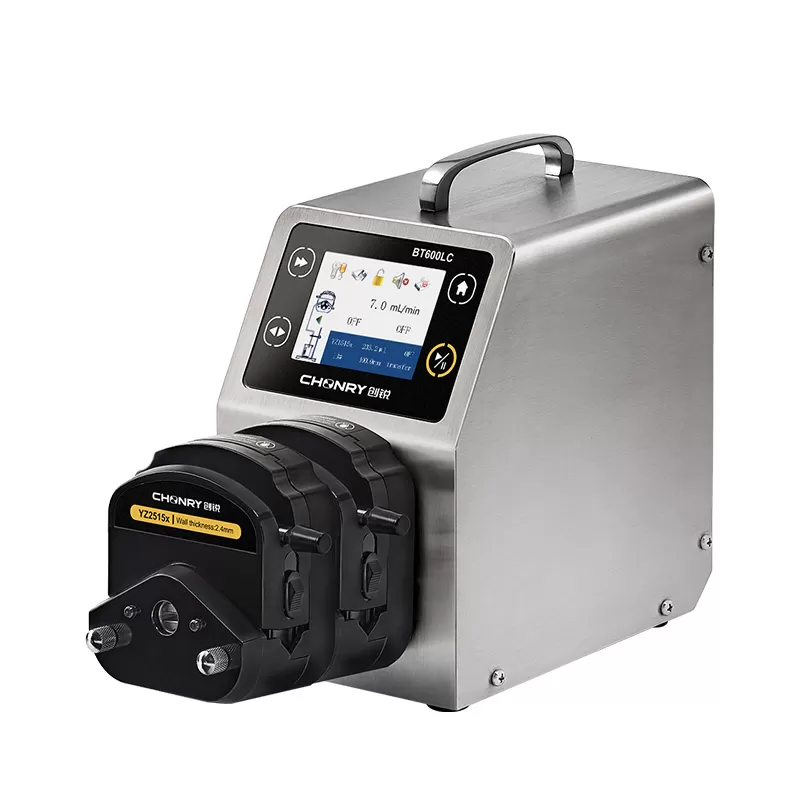

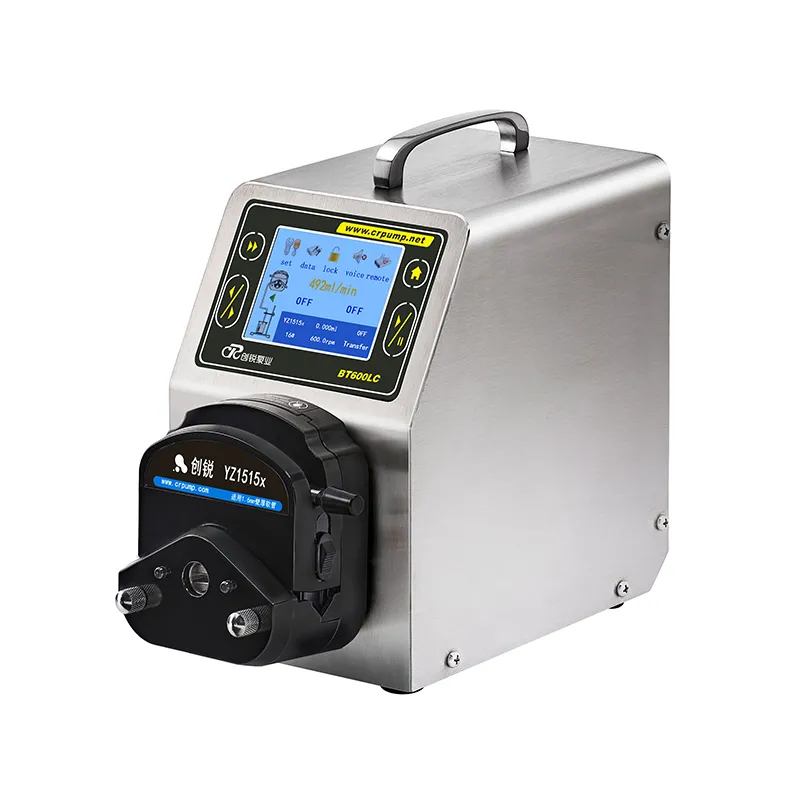

BT600LC pump peristaltic is an intelligent flow type peristaltic pump. It has two working functions filling and transmission. The stainless steel all-inclusive design is sturdy and durable. It adopts 3.5-inch color LCD screen and easy touch operation. It displays the transmission status, flow data, setting parameters, and transmission direction with animation on the same screen.

Features:

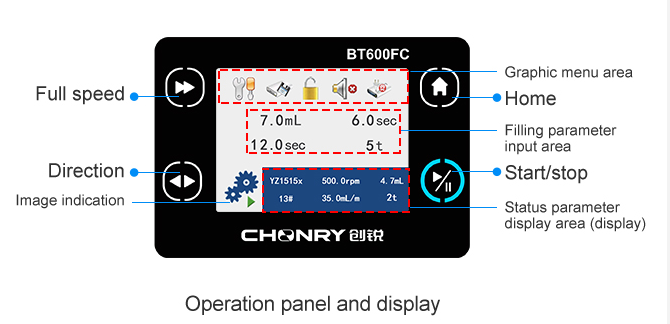

LCD touch: 3.5-inch color LCD, touch screen control, simple to operate.

Flow calibration: With the flow calibration function, it is suitable for transferring liquids with higher precision

Data storage: 9 sets of data can be stored for users

Multiple working modes: Transmission mode, timing mode, Quantitative mode, timed quantitative mode

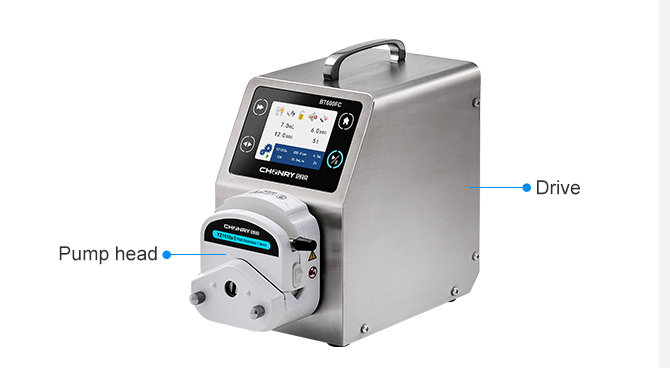

Adapt to multiple pump heads: YZ, DG, and TX series pump heads can be installed, and pump heads can be cascaded.

Support external control: Support RS485/MODBUS communication protocol, analog control, foot switch control

Application

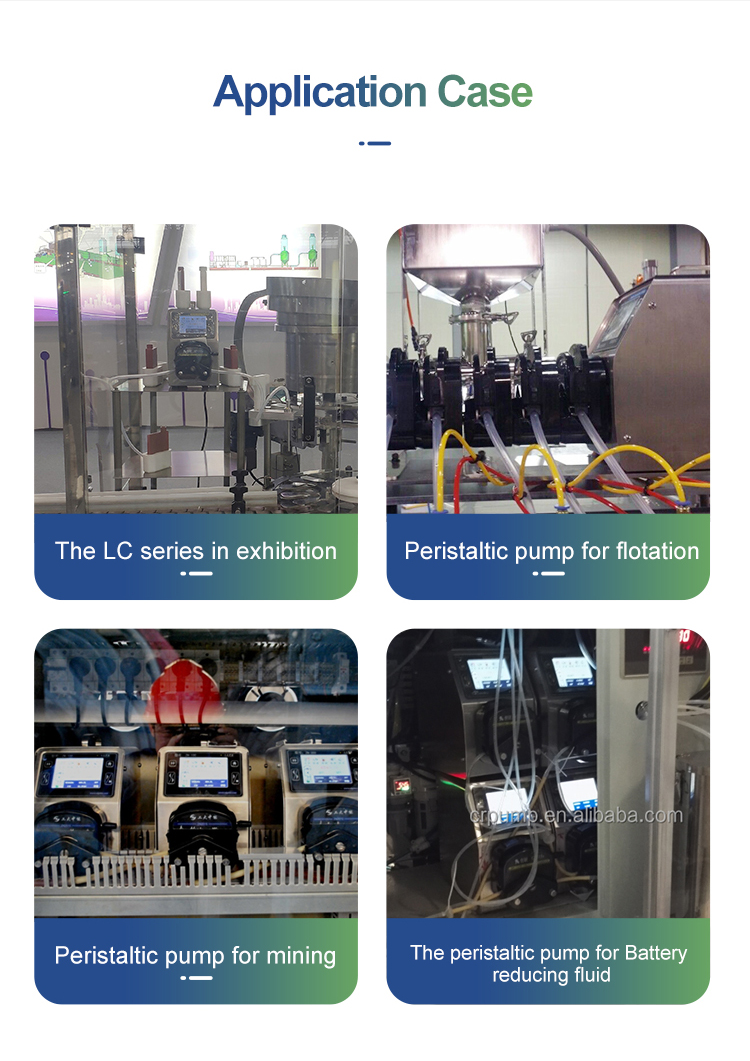

Used in laboratories, biopharmaceuticals, printing, mineral processing and other fields.

Drive model: BT600LC

Max Speed: 600rpm(reversible)

Speed resolution: 0.1rpm

Power: <50W

Max flow: 2280mL/min

Display method: LCD(EN and CN)

Speed mode: Touch screen + keypad

Timing range: 0.1s-9999min

Quantitative range: 0.001mL-9999L

Drive size: 212*142*238mm

Power supply: AC220±10% (standard) or AC110V±10% (optional)

External control method:

Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication

Pump head	Model	Max Speed	13# (0.8*1.6)	14# (1.6*1.6)	19# (2.4*1.6)	16# (3.1*1.6)	25# (4.8*1.6)	17# (6.4*1.6)	18# (7.9*1.6)
YZ1515X	BT100LC	100	7	27	51	82	170	290	380
YZ1515X	BT300LC	300	21	81	153	246	510	870	1140
YZ1515X	BT600LC	600	42	162	306	492	1020	1740	2280
Pump head	Model	Max Speed	15#(4.8*2.4)			24#(6.4*2.4)
YZ2515X	BT100LC	100	170			290
YZ2515X	BT300LC	300	510			870
YZ2515X	BT600LC	600	1020			1740
Pump head	Model	Max Speed	0.5*0.8	1*1	2*1	2.4*0.8		3*1
DG	BT100LC	100(10)	1.5	4	13	17		27
DG	BT100LC	100(6)	2	6	19	24		36

Flow unit: (mL/min) hose model: (mm)

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chuangrui Company.
