Home / Products / Peristaltic Pump / Chonry O (≤6000mL/min) / BT300FJ Variable Speed Peristaltic Pump

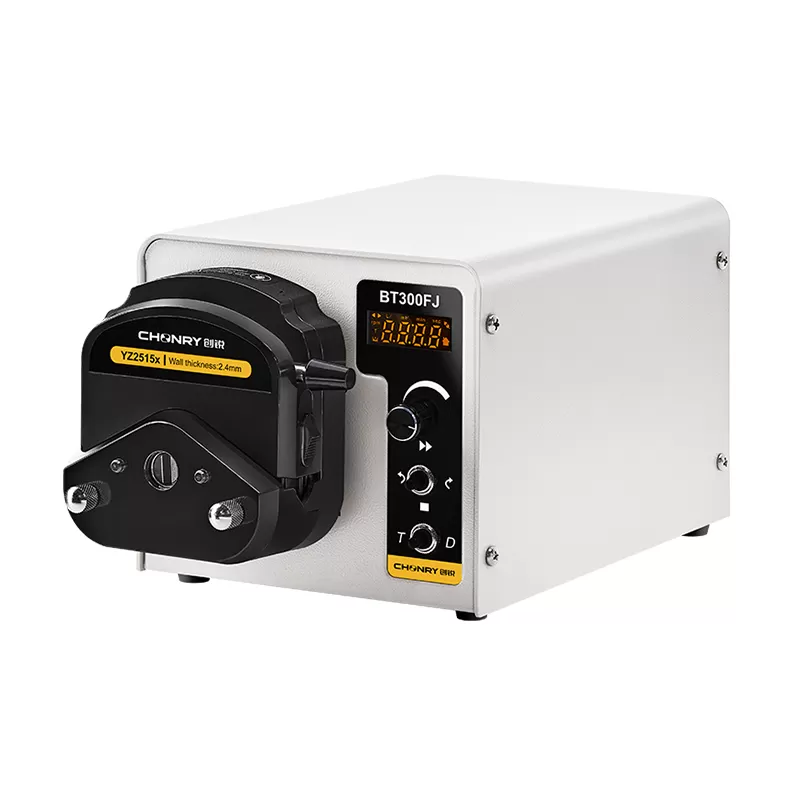

BT300FJ Variable Speed Peristaltic Pump

Flow Rate: 0.007-1440mL/min

- BT300FJ is a digital peristaltic pump variable speed 0-300rpm.

- Easy Knob Operation. Precisely liquid transfer control.

- Suitable for peristaltic pump tubing: 13#, 14#, 19#, 16#, 25#, 17#, 18#.

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

BT300FJ is adigital peristaltic pump variable speed 0-300rpm. The flow rate range is from 0.007 to 1440mL/min. Easy Knob Operation. It adopts 4 4-inch LED, displaying the current flow and speed parameters. BT300FJ dosing peristaltic pump has a unique flow rate calibration function ensuring accuracy. It can be loaded with YZ1515, YZ2515, and DG series pump heads. Supporting the RS485/MODBUS communication protocol, analog control, and foot control.


Specification

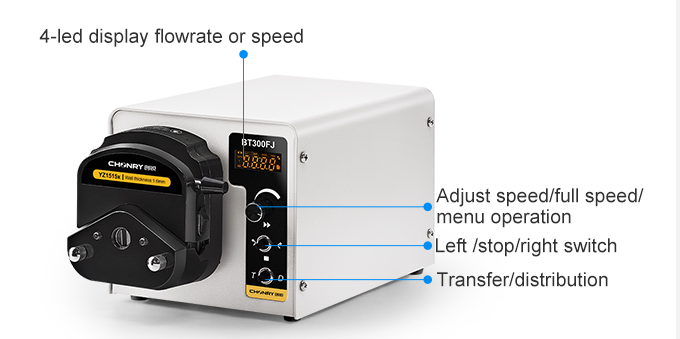

Multiple modes: Provides microfluid dispensing and transferring modes for ease of use

Power off save: This can automatically save the control parameters when the last power failure

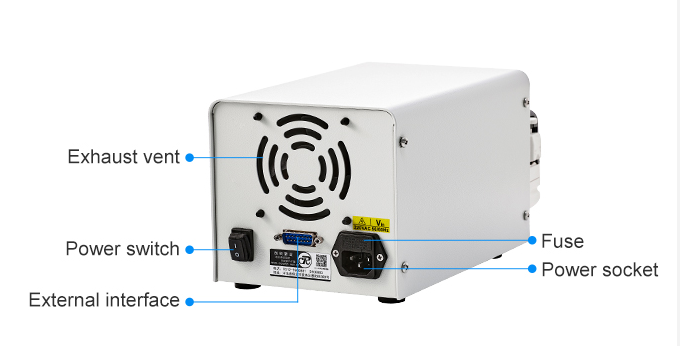

External control function: Support RS485/MODBUS communication protocol, analog control, foot switch control

Suction function: In dispensing mode, the pump can be customized to reverse after shutdown to prevent liquid from dripping

Full speed function: Full speed at the push of a knob for quick emptying or filling of pump tubing

Adapt to multiple pump heads:  YZ series, TX series, DG series and other pump heads can be installed to meet different flow requirements


Application

 It can be used for the food industry, the mining industry transferring abrasive slurry, and the chemical industry transferring of corrosive and abrasive chemicals.


BT300FJ Dispensing  Peristaltic Pump

BT300FJ Dispensing  Peristaltic Pump

BT300FJ Variable Speed Peristaltic Pump

Drive modelBT300FJ
Max speed300rpm(reversible)
Max flow1440mL/min
Speed resolution0.1rpm
Speed modeDigital knob adjusts the speed
Display method4-digit LED displays current speed/flow
Timing range0.1s-9999min
Quantitative range0.001ml-9999L
Filling times0-9999t
Suction angle10°-720°(0° means no bacj suction)
Suction speed10-300rpm
Power<35W
Drive sizes243x154x144.3mm
Drive weight4.3kg
Power supplyAC220±10% (standard) or AC110V±10% (optional)
External control methodStart control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication



Pump headModelMax Speed                                    Peristaltic Pump  Tube (ID*Wall thickness)mm
13#
(0.8*1.6)
14#
(1.6*1.6)
19#
(2.4*1.6)
16#
(3.1*1.6)
25#
(4.8*1.6)
17#
(6.4*1.6)
18#
(7.9*1.6)
YZ1515XBT300FJ

30021811532465108701140
YZ15m30021811532465108701140
YZ151ma30021811532465108701140

15#(4.8*2.4)24#(6.4*2.4)
YZ2515XBT300FJ300510870

14#(1.6*1.6)16#(3.1*1.6)25#(4.8*1.6)
ZN15BT300FJ300
81
246
510

24#(6.4*2.4)
ZN25
BT300FJ300870


Flow unit: (mL/min) hose model: (mm)

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chuangrui Company.
