CF1000 Lab Dispensing Peristaltic Pump

Flow Rate: 0.0015~380mL/min

CF1000 is a type of low-flow rate laboratory peristaltic pump. The max flow rate is up to 380ml/min. Adopts a 3.5-inch LCD touch screen. Intuitive display. Durable engineering plastics shell. Long-life service and easy operation. Call us to get more information.


Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

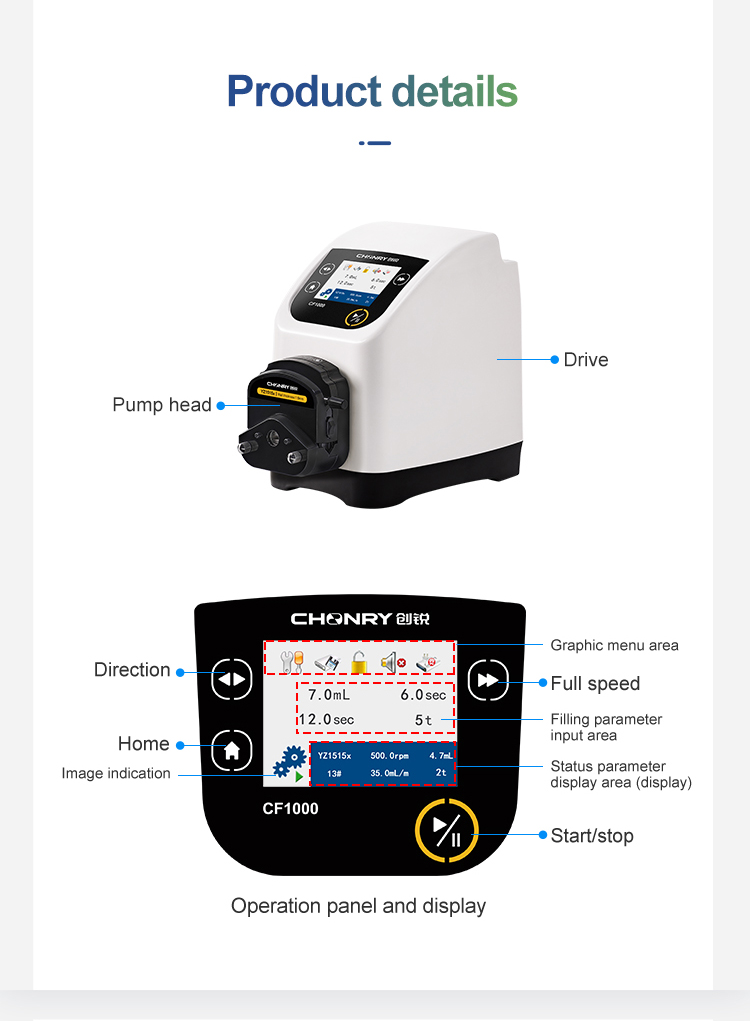

CF1000 pump is a type of intelligent dispensing peristaltic pump used in laboratory analytics. It adopts 3.5 inch LCD touch screen. Intuitive display, easy to operate. CF1000 peristaltic pumps have two working modes: transferring and dispensing. Support intelligent parameters setting to meet different working requirements. In addition, it can be easily connected and controlled with other equipment through RS485 communication of Modbus protocol. The max flow is 380ml/min.


Features:



LED touch screen, English display, convenient and fast

Data storage, 8 sets of data can be stored for users

Adopts multi pump heads, YZ DG series pump heads can be loaded.

Support multi channels

Suction back function to prevent dripping liquid

With multiple working modes, the CF1000 series peristaltic pumps can be used for liquid transferring and dispensing. High precision, repeated timing and quantitative filling.

Support RS485/MODBUS communication protocol, analog control, and foot switch control.


Applications:

CF1000 is a popular small flow rate laboratory peristaltic pump. It is suitable for cell culture, liquid transfer and micro-liquid dosing.

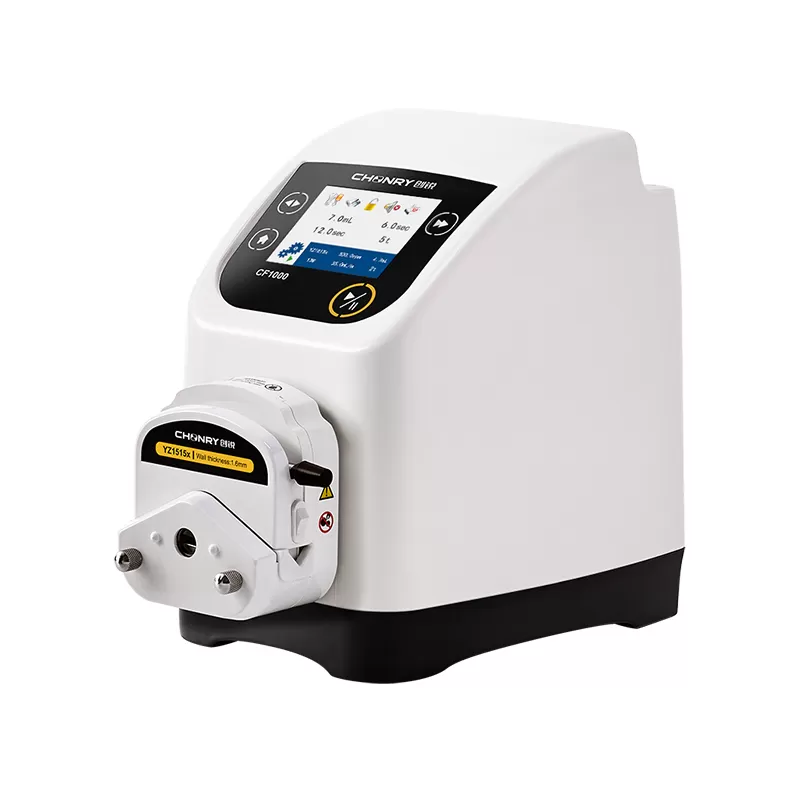

CF1000 Lab Dispensing Peristaltic Pump

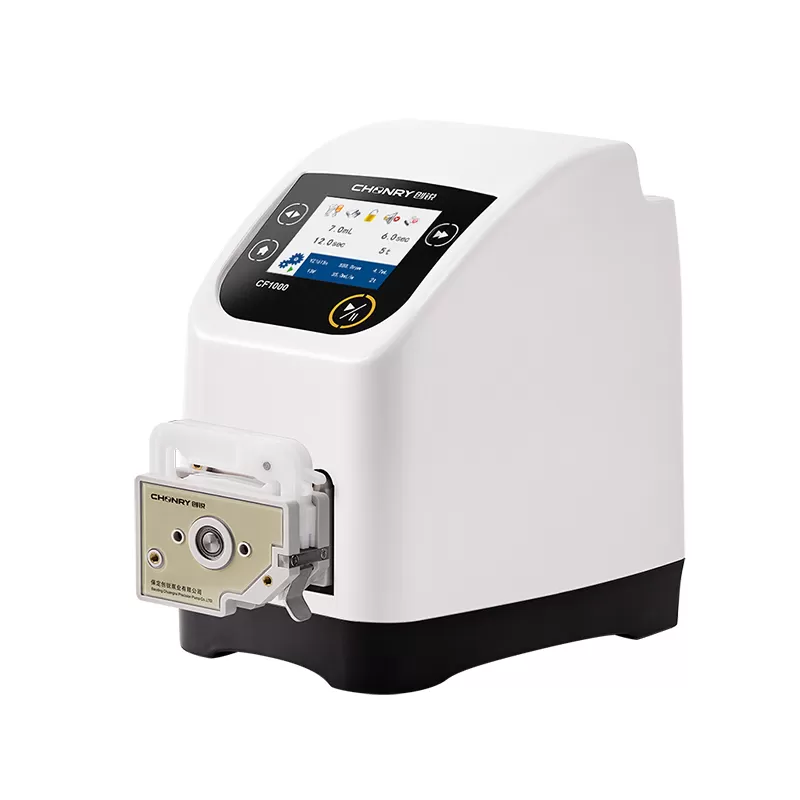

CF1000 Lab Dispensing Peristaltic Pump

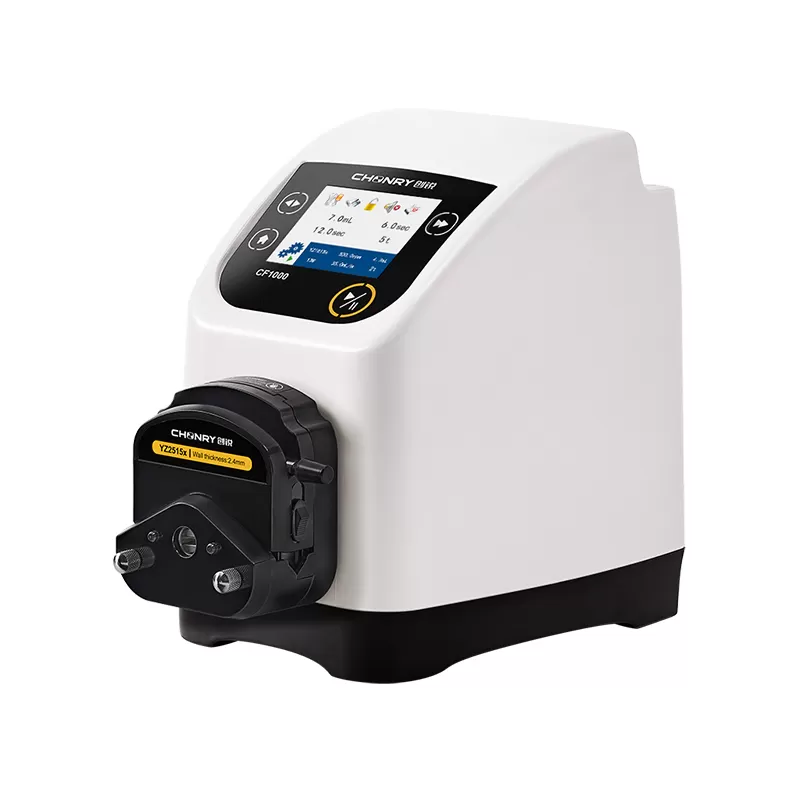

CF1000 Lab Dispensing Peristaltic Pump




Drive ModelCF1000
Max Speed100rpm(reversible)
Max Flow380ml/min
Speed Resolution0.1rpm
Display MethodColor LCD Display (EN and CN optional)
Speed modeTouch screen adjustment
Timing range0.1s-9999min
Quantitative range0.001mL-9999L
Filling times
0-9999t
Back suction angle10°-720° (0° means no back suction)
Back suction Speed10-100rpm
Power<22W
Drive size231*185.5*248mm
Power supplyAC220V±10% (standard) or AC110V±10% (optional)
External control methodStart control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication




Pump headModelMax Speed(rpm)         Peristaltic Pump Tubing (ID*Wall thickness)mm
13#
(0.8*1.6)
14#
(1.6*1.6)
19#
(2.4*1.6)
16#
(3.1*1.6)
25#
(4.8*1.6)
17#
(6.4*1.6)
18#
(7.9*1.6)
YZ1515XCF1000

1007275182170290380
YZ15m1007275182170290380
YZ15ma1007275182170290380

15#(4.8*2.4)24#(6.4*2.4)
YZ2515XCF1000100170290

0.5*0.81*12*12.4*0.83*1
DGCF1000100(10)1.54131727
DG100(6)26192436

14#(1.6*1.6)16#(3.1*1.6)25#(4.8*1.6)
ZN15CF10001002782170

24#(6.4*2.4)
ZN25CF1000100290

Flow unit: (mL/min) hose model: (mm)

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation. For specific needs, please consult Chonry Company.
