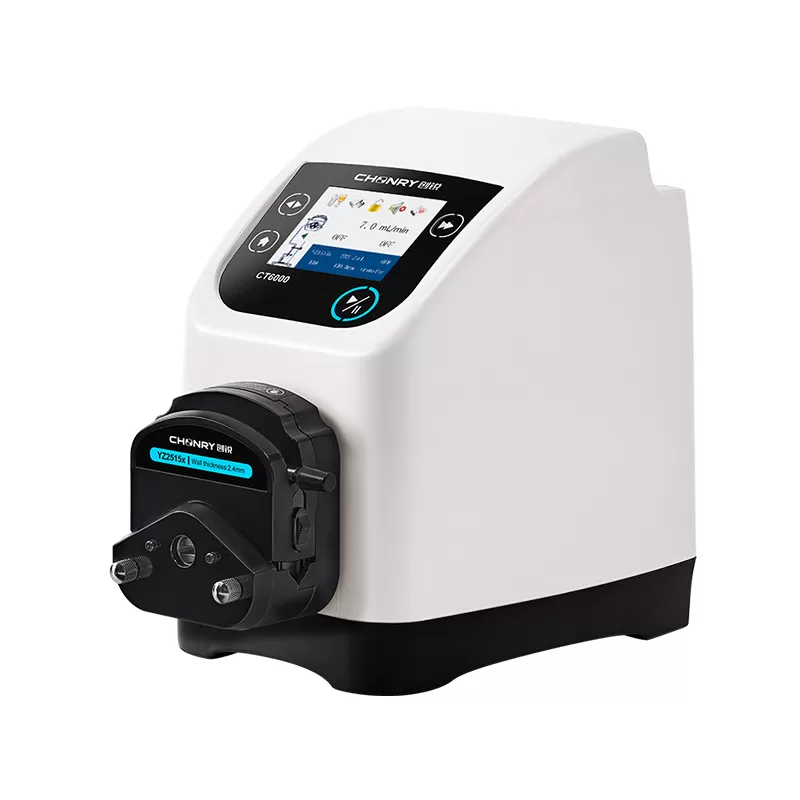

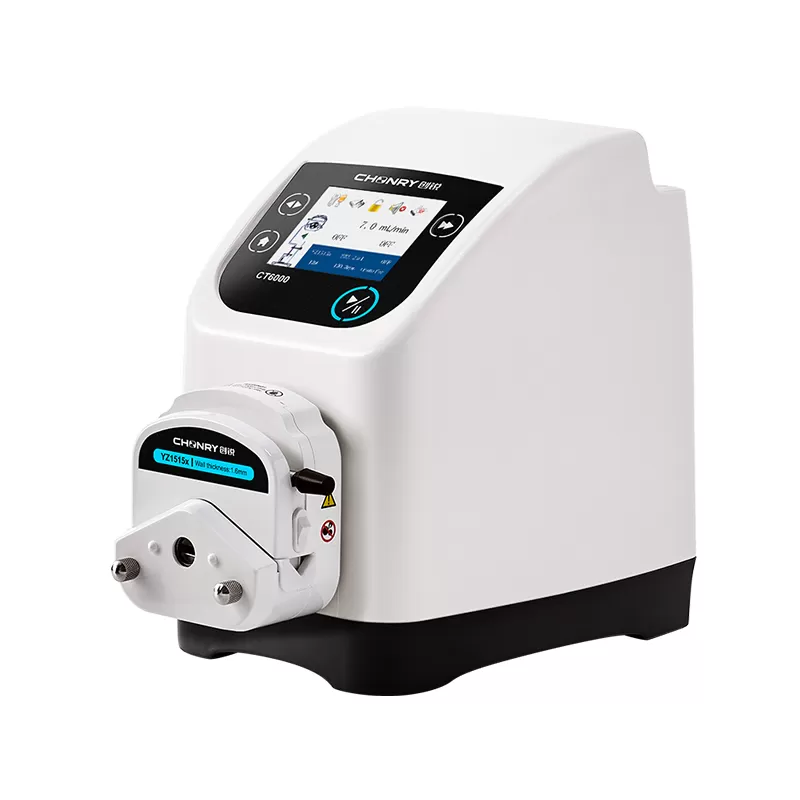

CT6000 Lab Peristaltic Pump

Flow Rate: 0.007-2280mL/min

CT6000 is a type of Lab peristaltic pump used for biological analysis and medical treatment. CT6000 pump is loaded with YZ1515X, YZ2515X, TX315, TX325 and DG series pump heads.

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

CT6000 is a type of Lab peristaltic pump with a beautiful appearance. It adopts a 3.5-inch color touch screen with dual display in Chinese and English that can perform flow rate calibration and has a variety of working modes to meet different working needs. CT600 Lab peristaltic metering pumps are loaded with YZ series, TX series, DG series and other pump heads. The speed could be controlled through a control panel, external control interface or RS485 interface.

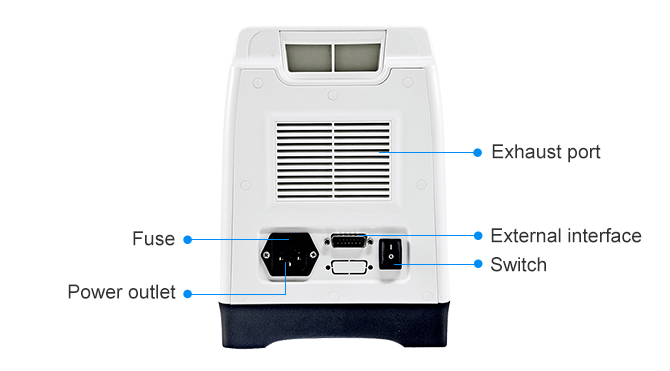

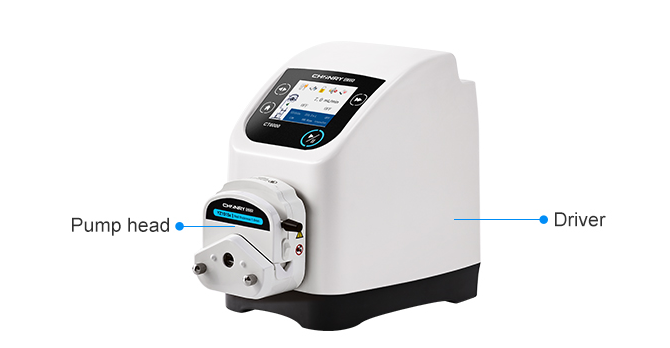

CT6000 Lab Peristaltic Pumpimage.png

Advantages:


- It has four flow modes of transmission/timing/quantitative/timed quantitative to meet different production needs.

- It has functions such as power-off memory, flow calibration, and suction setting.

- Support locking the touch screen to avoid misoperation and improve product safety.

- It can be connected to a foot switch and supports RS485MODBUS communication protocol to realize remote control.

- Applicable pump heads: YZ1515X, YZ2515X, TX315, TX325 and DG series pump heads.


Application

Used in laboratory, biological analysis, medical treatment, environmental protection and other fields


Drive model: CT6000

Max Speed: 600rpm(reversible)

Max Flow: 2280mL/min

Power: <50W

Speed resolution: Speed resolution 0.1rpm

Speed mode: Touch screen adjustment

Display method: Color LCD display (Chinese and English optional)

Timing range: 0.1s-9999min

Quantitative range: 0.001mL-9999L

Suction angle: 10°-720° (0° means no back suction)

Suction speed: 10-300rpm

Power supply: AC220±10% (standard) or AC110V±10% (optional)

External control method: Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication

Drive size: 225X186X248(mm)

Pump headModelMax SpeedTube Mode(ID* Wall thickness)mm
13#
(0.8*1.6)
14#
(1.6*1.6)
19#
(2.4*1.6)
16#
(3.1*1.6)
25#
(4.8*1.6)
17#
(6.4*1.6)
18#
(7.9*1.6)
YZ1515XCT6000

60042162306492102017402280
YZ15m60042162306492102017402280
YZ15ma60042162306492102017402280

15#(4.8*2.4)24#(6.4*2.4)
YZ2515XCT600060010201740

14#(1.6*1.6)16#(3.1*1.6)25#(4.8*1.6)
ZN15CT60006001624921020

24#(6.4*2.4)
ZN25CT60006001740


Flow unit: (mL/min) hose model: (mm)

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chonry.
