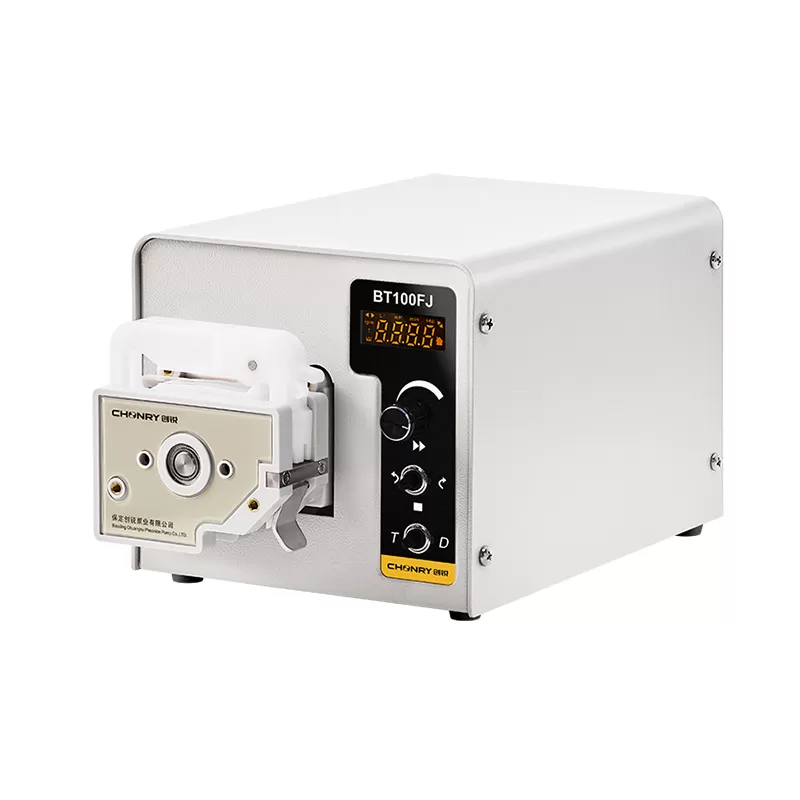

BT100FJ Peristaltic Tube Pump

Flow Rate: 0.0015-480mL/min

 Compact size. Variable flow. Fewer tube changes.  Easy Knob Operation.  Chonry is the top peristaltic pump manufacturer in China with 12 years of providing various flow peristaltic metering pumps.

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

BT100FJ  is a type of peristaltic tube pump. Compact size. Variable flow. Fewer tube changes. Easy Knob Operation. Chonry is the top peristaltic pump manufacturer in China with 12 years of providing various flow peristaltic metering pumps. BT100FJ can preset the number of times of distribution, distribution time, etc., which is convenient for users to use. It adopts a digit LED to display the current flow or speed. It has a suction function and is powered off. Memory, intelligent calibration, and other functions. BT100FJ can be installed with YZ series, DG series, TX series, and other pump heads, support RS485/MODBUS communication protocol, analog control, and foot control.


Specification


Multiple modes: Provides distribution and transfer modes for ease of use

Power off save: This can automatically save the control parameters when the last power failure

External control function: Support RS485/MODBUS communication protocol, analog control, foot switch control

Suction function: In dispensing mode, the pump can be customized to reverse after shutdown to prevent liquid dripping

Full speed function: Full speed at the push of a knob for quick emptying or filling of pump tubing

Adapt to multiple pump heads:  YZ series, TX series, DG series and other pump heads can be installed to meet different flow requirements


Application

 It can be used for the food industry, the mining industry transferring abrasive slurry, and the chemical industry transferring of corrosive and abrasive chemicals.


Drive modelBT100FJ
Max speed100rpm(reversible)
Max flow480mL/min
Speed resolution0.1rpm
Speed modeDigital knob adjust the speed

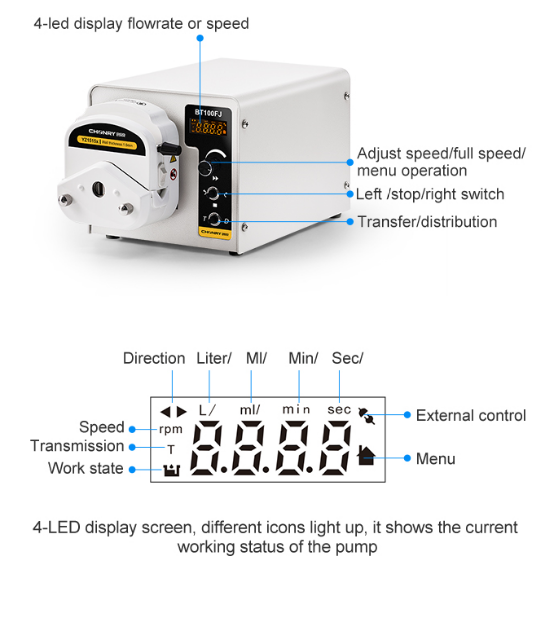

Display method4-digit LED displays current speed/flow
Timing range0.1s-9999min
Quantitative range0.001ml-9999L
Filling times0-9999t
Suction angle10°-720°(0° means no bacj suction)
Suction speed10-100rpm
Power<22W
Drive sizes243x154x144.3mm
Drive weight3.98kg
Power supplyAC220±10% (standard) or AC110V±10% (optional)
External control methodStart control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication



Pump headModelMax Speed(rpm)         Peristaltic Pump Tubing (ID*Wall thickness)mm
13#
(0.8*1.6)
14#
(1.6*1.6)
19#
(2.4*1.6)
16#
(3.1*1.6)
25#
(4.8*1.6)
17#
(6.4*1.6)
18#
(7.9*1.6)

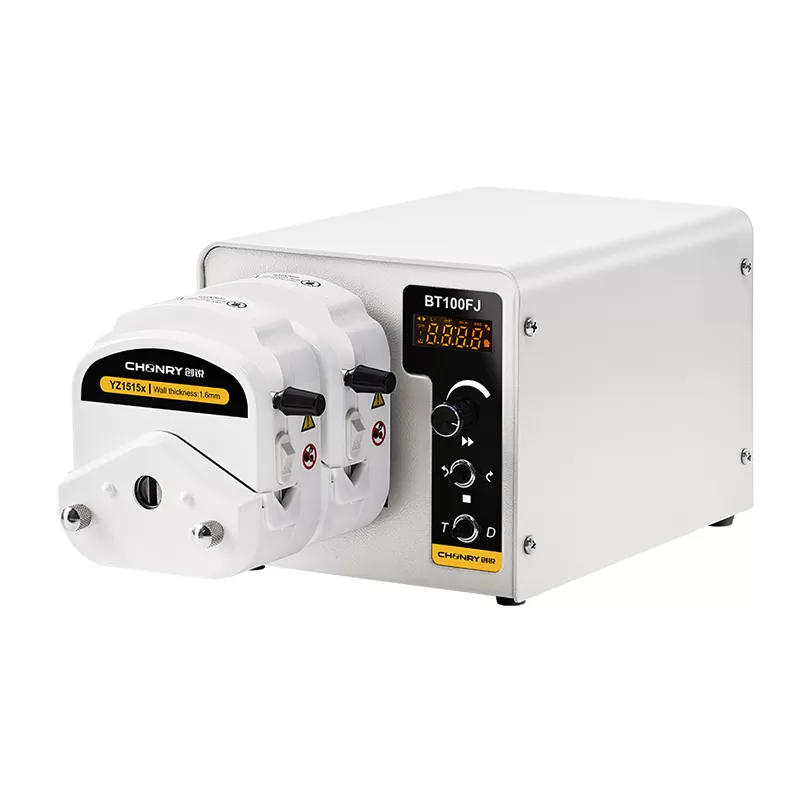

YZ1515XBT100FJ

1007275182170290380
YZ15m1007275182170290380
YZ15ma1007275182170290380

15#(4.8*2.4)24#(6.4*2.4)

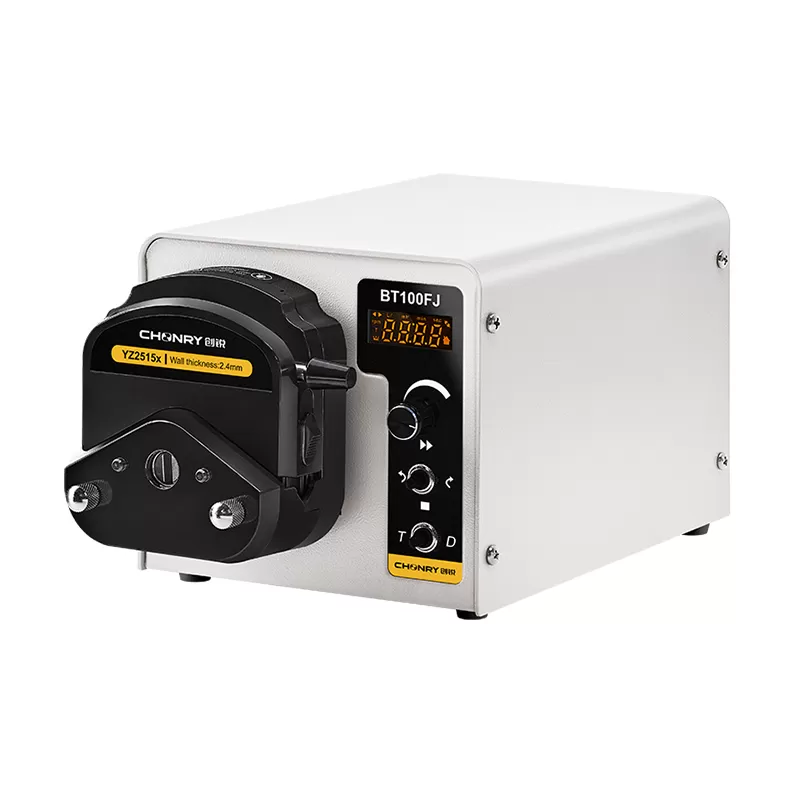

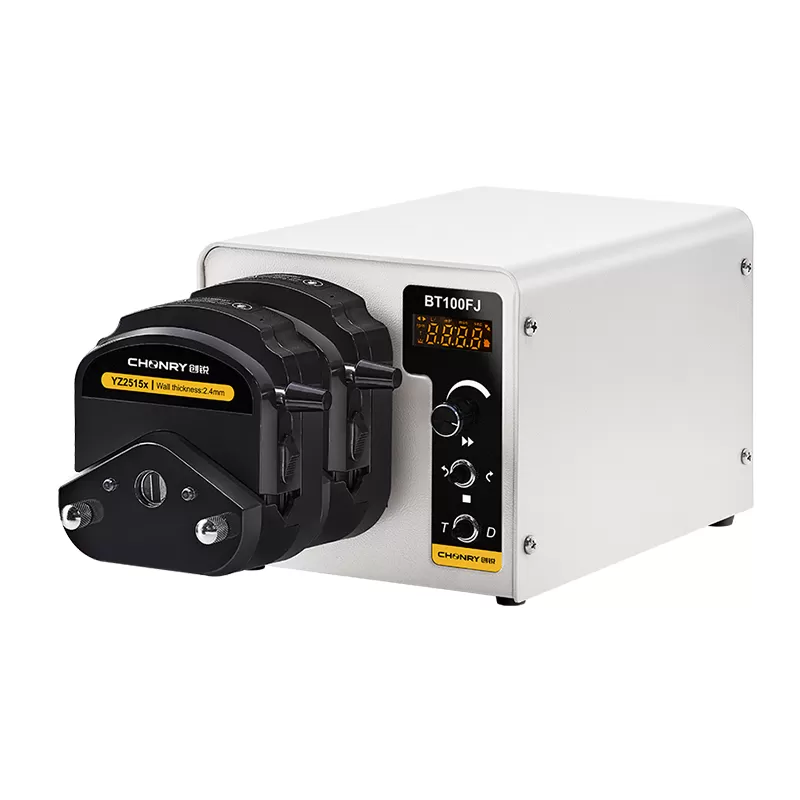

YZ2515XBT100FJ100170290

0.5*0.81*12*12.4*0.83*1
DGBT100FJ100(10)1.54131727
DG100(6)26192436

14#(1.6*1.6)16#(3.1*1.6)25#(4.8*1.6)
ZN15BT100FJ1002782170

24#(6.4*2.4)
ZN25BT100FJ100290


Flow unit: (mL/min) hose model: (mm)

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chonry.
