CT series is a Lab intelligent flow type peristaltic pump with beautiful appearance, 3.5-inch color touch screen with dual display in Chinese and English, can perform flow calibration
CT series is a Lab intelligent flow type peristaltic pump with beautiful appearance, 3.5-inch color touch screen with dual display in Chinese and English, can perform flow calibration, and has a variety of working modes to meet different working needs, suitable for YZ series, TX series, DG Series and other pump heads, the pump heads can be cascaded, and support a variety of external control methods such as RS485/MODBUS communication protocol.
LCD touch
3.5-inch color LCD, Chinese and English display, Touch screen control
Multiple working modes
Transmission mode, timing mode, quantitative mode, timing quantitative mode
Flow calibration
With flow calibration function, it is suitable for transferring liquids with higher precision
Data storage
9 sets of data can be stored for users
Adapt to multiple pump heads
YZ, DG, TX series pump heads can be installed, and pump heads can be cascaded
Support external control
Support RS485/MODBUS communication protocol, analog control, foot switch control
Application
Used in laboratory, biological analysis, medical treatment, environmental protection and other fields

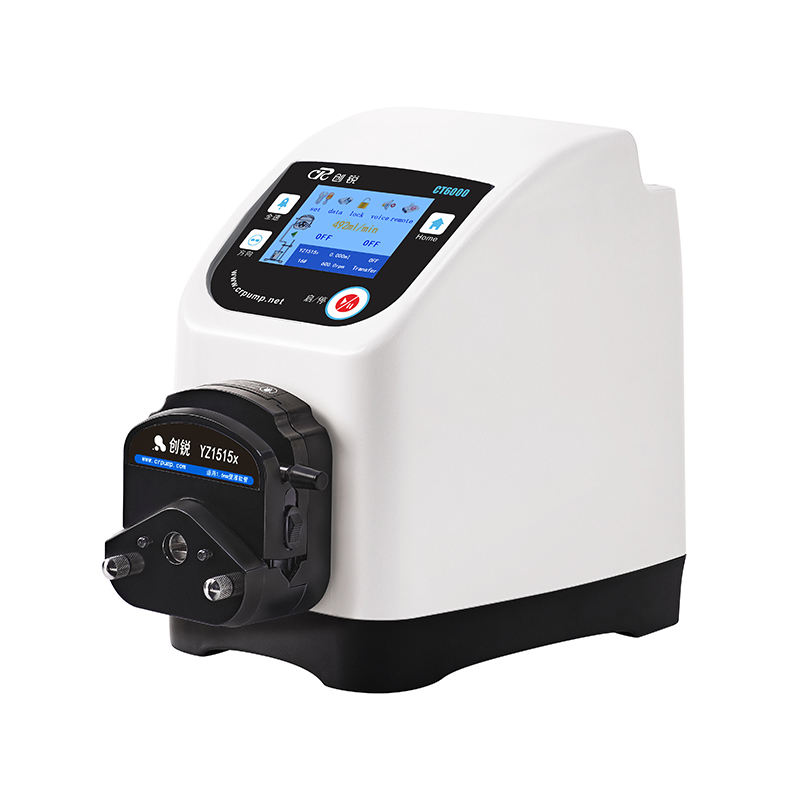

Drive model: CT6000
Max Speed: 600rpm(reversible)
Max Flow: 2280mL/min
Power: <50W
Speed resolution: Speed resolution 0.1rpm
Speed mode: Touch screen adjustment
Display method: Color LCD display (Chinese and English optional)
Timing range: 0.1s-9999min
Quantitative range: 0.001mL-9999L
Suction angle: 10°-720° (0° means no back suction)
Suction speed: 10-300rpm
Power supply: AC220±10% (standard) or AC110V±10% (optional)
External control method: Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication
Drive size: 225X186X248(mm)
Pump head | Model | Max Speed | 13# (0.8*1.6) | 14# (1.6*1.6) | 19# (2.4*1.6) | 16# (3.1*1.6) | 25# (4.8*1.6) | 17# (6.4*1.6) | 18# (7.9*1.6) |
YZ1515X | CT1000 | 100 | 7 | 27 | 51 | 82 | 170 | 290 | 380 |
YZ1515X | CT3000 | 300 | 21 | 81 | 153 | 246 | 510 | 870 | 1140 |
YZ1515X | CT6000 | 600 | 42 | 162 | 306 | 492 | 1020 | 1740 | 2280 |
Pump head | Model | Max Speed | 15#(4.8*2.4) | 24#(6.4*2.4) | |||||

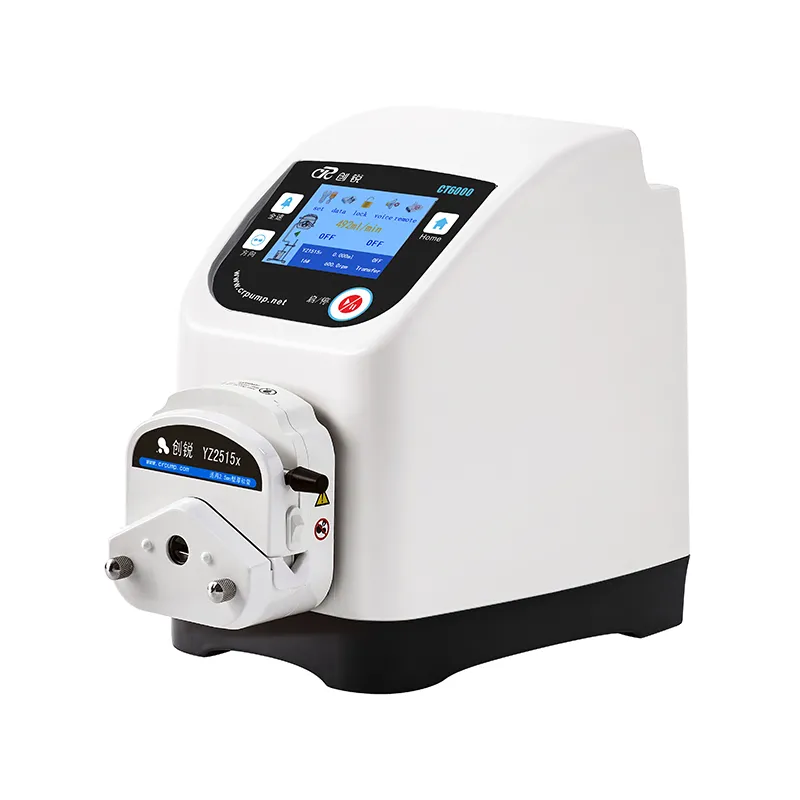

YZ2515X | CT1000 | 100 | 170 | 290 | |||||
YZ2515X | CT3000 | 300 | 510 | 870 | |||||
YZ2515X | CT6000 | 600 | 1020 | 1740 | |||||
Pump head | Model | Max Speed | 0.5*0.8 | 1*1 | 2*1 | 2.4*0.8 | 3*1 | ||
DG | CT1000 | 100(10) | 1.5 | 4 | 13 | 17 | 27 | ||
DG | CT1000 | 100(6) | 2 | 6 | 19 | 24 | 36 |
Flow unit: (mL/min) hose model: (mm)
Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.
For specific needs, please consult Chonry.
