Good sealing performance, reverse flow of fluid, low maintenance cost, and can be used with other equipment.
Support user customization, mature processing technology, high production capacity, and can be mass-produced.
Color touchscreen operation can realize batch filling, and the number of control units can be expanded.
The R&D team can carry out customized development according to different design schemes.
LCD touch screen, which can realize high-precision, smooth and pulsation-free liquid transmission.
Targeted production of products according to market demand, including adding pumps, gear pumps, etc.
Provide peristaltic pump hose options, such as platinum vulcanized silicone hose, the hose for cell research, etc.

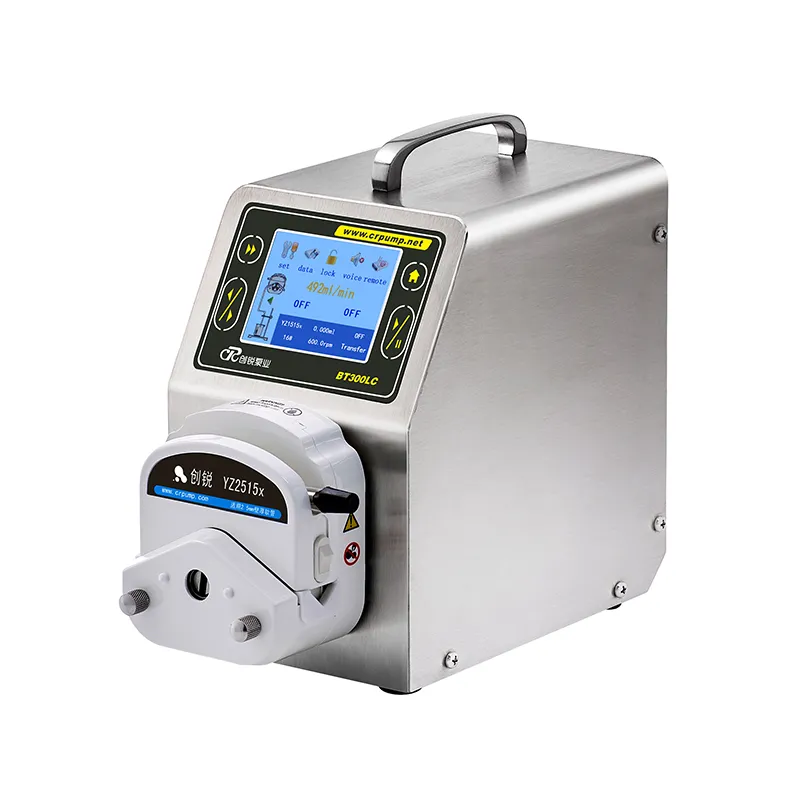

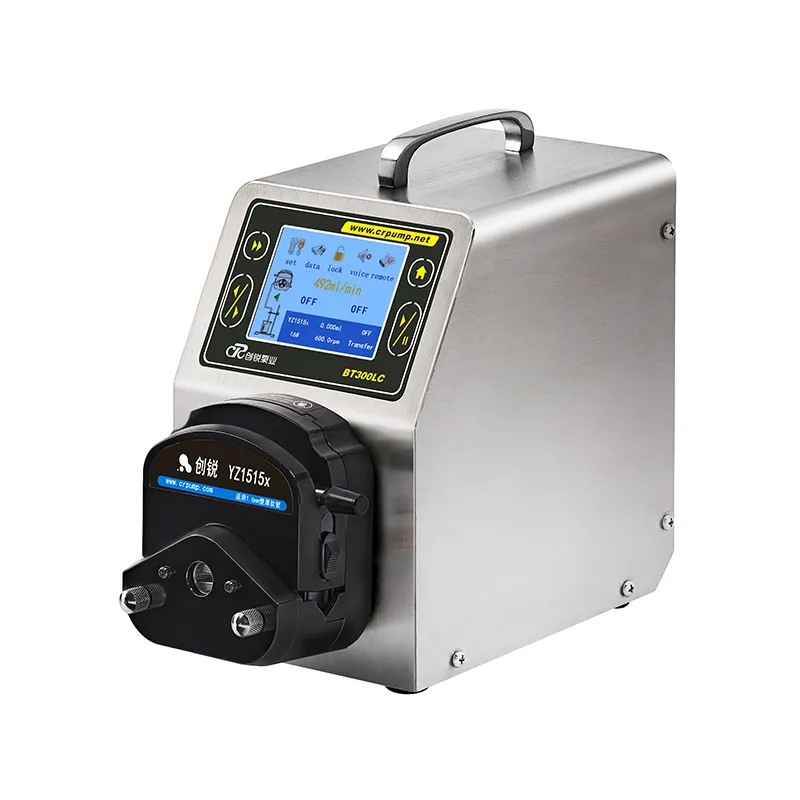

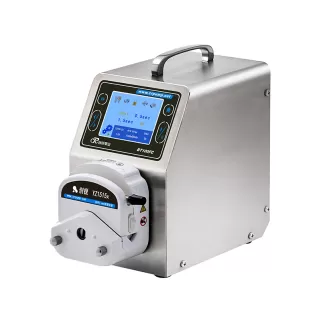

The LC series is an intelligent flow type peristaltic pump. The stainless steel all-inclusive design is sturdy and durable. The 3.5-inch color LCD screen is touch-controlled and has a variety of working modes.
The LC series is an intelligent flow type peristaltic pump. The stainless steel all-inclusive design is sturdy and durable. The 3.5-inch color LCD screen is touch-controlled and has a variety of working modes. It can display the transmission status, flow data, setting parameters, and transmission direction with animation on the same screen., The storage function can save 9 groups of filling data, realize fast filling, and support various external control methods such as RS485/MODBUS communication protocol.
Specification
LCD touch
3.5-inch color LCD, Chinese and EnglishDisplay, touch screen control.
Flow calibration
With flow calibration function, it is suitable for transferring liquids with higher precision
Data storage
9 sets of data can be stored for users
Multiple working modes
Transmission mode, timing mode, Quantitative mode, timed quantitative mode
Adapt to multiple pump heads
YZ, DG, TX series pump heads can be installed,Pump heads can be cascaded.
Support external control
Support RS485/MODBUS communication protocol, analog control, foot switch control
Application
Used in laboratories, biopharmaceuticals, printing, mineral processing and other fields.
Drive model: BT300LC
Max Speed: 300rpm(reversible)
Speed resolution: 0.1rpm
Power: <35W
Max flow: 1440mL/min
Display method: LCD(EN and CN)
Speed mode:
Touch screen + keypad
Timing range: 0.1s-9999min
Quantitative range: 0.001mL-9999L
Drive size: 212*142*238mm
Power supply: AC220±10% (standard) or AC110V±10% (optional)
External control method:
Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication
Pump head | Model | Max Speed | 13# (0.8*1.6) | 14# (1.6*1.6) | 19# (2.4*1.6) | 16# (3.1*1.6) | 25# (4.8*1.6) | 17# (6.4*1.6) | 18# (7.9*1.6) |
YZ1515X | BT100LC | 100 | 7 | 27 | 51 | 82 | 170 | 290 | 380 |
YZ1515X | BT300LC | 300 | 21 | 81 | 153 | 246 | 510 | 870 | 1140 |
YZ1515X | BT600LC | 600 | 42 | 162 | 306 | 492 | 1020 | 1740 | 2280 |
Pump head | Model | Max Speed | 15#(4.8*2.4) | 24#(6.4*2.4) | |||||
YZ2515X | BT100LC | 100 | 170 | 290 | |||||
YZ2515X | BT300LC | 300 | 510 | 870 | |||||
YZ2515X | BT600LC | 600 | 1020 | 1740 | |||||
Pump head | Model | Max Speed | 0.5*0.8 | 1*1 | 2*1 | 2.4*0.8 | 3*1 | ||
DG | BT100LC | 100(10) | 1.5 | 4 | 13 | 17 | 27 | ||
DG | BT100LC | 100(6) | 2 | 6 | 19 | 24 | 36 |
Flow unit: (mL/min) hose model: (mm)
Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.
For specific needs, please consult Chuangrui Company.
