Good sealing performance, reverse flow of fluid, low maintenance cost, and can be used with other equipment.
Support user customization, mature processing technology, high production capacity, and can be mass-produced.
Color touchscreen operation can realize batch filling, and the number of control units can be expanded.
The R&D team can carry out customized development according to different design schemes.
LCD touch screen, which can realize high-precision, smooth and pulsation-free liquid transmission.
Targeted production of products according to market demand, including adding pumps, gear pumps, etc.
Provide peristaltic pump hose options, such as platinum vulcanized silicone hose, the hose for cell research, etc.
FJ series is a digital distribution type peristaltic pump, which has dual working modes of distribution and transmission. It can preset the number of times of distribution, distribution time, etc., which is convenient for users to use.
FJ series is a digital distribution type peristaltic pump, which has dual working modes of distribution and transmission. It can preset the number of times of distribution, distribution time, etc., which is convenient for users to use. It uses 4-digit LED to display the current flow or speed. It has a suction function and is powered off. Memory, intelligent calibration and other functions, can be installed with YZ series, DG series, TX series and other pump heads, support RS485/MODBUS communication protocol, analog control, foot control.
Provides distribution and transfer modes for ease of use
Power off save
Can automatically save the control parameters when the last power failure
External control function
Support RS485/MODBUS communica tion protocol, analog control, foot switch control
In dispensing mode, the pump can be customized to reverse after shutdown to prevent liquid dripping
Full speed function
Full speed at the push of a knob for quick emptying or filling of pump tubing
Adapt to multiple pump heads
YZ series, TX series, DG series and other pump heads can be installed to meet different flow requirements
It is used in the addition of water reducing agent, grinding liquid, food packaging, pharmaceutical packaging, etc.

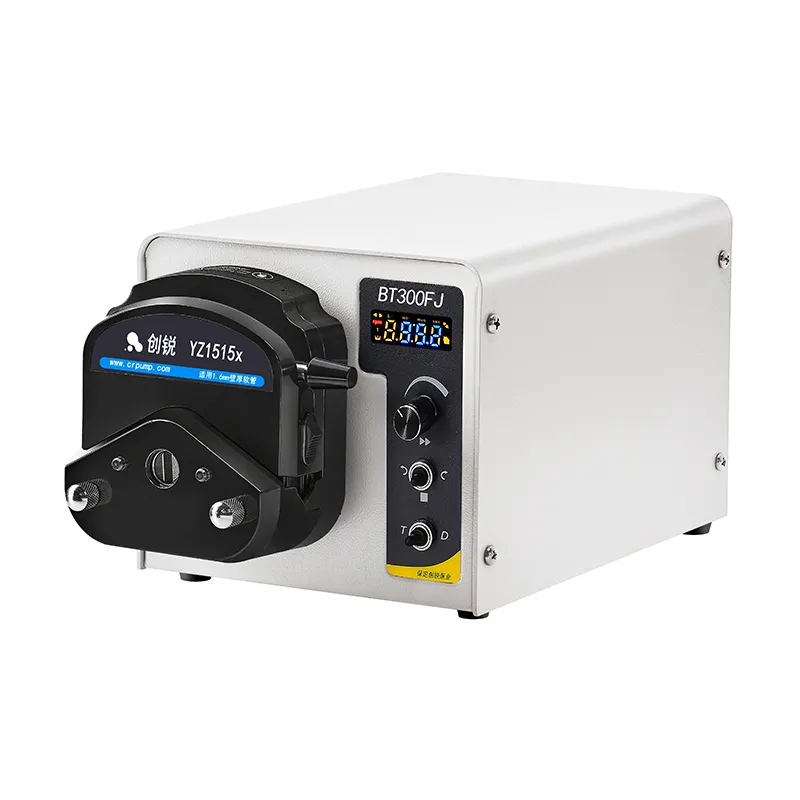

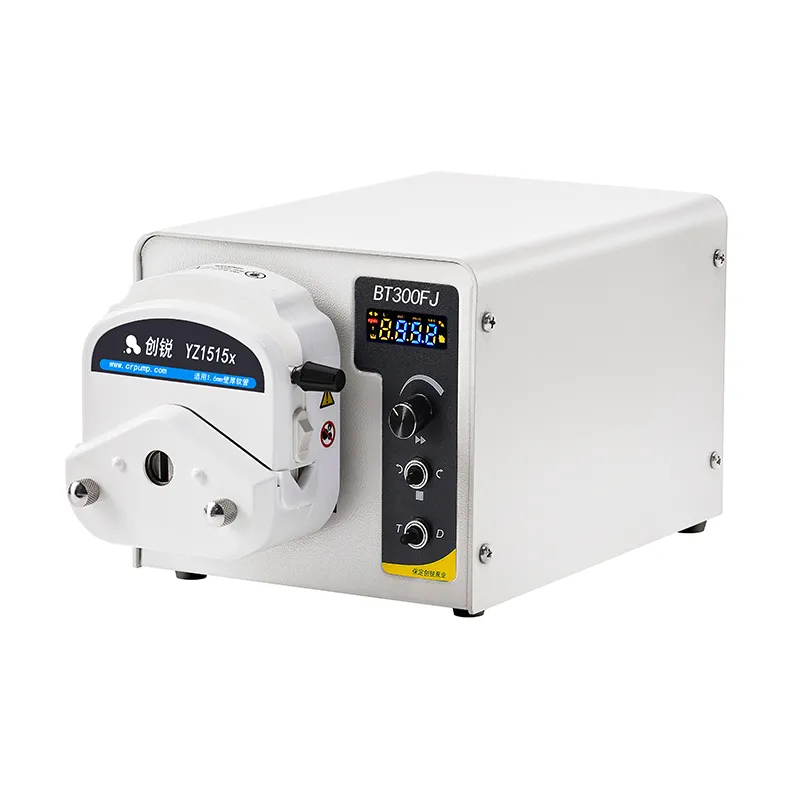

Drive model: BT300FJ
Max speed: 300rpm（reversible）
Max flow: 1440mL/min
Speed mode: Digital knob speed regulation
Display method: 4-digit LED displays current speed/flow
Suction angle: 10°-720°
Suction speed: 10-300rpm
Power supply: AC220±10% (standard) or AC110V±10% (optional)
External control interface: DB-15
External control method: Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication
Drive weight: 3.98kg
|Pump head||Model||Max Speed||13#|
|Pump head||Model||Max Speed||15#(4.8*2.4)||24#(6.4*2.4)|
|Pump head||Model||Max Speed||0.5*0.8||1*1||2*1||2.4*0.8||3*1|
Flow unit: (mL/min) hose model: (mm)
Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.
For specific needs, please consult Chuangrui Company.
