BT100MH Low Flow Peristaltic Pump

Flow Rate: 0.0015-480mL/min

BT100MH is a type of low-flow peristaltic dosing pump. Key operates, simple to use. The BT100MH adopts a stainless shell, durable and anti-corrosion.

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

BT100MH is a type of low flow peristaltic pump. The flow rate range is from 0.0015 to 480mL/min. With a unique flow calibration function and power-off save function. Key operation peristaltic dosing pump. Easy to operate. Adopts the stainless shells, durable and corrosion. Unique back suction anti-drip function, which can effectively prevent liquid from dripping. The BT100MH pump can be installed with YZ1515x, YZ2515x, and DG pump heads



Advantages:


Easy to use: a simple appearance, key operation, intuitive interface

Power off save function: automatically save the control parameters when the last power failure

Clear interface: 4-digit led display flow or speed

One key full speed: features a convenient full-speed button for quickly filling or emptying the tube

External control function: support rs485/Modbus communication protocol, analog control, foot switch control

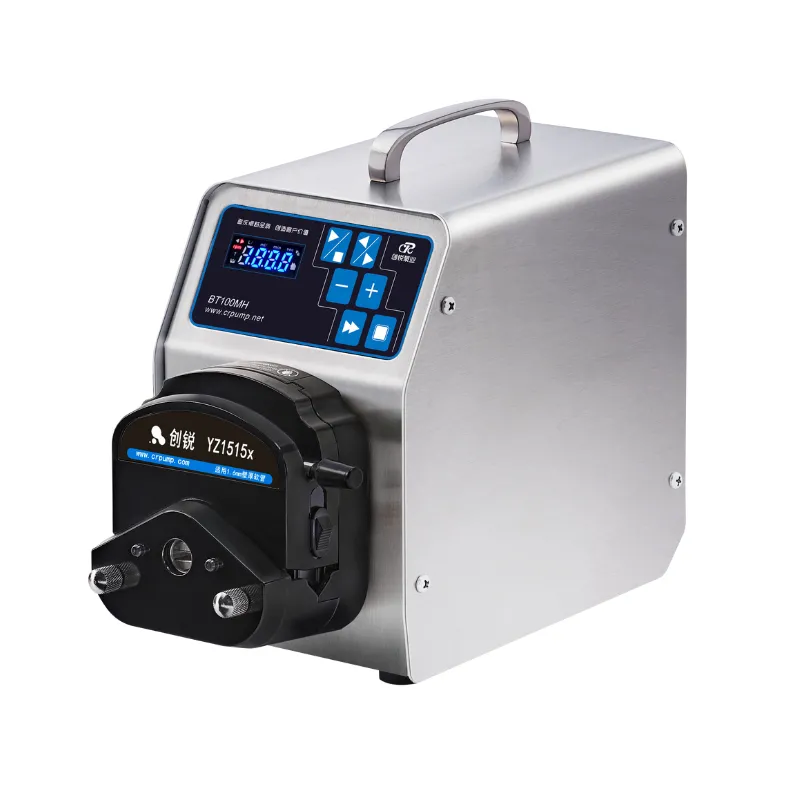

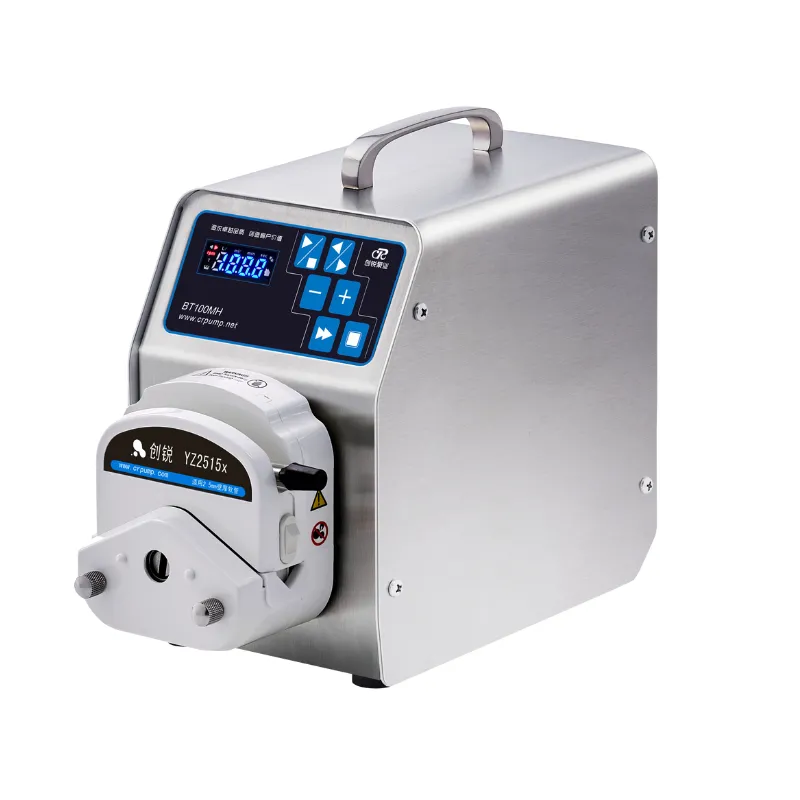

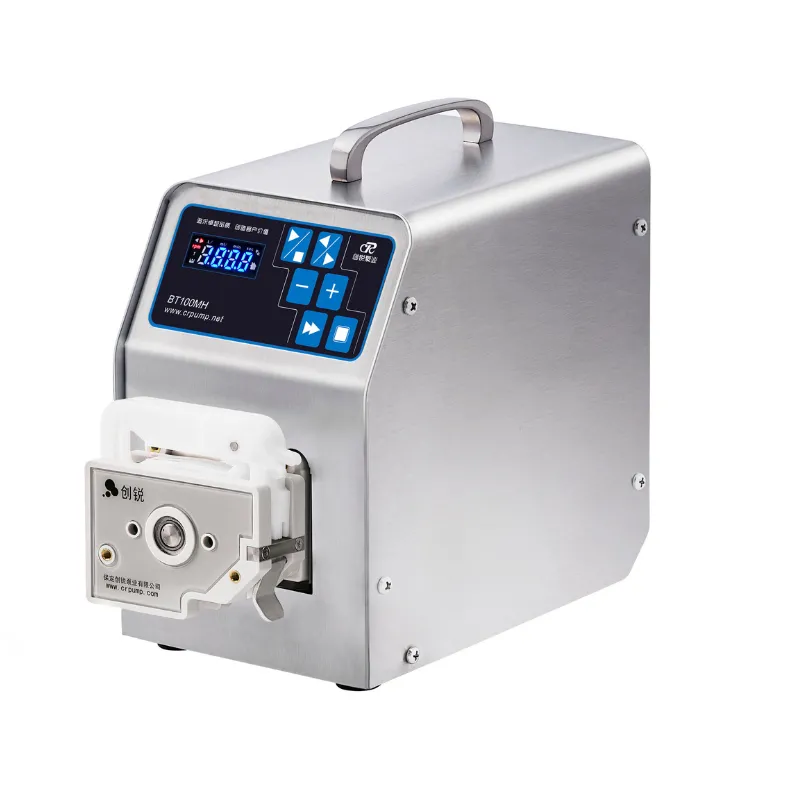

Adapt to multiple pump heads: The BT100MH pump can be installed with YZ1515x, YZ2515x, and DG pump heads.

Application

It is used in universities and laboratories, water treatment sampling, chromatography liquid supply matching, industrial raw material addition, etc.

BT100MH Low Flow Peristaltic Pump


Drive model: BT100MH

Max Speed: 100rpm(reversible)

Max Flow: 480mL/min

Power: <22w

Speed mode: Membrane key speed regulation

Display method: 4-digit LED displays the current speed/flow

Suction angle: 10°-720°

Suction speed: 10-100rpm

Power supply: AC220V±10% (standard) or AC110V±10% (optional)

External control method: Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication

Drive weight: 3.98kg

Pump headModelMax Speed(rpm)         Peristaltic Pump Tubing (ID*Wall thickness)mm
13#
(0.8*1.6)
14#
(1.6*1.6)
19#
(2.4*1.6)
16#
(3.1*1.6)
25#
(4.8*1.6)
17#
(6.4*1.6)
18#
(7.9*1.6)
YZ1515XBT100MH1007275182170290380
YZ15m1007275182170290380
YZ15ma1007275182170290380

15#(4.8*2.4)24#(6.4*2.4)
YZ2515XBT100MH100170290

0.5*0.81*12*12.4*0.83*1
DGBT100MH100(10)1.54131727
DG100(6)26192436

14#(1.6*1.6)16#(3.1*1.6)25#(4.8*1.6)
ZN15BT100MH1002782170

24#(6.4*2.4)
ZN25BT100MH100290
Flow unit: (mL/min) hose model: (mm)

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chuangrui Company.
