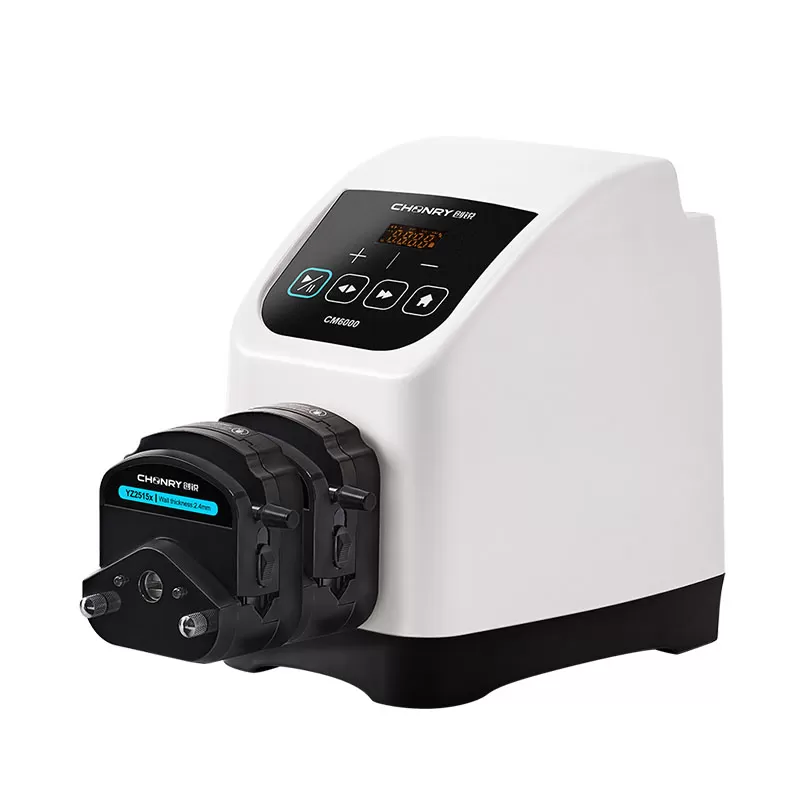

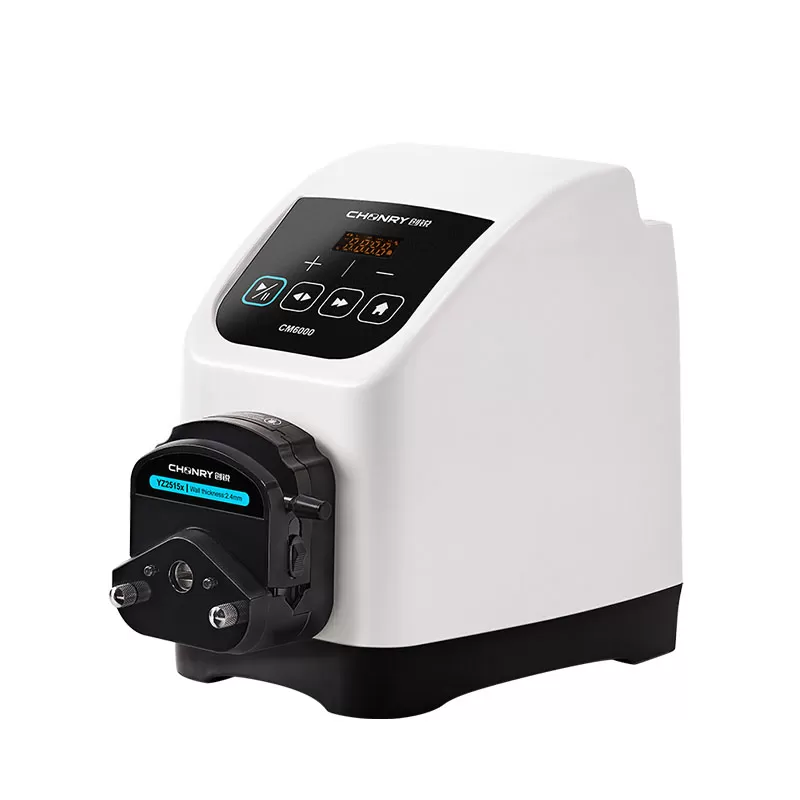

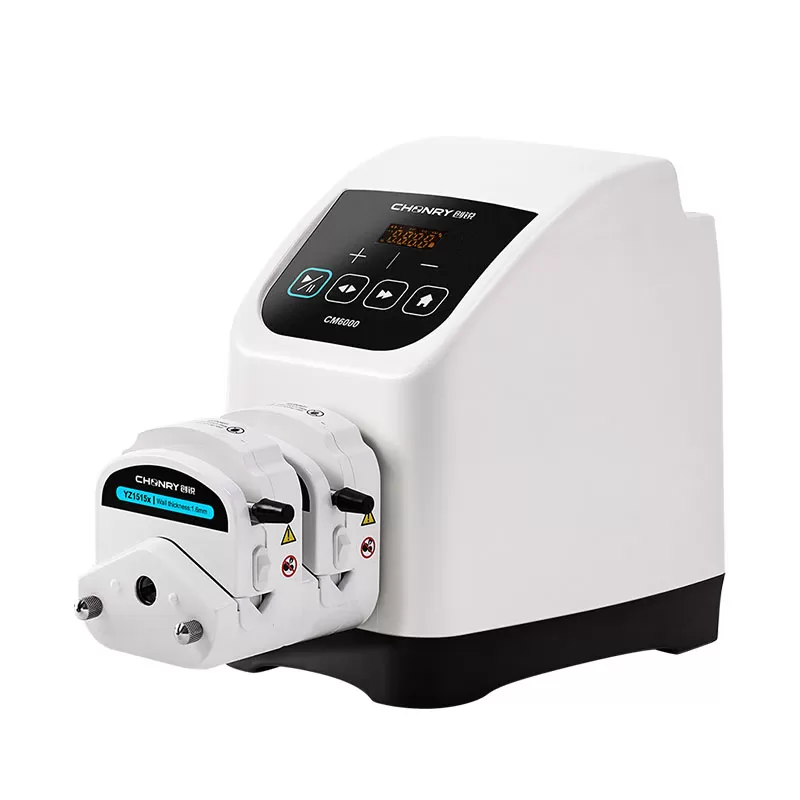

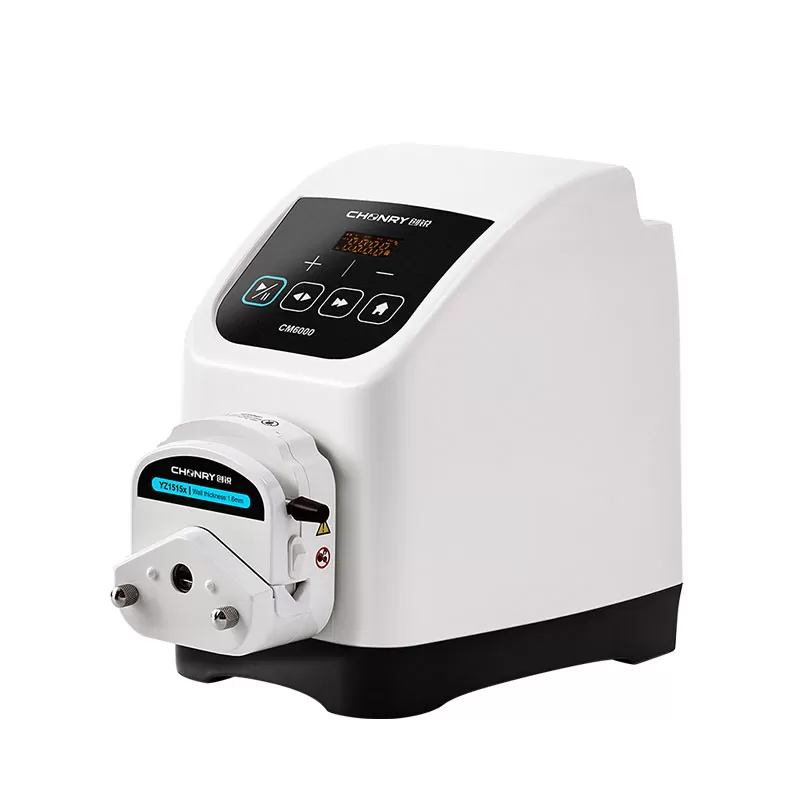

CM6000 Digital Button Type Peristaltic Pump

Flow Rate:0.007-2280mL/min

CM series is a digital button-type peristaltic pump, using button operation, 4-digit LED digital display of current flow or speed, with multiple functions such as power-off saving, flow calibration, one-button full speed, etc.

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

CM series is a digital button-type peristaltic pump, using button operation, a 4-digit LED digital display of current flow or speed, with multiple functions such as power-off saving, flow calibration, one-button full speed, etc. It supports different external controls such as RS485/MODBUS communication protocol. It is suitable for a variety of pump heads such as the YZ series, TX series, DG series, etc., to meet different work needs.


Specification

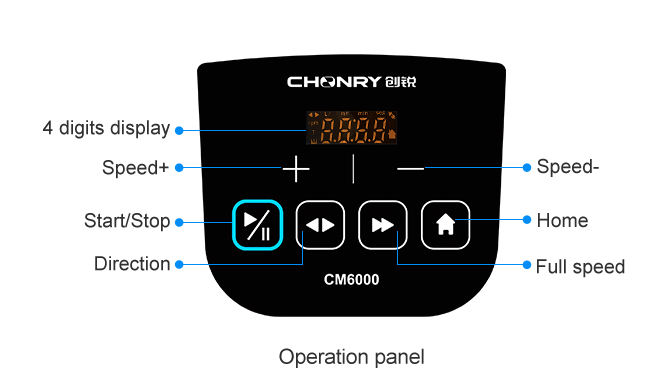

Easy to operate

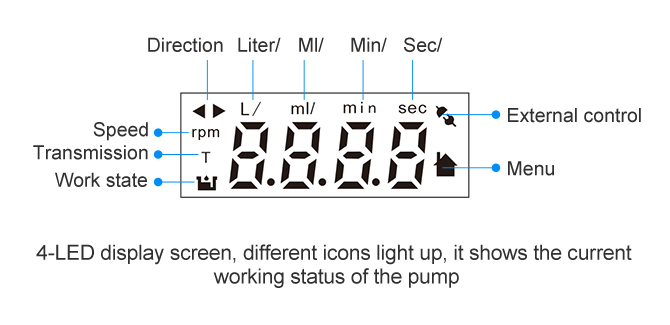

Simple appearance, key operation, 4 positionsLED display flow or speed more intuitive

Power off save

Can automatically save the last power-down control parameter

External control function

Support RS485/MODBUS communication protocol, analog control, foot switch control

Liquid volume calibration

The flow correction is carried out according to the target value and the actual value, Ensure transmission accuracy

One key full speed

Features a convenient full-speed button to fulfill or empty pipes quickly

Adapt to multiple pump heads

Various pump heads such as YZ series, DG series and TX series can be installed


Application

Used in photovoltaic, environmental protection, mineral processing, mechanical packaging, solvent extraction and other industries.


CM6000 Digital Button Type Peristaltic Pump

Drive model: CM6000

Max speed: 600rpm(reversible)

Speed resolution: 0.1rpm

Max flow: 2280mL/min

Display method: 4-LED display

Speed mode: Membrane keys

Timing range: 0.1s-9999min

Quantitative range: 0.001mL-9999L

Power: <50W

Drive size: 225*185*248mm

Power supply: AC220V±10% (standard) or AC110V±10% (optional)

External control method: Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication

Pump headModelMax SpeedTube Mode(ID* Wall thickness)mm
13#
(0.8*1.6)
14#
(1.6*1.6)
19#
(2.4*1.6)
16#
(3.1*1.6)
25#
(4.8*1.6)
17#
(6.4*1.6)
18#
(7.9*1.6)
YZ1515XCM600060042162306492102017402280
YZ15m60042162306492102017402280
YZ15ma60042162306492102017402280

15#(4.8*2.4)24#(6.4*2.4)
YZ2515XCM600060010201740

14#(1.6*1.6)16#(3.1*1.6)25#(4.8*1.6)
ZN15CM60006001624921020

24#(6.4*2.4)
ZN25CM60006001740
Flow unit: (mL/min) hose model: (mm)

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chuangrui Company.
