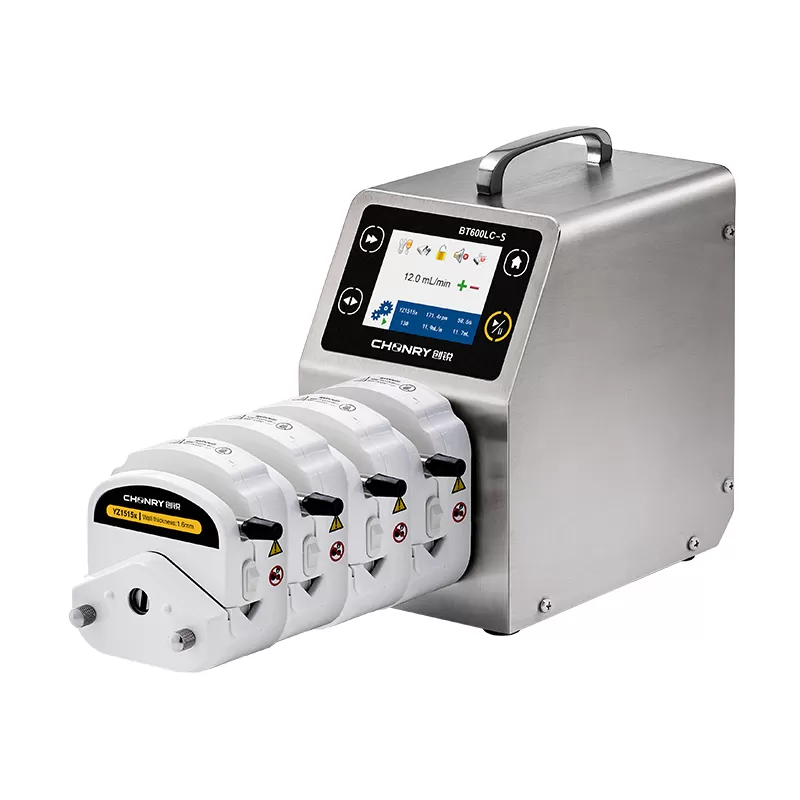

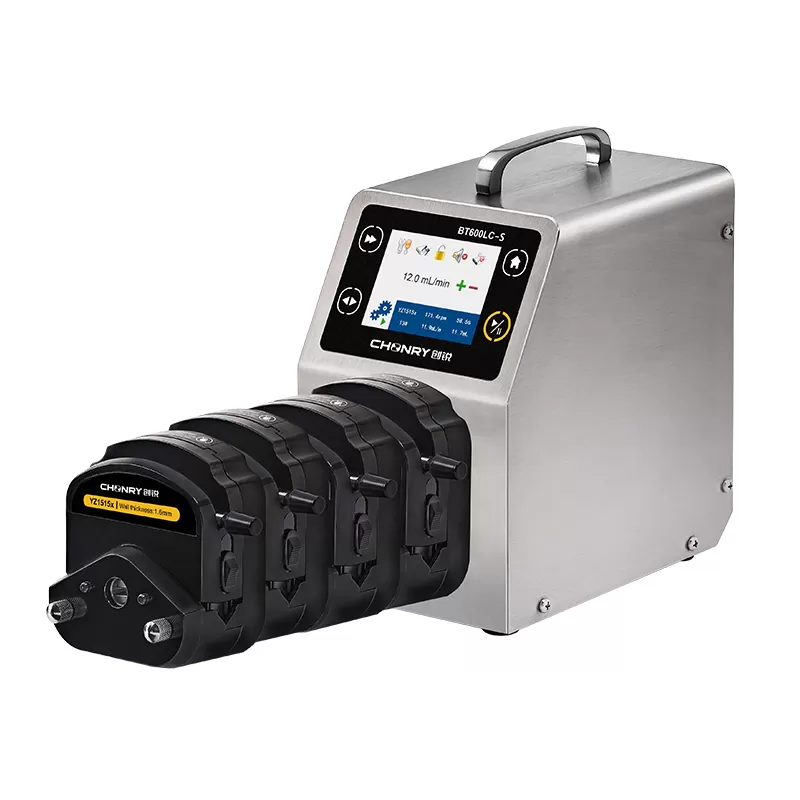

BT600LC-S Four Channel Peristaltic Pump YZ1515X Pump Head


ModelBT600LC-S Multi-Channel Peristaltic Pump 4 Channle
Pump head4  pump heads with YZ1515X
Speed range0.1-600rpm
Suitable peristaltic pump tubing13#,14#,19#,16#,25#,17#,18#
Speed resolution0.1rpm
Flow rateMax 2280ml/min/channel
VoltageAC110V or AC220V


Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

BT600LC-S multi-channel peristaltic pump with 4 YZ1515X pump heads. The flow range is 0.007-2280ml/min/channel. LCD and touch screen. Easy flow rate control. The BT600LC-S peristaltic dosing pump has four working modes: constantly transferring, timing mode, quantitative mode and quantitative mode. Memory function is also available in the product in case of power off. FULL SPEED button available for filling in & emptying out. Good capability price rate. Not suitable when used in the open air.


Advantages:

1. With liquid calibration function to ensure the high accuracy liquid transfer.

2. With both-way large torque high power motor. It can be connected with several pump heads to meet different flow rates.

3. Long life can only touch screen, easy operation, high control precision, ensure the transmission of high precision fluid

4. FULL SPEED button is available to fill in & empty out the tubing.

5. Memory function available in case of power off and it will continue working once the power is restarted.

6. Long-range control is available through the DB15 interface of the drive: speed control start-stop control direction control.

7. With RS485 communication interface supports the MODBUS communication protocol. And communication protocols customized are available.


Applications:

BT600L-S Four-channel peristaltic pumps are used for laboratory chemical dosing and transferring, leaching pumps, mining flotation, solvent extraction pumps and wide industries.


BT600LC-S Four Channel Peristaltic Pump Multi Channel YZ1515X Pump Head

ModelBT600LC-SDisplay ModeColor LCD display
Speed Range0.1-600 rpmControl Methodbutton
speed resolution0.1 rpmMotor TypeStepper motor
Flow range0.007—2280ml/min/channelExternal control
Start & stop, direction control, speed control
( Analog control :0-5v, 0-10v, 4-20mA optionl )
RS232 and RS485 Communication interface, support MODUBUS Communication Protocol
Environment Temperature0-40℃
Relatively Humidity<80%
Power consumption<50W
Power supplyAC220V or  AC110V



Pump HeadTubeID(mm)Wall thickness(mm)Speed(rpm)Flow Rate(ml/min)
   YZ1515X13#0.81.60.1-6000.007-42
14#1.61.60.1-6000.027-162
19#2.41.60.1-6000.051-306
16#3.11.60.1-6000.082-492
25#4.81.60.1-6000.17-1020
17#6.41.60.1-6000.29-1740
18#7.91.60.1-6000.38-2280

Notice: Please choose the right tubing model according to your requirement flow rate. And we will send you 2 meters of peristaltic pump tubing for your for free when ordered.
