Peristaltic Pump Head
Home / Products / Peristaltic Pump / Peristaltic Pump Head / YZm Series Peristaltic Pump Head ≤3000mL/min

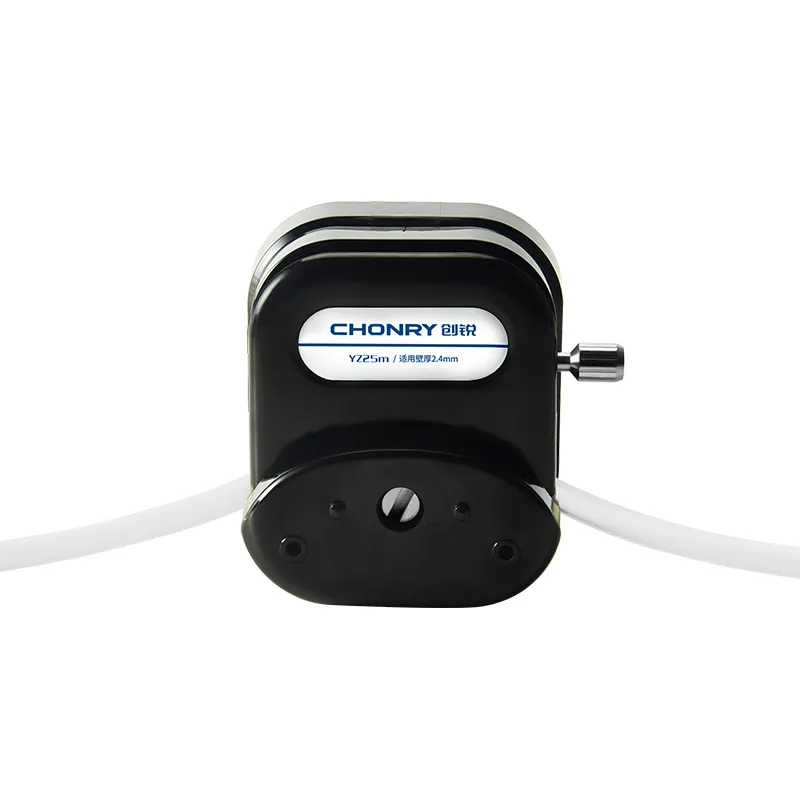

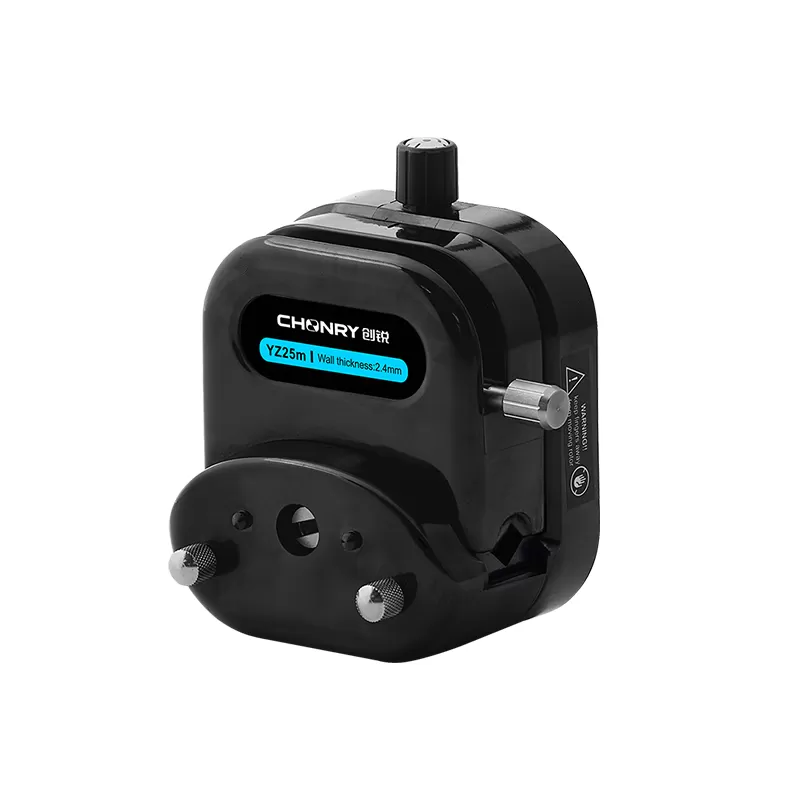

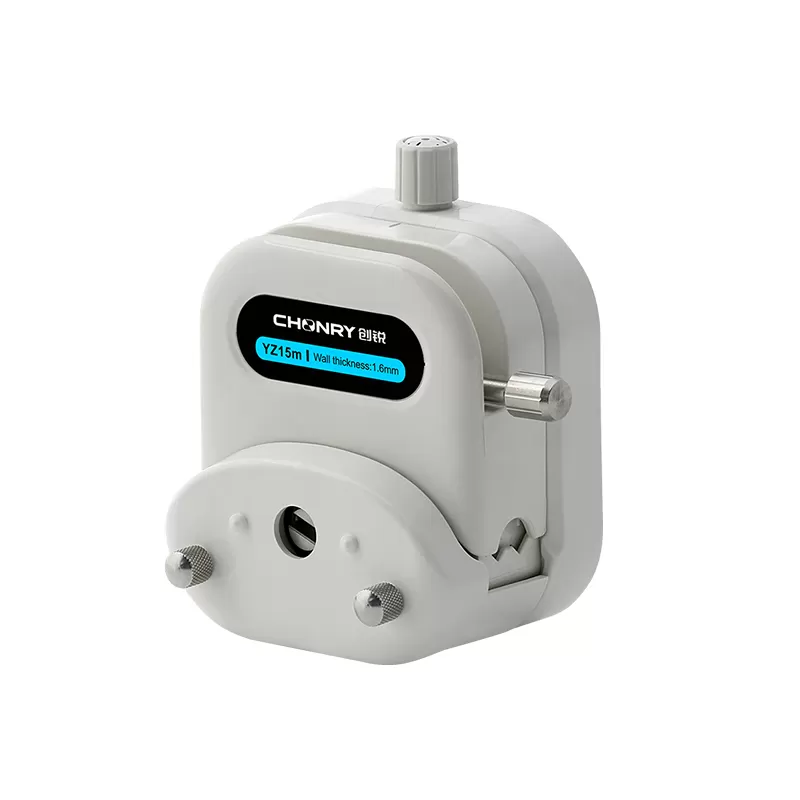

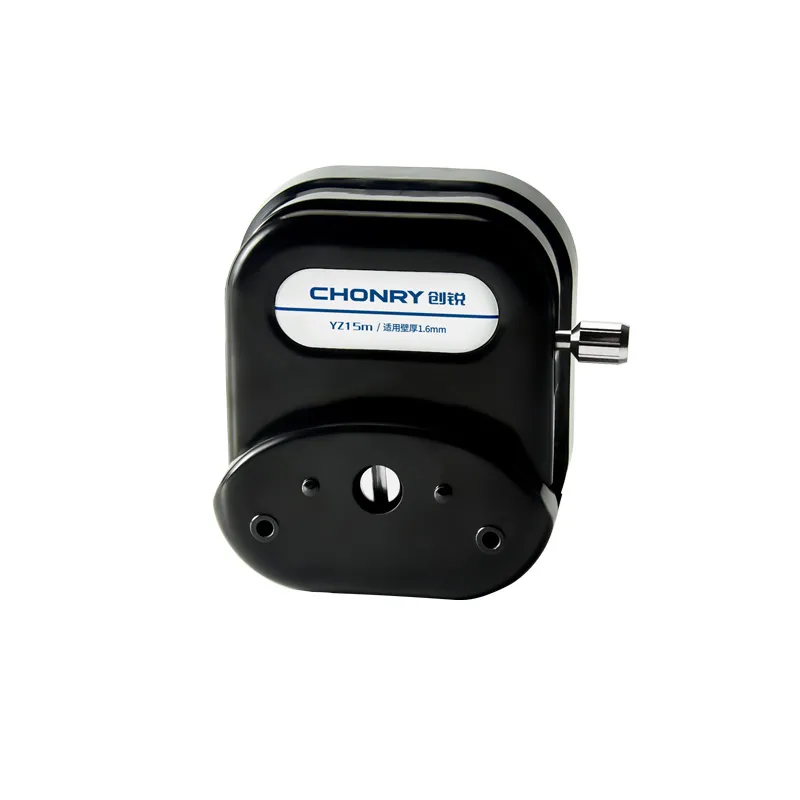

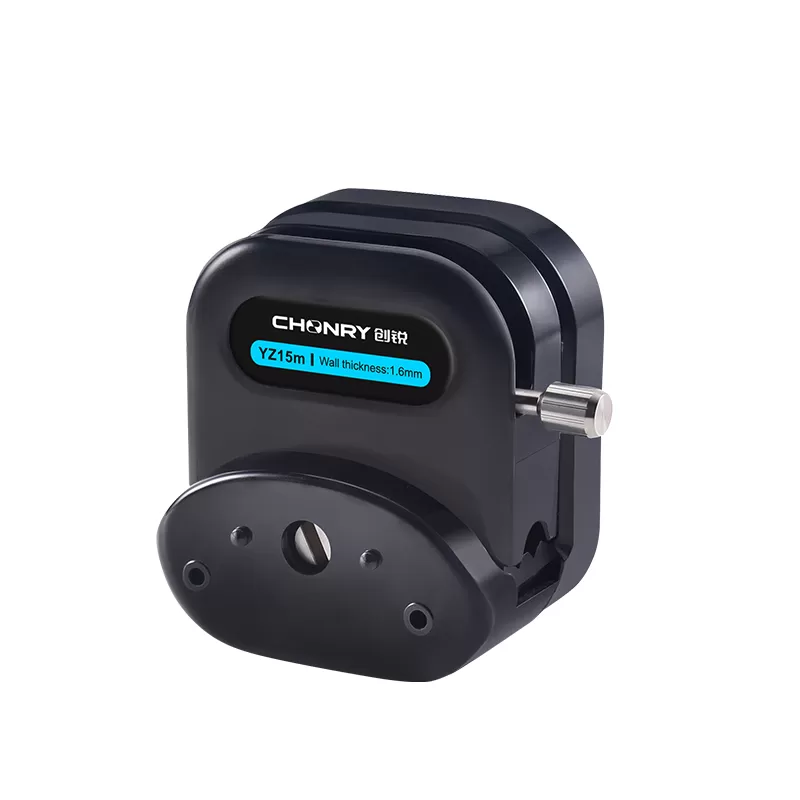

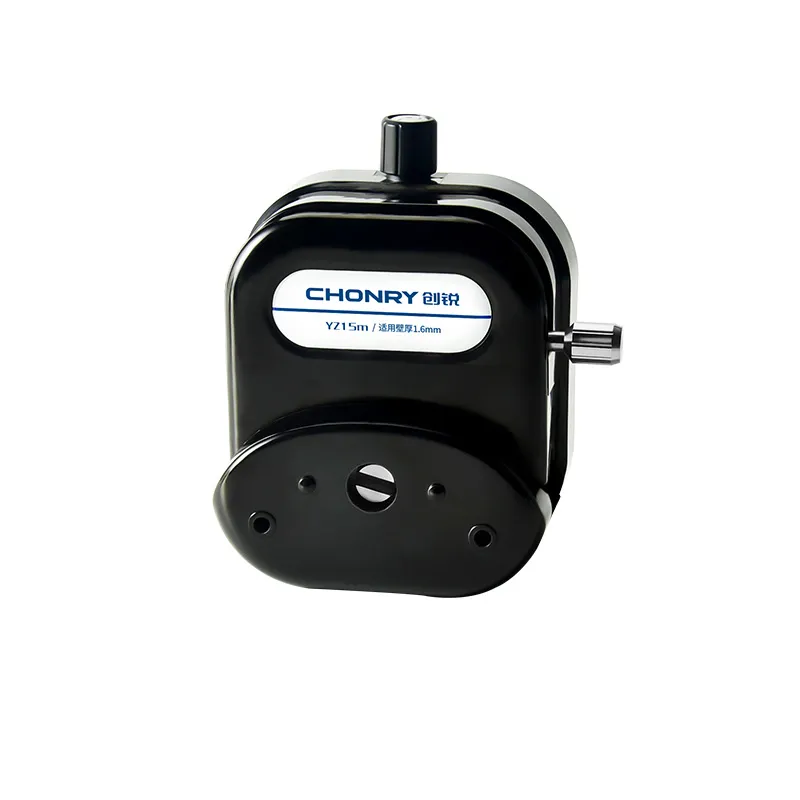

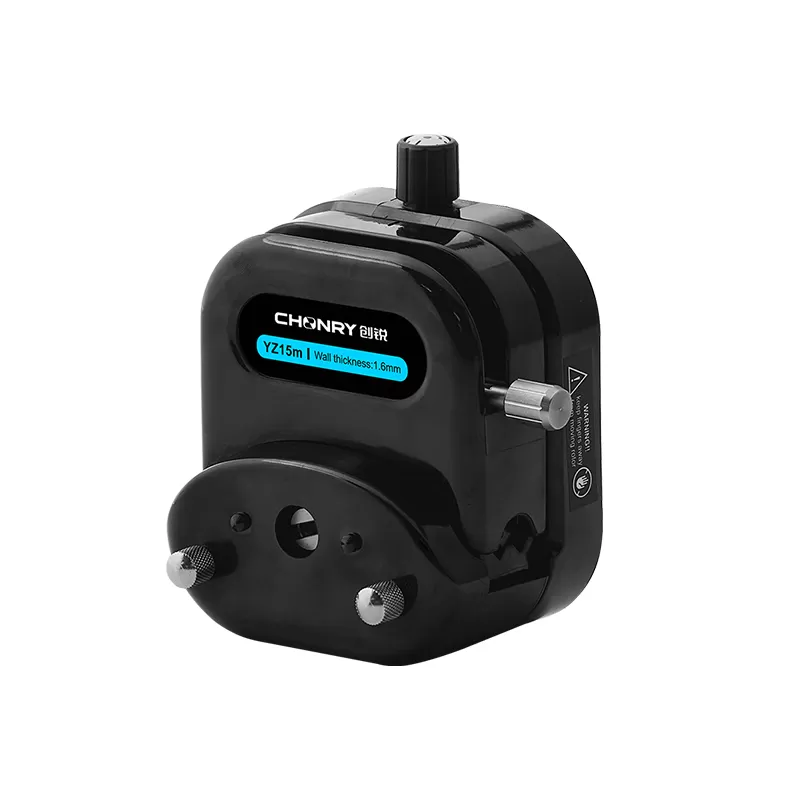

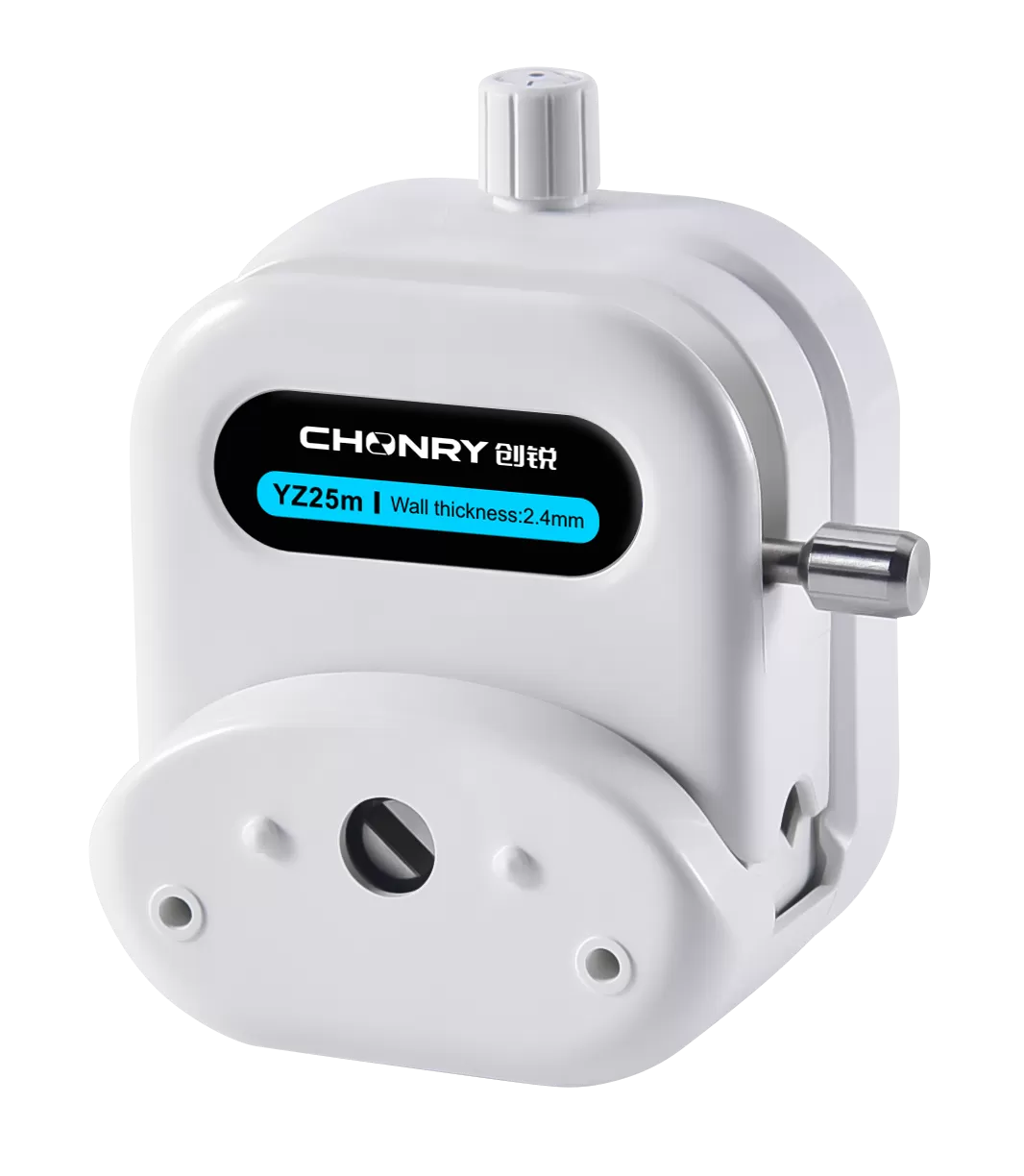

YZm Series Peristaltic Pump Head ≤3000mL/min

YZm Series Peristaltic Pump Head ≤3000mL/min

ModelYZ15m, YZ25m
Max FlowYZ15m: 2280mL/min
YZ25m: 3000mL/min
Max Speed600rpm
Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

The YZm series peristaltic pump head realize the pressure fine-tuning function through the adjustment knob. Stainless steel roller material has long-lasting wearing property and resists corrosion. This pump heads is easy to install and remove hose. Further, YZm series pump head provides single and double channels and support multi pump heads in series that meet different working requirements.


Features and Benefits:

Various models to choose from: standard, knob, dual channel, knob + dual channel

Stainless roller, long service life, wear-resistant and corrosion-resistant

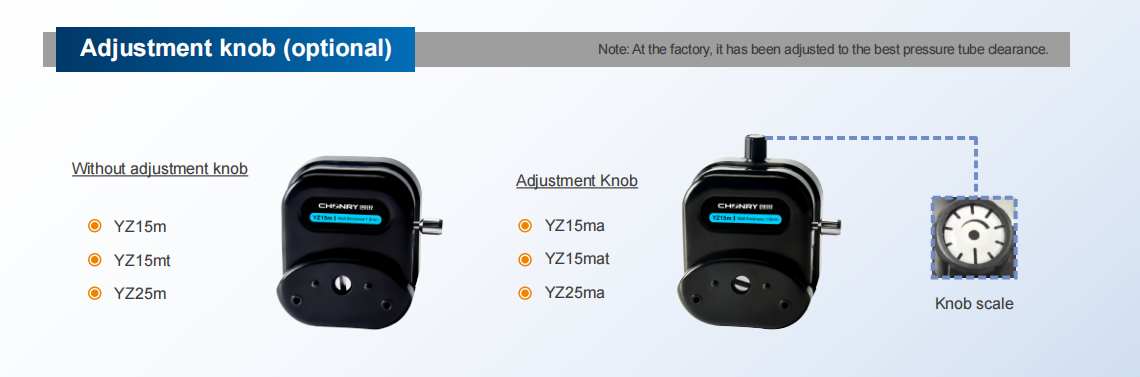

Adjustment knob help realize the pressure fine-tuning function

PPS Shell, high temperature and corrosion resistance

Single or dual channels options

Pump head supports series connection.Supporting filling machinery and peristaltic pumps


Application:

YZm series peristaltic pump heads support large flow rate. It is popular for lab and industrial application.

- Food and beverage dispensers

- Liquid cheese dispenser

- Concrete pumping

- Mineral processing

- Chemical environmental protection

- Pharmaceutical equipment

- Admixture matching

SeriesPump HeadChannelsRollersMax Speed(rpm)Hose ModelMax Flow(mL/min)
YZ15YZ15m1360013#/14#/19#/16#/25#/17#/18#2280
YZ15ma113#/14#/19#/16#/25#/17#/18#2280
YZ15mt213#/14#/19#/16#/25#1020
YZ15mat213#/14#/19#/16#/25#1020
 YZ25YZ25m115#/24#/35#/36#3000
YZ25ma115#/24#/35#/36#3000
SeriesPump HeadChannelsHose ModelMax Flow (mL/min)Adjustment KnobHose Specifications (Id*Wall Thickness)mm
YZ15YZ15m113#/14#/19#/16#/25#/17#/18#2280Without13# / 0.8x1.614# / 1.6x1.619# / 2.4x1.616# / 3.2x1.625# / 4.8x1.617# / 6.4x1.618# / 7.9x1.615# / 4.8x2.424# / 6.4x2.435# / 7.9x2.436# / 9.6x2.4
YZ15ma113#/14#/19#/16#/25#/17#/18#2280Belt
YZ15mt213#/14#/19#/16#/25#1020Without
YZ15mat213#/14#/19#/16#/25#1020Belt
YZ25YZ25m115#/24#/35#/36#3000Without
YZ25ma115#/24#/35#/36#3000Belt

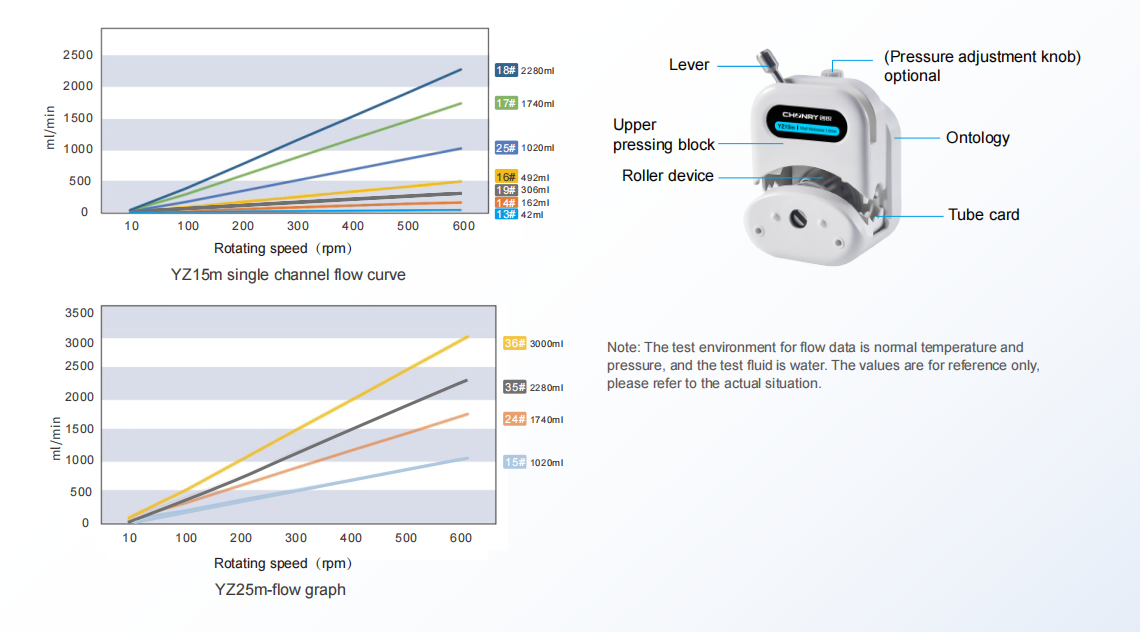

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

YZm Production Selection
YZm Production Selection The roller is made of stainless steel, which is wear-resistant and corrosion-resistant and has a long service life
YZm Pump Head Brochure - Chonry
YZm Pump Head Brochure - Chonry YZm type easy-to-install pump head, easy to operate, easy to install and remove the hose, and can realize the pressure fine-tuning function through the adjustment knob.

None

None
