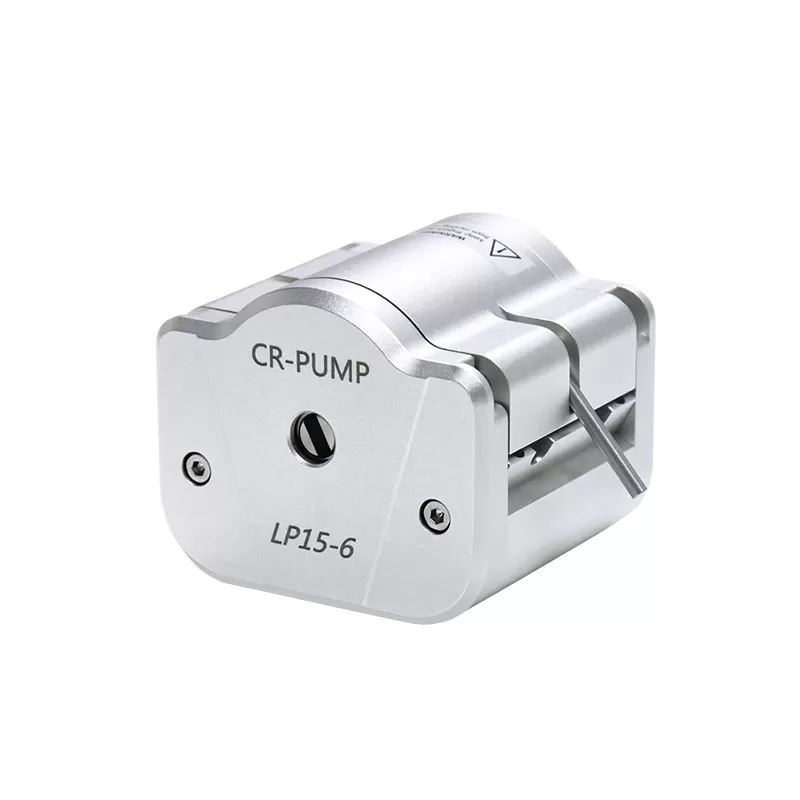

LP15-6 Peristaltic Pump Head

- Double-channel peristaltic pump head

- 3*2 rollers, stainless steel, anti-corrosion. Multi rollers design ensures a stable flow rate.

- Speed range: 0.1-600rpm. Flow rate: 4560ml/min.

- Suitable for peristaltic pump tubing: 13#,14#,19#,16#,25#,17#, and 18#.

- Precision flow rate control <±1%. Pressure > 1bar.

- Support pump head series connections.


Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

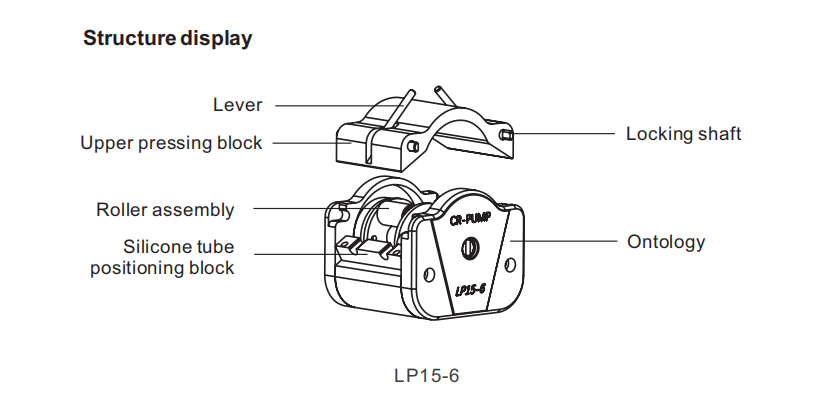

LP15-6 peristaltic pump head adopts aluminum alloy for the body while stainless steel for the rollers. High strength and durability. It has 2 channels and supports series connections. The multi-rollers offer a stable flow rate. Small pulsation. Easy load peristaltic pump tubing. This peristaltic pump head has high precision flow rate control, 1%. It helps you realize the accurate liquid transferring and dispensing. Large flow rate up to 4560ml/min. Widely used in laboratory chemicals, water treatment, and industrial applications.


Features:

Stable flow: multi-roller design with a complementary phase difference, and smaller pulse, which is conducive to the smooth conveying of sensitive fluids;

Multi-channel peristaltic pump: double Y-type tubes can be installed, or two tubes can be installed independently, supporting a series connection;

Easy load peristaltic pump tubing: the pump head lever is easy to lift up and down, and easy to replace and disassemble the tubing;

Accurate flow control: The shells have high strength, compact structure, fine workmanship, and realize precision liquid flow control. The precision of flow rate <±1%.

Durable: The pump body adopts aluminum alloy, double roller assembly is stainless steel. Anti-corrosion and high-temperature resistance, and long life;

Wide applications: It is suitable for 7 different sizes of tubes, 13#,14#,19#,16#,25#,17#, and 18#. The pressure > 1 bar.


LP15-6 Peristaltic Pump Head


Parameters:


Peristaltic Pump Head ModelLP15-6
Channel2
Rollers3*2
Speed Range0.1-600rpm
Flow Rate0.014 - 4560ml/min
Precision Flow Rate Control<±1%
Pressure> 1bar
Suitable for Tubing13#/14#/19#/16#/25#/17#/18#
Roller MaterialStainless steel
Shaft EndRound /flat shaft
Shell MaterialAluminum Alloy

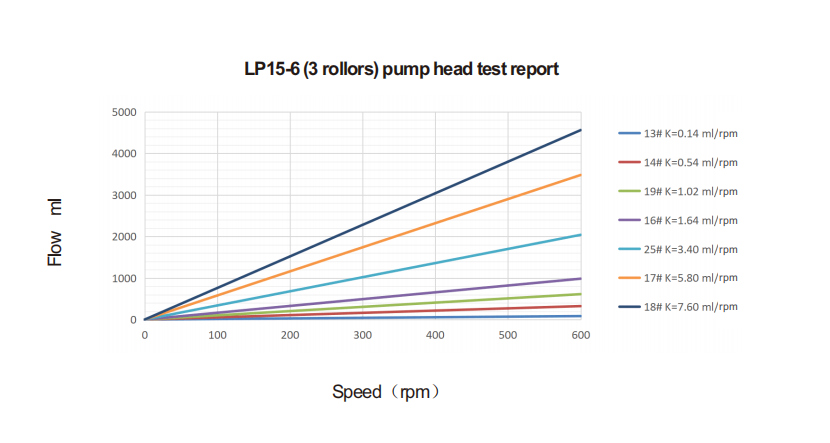

Peristaltic Pump Head Flow Rate Table:


Pump HeadTubeMax Flow(ml/min)
LP15-6ModelID(mm)OD(mm)100rpm300rpm600rpm
13#0.84145284
14#1.64.854162324
19#2.45.6102306612
16#3.16.3164492984
25#4.8834010202040
17#6.49.658017403480
18#7.911.176022804560

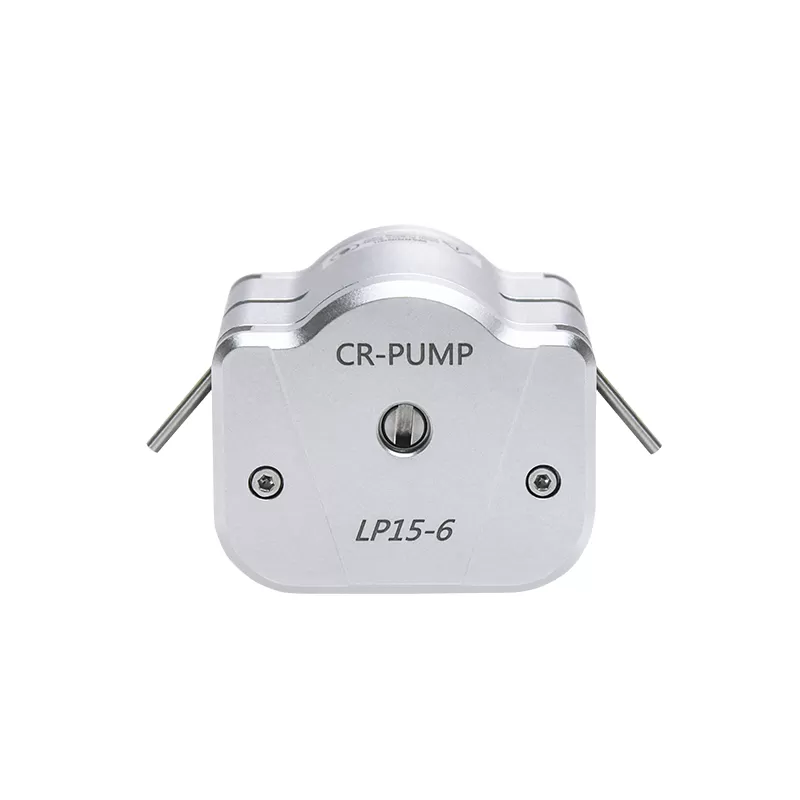

LP15-6 Peristaltic Pump Head
