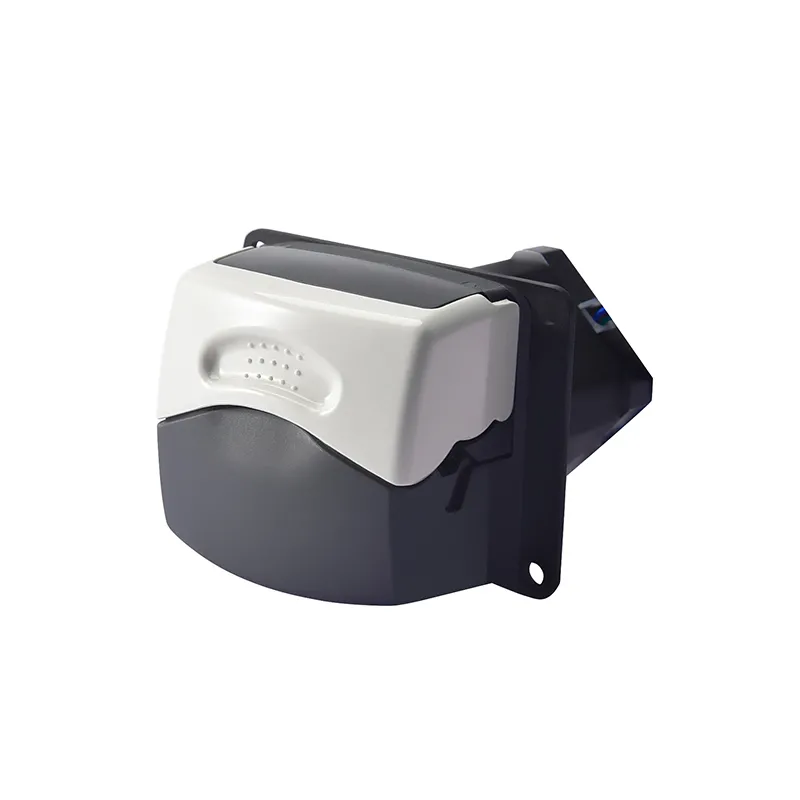

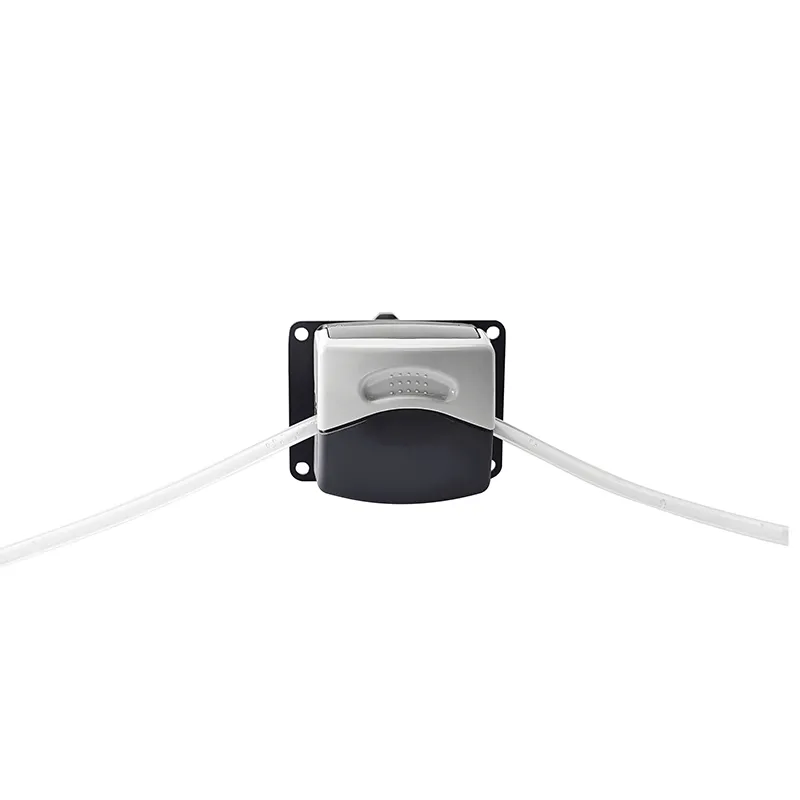

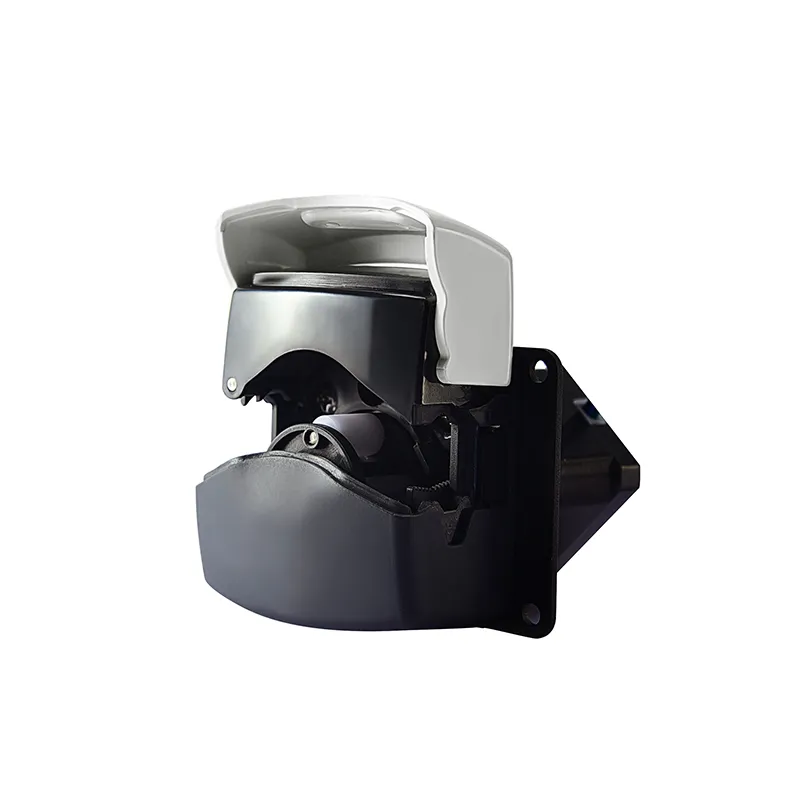

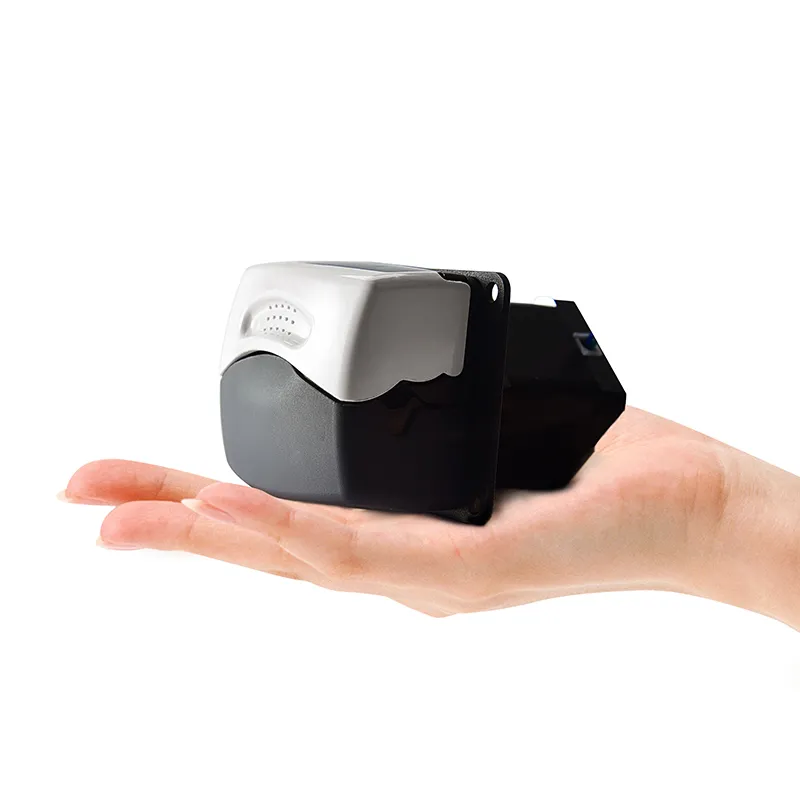

The TX215 peristaltic pump adopts a clamshell design, compact and beautiful, easy to change tubes. It has an elastic upper-pressure block and self-adaptive pipe clamp device to reduce hose wear. It has good corrosion resistance and ease of use and can be matched with 5 types of hoses to meet different flow requirements. It is a standard supporting product for fermenter equipment and biological scientific research equipment.

Features and Benefits:

Clamshell design, small and elegant, easy to load hoses

Engineering plastic shell material, corrosion and wear resistant

Accurate flow, compatible with 5 kinds of hoses meet different flow requirements

Special tubing kits, reduce the flow pulsation and ensure stable flow

Adaptive pope clamp device

Application:

Liquid transfer or circulation in the laboratory or industrial applications

- Permentation

- Analytical chemistry testing & harvesting cell media

- Beverage supply equipment (e.g. juice production)

- Food manufacturing (e.g. pizza sauce dispensing)

- Cell culture

- PH control

- Nutrient transfer

Pump Head	Channels	Rollers	Max Speed (rmp)	Hose Specifications(Id* Wall Thickness)mm	Max Flow(mL/min)
TX215	1	4	300	13# / 0.8X1.6	290
				14# / 1.6X1.6
				19# / 2.4X1.6
				16# / 3.2X1.6
				25# / 4.8X1.6

Model	Pump Head	Motor	Voltage	Max Speed	Max Flow (mL/min)
Model	Pump Head	Motor	Voltage	Max Speed	13#	14#	19#	16#	25#
OEM217-1	TX215	DC Geard	DC12V	300	10	40	90	140	290
OEM217-2	TX215	DC Geard	DC24V	300	10	40	90	140	290
UCP317-A1	TX215	Stepper		300	10	40	90	140	290
UCP317-B3	TX215	Stepper		300	10	40	90	140	290

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

TX215WP310 Peristaltic Pump Head Brochure - Chonry Clamshell design, compact and beautiful, easy to change tubes. It has elastic upper pressure block and self-adaptive pipe clamp device to reduce hose wear.

TX215 product selection With elastic upper pressure block, self-adaptive pipe clamp device, reduce hose wear
