Explosion-proof Peristaltic Pump
Home / Products / Peristaltic Pump / Explosion-proof Peristaltic Pump / QT600 Pneumatic Peristaltic Pump Explosion-Proof

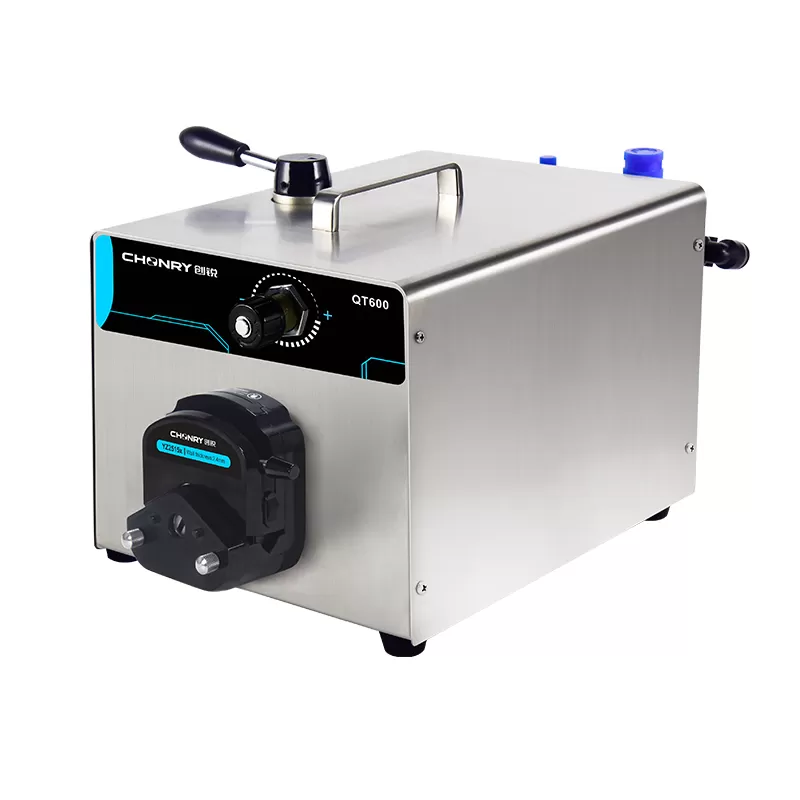

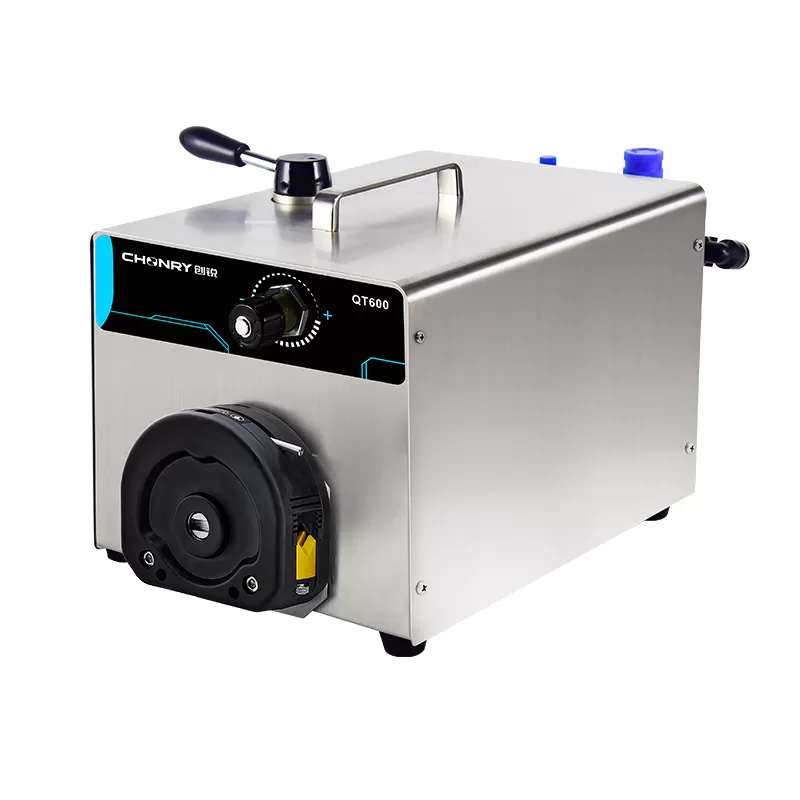

QT600 Pneumatic Peristaltic Pump Explosion-Proof

- High-quality pneumatic motor drive, quiet and stable operation, safe and reliable.

- Throttle valve step-less speed, wide flow range.

- It is widely used for liquid transmission in various flammable and explosive applications.

- Explosion-proof peristaltic pump. 6000ml/min. 600rpm.

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

The pneumatic peristaltic pump uses the air compressor to compress the air to drive the peristaltic pump to drive, which in turn drives the pump head to rotate. The fluid in the peristaltic pump can be completely sealed during operation without being exposed to the air at all. Ordinary peristaltic pumps rely on the electric drive to drive the peristaltic pump head. Such a peristaltic pump, in the case of a closed environment, when the density of the fluid in the air is high, once the electric spark generated by the peristaltic pump is running, it is extremely Deflagration is prone to cause extremely serious production accidents. Therefore, pneumatic peristaltic pumps are widely used for liquid transmission in various flammable and explosive applications.


Advantages of Pneumatic Peristaltic Pump



  • Pneumatic motor drive, suitable for flammable and explosive places.

  • High reliability, high adaptability and low maintenance.

  • Throttle valve step-less speed, wide flow range.

  • Suitable for multiple pump heads, YZ1515X, YZ2515X, KZ25 and other pump heads.

  • Peristaltic pumps are non-pollution, the fluid only contacts the pump tube and does not touch the pump body.

  • Chonry peristaltic pumps are easy-to-maintain and replaceable tubes that allow you to switch from one liquid to another quickly.


Applications:

In the industrial field, pneumatic explosion-proof peristaltic pumps are widely used. It can be used to transport corrosive media, flammable and explosive media and high-temperature media.

In the chemical industry, pneumatic explosion-proof peristaltic pumps are widely used in the transportation of acid and alkali liquids, such as sulfuric acid, hydrochloric acid, etc.

In the petroleum industry, pneumatic explosion-proof peristaltic pumps are used to transport oil, crude oil and chemical products.

In the metallurgical industry, pneumatic explosion-proof peristaltic pumps are used to transport metal solutions and high-temperature liquids



Model

QT600

Speed Range

10~600rpm, adjusted

Suitable pump head

DG series YZ1515x YZ2515x KZ25

Speed control method

throttle adjustment speed

Max Speed

600rpm

Working pressure

0.5~0.7Mpa

Max flow

6000 ml/min

 IP grade

explosion-proof design

Air Consumption

 4-11 L/S

Pick tracheal size

ID7 mm,OD 10mm

Compressed air

pure compressed air

Weight

About 10 KG



Pump headTubeID(mm)Wall thicknessSpeedFlow rate
(mm) (rpm)(ml/min)

YZ1515x

YZ15m

13#0.81.660042
14#1.61.6600162
19#2.41.6600306
16#3.11.6600492
25# 4.81.66001020
17#6.41.66001740
18#7.91.66002280
YZ2515x15#4.82.46001020
24#6.42.46001740
KZ2515#4.82.46001800
24#6.42.46003000
35#7.92.46004200
36#9.62.46006000
YZ25m15#4.82.46001020
24#6.42.46001740
35#7.92.46002280
36#9.62.46003000


Chonry peristaltic pump tubing is the most commonly used material for peristaltic pumps.

It provides the longest service life, and good chemical compatibility with aqueous and many organic solvents. Its service life is about 150 hrs at 600 rpm and 825 hrs at 100 rpm.

It can usually be left running on experiments during weekends without much danger of rupture.

A fresh section of tubing should be pulled through the pump rollers before any running peristaltic pump is left unattended.

Silicone tubing can also be autoclaved a single time with a wet cycle without a significant reduction in its life. High temperature and high-pressure sterilization.
