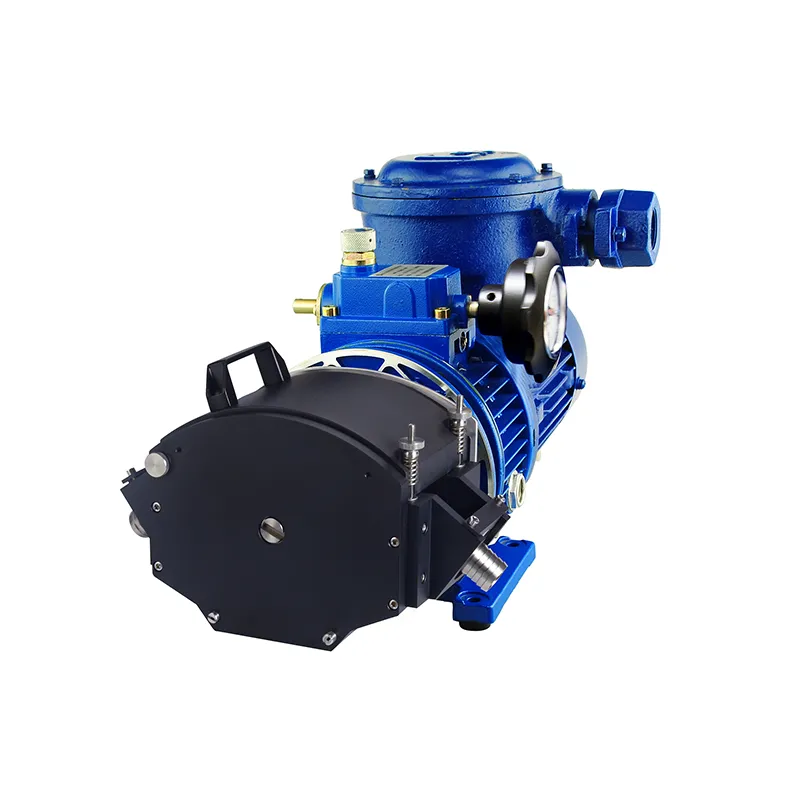

AC explosion-proof motor peristaltic pump FB600

AC explosion-proof motor peristaltic pump FB600

The FB600 is driven by an explosion-proof motor, and can be installed with YZ series, KZ series and other pump heads. The maximum transmission flow can reach 33000ml/min (single channel).

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

The FB600 is driven by an explosion-proof motor, and can be installed with YZ series, KZ series and other pump heads. The maximum transmission flow can reach 33000ml/min (single channel). The planetary stepless transmission is used to adjust the speed, which can quickly complete manual adjustment and is easy to operate.


Specification

Motor explosion

Driven by explosion -proof motorexplosion -proof level is Exdiibt4


Self -absorbing characteristics

The pump has a self -absorbing characteristic when running. and the maximumsuction can reach 9 meters (the measurement medium is water)


Adaptation of multi -pump headYou can install a variety of pump headssuch as YZ series, TX series. KZ series


Structural customization

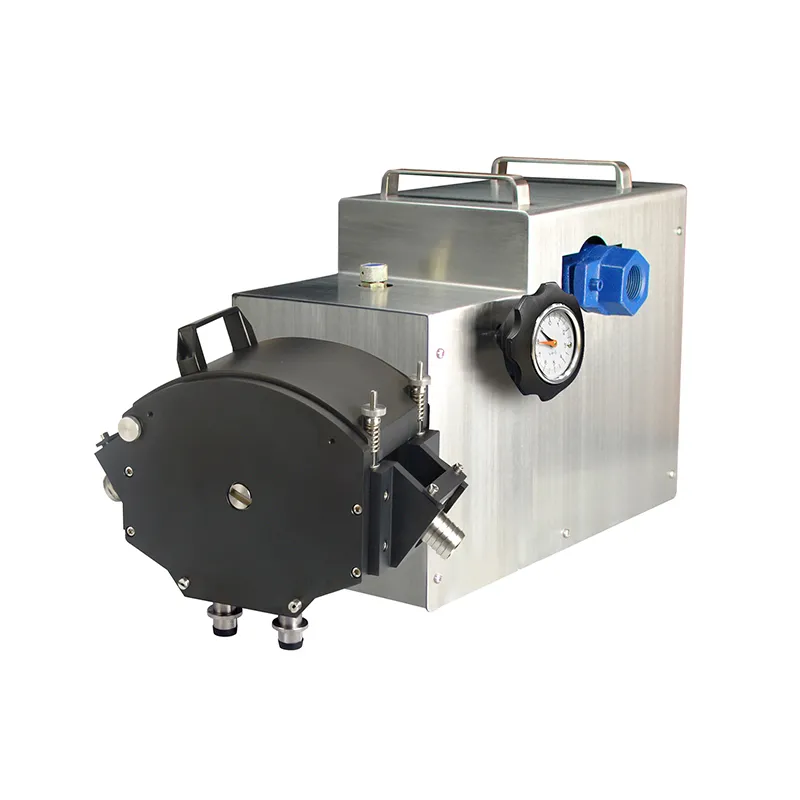

Can be installed with a protective shell


Motor protection

Motor protection level IP55 suitable forcomplex working environment


Applicable industry

Can be used in chemical industry, foodindustry, medical industry, etc.


Application

Applicated in chemical industry, medical care and other industries

Drive model: FB600

Max speed: 650rpm

Max flow: 33000mL/min

Display method: No display (with the inverter installed, the running frequency can be displayedStepless

Speed mode: speed ( Manual adjustment with graduated handwheel)

Rated electricity: 380V

Rated frequency: 50Hz

Power: <750W (3 power options of 0.25kW. 0.51kW. 0.75kW)Size: 460 x 160 x 215 (mm)

Protection level: IP55 (Only motor)

Electric explosion -proof level: ExdlIBT4

Pump headModelMax Speed13#(0.8*1.6)14#
(1.6*1.6)		19#(2.4*1.6)16#(3.1*1.6)25#
(4.8*1.6)		17#(6.4*1.6)18#(7.9*1.6)

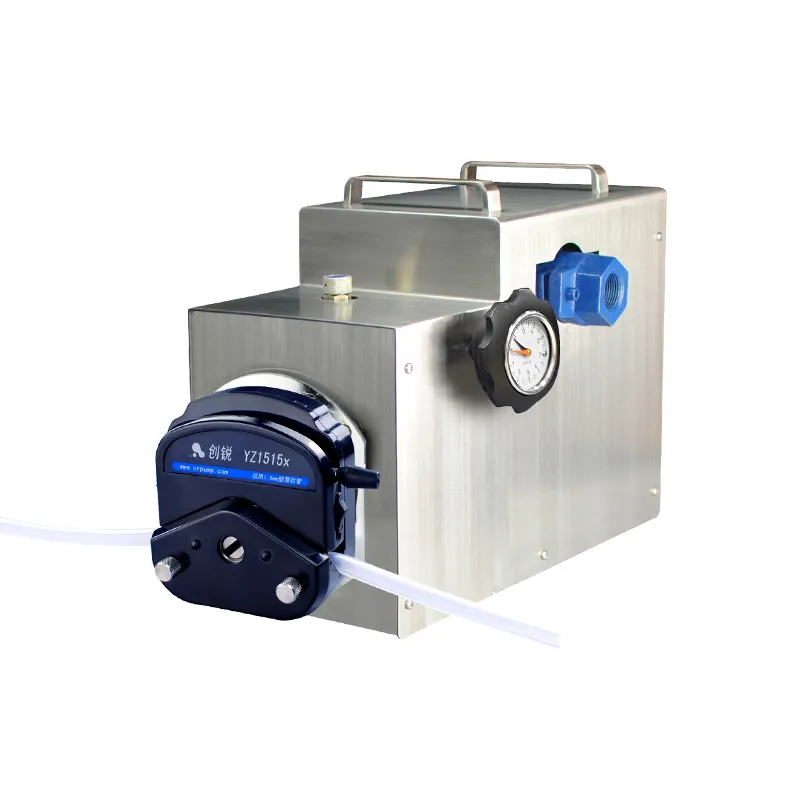

YZ1515XFB60060042162306492102017402280
Pump headModelMax Speed15#(4.8*2.4)24#(6.4*2.4)
YZ2515XFB60060010201740
Pump headModelMax Speed2.4x2.43.2x2.415#24#35#36#
LP25-6-HFB6006004557001505234532554500
Pump headModelMax Speed15#24#35#36#
KZ25FB6006001800300042006000
Pump headModelMax Speed73#(82#

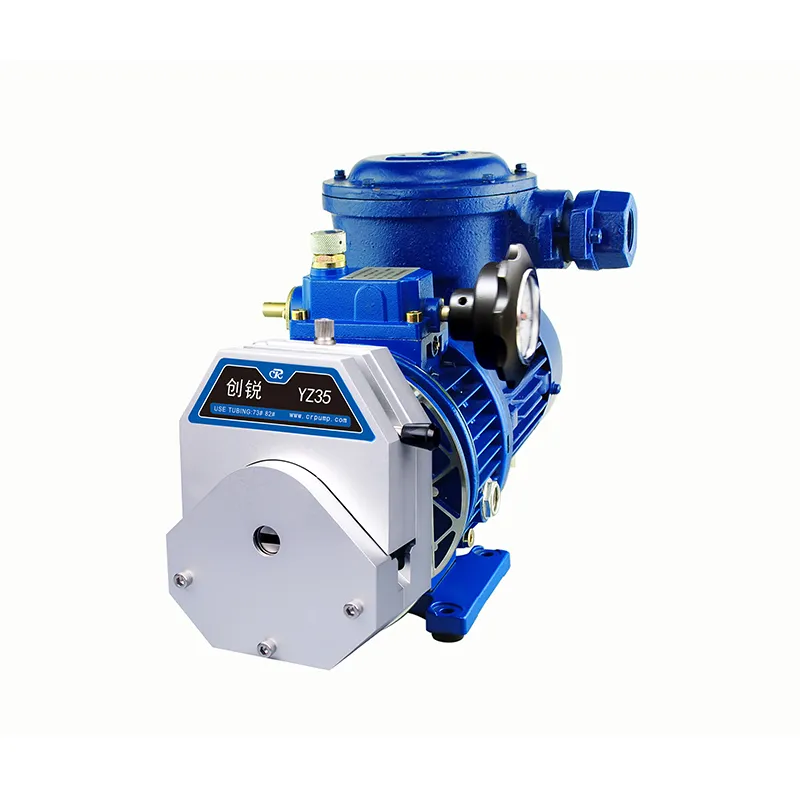

YZ35FB600600740012000
Pump headModelMax Speed73#(82#
YZ35-13FB600600740012000
Pump headModelMax Speed92#
KZ50FB60035033000

Flow unit: (mL/min) hose model: (mm)


Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

FB600
FB600 Applicated in chemical industry, medical care and other industries

None

None
