Explosion-proof Peristaltic Pump
Home / Products / Peristaltic Pump / Explosion-proof Peristaltic Pump / DC Brushless Explosion-proof Motor Peristaltic Pump WP100 &WP600

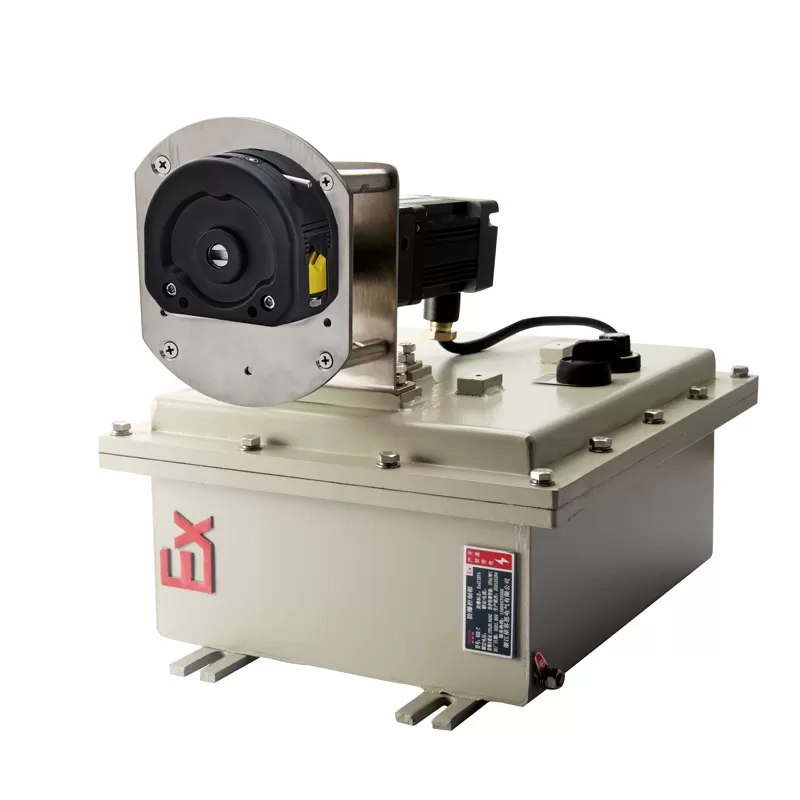

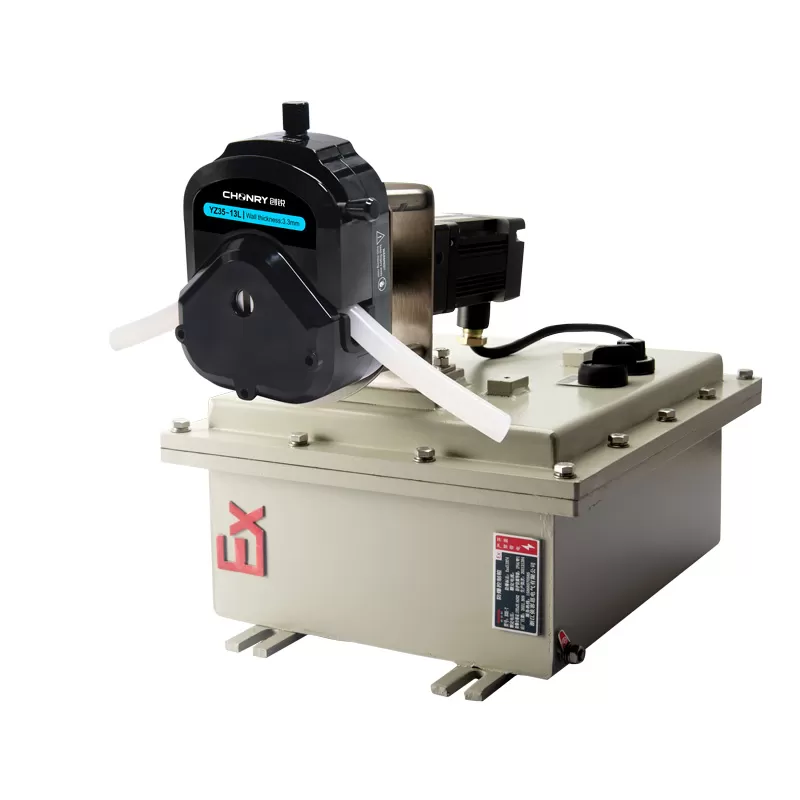

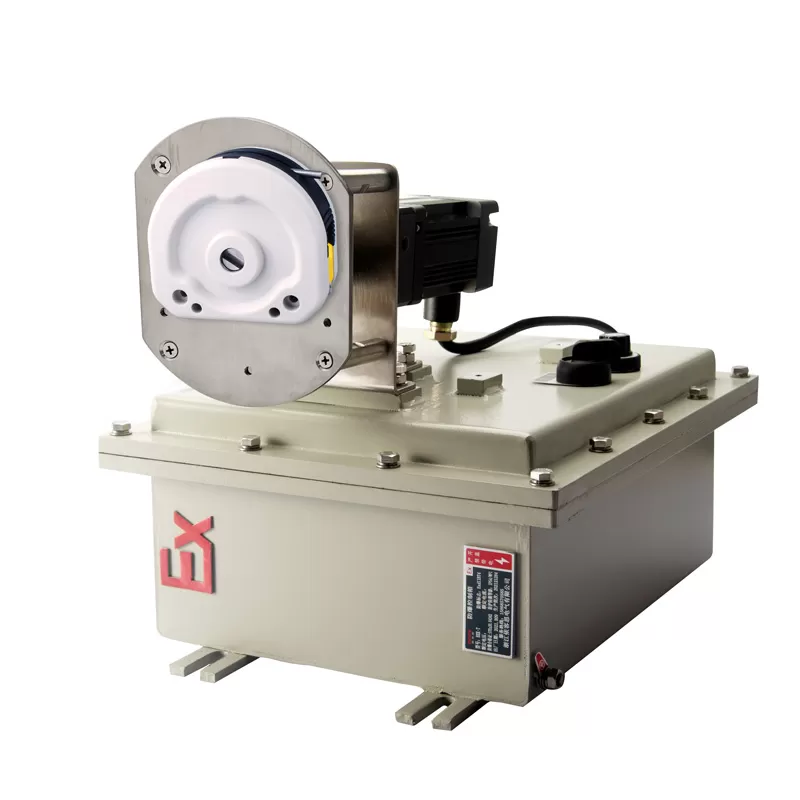

DC Brushless Explosion-proof Motor Peristaltic Pump WP100 &WP600

Flow Rate: 12000ml/min


Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

Advantages:


① Electric explosion-proof: motor explosion-proof level is EXDII-B-T4 Gb. Used in chemical factories. Suitable for other explosive gas environments except coal mines. And the accepted temperature is 135℃. Safer and reliable.

② Motor protection: The motor protection level is IP55. The motor is dust-proof and waterproof.

③ Potquisder speed regulation: the speed adjustment is easier, faster, and the speed regulation range is wider.

④ Flow range: Multi-pump heads can be installed to adapt to multiple hoses.

⑤ Desktop structure: compact structure, convenient operation and use.

⑥ External control can be customized: external control start-stop or input analog. Signal 0-5V, 0-10V, 4-20mA, output analog signal 0-5V, 0-10V, 4-20mA, alarm output function.


Applications:



Explosion-proof peristaltic pump are designed to operate in hazardous environments where there is a risk of explosion due to the presence of flammable gases, vapors, or dust. Some applications of explosion-proof peristaltic pumps include:

- Oil and gas industry: They are used for transferring flammable liquids, such as crude oil, gasoline, diesel, and other petroleum products, in refineries, drilling rigs, and storage facilities.

- Chemical industry: These pumps are used for handling and transferring hazardous chemicals, solvents, acids, and corrosive substances in chemical manufacturing plants, laboratories, and storage areas.

- Pharmaceutical industry: They are used for precise and safe dosing of flammable liquids, such as alcohol, solvents, and pharmaceutical ingredients, in the production of drugs and medications.

- Food and beverage industry: They are used for transferring flammable liquids, such as alcohol, spirits, and food-grade solvents, in breweries, distilleries, and food processing plants.


Technical Parameter


Drive ModelWFB100WFB600
Applicable Pump HeadYZ1515/YZ2515/KZ25/YZ35/YZ35-13
Max Speed100rpm600rpm
Motor Parameters80W 2000rpm120W 3000rpm
Gearbox reduction ratio1:201:5
Max flow380ml/min12000ml/min
Output torque8N.m2N.m
Speed regulation methodPotentiometerPotentiometer
Display methodPotentiometerPotentiometer
Operating VoltageAC100-240VAC100-240V
Rated power<80W<120W
Working environmentAmbient temperature 0-40℃, ambient humidity <80%
Drive dimensions456x300x357(mm)
Protection levelIP55(Only motor)
Electric explosion-proof levelEXDII-B-T4 Gb





Pump head ModelHose SpecificationID(mm)Wall thickness (mm)Max Flow(ml/min)Max Speed(rpm)
   YZ1515x13#0.81.642        600
14#1.61.6162
19#2.41.6306
16#3.11.6492
25#4.81.61020
17#6.41.61740
18#7.91.62280
 YZ2515x15#4.82.41020
24#6.42.41740
  KZ2515#4.82.41800
24#6.42.43000
35#7.92.44200
36#9.62.46000
 YZ3573#9.63.37400
82#12.73.312000

 YZ35-13

 YZ35

YZ35LS

73#9.63.37400
82#12.73.312000



None

None

None
