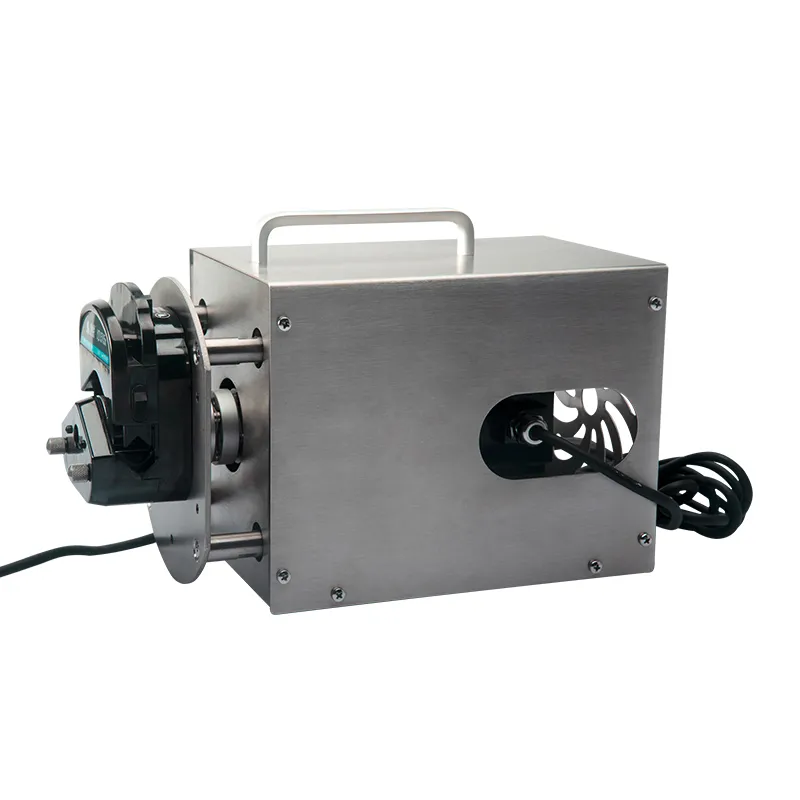

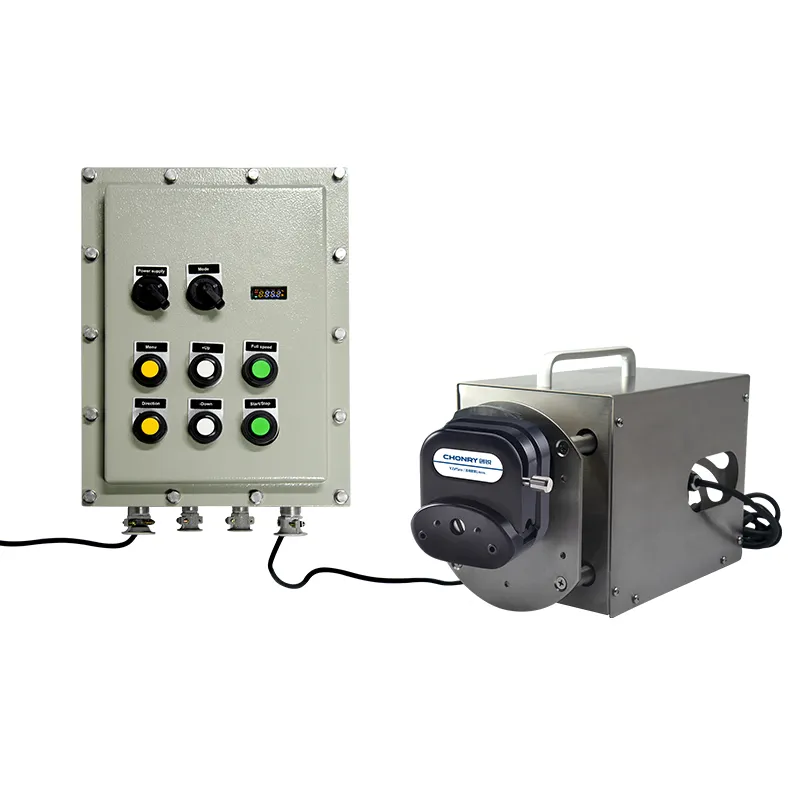

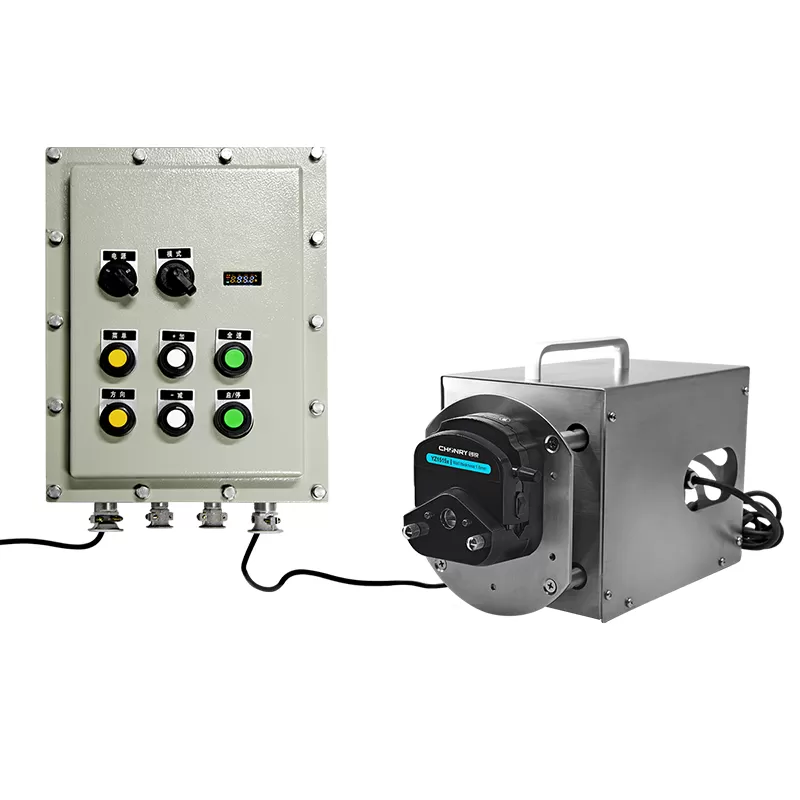

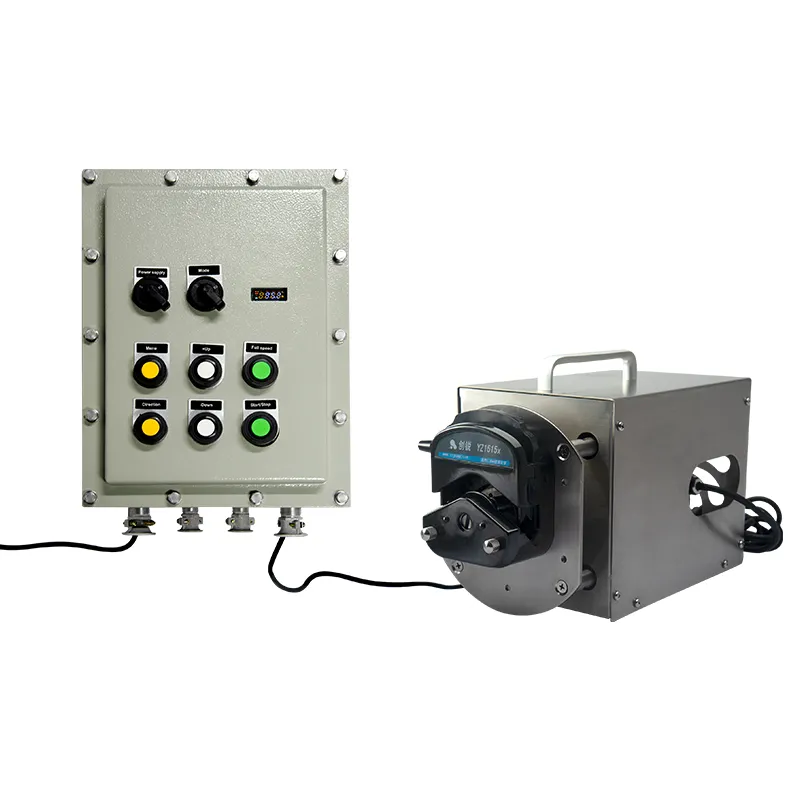

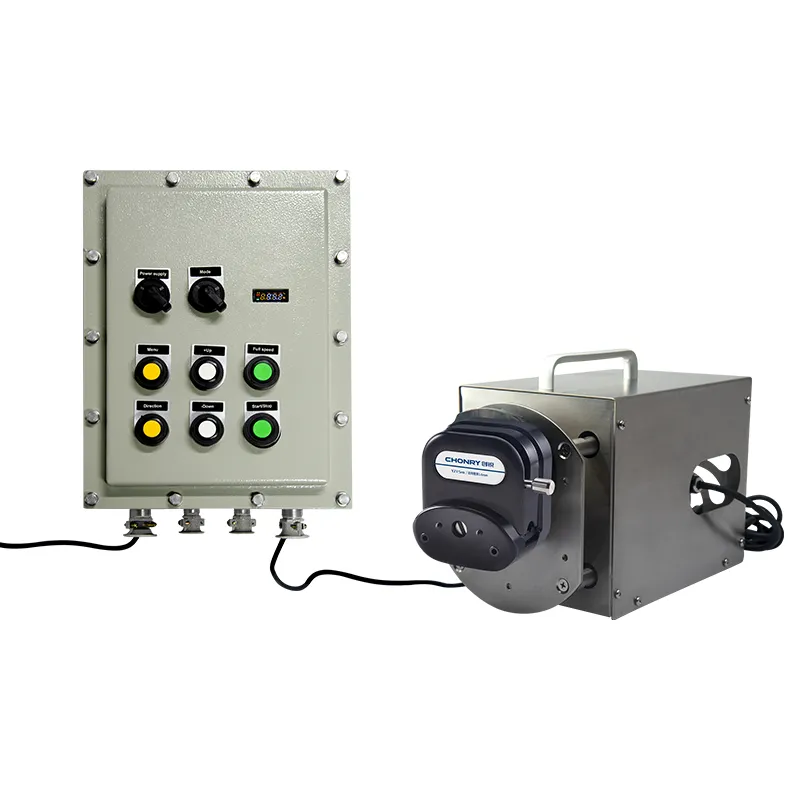

GFB600A is driven by stepper explosion-proof motor, four-digit display design, can display speed and flow, has calibration function, suction function, can install pump heads such as YZ series, supports MODBUS communication protocol, analog control and other external control functions.

GFB600A Droduct Features:

Motor Protection Grade: Motor explosion-proof mark ExdIICT4.

Motor Explosion-proof Grade: protection grade IP65.

Four-digit display: The parameter adjustment of speed and flow is more intuitive.

Multiple functions: with calibration function and suction function.

High precision: The motor has high running precision and is suitable for high-precision liquid transmission and filling.

External control function: support Modbus protocol, analog control and other external control functions.

Applicable industries: can be used in chemical industry, food industry, medical industry

Application

Applicated in chemical industry, medical care and other industries

Model	GFB600A
Max Speed	600rpm (reversible)
Speed Resolution	0.1rpm
Max Flow	3000ml/min
Display Method	4-digtal led display current speed/flow
Speed Mode	Button to adjust the speed
Power Supply	AC220±10%(strandard) or AC 110V±10%(option)
Suction angle	10º~720º(0ºmean no back suction)
Suction speed	100-300rpm
Power	100w
External control interface	DB-15 transfer
External control method	Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 Serial Communication
Ambient temperature	0℃- 40℃
Motor Protection Grade	IP65
Motor Explosion-proof grade	ExdIICT4
Explosion-proof control box weight	≈23kg
Motor pump head weight	≈8kg

Pump Head Model	Hose Specifications	ID(mm)	Wall thickness (mm)	Max Flow (mL/min)	Max Speed (rpm)
YZ1515x	13#	0.8	1.6	42	600
	14#	1.6	1.6	162
	19#	2.4	1.6	306
	16#	3.1	1.6	492
	25#	4.8	1.6	1020
	17#	6.4	1.6	1740
	18#	7.9	1.6	2280
TX315	13#	0.8	1.6	28	400
	14#	1.6	1.6	106
	19#	2.4	1.6	227
	16#	3.1	1.6	399
	25#	4.8	1.6	830
	17#	6.4	1.6	1400
	18#	7.9	1.6	1930
YZ2515x	15#	4.8	2.4	1020	600
YZ2515x	24#	6.4	2.4	1740	600
TX325	15#	4.8	2.4	760	400
TX325	24#	6.4	2.4	1230	400
LP25-6-H	2.4x2.4	2.4	2.4	455	600
	3.2x2.4	3.1	2.4	700
	15#	4.8	2.4	1505
	24#	6.4	2.4	2345
	35#	7.9	2.4	3255
	36#	9.6	2.4	4500
KZ25	15#	4.8	2.4	1800	600
	24#	6.4	2.4	3000
	35#	7.9	2.4	4200
	36#	9.6	2.4	6000
YZ35	73#	9.6	3.3	7400	600
YZ35	82#	12.7	3.3	12000	600
YZ35-13	73#	9.6	3.3	7400	600
YZ35-13	82#	12.7	3.3	12000	600
KZ50	92#	25.4	4.8	33000	350

GFB600A Applicated in chemical industry, medical care and other industries
