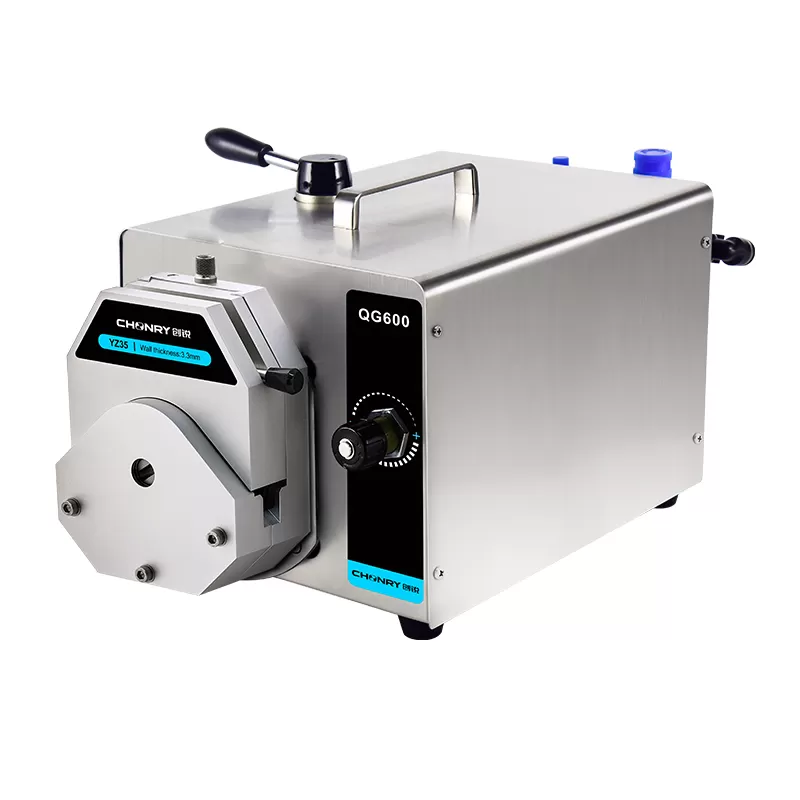

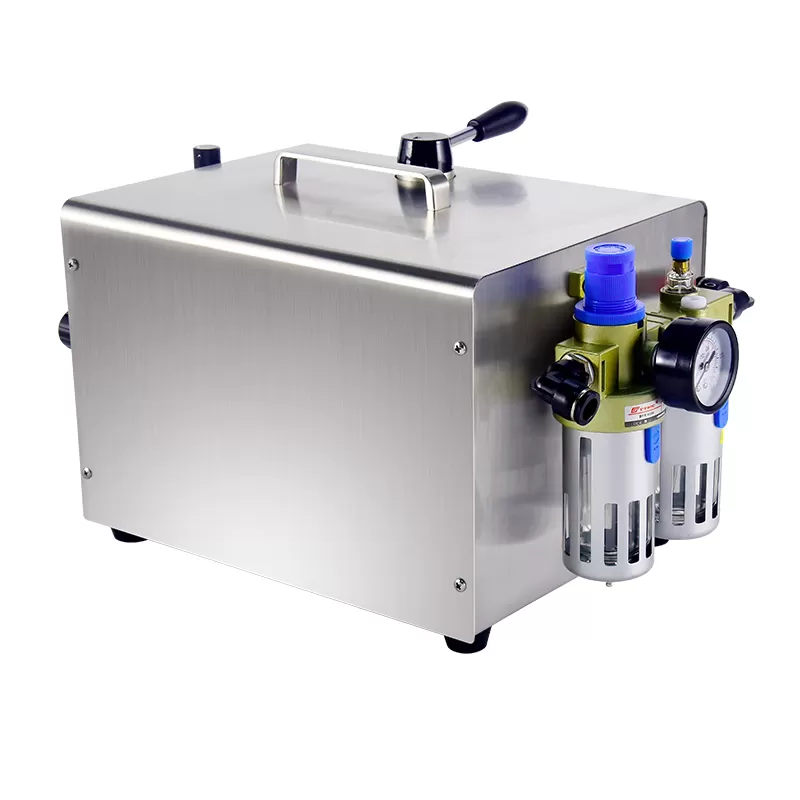

QG600 Pneumatic Motor Peristaltic Pump Large Flow

- High-quality pneumatic motor drive, quiet and stable operation, safe and reliable.

- Throttle valve step-less speed, wide flow range.

- It is widely used for liquid transmission in various flammable and explosive applications.

- Explosion-proof peristaltic pump. 12000ml/min. 600rpm.

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

The pneumatic peristaltic pump uses the air compressor to compress the air to drive the peristaltic pump to drive, which in turn drives the pump head to rotate. The fluid in the peristaltic pump can be completely sealed during operation without being exposed to the air at all. Ordinary peristaltic pumps rely on the electric drive to drive the peristaltic pump head. Such a peristaltic pump, in the case of a closed environment, when the density of the fluid in the air is high, once the electric spark generated by the peristaltic pump is running, it is extremely Deflagration is prone to cause extremely serious production accidents. Therefore, pneumatic peristaltic pumps are widely used for liquid transmission in various flammable and explosive applications.


Advantages of Pneumatic Peristaltic Pump



  • Pneumatic motor drive, suitable for flammable and explosive places.

  • High reliability, high adaptability and low maintenance.

  • Throttle valve step-less speed, wide flow range.

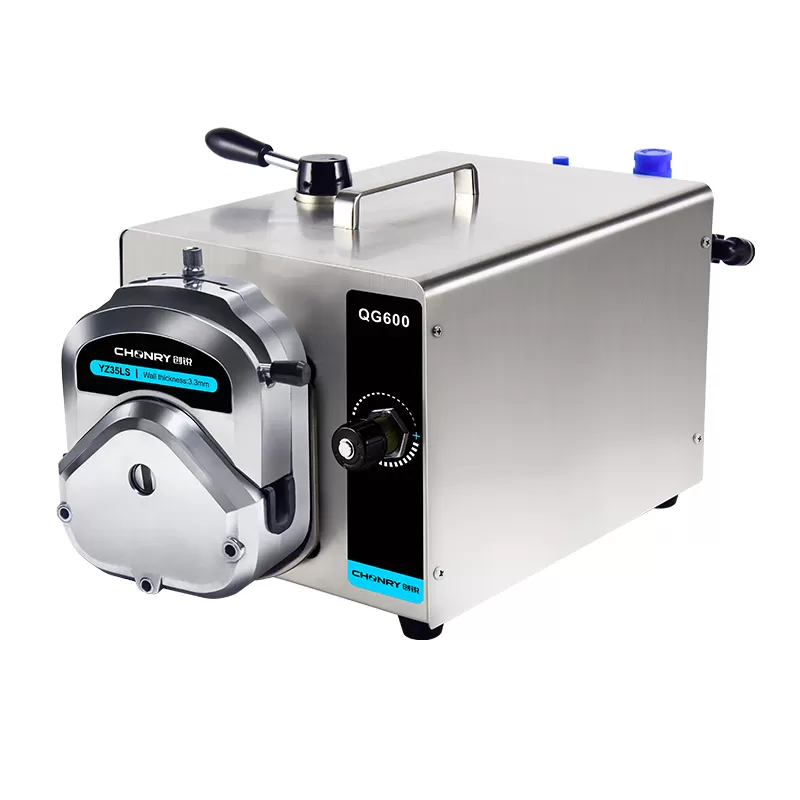

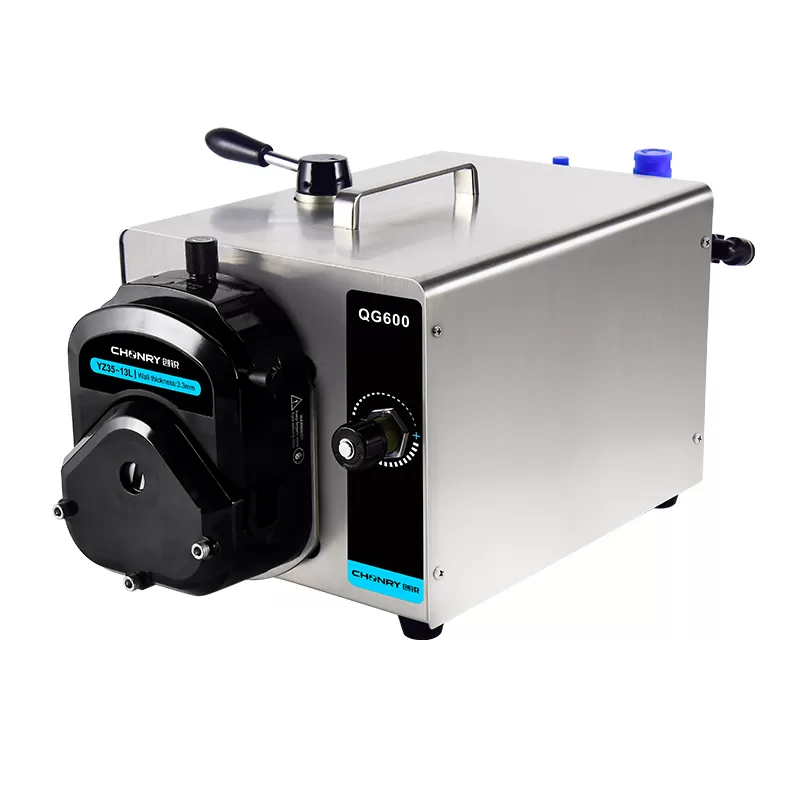

  • Suitable for multiple pump heads, YZ35, YZ35LS, YZ35-13L and other pump heads.

  • Peristaltic pumps are non-pollution, the fluid only contacts the pump tube and does not touch the pump body.

  • Chonry peristaltic pumps are easy-to-maintain and replaceable tubes that allow you to switch from one liquid to another quickly.

  • Large flow rate up to 12000ml/min.


Applications:

- In the industrial field, pneumatic explosion-proof peristaltic pumps are widely used. It can be used to transport corrosive media, flammable and explosive media and high-temperature media.

- In the chemical industry, pneumatic explosion-proof peristaltic pumps are widely used in the transportation of acid and alkali liquids, such as sulfuric acid, hydrochloric acid, etc.

- In the petroleum industry, pneumatic explosion-proof peristaltic pumps are used to transport oil, crude oil and chemical products.

- In the metallurgical industry, pneumatic explosion-proof peristaltic pumps are used to transport metal solutions and high-temperature liquids



Model

QG600

Speed Range

10~600rpm, adjusted

Suitable pump head

YZ35, YZ35-13L, YZ35LS

Speed control method

throttle adjustment speed

Max Speed

600rpm

Working pressure

0.5~0.7Mpa

Max flow

6000 ml/min

 IP grade

explosion-proof design

Air Consumption

 4-11 L/S

Pick tracheal size

ID7 mm,OD 10mm

Compressed air

pure compressed air

Weight

About 10 KG



ModelTubeID(mm)Wall thickness(mm)Max flow(ml/min)Max speed(rpm)
YZ3573#9.63.37400  600
82#12.73.312000
  YZ35-13L73#9.63.37400
82#12.73.312000
  YZ35LS73#9.63.37400
82#12.73.312000
