WT600 DC Brushless Peristaltic Pump

WT600 DC Brushless Peristaltic Pump

WT600 is a DC brushless peristaltic pump independently developed by Chonry. It is driven by a DC brushless motor and has strong bidirectional torque.

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

WT600 is a DC brushless peristaltic pump independently developed by Chuangrui Pump Industry. It is driven by a DC brushless motor and has strong bidirectional torque. It can be installed with YZ series, TX series, KZ series pump heads and is suitable for a variety of hoses. Support RS485/MODBUS communication protocol to meet different work needs of customers.


Specification

Power off save

Can automatically save the control parameters when the last power failure


One key full speed

Features a convenient full speed button for quick Fill or empty pipes


Easy to operate

Digital knob, 4-digit LED digital display, easy to operate, clear and intuitive


External control function

Support RS485/MODBUS communication protocol, the protocol can also be customized according to customer needs


Strong motor

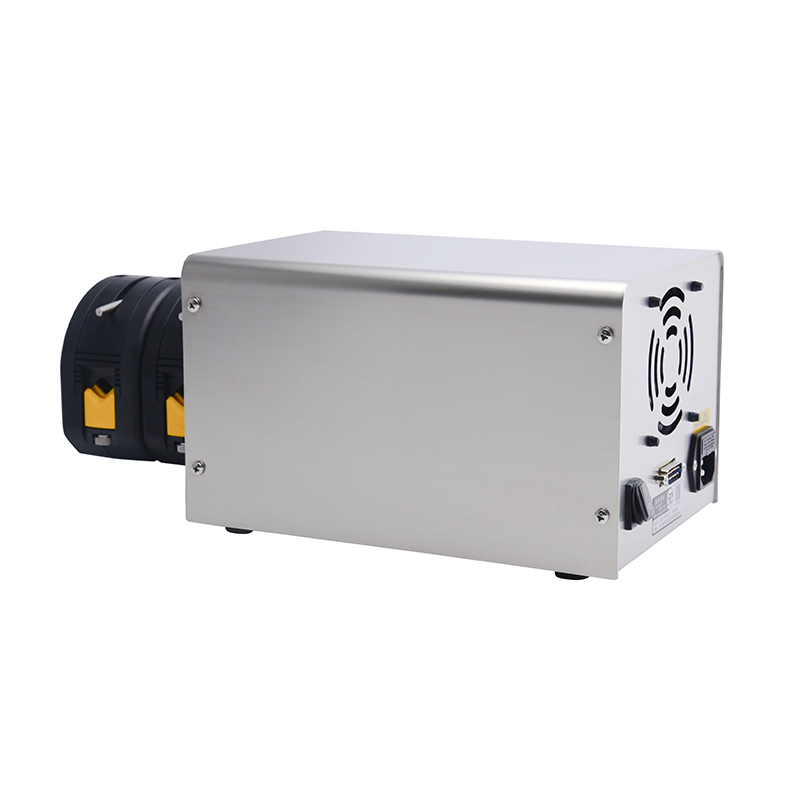

Bidirectional large twist cabinet, brushless DC motor, can cascade multiple pump heads


Adapt to multiple pump heads

Various pump heads such as YZ series, TX series and KZ series can be installed


Application

It is used for conveying mechanical grinding and polishing liquid, electronic electroplating addition, chemical liquid, glue, anti-static liquid, etc.

Drive model: WT600

Max speed: 600rpm（reversible）

Speed resolution: 1rpm

Max flow: 6000mL/min

Speed mode: Digital knob to adjust the speed

Display method: 4-digit LED displays current speed or flow

Suction angle: 10°-720° (0° means no back suction)

Suction speed: 10-300rpm

Power supply:

AC220±10% (standard) or AC110V±10% (optional)

Power: ＜100W

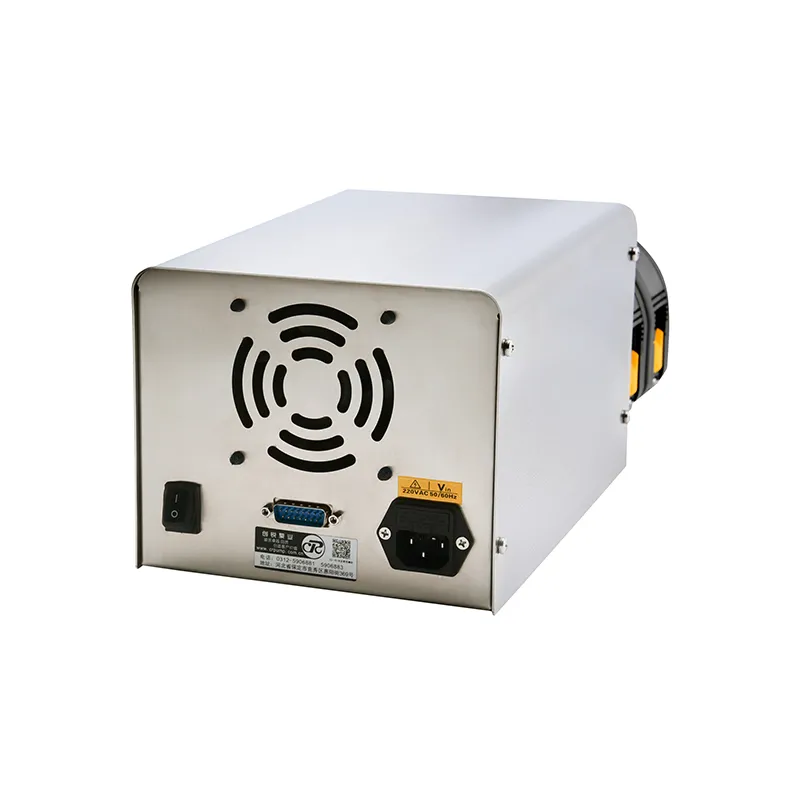

External control interface:

Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication

Drive size: 264x177x153（mm）

Drive weight: 4.8kg

Pump HeadModelHoseID（mm）Wall Thickness（mm）Max Flow(ml/min)Max Speed(rpm)

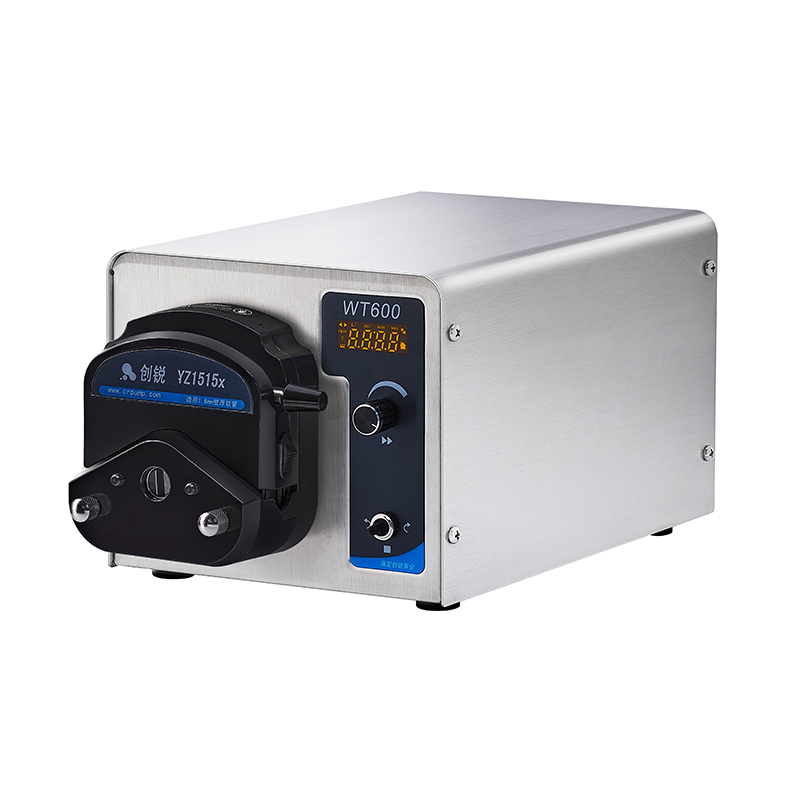

YZ1515XWT60013#0.81.642600
14#1.61.6162
19#2.41.6306
16#3.21.6492
25#4.81.61020
17#6.41.61740
18#7.91.62280

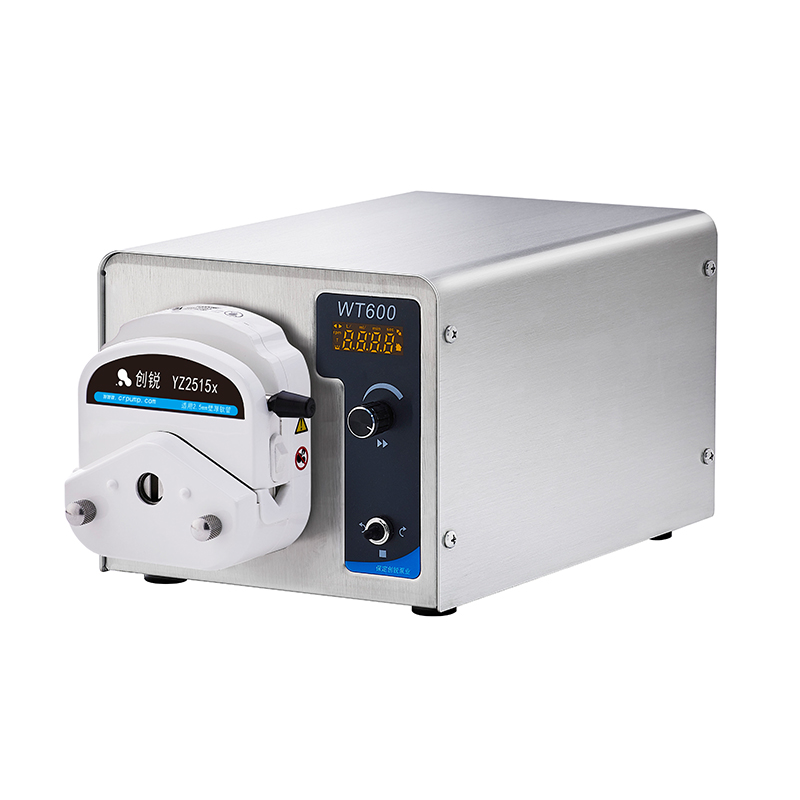

YZ2515XWT60015#4.82.41020600
24#6.42.41740

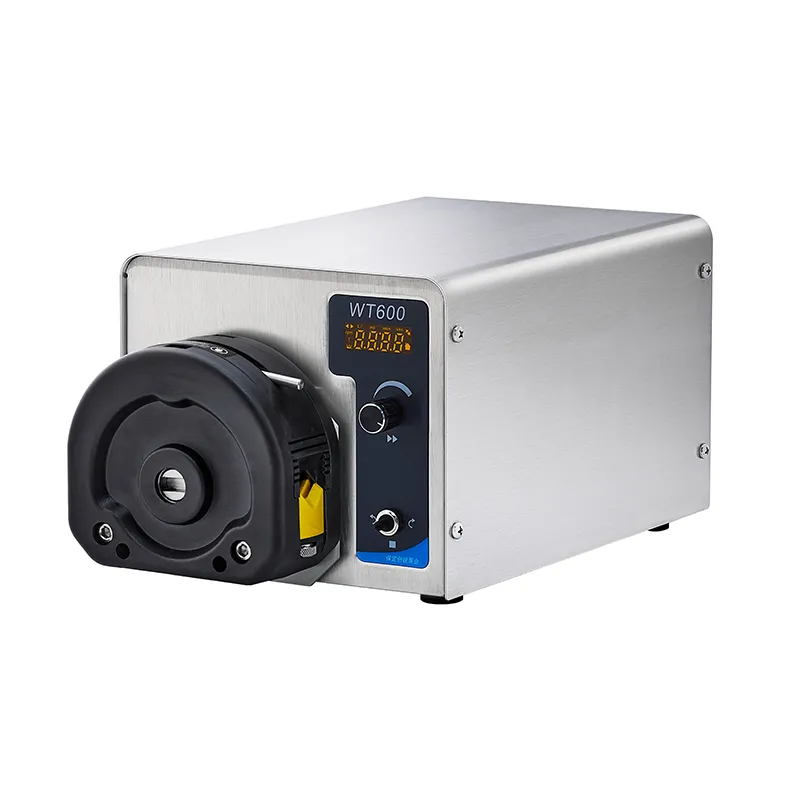

KZ25WT60015#4.82.41800600
24#6.42.43000
35#7.92.44200
36#9.62.46000

(unit: mm)


Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.
