Good sealing performance, reverse flow of fluid, low maintenance cost, and can be used with other equipment.
Support user customization, mature processing technology, high production capacity, and can be mass-produced.
Color touchscreen operation can realize batch filling, and the number of control units can be expanded.
The R&D team can carry out customized development according to different design schemes.
LCD touch screen, which can realize high-precision, smooth and pulsation-free liquid transmission.
Targeted production of products according to market demand, including adding pumps, gear pumps, etc.
Provide peristaltic pump hose options, such as platinum vulcanized silicone hose, the hose for cell research, etc.

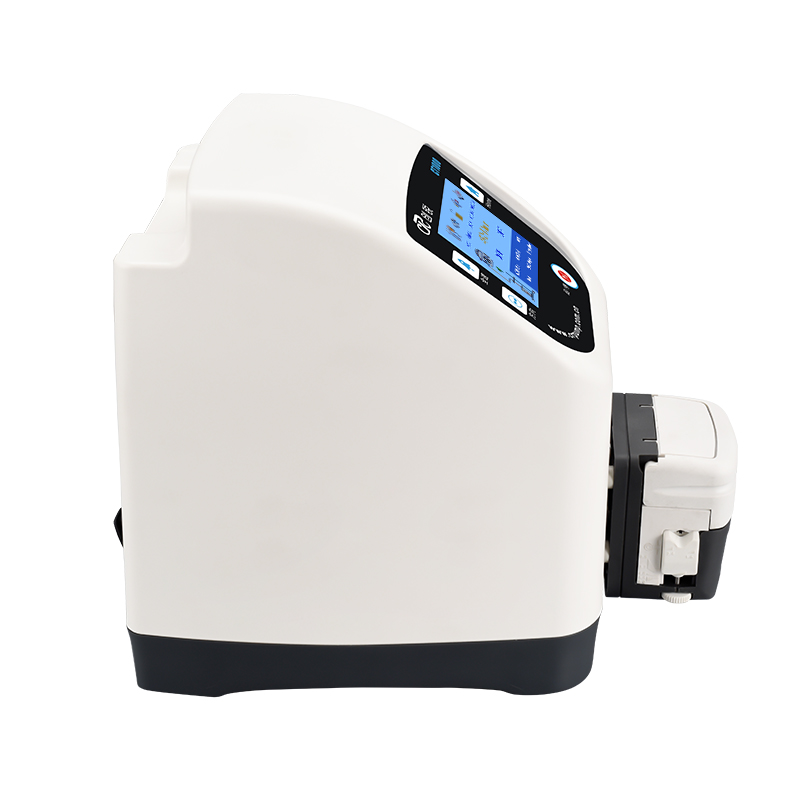

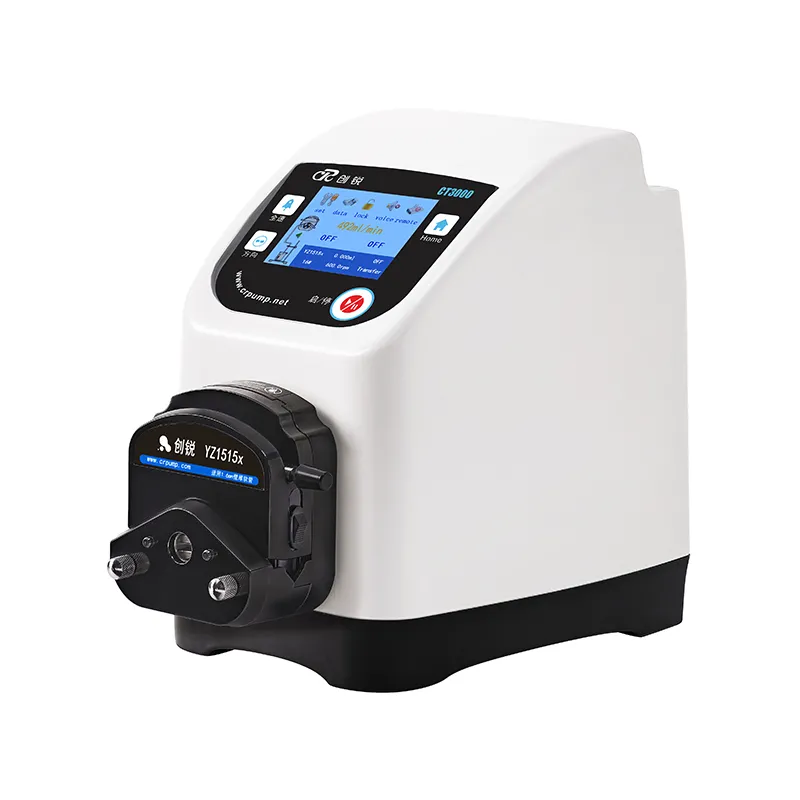

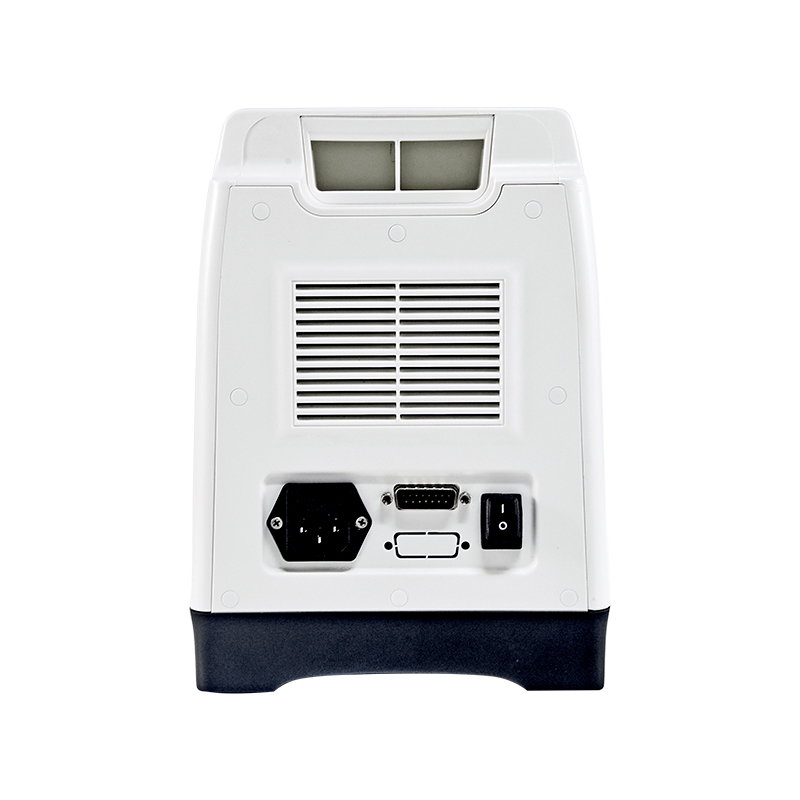

CT series is a Lab intelligent flow type peristaltic pump with beautiful appearance, 3.5-inch color touch screen with dual display in Chinese and English, can perform flow calibration
CT series is a Lab intelligent flow type peristaltic pump with beautiful appearance, 3.5-inch color touch screen with dual display in Chinese and English, can perform flow calibration, and has a variety of working modes to meet different working needs, suitable for YZ series, TX series, DG Series and other pump heads, the pump heads can be cascaded, and support a variety of external control methods such as RS485/MODBUS communication protocol.
3.5-inch color LCD, Chinese and English display, Touch screen control
Multiple working modes
Transmission mode, timing mode, quantitative mode, timing quantitative mode
With flow calibration function, it is suitable for transferring liquids with higher precision
9 sets of data can be stored for users
Adapt to multiple pump heads
YZ, DG, TX series pump heads can be installed, and pump heads can be cascaded
Support external control
Support RS485/MODBUS communication protocol, analog control, foot switch control
Used in laboratory, biological analysis, medical treatment, environmental protection and other fields
Drive model: CT3000
Max Speed: 300rpm(reversible)
Max Flow: 1440mL/min
Speed resolution: Speed resolution 0.1rpm
Speed mode: Touch screen adjustment
Color LCD display (Chinese and English optional)
Timing range: 0.1s-9999min
Quantitative range: 0.001mL-9999L
Suction angle: 10°-720° (0° means no back suction)
Suction speed: 10-300rpm
Power supply: AC220±10% (standard) or AC110V±10% (optional)
External control method:
Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication
Drive size: 225X186X248(mm)
|Pump head||Model||Max Speed||13#|
|Pump head||Model||Max Speed||15#(4.8*2.4)||24#(6.4*2.4)|
|Pump head||Model||Max Speed||0.5*0.8||1*1||2*1||2.4*0.8||3*1|
Flow unit: (mL/min) hose model: (mm)
Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.
For specific needs, please consult Chuangrui Company.
CT1000 Lab Intelligent Flow Peristaltic Pump
