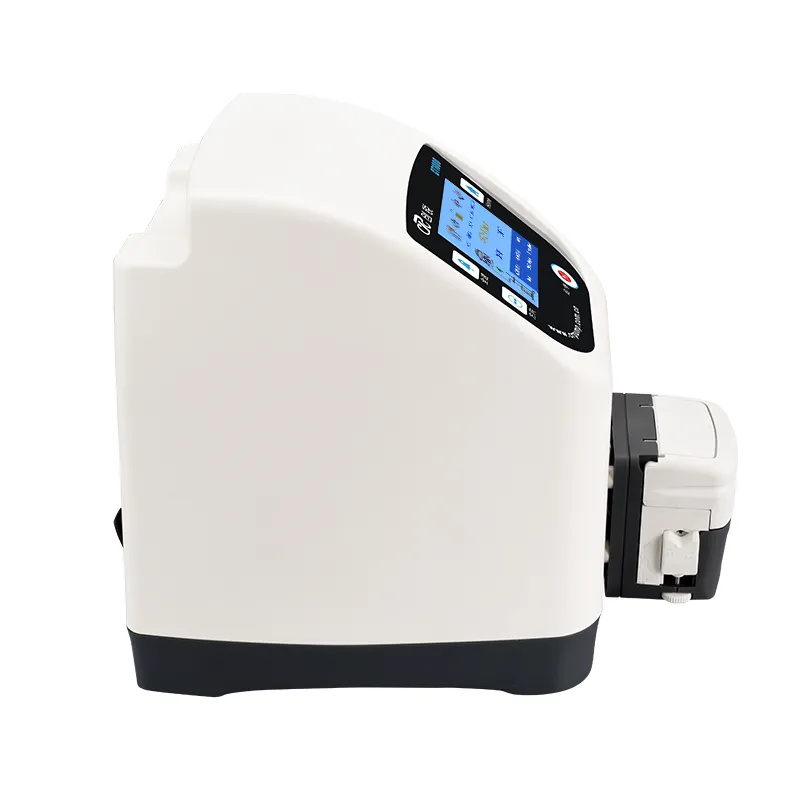

CT1000 110V-220V Peristaltic Pump 0.0015-480mL/min

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

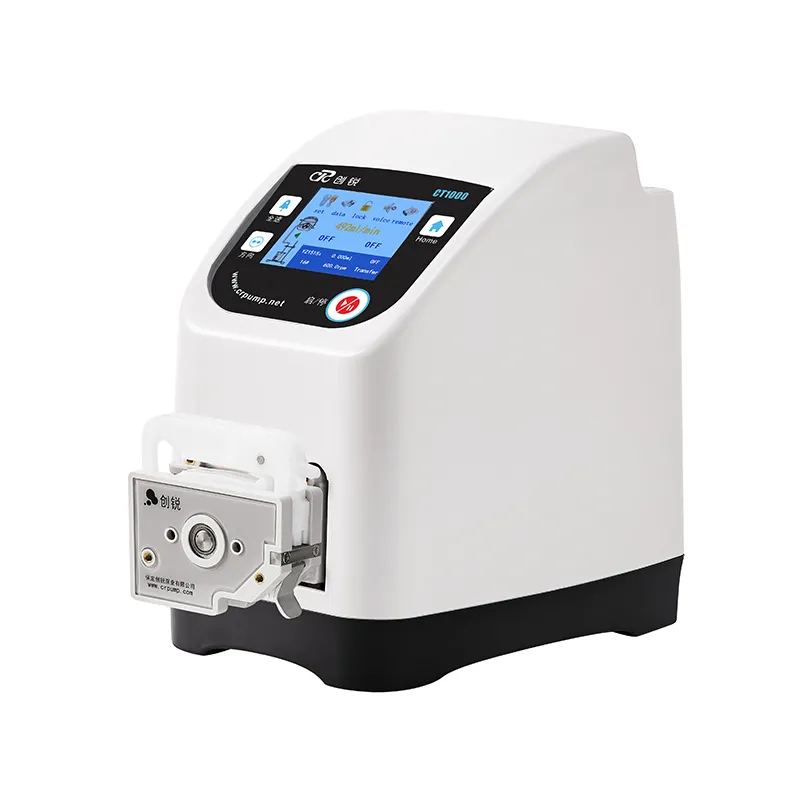

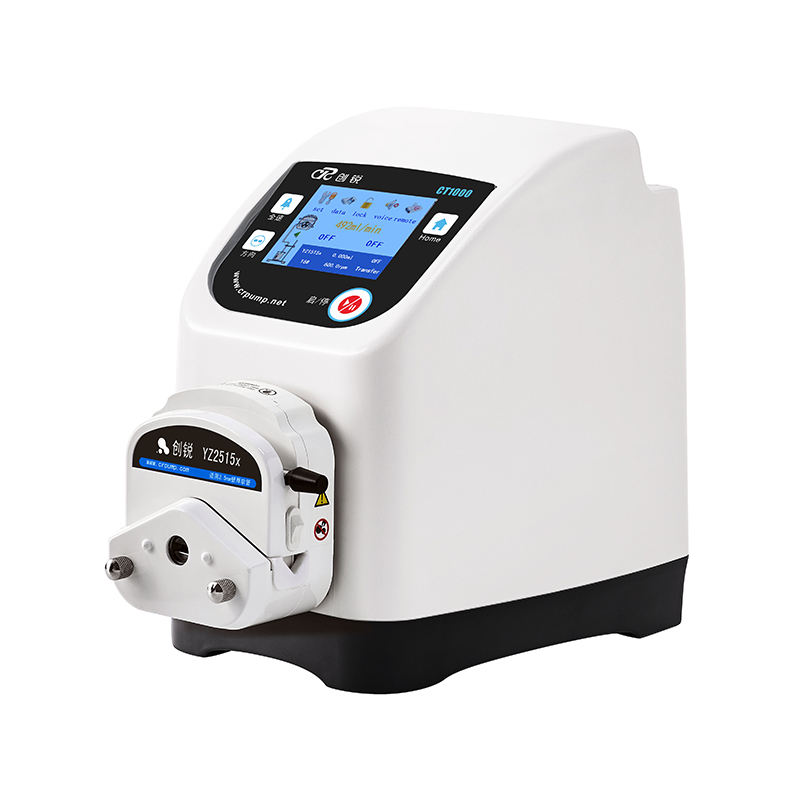

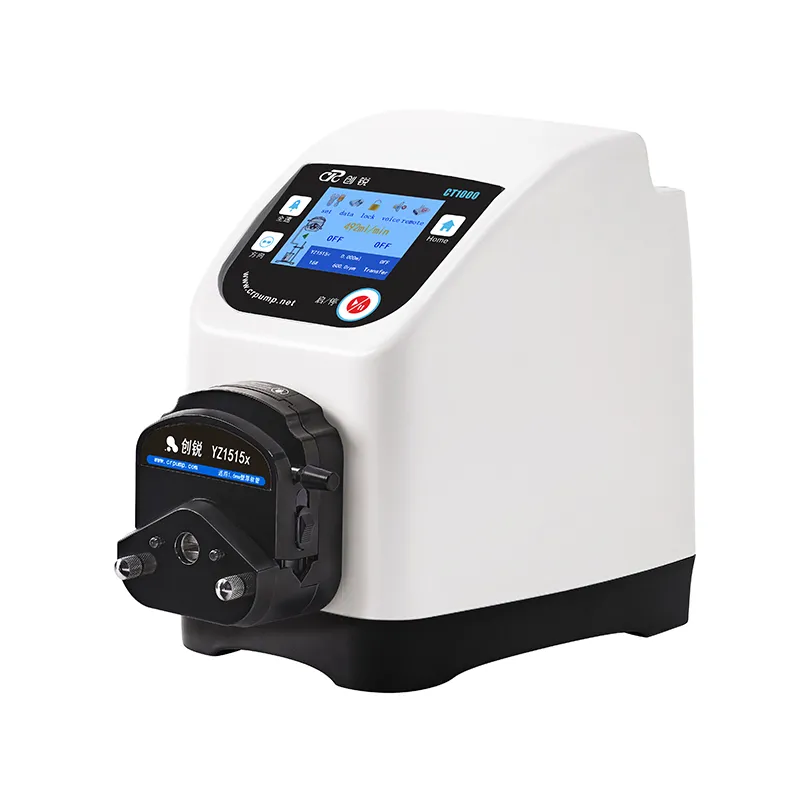

CT1000 series is a Lab intelligent flow type peristaltic pump with an engineering plastic shell, durable and elegant. It adopts a 3.5-inch color touch screen with a dual display. Easy to understand and operate. It has a unique flow calibration function and a variety of working modes to meet different working needs. CT1000 peristaltic metering pump can be loaded with YZ series, TX series, and DG series pump heads. The pump heads can be cascaded. Support a variety of external control methods such as RS485/MODBUS communication protocol.

Features:

- LCD touch: 3.5-inch color LCD, touch screen control, easy to operate.

-The shell is made of engineering plastics, with a streamlined shape design, durable and elegant.

- Multiple working modes: Transmission mode, timing mode, quantitative mode, timing quantitative mode

- Flow calibration: With the flow calibration function, it is suitable for transferring liquids with higher precision

- Data storage: 9 sets of data can be stored for users

- Adapt to multiple pump heads: YZ, DG, TX series pump heads can be installed, and pump heads can be cascaded

- Support external control: Support RS485/MODBUS communication protocol, analog control, foot switch control

Application:

CT1000 Peristaltic metering pumps are widely used in Laboratory, biological analysis, medical treatment, environmental protection, and other fields

CT1000 Lab Intelligent Flow Peristaltic Pump

Drive model: CT1000

Max Speed: 100rpm(reversible)

Max Flow: 480mL/min

Power: <22W

Speed resolution: Speed resolution 0.1rpm

Speed mode: Touch screen adjustment

Display method: Color LCD display (Chinese and English optional)

Timing range: 0.1s-9999min

Quantitative range: 0.001mL-9999L

Suction angle: 10°-720° (0° means no back suction)

Suction speed: 10-300rpm

Power supply: AC220±10% (standard) or AC110V±10% (optional)

External control method: Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication

Drive size: 225X186X248(mm)

Pump head	Model	Max Speed(rpm)	Peristaltic Pump Tubing *(IDWall thickness)mm**
			13# (0.8*1.6)	14# (1.6*1.6)	19# (2.4*1.6)	16# (3.1*1.6)	25# (4.8*1.6)	17# (6.4*1.6)	18# (7.9*1.6)
YZ1515X	CT1000	100	7	27	51	82	170	290	380
YZ15m		100	7	27	51	82	170	290	380
YZ15ma		100	7	27	51	82	170	290	380
			*15#(4.82.4)**			*24#(6.42.4)**
YZ2515X	CT1000	100	170			290
			*0.50.8**	*11**	*21**	*2.40.8**		*31**
DG	CT1000	100(10)	1.5	4	13	17		27
DG		100(6)	2	6	19	24		36
			*14#(1.61.6)**			*16#(3.11.6)**		*25#(4.81.6)**
ZN15	CT1000	100	27			82		170
			*24#(6.42.4)**
ZN25	CT1000	100	290

Flow unit: (mL/min) hose model: (mm)

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chonry.
