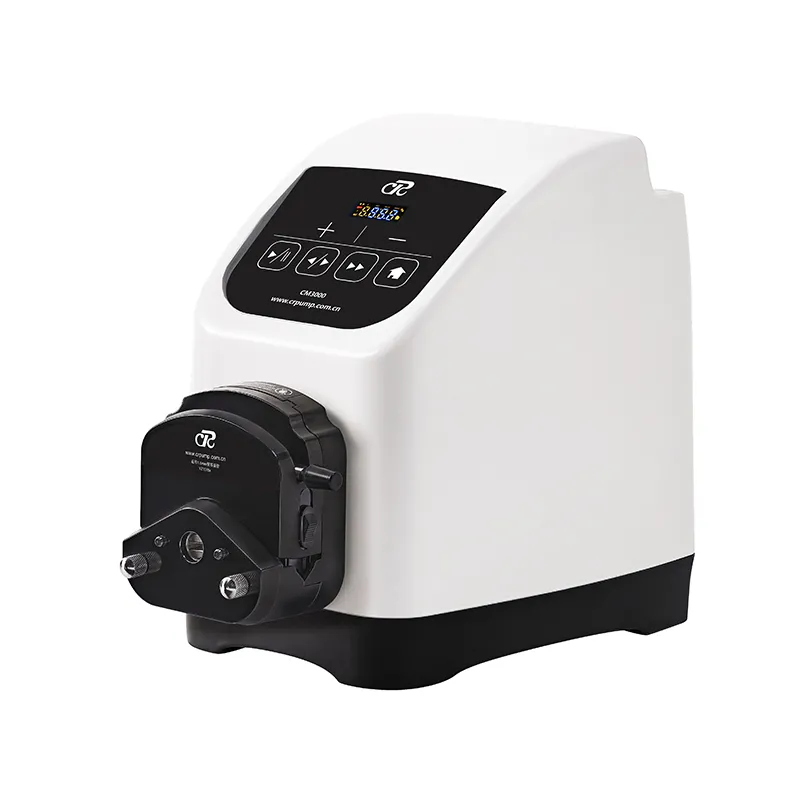

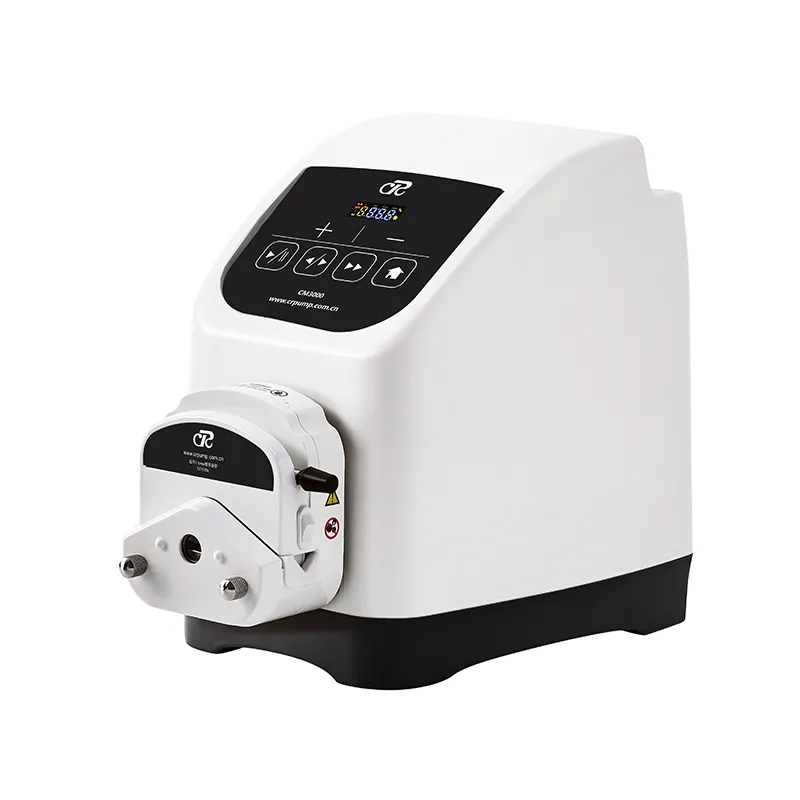

CM3000 best peristaltic pumps are used for Lab, biology, and medicine. The flow rate range is from 0.007 to 1440mL/min. Easy button operation, 4-digit LED digital display of current flow or speed, with multiple functions such as power-off saving, flow calibration, one-button full speed, etc. It supports different external controls such as RS485/MODBUS communication protocol. It is suitable for a variety of pump heads such as YZ series, TX series, DG series, etc., to meet different work needs.

Specification

Easy to operate

Simple appearance, key operation, 4 positionsLED display flow or speed more intuitive

Power off save

Can automatically save the last power-down control parameter

External control function

Support RS485/MODBUS communication protocol, analog control, foot switch control

Liquid volume calibration

The flow correction is carried out according to the target value and the actual value, Ensure transmission accuracy

One key full speed

Features a convenient full-speed button to fulfill or empty pipes quickly

Adapt to multiple pump heads

Various pump heads such as YZ series, DG series and TX series can be installed

Application

Used in photovoltaic, environmental protection, mineral processing, mechanical packaging, solvent extraction and other industries.

CM3000 Digital Button Series Peristaltic Pump

Drive model: CM3000

Max speed: 300rpm(reversible)

Speed resolution: 0.1rpm

Max flow: 1440mL/min

Display method: 4-LED display

Speed mode: Membrane keys

Timing range: 0.1s-9999min

Quantitative range: 0.001mL-9999L

Power: ＜35W

Drive size: 225*185*248mm

Power supply: AC220V±10% (standard) or AC110V±10% (optional)

External control method: Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication

p head	Model	Max Speed	*Peristaltic Pump Tube (IDWall thickness)mm**
			13# (0.8*1.6)	14# (1.6*1.6)	19# (2.4*1.6)	16# (3.1*1.6)	25# (4.8*1.6)	17# (6.4*1.6)	18# (7.9*1.6)
YZ1515X	CM3000	300	21	81	153	246	510	870	1140
YZ15m		300	21	81	153	246	510	870	1140
YZ151ma		300	21	81	153	246	510	870	1140
			*15#(4.82.4)**			*24#(6.42.4)**
YZ2515X	CM3000	300	510			870
			*14#(1.61.6)**			*16#(3.11.6)**		*25#(4.81.6)**
ZN15	CM3000	300	81			246		510
			*24#(6.42.4)**
ZN25	CM3000	300	870

Flow unit: (mL/min) hose model: (mm)

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chuangrui Company.
