BG600LC-S Touchscreen High Volume Peristaltic Pump

Flow Rate: 12000ml/min

Max Speed: 600rpm

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

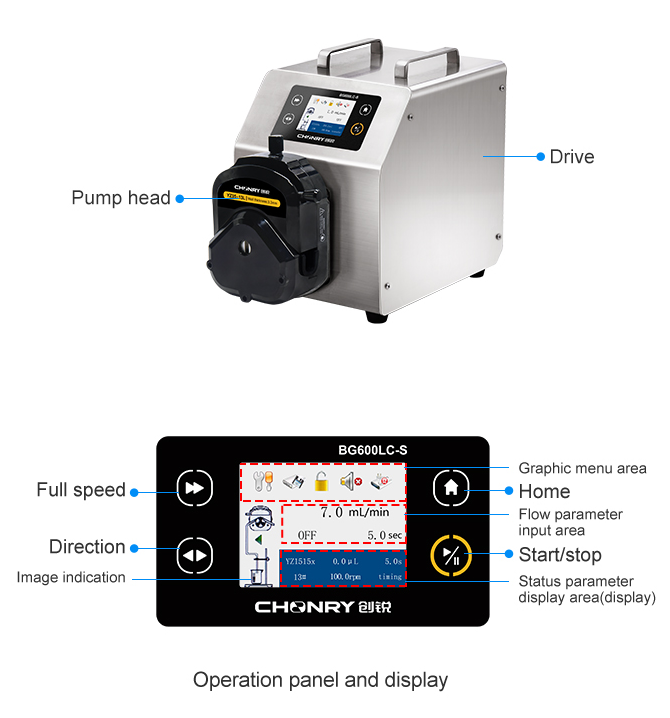

BG600LC-S is a touchscreen high volume peristaltic pump. It adopts 3.5-inch color LCD touchscreen control. Chinese and English operation interface, real-time display of various operating parameters on the same screen, easy to use. BG600LC-S provides user data storage function, realizes fast transmission, and meets different work needs. Large torque in both directions. It is suitable for YZ35, YZ35-13L, and YZ35LS pump heads and can be cascaded to multiple pump heads. Perform liquid volume calibration, support RS485MODBUS communication protocol, and provide a variety of external control methods.


Advantages



LCD touch

3.5-inch color LCD, Chinese and English display, touch screen control.

Suction function

The speed angle of reverse operation can be customized to prevent liquid dripping.

Adapt to multiple pump heads

YZ35, YZ35-13L, and YZ35LS pump heads can be installed, and pump heads can be cascaded.

Multiple working modes

Transmission mode, timing mode, quantitative mode, timing quantitative mode.

Data storage

8 sets of data can be stored for users.

Support external control

Support RS485MODBUS communication protocol, analog control, and foot switch control.


Application:

Used in mineral processing, pharmaceutical factory, chemical industry, environmental protection and other fields, or used with industrial equipment.


                                                                              Technical Parameter
Drive modelBG600LC-S
Max speed600rpm (reversible)
Speed resolution0.1rpm
Max flow12000mL/min
Speed modeTouch screen adjustment
Display methodColor LCD display (Chinese and English optional)
Suction angle10°-720° (0° means no back suction)
Suction speed10-300rpm
Power supplyAC220±10% (standard) or AC110V±10% (optional)
Power<400W
External control interfaceStart control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication.
Drive size340X238X325.5 mm
Protection classIP31 (indoor use, avoid prolonged exposure to UV rays)
Drive weight21kg



Pump head/hose flow parameter table:

Pump HeadHoseID(mm)Wall Thickness(mm)Max Flow(ml/min)Max Speed(rpm)

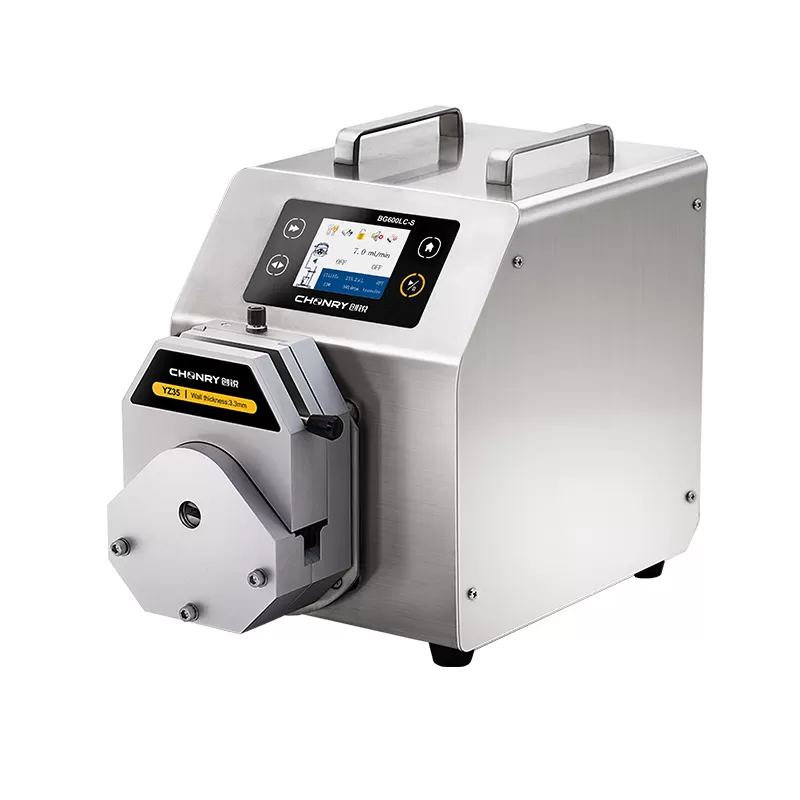

YZ3573#9.63.37400600
82#12.73.312000

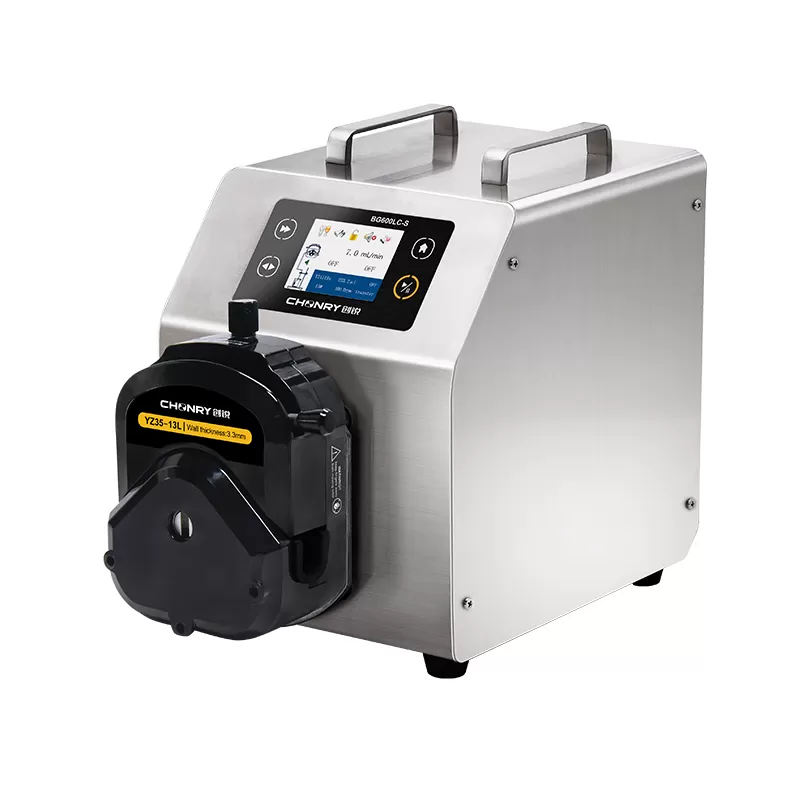

YZ35-13L73#9.63.37400
82#12.73.312000

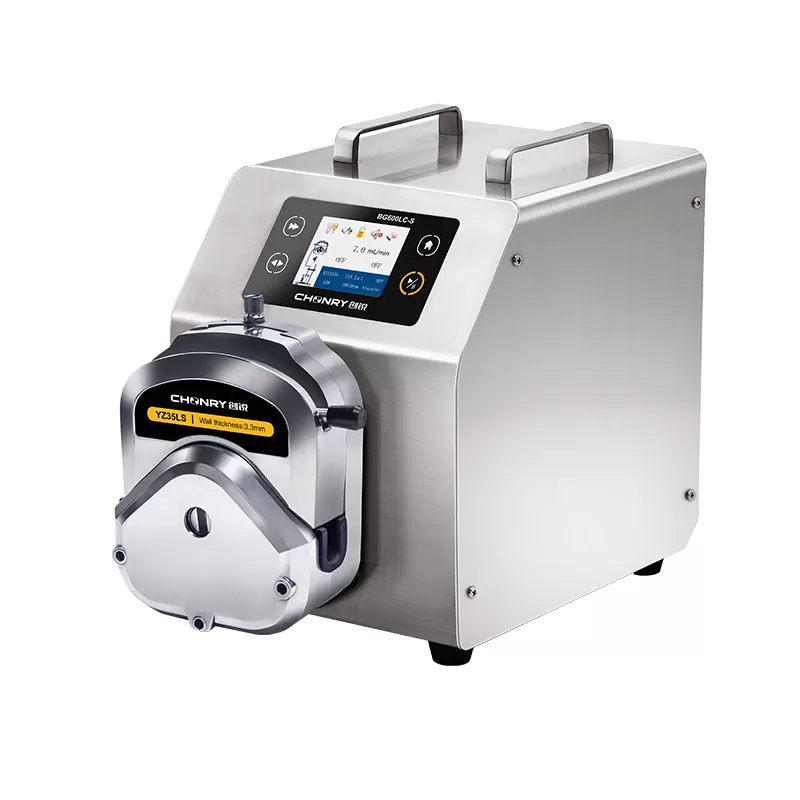

YZ35LS73#9.63.37400
82#12.73.312000


Test conditions:

1. Flow data testing environment for room temperature 20-25 ℃, relative humidity is not more than 80%, altitude is not more than 1500 meters.

2. The test is measured using a straight-through tube, a suction range of 0.5 meters, the head is not more than 0.5 meters, and the total length of the tube is not more than 1.5 meters (inlet end + outlet end + test end).

The above data test environment for normal temperature and pressure, the test fluid is water, and the data is for reference only, please prevail in practice.

For specific needs, please consult Chonry Company.
