ZG600 Cheap Peristaltic Pump Liquid Dosing DC Motor 0.7-12L/min

Product Description
Technical Parameter
Product Selection
PDF Download
Operation Video
Application

ZG600 is a type of high-flow transmission peristaltic pump. It adopts a high-power DC motor driver with large bidirectional torque. It can be loaded with YZ35, YZ35-13L and YZ35LS pump heads. Multichannel pump heads can be cascaded . Digital knob adjustment simple to operate. ZG600 peristaltic dosing pump adopts a 3-digit LED to display the current flow and speed to meet different application requirements.

Specification

Powerful: High-power DC motor drive, strong load capacity

Strong and sturdy: The body shell is made of stainless steel, which is sturdy and durable

Can be cascaded: Two-way high torque can cascade multiple pump heads.

High volume flow peristaltic pump: Equipped with large flow YZ35, YZ35-13L and YZ35LS pump head, the maximum flow capacity is 12L.

Application

Used in food filling, mechanical grinding and polishing liquid, chemical liquid transportation, and large flow transmission such as water treatment

Drive model: ZG600

Max speed: 600rpm

Speed resolution: 1rpm

Max flow: 12000mL/min

Speed mode: Digital knob to adjust the speed

Display method: Three digit LED displays current speed

Power supply: AC220V+10%(standard) or AC110V+10% (optional)

Power: <400W

Drive size: 345X232X226 (mm)

Drive weight: 19kg

Pump Head	Tube	ID(mm)	Wall Thickness（mm）	Max Flow（ml/min）	Max Speed(rpm)
YZ35	73#	9.6	3.3	7400	600
YZ35	82#	12.7	3.3	12000

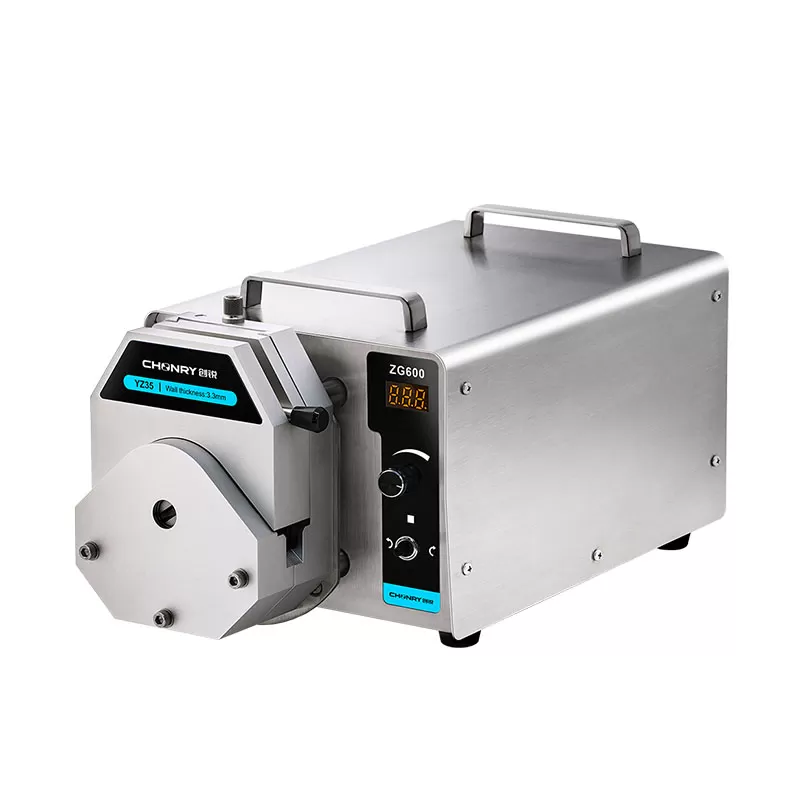

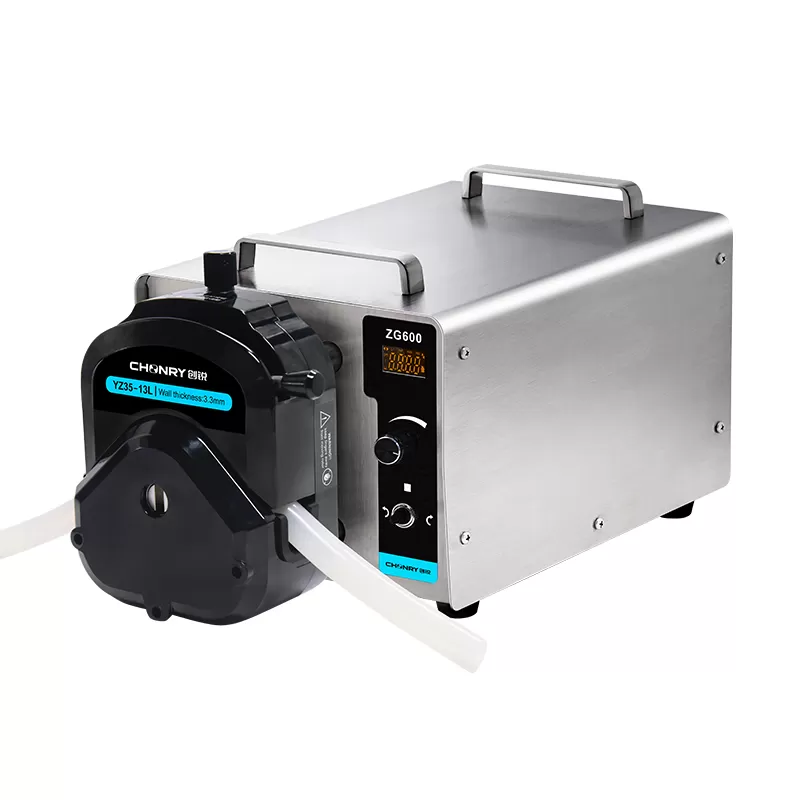

YZ35-13L	73#	9.6	3.3	7400
YZ35-13L	82#	12.7	3.3	12000

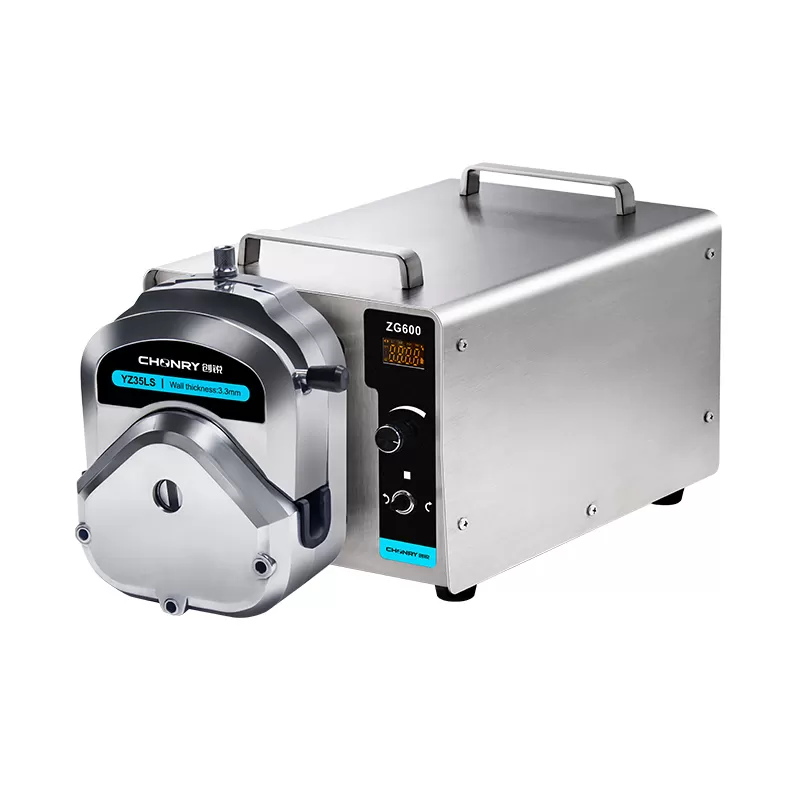

YZ35LS	73#	9.6	3.3	7400
YZ35LS	82#	12.7	3.3	12000

Flow unit: (mL/min) Tube: (mm)

Test Conditions:

1. Flow data testing environment for room temperature 20-25 ℃, relative humidity is not more than 80%, altitude is not more than 1500 meters.

2. The test is measured using a straight-through tube, a suction range of 0.5 meters, the head is not more than 0.5 meters, and the total length of the tube is not more than 1.5 meters (inlet end + outlet end + test end).

Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chonry.

ZG600 Brochure ZG600 is a DC industrial peristaltic pump. It adopts high-power DC motor, two-way high torque, YZ35, YZ35-13 and other pump heads are installed. Multiple pump heads can be cascaded.

ZG600 Pump Head/Tube Flow Parameter Table Used in food filling, mechanical grinding and polishing liquid, chemical liquid transportation, water treatment and other large flow transmission

ZG600 High Flow Industrial Peristaltic Pump
