BG600-S Precision Peristaltic Pump High FLow

Flow Rate: 1.3-12000mL/min

- Suitable for industrial production, pilot scale tests, ultrafiltration supporting and liquid transfer with large flow and high precision.

- Simple servo motor. Stable flow rate.

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

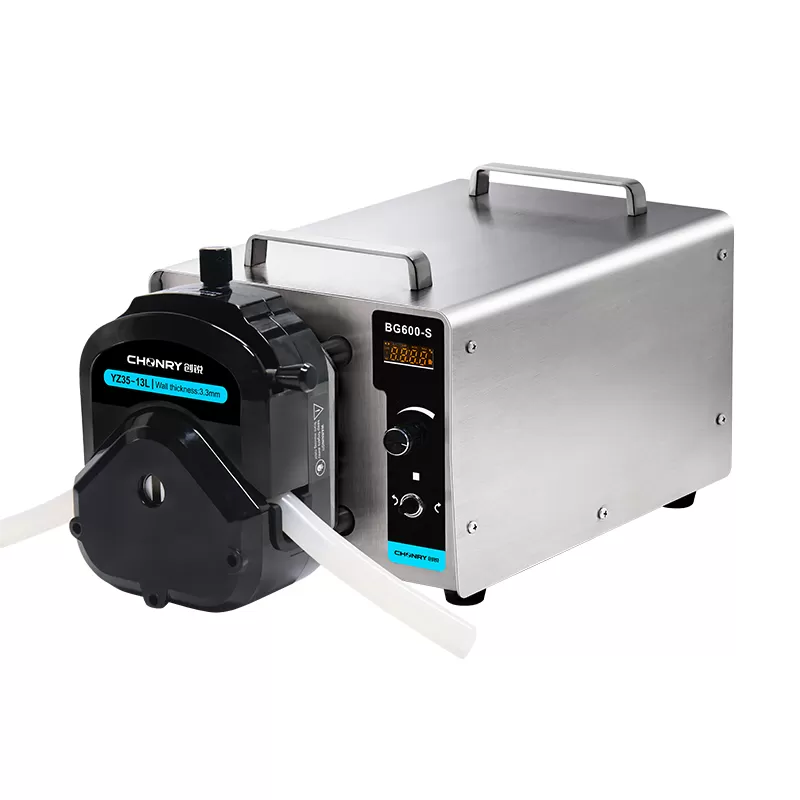

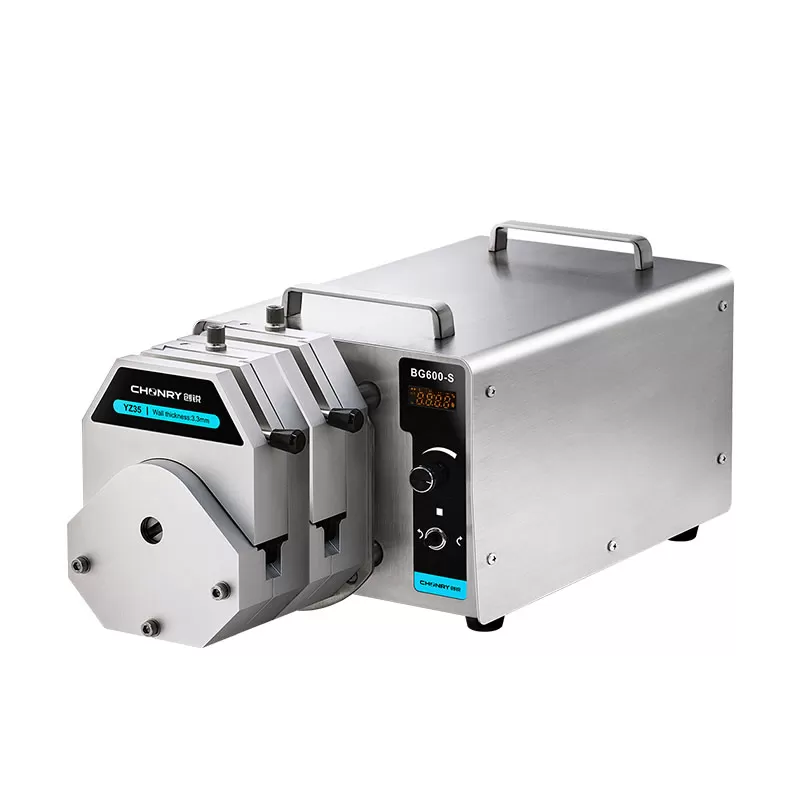

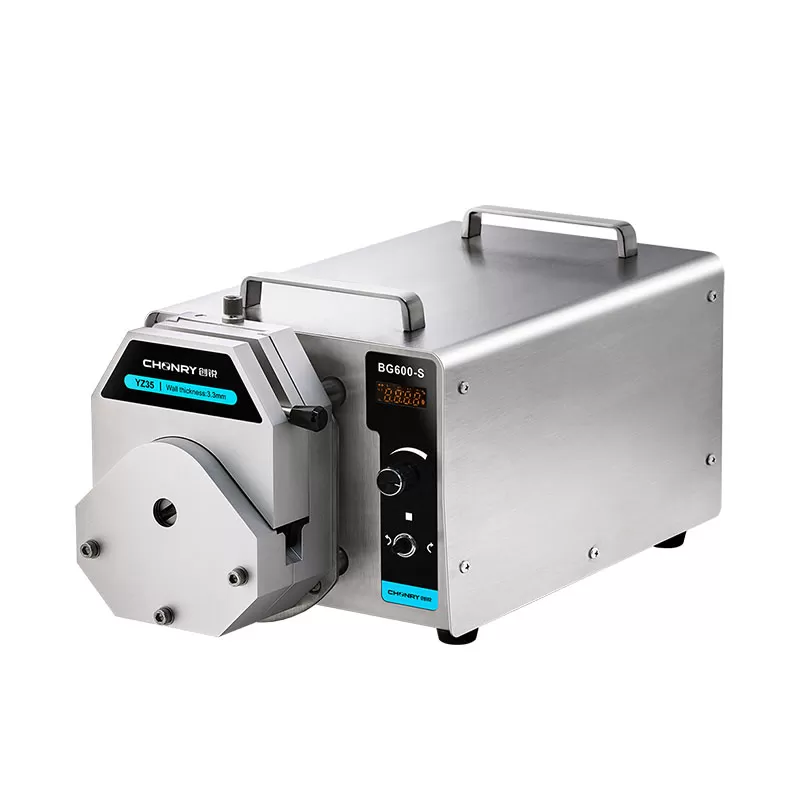

BG600-S peristaltic pump is  high-flow and multi-channel. Adopting a simple servo motor ensures a stable flow rate. This is a high flow peristaltic dosing pump with a flow rate range from 1.3 to 12000mL/min. It is equipped with pump heads such as YZ35 and YZ35-13: easy digital knob adjustment, and two-way large torque. The current flow or speed is displayed through a 4-digit LED, and the liquid volume can be calibrated. It supports the RS485/MODBUS communication protocol, and the knob adjusts the parameters. The operation is simple and convenient.


Specification

Power off save

Can automatically save the control parameters when the last power failure

One key full speed

For quick cleaning, filling, and emptying of pipes. Save time.

Flow calibration

After setting the target flow, input the actual flow value, and the system will automatically perform flow correction

Suction function

The pump can be customized to reverse operation after shutdown to prevent liquid from dripping

External control function

Support RS485/MODBUS communication protocol, the protocol can also be customized according to customer needs

Can be cascaded

Bidirectional high torque, low power consumption motor, can cascade multiple pump heads


Application

It is suitable for industrial production, pilot scale tests, ultra filtration supporting and liquid transfer with large flow and high precision.

Drive model: BG600-S

Max speed: 600rpm (reversible)

Speed resolution: 0. 1rpm

Max flow: 12000mL/min

Speed mode: Digital knob to adjust the speed

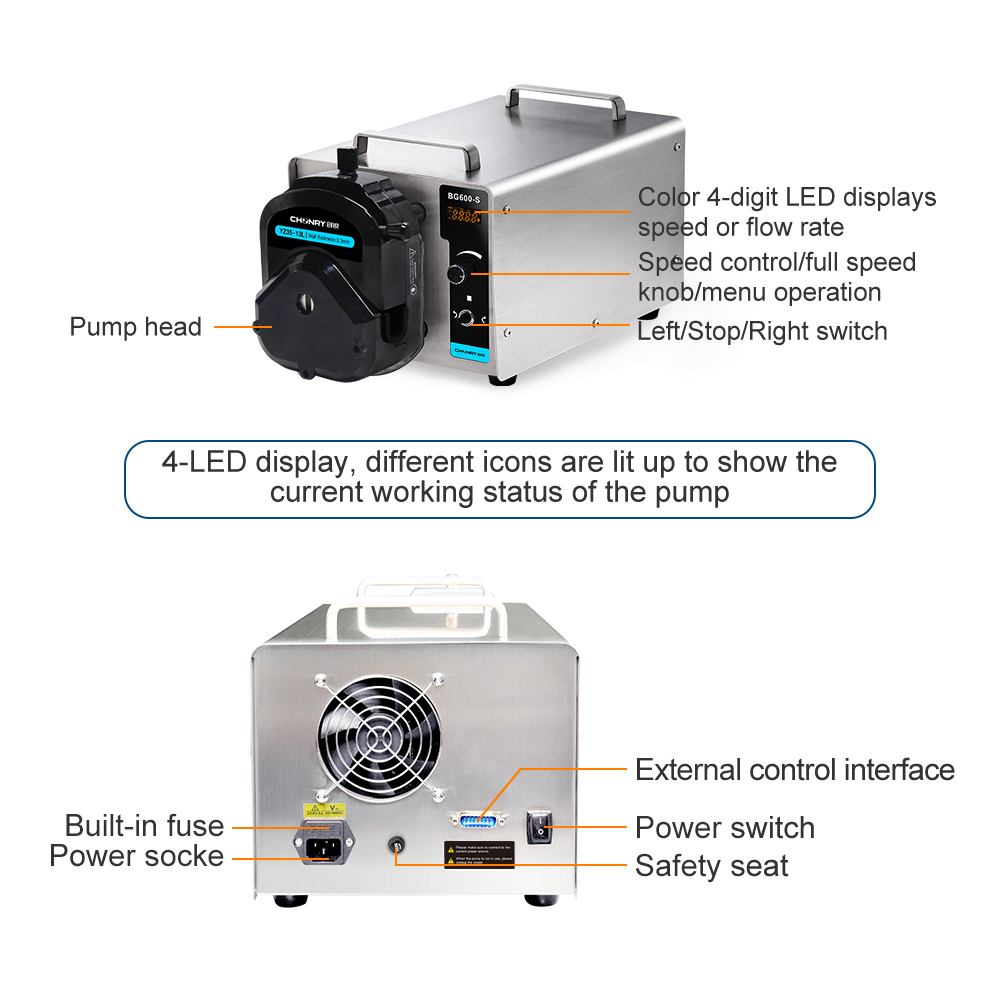

Display method: 4-digit LED displays current speed or flow

Suction angle: 10°-720°(0° means no back suction)

Suction speed: 10-300rpm

Power supply: AC220+10%(standard) or AC110V+10% (optional)

Power: <400W

External control interface: Start control/direction control/speed control (0-5V, 0-10, 4-20mA optional) RS485 serial communication

Drive size: 364X238X226 (mm)

Drive weight: 19kg

Pump HeadModelTubeID(mm)Wall Thickness(mm)Max Flow(ml/min)Max Speed(rpm)
YZ35YZ3573#9.63.37400600
YZ3582#12.73.312000
YZ35-13LYZ35-13L73#9.63.37400
YZ35-13L82#12.73.312000

Flow unit: (mL/min) Tube: (mm)


Note: The test environment for flow data is normal temperature and pressure, and the test fluid is water. The values are for reference only, please refer to the actual situation.

For specific needs, please consult Chonry.
