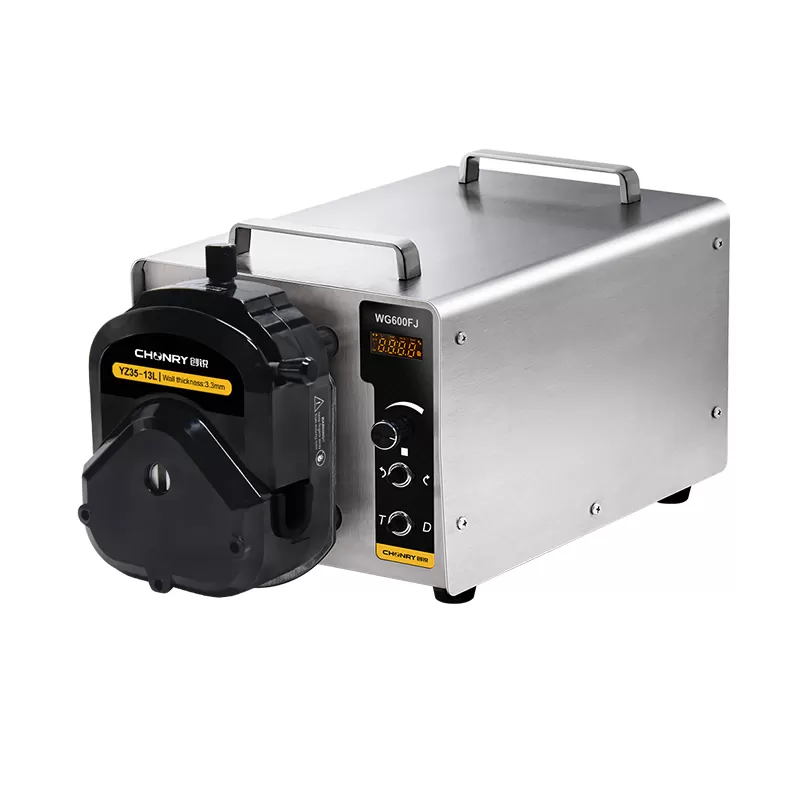

WG600FJ Large Flow Digital Distribution Peristaltic Pump

Flow Rate: 12000ml/min

Max Speed:600rpm

Inquire Now
  • Product Description
  • Technical Parameter
  • Product Selection
  • PDF Download
  • Operation Video
  • Application

WG600FJ is a large-flow digital distribution peristaltic pump. It can switch the transmission mode and distribution mode to adapt to different working environments. It is equipped with YZ35, YZ35-13L, and YZ35LS pump heads. Multiple pump heads can be cascaded and adjusted with digital knobs.High torque in both directions. The current flow rate or rotational speed is displayed through 4-digit LED, and the liquid volume can be calibrated. It supports the RS485MODBUS communication protocol, and the knob adjusts the parameters. The operation is simple and convenient.


Advantages:



Mode switch

Two modes of transmission or distribution can be switched by adjusting the key position.

Servo motor

Driven by servo motor, powerful and more accurate control.

Power off save

Can automatically save the control parameters when the last power fails.

Flow calibration

After setting the target flow, input the actual flow value, and the system will automatically perform flow correction.

Can be cascaded

YZ35, YZ35-13L, and YZ35LS pump heads can be installed, and multiple pump heads can be cascaded.

External control function

Support RS485MODBUS communication protocol, the protocol can also be customized according to customer needs.



Applications:

It is used in industrial fermentation, and fluid transportation such as superplasticizers and admixtures, and is suitable for large-flow sub-packaging environments.


Technical Parameter
Drive modelWG600FJ
Max speed600rpm (reversible)
Speed resolution0.1rpm
Max flow12000mL/min
Speed modeDigital knob to adjust the speed
Display method4-digital LED display current speed or flow
Suction angle10°-720°
Suction speed30-300rpm
Power supplyAC220±10% (standard) or AC110V±10% (optional)
Power<400W
External control interfaceStart control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication.
Drive size372X232X225.5 mm
Drive weight19kg
IP gradeIP31



Pump head/hose flow parameter table:


Pump HeadHoseID(mm)Wall Thickness(mm)Max Flow(ml/min)Max Speed(rpm)
YZ3573#9.63.37400600
82#12.73.312000
YZ35-13L73#9.63.37400
82#12.73.312000
YZ35LS73#9.63.37400
82#12.73.312000


Test conditions:

1. Flow data testing environment for room temperature 20-25 ℃, relative humidity is not more than 80%, altitude is not more than 1500 meters.

2. The test is measured using a straight-through tube, a suction range of 0.5 meters, the head is not more than 0.5 meters, and the total length of the tube is not more than 1.5 meters (inlet end + outlet end + test end).

The above data test environment for normal temperature and pressure, the test fluid is water, and the data is for reference only, please prevail in practice.

For specific needs, please consult Chonry Company.
