What Is the Role of the Peristaltic Pump Applied for Chemical Feeding Reaction Kettle?


What Is the Role of the Peristaltic Pump Applied for Chemical Feeding Reaction Kettle?

A peristaltic pump feeding method is proposed to reduce the labor intensity of chemical experiments. The peristaltic pump is characteristics and advantages in the chemical reaction process are described in detail to show the feasibility of the peristaltic pump’s application in the chemical reaction process.

What is the role of the reaction kettle?

A reaction kettle, also known as a reaction vessel or reactor, is a container used in chemical engineering to carry out chemical reactions. It plays a crucial role in various industries, including pharmaceuticals, petrochemicals, food processing, and other chemical manufacturing processes.

As we all know, the chemical reaction has a certain risk, which requires the experimenter to have a certain degree of experimental quality and operational level. In the reaction reactor to add the reaction of raw materials, also needs to operate accurately, the operator's labor intensity. The use of peristaltic pump feed, can replace the traditional test mode under a large number of manual operations, greatly reducing the labor intensity of the experimental staff, and improving the efficiency of the experiment and the output efficiency of scientific research.

Application Advantages of Peristaltic Pump in Chemical Reaction

The use of a peristaltic pump instead of manpower in the chemical reaction process to the reactor feeding has the following advantages:

1. peristaltic pump in the process of pumping raw materials, raw materials only in the hose flow, not with the pump contact, to avoid the pump on the

raw material pollution, and reduce the impact of chemical reaction impurities. At the same time, it will not damage the mechanical components of the peristaltic pump

due to the corrosive nature of the raw materials

2. Peristaltic pump start, no need to pump, self-priming ability, can produce enough vacuum suction material from the raw material into the hose to the hose,

which can adjust the length of the hose to make the installation of the peristaltic pump flexible.

3. Peristaltic pump structure is simple, adaptable, and suitable for conveying high viscosity, a large proportion of the reaction solution.

4. The pump itself is free of leakage, no sealing and other special requirements, putting an end to the leakage of chemical raw materials caused by the loss and pollution.

When the pump stops, the wheel itself acts as a valve to prevent backflow.

5. The function of the peristaltic pump is sensitive, the suction is stable, can be controlled for continuous pumping of chemical raw materials, and can also be used for

automated management.

6. Peristaltic pump flow high precision, easy to achieve trace and ultra-fine pumping, add liquid and drip. In a variety of raw materials for delivery and preparation of

quantitative accuracy, simple and reliable.

7. Each raw material pot by a peristaltic pump independent control, the raw material pumping does not interfere with each other, easy to synthesize various proportions of the solution.

What Is the Role of the Peristaltic Pump Applied for Chemical Feeding Reaction Kettle?

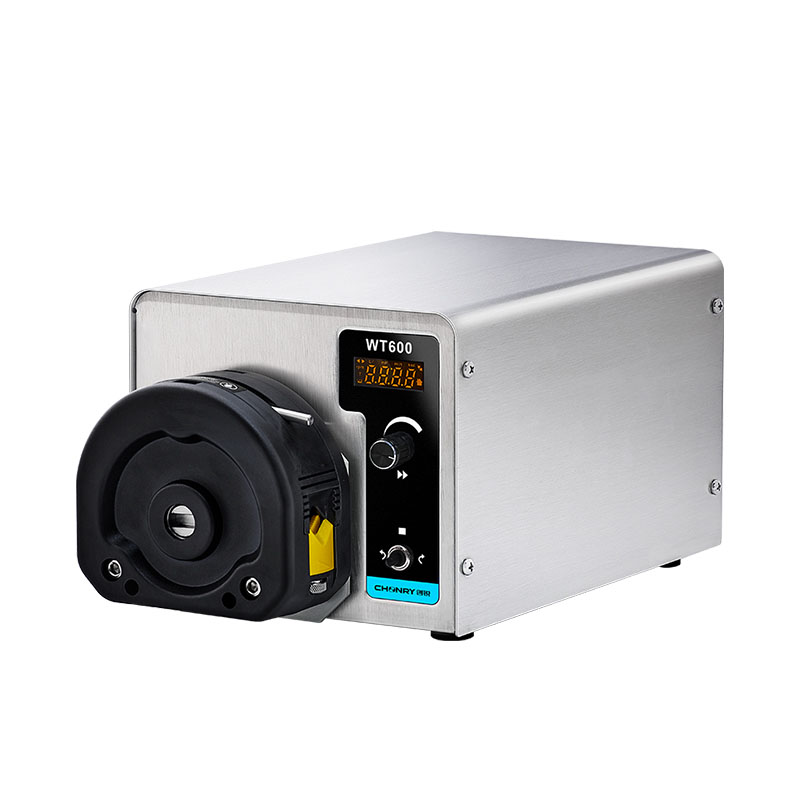

WT600 DC Brushless High Flow Peristaltic Pump Industrial

- DC brushless motor peristaltic pump. Large flow rate. 6000ml/min

- Industrial peristaltic pump. Used for membrane filtration, additive adding, chemical liquid dispensing, and glue liquid dispensing.
